2009 Hyundai Santa Fe Owner's Manual - RHD (UK, Australia)

1FEATURES OF YOUR HYUNDAI
14
!
OCM052012R
OCM052013R

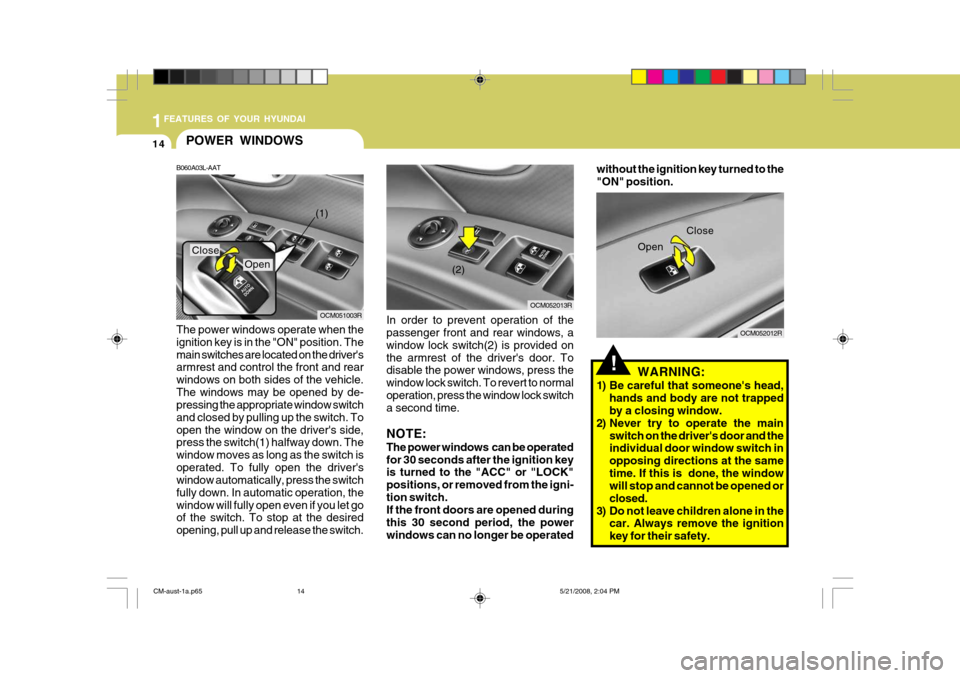

POWER WINDOWS
B060A03L-AAT
OCM051003R(2)
(1)
Close
Open
The power windows operate when the ignition key is in the "ON" position. Themain switches are located on the driver's armrest and control the front and rear windows on both sides of the vehicle.The windows may be opened by de- pressing the appropriate window switch and closed by pulling up the switch. Toopen the window on the driver's side, press the switch(1) halfway down. The window moves as long as the switch isoperated. To fully open the driver's window automatically, press the switch fully down. In automatic operation, thewindow will fully open even if you let go of the switch. To stop at the desired opening, pull up and release the switch. In order to prevent operation of the passenger front and rear windows, a window lock switch(2) is provided onthe armrest of the driver's door. To disable the power windows, press the window lock switch. To revert to normaloperation, press the window lock switch a second time. NOTE: The power windows can be operated for 30 seconds after the ignition key is turned to the "ACC" or "LOCK" positions, or removed from the igni-tion switch. If the front doors are opened during this 30 second period, the powerwindows can no longer be operated
WARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main
switch on the driver's door and theindividual door window switch in opposing directions at the sametime. If this is done, the window will stop and cannot be opened or closed.
3) Do not leave children alone in the car. Always remove the ignitionkey for their safety.
without the ignition key turned to the"ON" position.
Open
Close
CM-aust-1a.p65
5/21/2008, 2:04 PM
14

1
FEATURES OF YOUR HYUNDAI
15
!
!

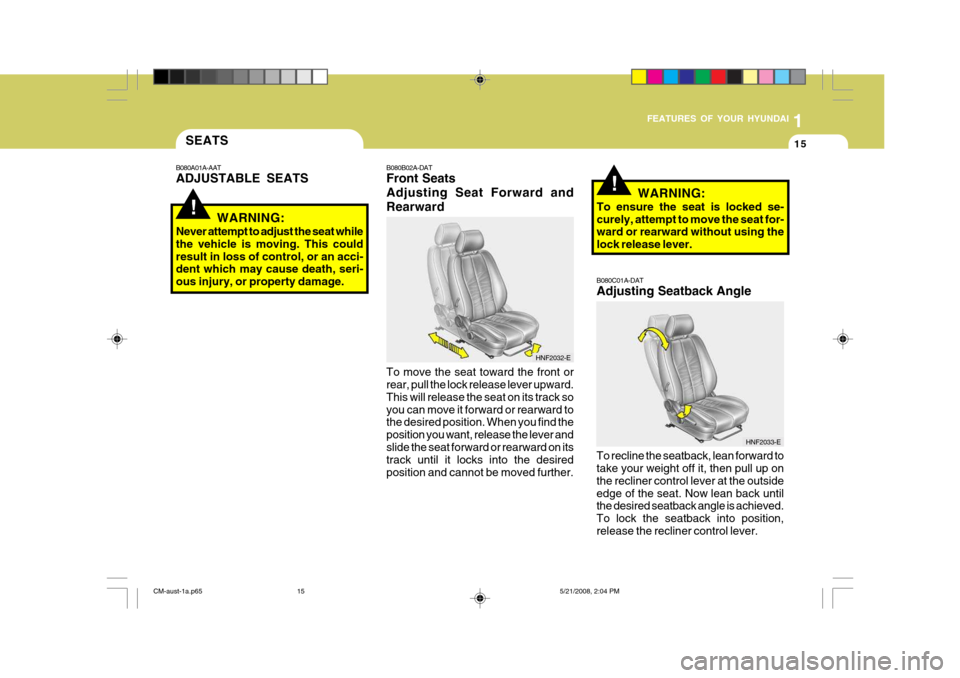

SEATS
B080A01A-AAT ADJUSTABLE SEATS
WARNING:
Never attempt to adjust the seat while the vehicle is moving. This couldresult in loss of control, or an acci- dent which may cause death, seri- ous injury, or property damage. B080B02A-DAT Front Seats Adjusting Seat Forward andRearward To move the seat toward the front or rear, pull the lock release lever upward. This will release the seat on its track soyou can move it forward or rearward to the desired position. When you find the position you want, release the lever andslide the seat forward or rearward on its track until it locks into the desired position and cannot be moved further.B080C01A-DAT Adjusting Seatback Angle To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at the outsideedge of the seat. Now lean back until the desired seatback angle is achieved. To lock the seatback into position,release the recliner control lever.WARNING:
To ensure the seat is locked se-curely, attempt to move the seat for- ward or rearward without using the lock release lever.
HNF2032-E
HNF2033-E
CM-aust-1a.p65 5/21/2008, 2:04 PM
15

1FEATURES OF YOUR HYUNDAI
16

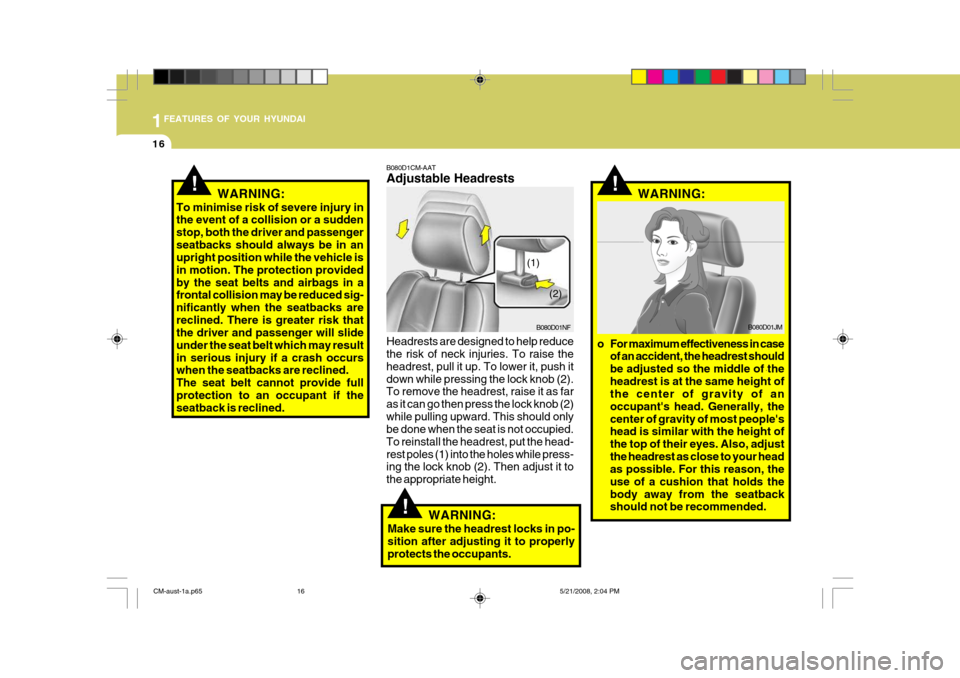

!WARNING:
To minimise risk of severe injury in the event of a collision or a sudden stop, both the driver and passengerseatbacks should always be in an upright position while the vehicle is in motion. The protection providedby the seat belts and airbags in a frontal collision may be reduced sig- nificantly when the seatbacks arereclined. There is greater risk that the driver and passenger will slide under the seat belt which may resultin serious injury if a crash occurs when the seatbacks are reclined. The seat belt cannot provide fullprotection to an occupant if the seatback is reclined.!WARNING:
B080D01JM
o For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of theheadrest is at the same height of the center of gravity of an occupant's head. Generally, thecenter of gravity of most people's head is similar with the height of the top of their eyes. Also, adjustthe headrest as close to your head as possible. For this reason, the use of a cushion that holds thebody away from the seatback should not be recommended.
(1)
B080D01NF
B080D1CM-AAT Adjustable Headrests Headrests are designed to help reduce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push itdown while pressing the lock knob (2). To remove the headrest, raise it as far as it can go then press the lock knob (2)while pulling upward. This should only be done when the seat is not occupied. To reinstall the headrest, put the head-rest poles (1) into the holes while press- ing the lock knob (2). Then adjust it to the appropriate height.
!WARNING:
Make sure the headrest locks in po- sition after adjusting it to properly protects the occupants. (2)
CM-aust-1a.p65
5/21/2008, 2:04 PM
16

1
FEATURES OF YOUR HYUNDAI
17

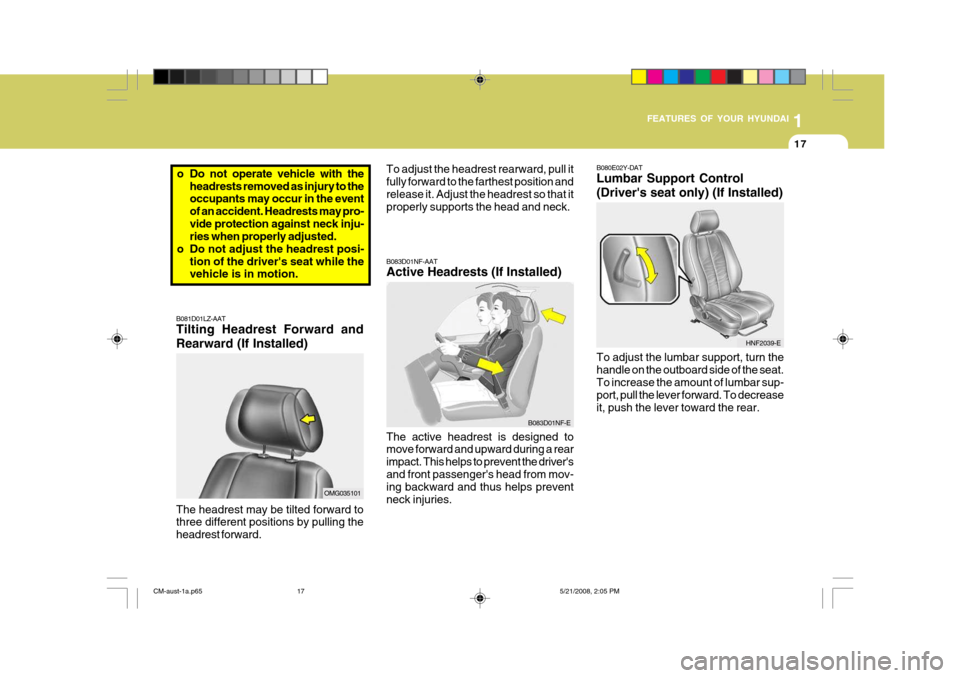

B081D01LZ-AAT Tilting Headrest Forward and Rearward (If Installed) B083D01NF-AAT Active Headrests (If Installed) The active headrest is designed to move forward and upward during a rear impact. This helps to prevent the driver'sand front passenger's head from mov- ing backward and thus helps prevent neck injuries.
B083D01NF-EB080E02Y-DAT Lumbar Support Control (Driver's seat only) (If Installed) To adjust the lumbar support, turn the handle on the outboard side of the seat.To increase the amount of lumbar sup- port, pull the lever forward. To decrease it, push the lever toward the rear.
HNF2039-E
o Do not operate vehicle with the
headrests removed as injury to the occupants may occur in the event of an accident. Headrests may pro-vide protection against neck inju- ries when properly adjusted.
o Do not adjust the headrest posi- tion of the driver's seat while thevehicle is in motion.
The headrest may be tilted forward tothree different positions by pulling the headrest forward.
OMG035101 To adjust the headrest rearward, pull it fully forward to the farthest position andrelease it. Adjust the headrest so that it properly supports the head and neck.
CM-aust-1a.p65
5/21/2008, 2:05 PM
17

1FEATURES OF YOUR HYUNDAI
18
!
!
B090A01TG-DAT FRONT POWER SEATS (If Installed) The front seats can be adjusted appro- priately by using the control knob of theseat. Before driving away, adjust the seat to the proper position so as to easily control the steering wheel, ped-als and switches on the instrument panel.
CAUTION:
Do not operate two knobs at the same time.
WARNING:
o Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control, and an accident causing death, seri-ous injury, or property damage.
o Sitting or leaning unnecessarily
close to the front airbags mayresult in reduced protection in case of airbag deployment during a vehicle accident.
B080F01NF-EAT Seat Cushion Height Adjustment (Driver's Seat Only) To adjust the height of the seat cush- ion, raise or lower the control lever in theappropriate position.
HNF2034-E
B090B01NF-GAT Adjusting Seat Forward and Rearward Pull the control knob forward or rear- ward to move the seat forward or rear-ward to the desired position. Release the control knob and the seat will re- main at that position.OCM052026R
CM-aust-1a.p65
5/21/2008, 2:05 PM
18

1
FEATURES OF YOUR HYUNDAI
19
!

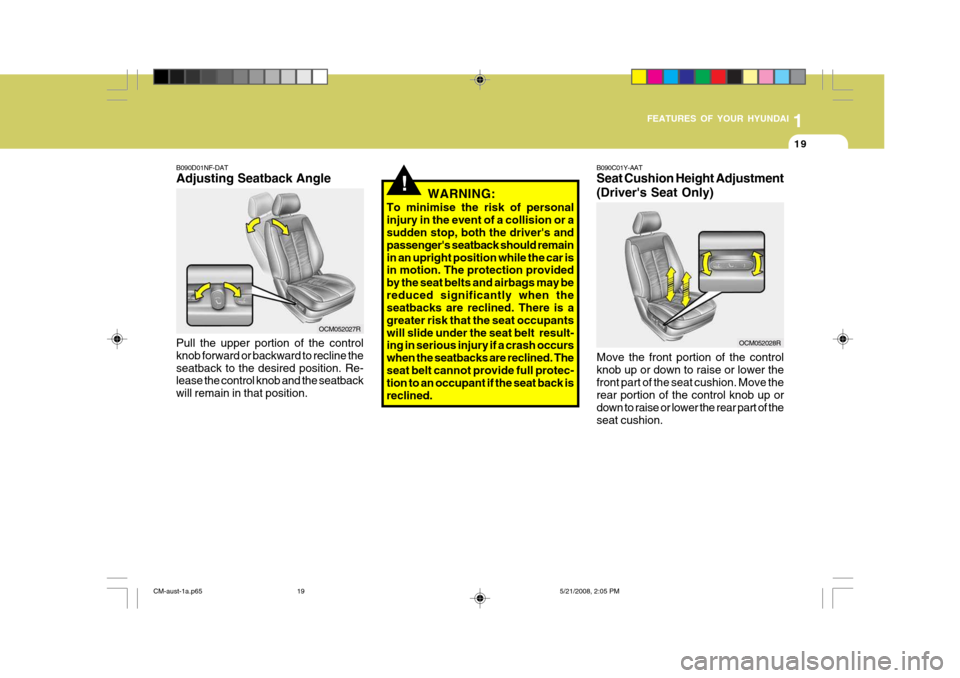

B090D01NF-DAT Adjusting Seatback Angle Pull the upper portion of the control knob forward or backward to recline theseatback to the desired position. Re- lease the control knob and the seatback will remain in that position. WARNING:
To minimise the risk of personalinjury in the event of a collision or a sudden stop, both the driver's and passenger's seatback should remainin an upright position while the car is in motion. The protection provided by the seat belts and airbags may bereduced significantly when the seatbacks are reclined. There is a greater risk that the seat occupantswill slide under the seat belt result- ing in serious injury if a crash occurs when the seatbacks are reclined. Theseat belt cannot provide full protec- tion to an occupant if the seat back is reclined.
OCM052027R B090C01Y-AAT Seat Cushion Height Adjustment (Driver's Seat Only) Move the front portion of the control knob up or down to raise or lower thefront part of the seat cushion. Move the rear portion of the control knob up or down to raise or lower the rear part of theseat cushion.
OCM052028R
CM-aust-1a.p65
5/21/2008, 2:05 PM
19

1FEATURES OF YOUR HYUNDAI
20
B090E01TG-AAT Lumbar Support Control (Driver's seat only)(If Installed) To adjust the lumbar support, press the control switch on the outboard side of the seat cushion. To increase the amountof lumbar support, press the front por- tion of the switch. To decrease it, press the rear portion of the switch.
OCM052024R
B085A01JM-GAT REAR SEAT Adjusting Seatback Angle To recline the seatback, pull the seatback folding lever and release itafter the desired seatback angle is achieved. When you recline the seatback to de-sired position, always be sure it has locked into position. OCM052030
Seatback folding lever
CAUTION:
When reclining the seatback, you should adjust the seatback folding lever while standing.
!
OCM052032
B085B02CM-DAT Folding Rear Seatback 2nd row seat For convenience, the seatbacks and seat cushions may be folded down andup.
1. Lower the headrest to the lowest
position.
2. Pull the seatback folding lever then
push down the seatback.
3. Be sure it has locked into position to listen an audible "Click".
CM-aust-1a.p65 5/21/2008, 2:05 PM
20

1
FEATURES OF YOUR HYUNDAI
21
4. To return the seatback to its normal position, pull the seatback folding lever and reverse the above proce- dure.
When you return the seatback to itsupright position, always be sure it is locked into position by pulling and push-ing on the top of the seatback.
3. To return the seatback to its normalposition, reverse the above proce-dure.
OCM052037
NOTE: Before folding the seatback, place the rear seat belt buckles in the bucklepouch on the seatback. This will prevent the seat belt buckles from becoming covered by the seat cush-ion when it is returned to the seating position.
! CAUTION:
Be careful when loading luggage on a folded seatback as damage to the seatback may occur.
OCM052031 3rd Row Seat (If Installed)
1. Lower the headrest to the lowest
position.
2. To fold down the seatback, pull the seatback folding lever and then push down the seatback.
CAUTION:
When return the seatback to upright position, you always lift and pull it by folding lever.In the case of a lift and a pull by grip the edge of seatback, it may cause damage to the seatback board.
!
CM-aust-1a.p65 5/21/2008, 2:05 PM
