2009 Hyundai Santa Fe Owner's Manual - RHD (UK, Australia)

1FEATURES OF YOUR HYUNDAI
6

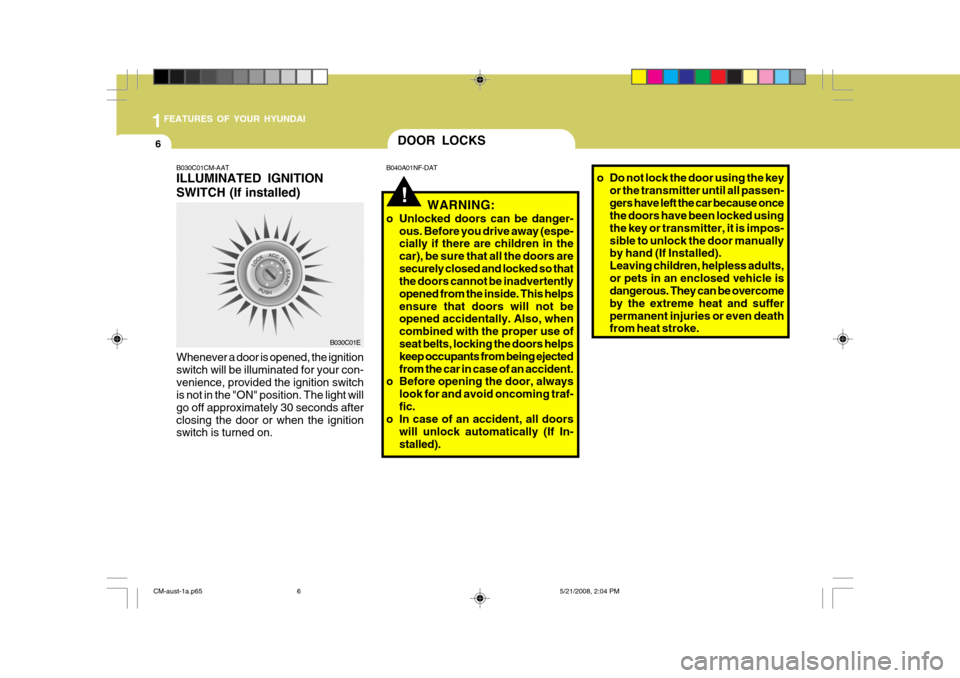

B030C01CM-AAT ILLUMINATED IGNITION SWITCH (If installed) Whenever a door is opened, the ignition switch will be illuminated for your con-venience, provided the ignition switch is not in the "ON" position. The light will go off approximately 30 seconds afterclosing the door or when the ignition switch is turned on.
B030C01E
DOOR LOCKS
!
B040A01NF-DAT
WARNING:
o Unlocked doors can be danger- ous. Before you drive away (espe- cially if there are children in the car), be sure that all the doors aresecurely closed and locked so that the doors cannot be inadvertently opened from the inside. This helpsensure that doors will not be opened accidentally. Also, when combined with the proper use of seat belts, locking the doors helps keep occupants from being ejectedfrom the car in case of an accident.
o Before opening the door, always
look for and avoid oncoming traf-fic.
o In case of an accident, all doors
will unlock automatically (If In-stalled). o Do not lock the door using the key
or the transmitter until all passen-gers have left the car because once the doors have been locked using the key or transmitter, it is impos-sible to unlock the door manually by hand (If Installed). Leaving children, helpless adults,or pets in an enclosed vehicle is dangerous. They can be overcome by the extreme heat and sufferpermanent injuries or even death from heat stroke.
CM-aust-1a.p65 5/21/2008, 2:04 PM
6

1
FEATURES OF YOUR HYUNDAI
7
!

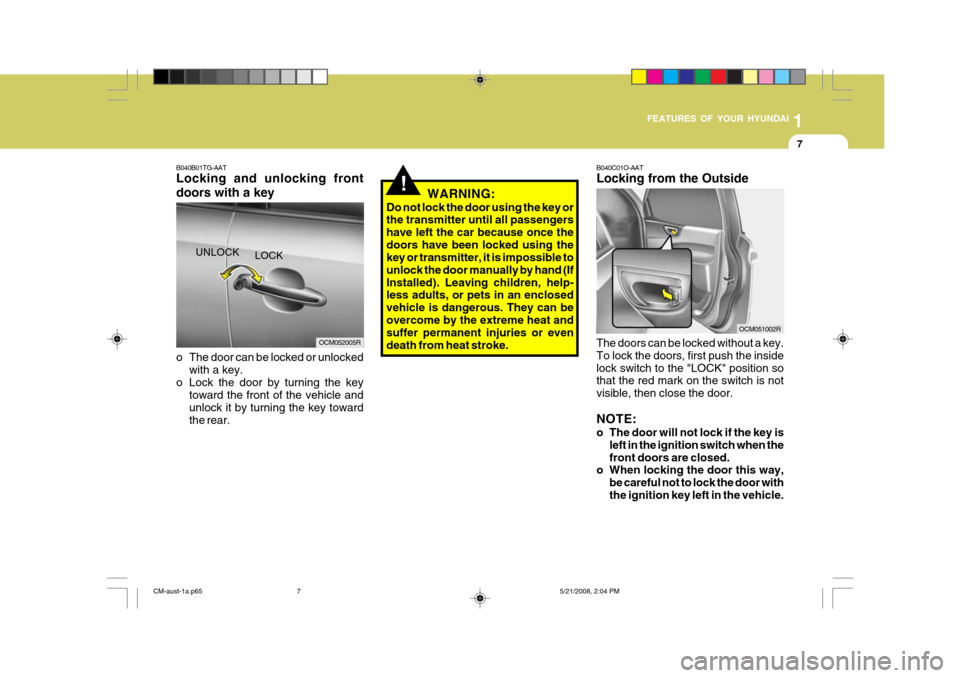

B040C01O-AAT Locking from the Outside The doors can be locked without a key. To lock the doors, first push the insidelock switch to the "LOCK" position so that the red mark on the switch is not visible, then close the door. NOTE:
o The door will not lock if the key is
left in the ignition switch when the front doors are closed.
o When locking the door this way,
be careful not to lock the door withthe ignition key left in the vehicle.
WARNING:
Do not lock the door using the key or the transmitter until all passengers have left the car because once thedoors have been locked using the key or transmitter, it is impossible to unlock the door manually by hand (IfInstalled). Leaving children, help- less adults, or pets in an enclosed vehicle is dangerous. They can beovercome by the extreme heat and suffer permanent injuries or even death from heat stroke.
OCM051002R
OCM052005R
LOCK
UNLOCK
B040B01TG-AAT Locking and unlocking front doors with a key
o The door can be locked or unlocked
with a key.
o Lock the door by turning the key toward the front of the vehicle and unlock it by turning the key towardthe rear.
CM-aust-1a.p65 5/21/2008, 2:04 PM
7

1FEATURES OF YOUR HYUNDAI
8

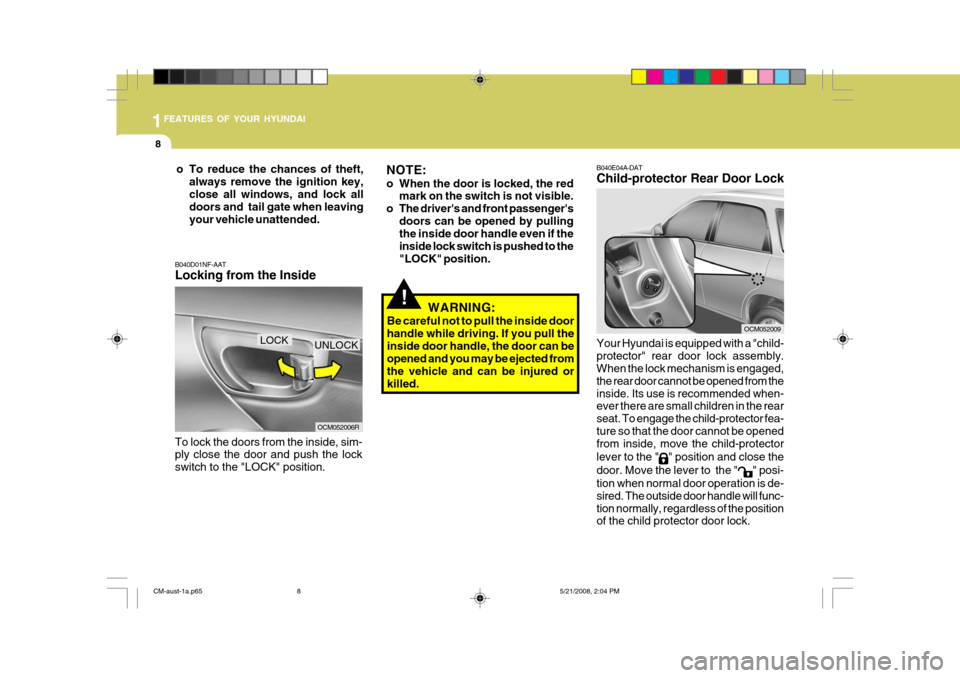

B040E04A-DAT Child-protector Rear Door Lock Your Hyundai is equipped with a "child- protector" rear door lock assembly. When the lock mechanism is engaged, the rear door cannot be opened from theinside. Its use is recommended when- ever there are small children in the rear seat. To engage the child-protector fea-ture so that the door cannot be opened from inside, move the child-protector lever to the "
" position and close the
door. Move the lever to the "
" posi-
tion when normal door operation is de- sired. The outside door handle will func-tion normally, regardless of the position of the child protector door lock.
OCM052009
!
o To reduce the chances of theft, always remove the ignition key, close all windows, and lock all doors and tail gate when leaving your vehicle unattended.
OCM052006R
B040D01NF-AAT Locking from the Inside To lock the doors from the inside, sim- ply close the door and push the lock switch to the "LOCK" position.
UNLOCKLOCK
WARNING:
Be careful not to pull the inside door handle while driving. If you pull theinside door handle, the door can be opened and you may be ejected from the vehicle and can be injured orkilled.
NOTE:
o When the door is locked, the red
mark on the switch is not visible.
o The driver's and front passenger's doors can be opened by pulling the inside door handle even if the inside lock switch is pushed to the"LOCK" position.
CM-aust-1a.p65 5/21/2008, 2:04 PM
8

1
FEATURES OF YOUR HYUNDAI
9
o The driver's and front passenger's doors can be opened by pulling the inside door handle even if the front portion of the driver's or front passenger's (if installed) centraldoor locking switch has been de- pressed to lock the doors.
o If the door is locked/unlocked mul- tiple times in rapid successionwith either the vehicle key or door lock switch, the system may stopoperating temporarily in order to protect the circuit and prevent damage to system components.

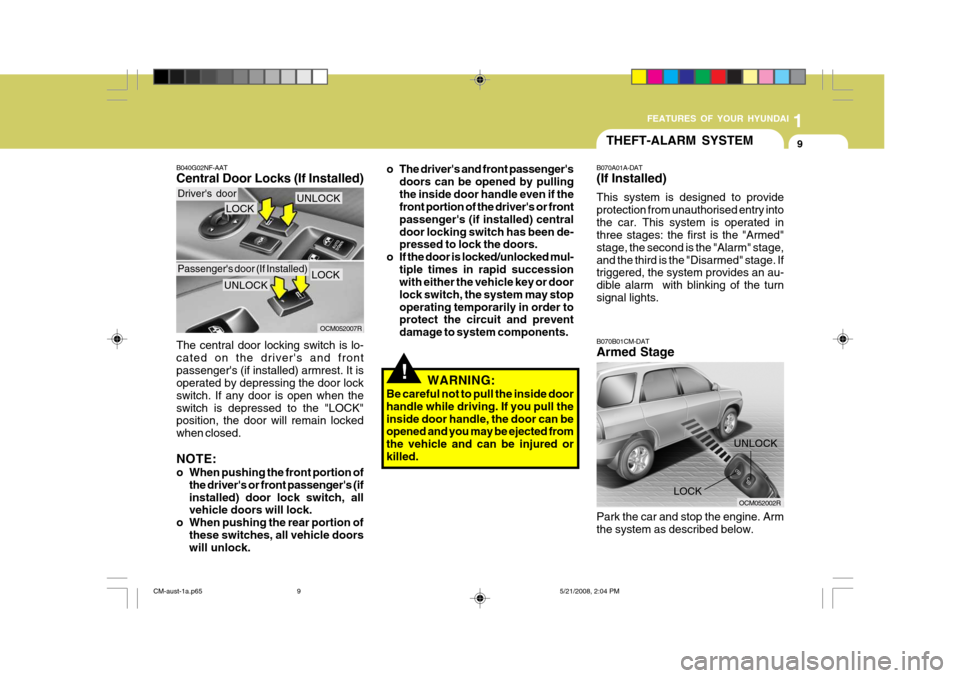

B040G02NF-AAT Central Door Locks (If Installed) The central door locking switch is lo- cated on the driver's and frontpassenger's (if installed) armrest. It is operated by depressing the door lock switch. If any door is open when theswitch is depressed to the "LOCK" position, the door will remain locked when closed. NOTE:
o When pushing the front portion of
the driver's or front passenger's (if installed) door lock switch, all vehicle doors will lock.
o When pushing the rear portion of these switches, all vehicle doorswill unlock.
OCM052007R
LOCKUNLOCK
LOCKUNLOCK
!
OCM052002R
THEFT-ALARM SYSTEM
UNLOCK
LOCK
B070A01A-DAT (If Installed) This system is designed to provide protection from unauthorised entry intothe car. This system is operated in three stages: the first is the "Armed" stage, the second is the "Alarm" stage,and the third is the "Disarmed" stage. If triggered, the system provides an au- dible alarm with blinking of the turnsignal lights. B070B01CM-DAT Armed Stage Park the car and stop the engine. Arm the system as described below.
WARNING:
Be careful not to pull the inside doorhandle while driving. If you pull theinside door handle, the door can be opened and you may be ejected from the vehicle and can be injured orkilled.
Passenger's door (If Installed)
Driver's door
CM-aust-1a.p65 5/21/2008, 2:04 PM
9

1FEATURES OF YOUR HYUNDAI
10
!
B070C01O-DAT Alarm Stage The alarm will be activated if any of the following occurs while the car is parkedand the system is armed.
1) A front or rear door is opened without
using the transmitter.
2) The tail gate is opened without using
the transmitter.
3) The engine bonnet is opened.The siren will sound and the turn signal lights will blink continuously for 27 sec- onds. To turn off the system, unlock the door or tail gate with the transmitter.
CAUTION:
Avoid trying to start the engine whilethe system is armed.
! CAUTION:
Do not arm the system until all pas- sengers have left the car. If the sys- tem is armed while a passenger(s)remains in the car, the alarm may be activated when the remaining passenger(s) leaves the car. If any door, tail gate or engine bonnet is opened within 30 seconds after enter- ing the armed stage, the system is disarmed to prevent unnecessary alarm.
1) Remove the ignition key from the
ignition switch.
2) Make sure that the engine bonnet and tail gate are closed and latched.
3) Lock the doors using the transmitter of the keyless entry system.
After completion of the steps above,the turn signal lights will blink once to indicate that the system is armed. However, if any door, tail gate or engine bonnet remains open, the hazard warn- ing lights are not operated. After this, ifall doors, tail gate and engine bonnet are closed, the hazard warning lights blink once.The system can be armed by locking the doors with the key. However, the hazard warning lights are not operated. NOTE: If any door, tail gate or engine bon- net remains open, the system will not be armed.If this happens, rearm the system as previously described.
CM-aust-1a.p65 5/21/2008, 2:04 PM
10

1
FEATURES OF YOUR HYUNDAI
11

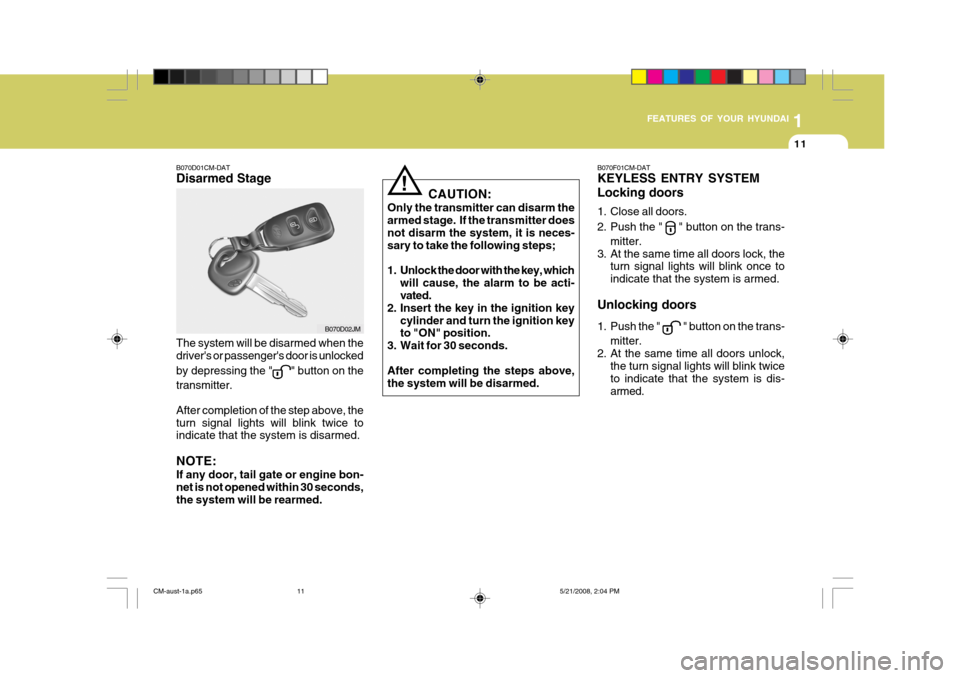

B070D01CM-DAT Disarmed Stage The system will be disarmed when the driver's or passenger's door is unlocked by depressing the "
" button on the
transmitter. After completion of the step above, the turn signal lights will blink twice to indicate that the system is disarmed. NOTE: If any door, tail gate or engine bon- net is not opened within 30 seconds, the system will be rearmed.
B070D02JM
! CAUTION:
Only the transmitter can disarm the armed stage. If the transmitter does not disarm the system, it is neces-sary to take the following steps;
1. Unlock the door with the key, which will cause, the alarm to be acti- vated.
2. Insert the key in the ignition key
cylinder and turn the ignition keyto "ON" position.
3. Wait for 30 seconds. After completing the steps above, the system will be disarmed. B070F01CM-DAT KEYLESS ENTRY SYSTEM Locking doors
1. Close all doors.
2. Push the "
" button on the trans-
mitter.
3. At the same time all doors lock, the turn signal lights will blink once to indicate that the system is armed.
Unlocking doors
1. Push the "
" button on the trans-
mitter.
2. At the same time all doors unlock, the turn signal lights will blink twice to indicate that the system is dis- armed.
CM-aust-1a.p65 5/21/2008, 2:04 PM
11

1FEATURES OF YOUR HYUNDAI
12
OCM052004
Case
Battery
2. Remove the old battery from the case and note the polarity. Make sure the polarity of the new batteryis the same(+side facing down), then insert it in the transmitter.

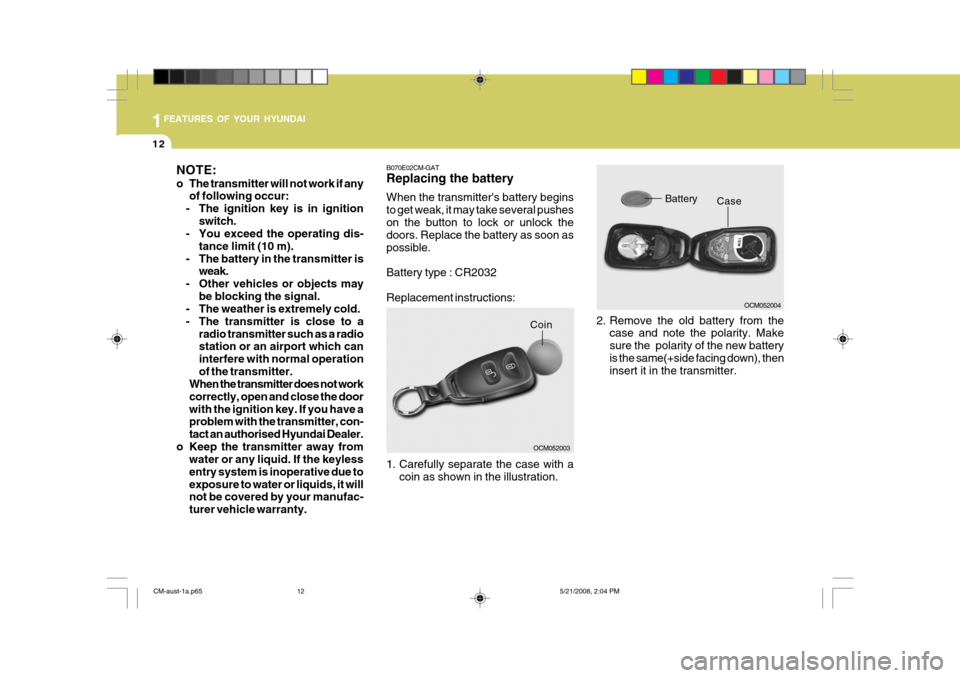

B070E02CM-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pusheson the button to lock or unlock the doors. Replace the battery as soon as possible. Battery type : CR2032 Replacement instructions:
1. Carefully separate the case with a
coin as shown in the illustration.
OCM052003
Coin
NOTE:
o The transmitter will not work if any
of following occur:
- The ignition key is in ignition switch.
- You exceed the operating dis-
tance limit (10 m).
- The battery in the transmitter is weak.
- Other vehicles or objects may be blocking the signal.
- The weather is extremely cold.
- The transmitter is close to a
radio transmitter such as a radio station or an airport which can interfere with normal operationof the transmitter.
When the transmitter does not workcorrectly, open and close the doorwith the ignition key. If you have a problem with the transmitter, con- tact an authorised Hyundai Dealer.
o Keep the transmitter away from water or any liquid. If the keylessentry system is inoperative due toexposure to water or liquids, it will not be covered by your manufac- turer vehicle warranty.
CM-aust-1a.p65 5/21/2008, 2:04 PM
12

1
FEATURES OF YOUR HYUNDAI

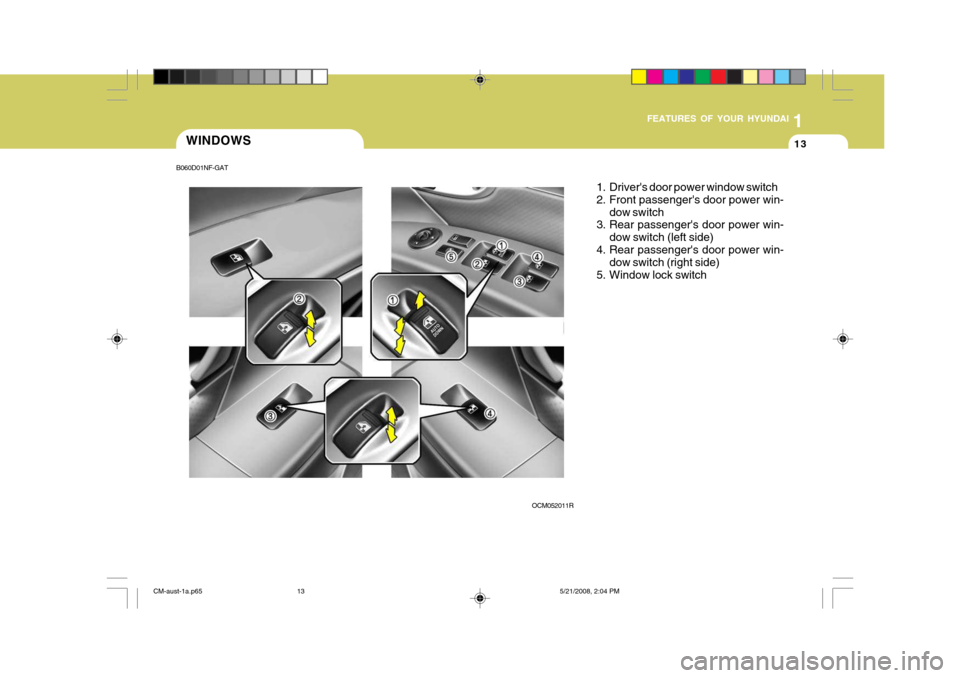

13WINDOWS
OCM052011R1. Driver's door power window switch
2. Front passenger's door power win-
dow switch
3. Rear passenger's door power win-
dow switch (left side)
4. Rear passenger's door power win- dow switch (right side)
5. Window lock switch
B060D01NF-GAT
