1FEATURES OF YOUR HYUNDAI
54
!
OCM029011L
INSTRNMENT CLUSTER
B280A01A-AAT Fuel Gauge The needle on the gauge indicates the approximate fuel level in the fuel tank.The fuel capacity is given in Section 9. B290A02A-DAT Engine Coolant Temperature Gauge
OCM029012L
WARNING:
Never remove the radiator cap when the engine is hot. The engine coolantis under pressure and could erupt and cause severe burns. Wait until the engine is cool before removingthe radiator cap.
B270A01A-AAT BRAKE PAD WEAR WARNING SOUND The front disc brake pads have wear indicators that should make a high-pitched squealing or scraping noise when new pads are needed. The sound may come and go or be heard all thetime when the vehicle is moving. It may also be heard when the brake pedal is pushed down firmly. Excessive rotordamage will result if the worn pads are not replaced. See your Hyundai dealer immediately.
B265A01FC-GAT
Fuel Filter Warning Light (Diesel Engine)
This light illuminates when the engine has started and goes off after a fewseconds. If it lights up while the engine is running, it indicates that water has accumulated inside the fuel filter. If thishappens, remove the water from the fuel filter. (Refer to "6-27 page")
CM-aust-1a.p65 5/21/2008, 2:06 PM
54

1
FEATURES OF YOUR HYUNDAI
55
The needle on the engine coolant tem- perature gauge should stay in the nor-mal range. If it moves across the dial to "H" (Hot), pull over and stop as soon as possible and turn off the engine. Thenopen the bonnet and, after the engine has cooled, check the coolant level and the water pump drive belt. If you sus-pect cooling system trouble, have your cooling system checked by a Hyundai dealer as soon as possible.

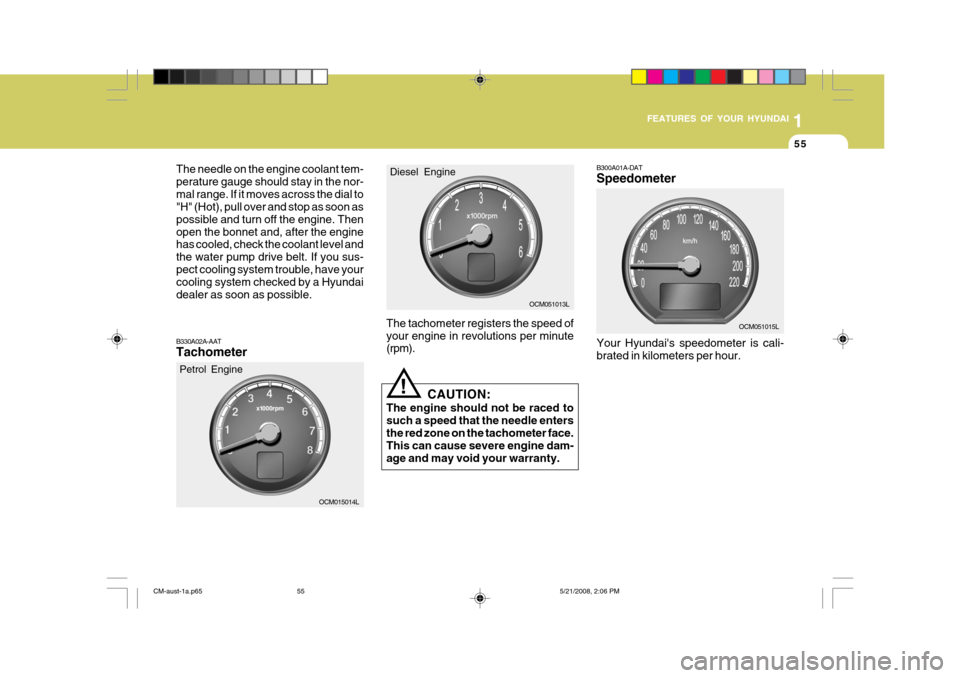

B330A02A-AAT Tachometer The tachometer registers the speed of your engine in revolutions per minute (rpm).
OCM015014L CAUTION:
The engine should not be raced to such a speed that the needle entersthe red zone on the tachometer face. This can cause severe engine dam- age and may void your warranty.
!
Petrol Engine
OCM051013L
Diesel Engine
OCM051015L
B300A01A-DAT Speedometer Your Hyundai's speedometer is cali- brated in kilometers per hour.
CM-aust-1a.p65
5/21/2008, 2:06 PM
55

1FEATURES OF YOUR HYUNDAI
56
OCM052204LK
OCM052055R
2. Tripmeter Pushing in the TRIP switch when the ignition switch is turned "ON" will dis- play two tripmeters in kilometers.
To shift from TRIP A to TRIP B, pressthe TRIP switch. TRIP A:
First distance you have trav-
eled from your origination point to a first destination.
TRIP B: Second distance from the first
destination to the final desti-nation.OCM052203LK
B310B01CM-DAT Odometer/Tripmeter 1. Odometer The odometer records the total driving distance in kilometers, and is useful for keeping a record for maintenance inter- vals.It is normal for a new vehicle to have the odometer indicating less than 50 km. NOTE: Any alteration of the odometer may void your warranty coverage. Tripmeter
Odometer
CM-aust-1a.p65 5/21/2008, 2:06 PM
56

1
FEATURES OF YOUR HYUNDAI
57
OCM051018R
When the RESET switch is pressed for 1 second, the trip odometer will reset to0.
TRIP COMPUTER
B400B02CM-DAT (If Installed) Trip computer is a microcomputer-con- trolled driver information system that displays information related to drivingon the LCD. OCM051017L-D
Pushing in the TRIP switch for when the ignition switch is in "ON" position changes the display as follows;
OCM052055R
Trip Switch
TRIPMETER
DISTANCE TO EMPTY
AVERAGE FUEL CONSUMPTION INSTANT FUEL CONSUMPTION (If installed)
OUTSIDE TEMPERATURE (If installed)
CM-aust-1a.p65 5/21/2008, 2:06 PM
57

1FEATURES OF YOUR HYUNDAI
58

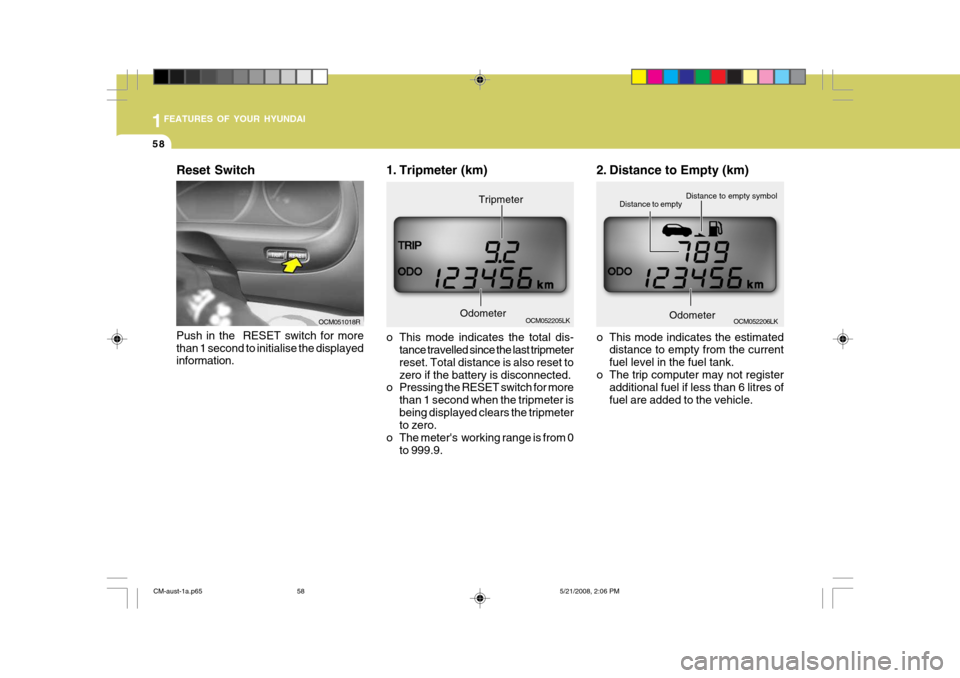

OCM052206LK
Distance to empty symbol
Distance to empty
OdometerOCM052205LK
Odometer Tripmeter
1. Tripmeter (km)
o This mode indicates the total dis-
tance travelled since the last tripmeter reset. Total distance is also reset tozero if the battery is disconnected.
o Pressing the RESET switch for more
than 1 second when the tripmeter isbeing displayed clears the tripmeter to zero.
o The meter's working range is from 0 to 999.9. 2. Distance to Empty (km)
o This mode indicates the estimated
distance to empty from the current fuel level in the fuel tank.
o The trip computer may not register additional fuel if less than 6 litres offuel are added to the vehicle.
Push in the RESET switch for more than 1 second to initialise the displayed information. OCM051018R
Reset Switch
CM-aust-1a.p65
5/21/2008, 2:06 PM
58

1
FEATURES OF YOUR HYUNDAI
59

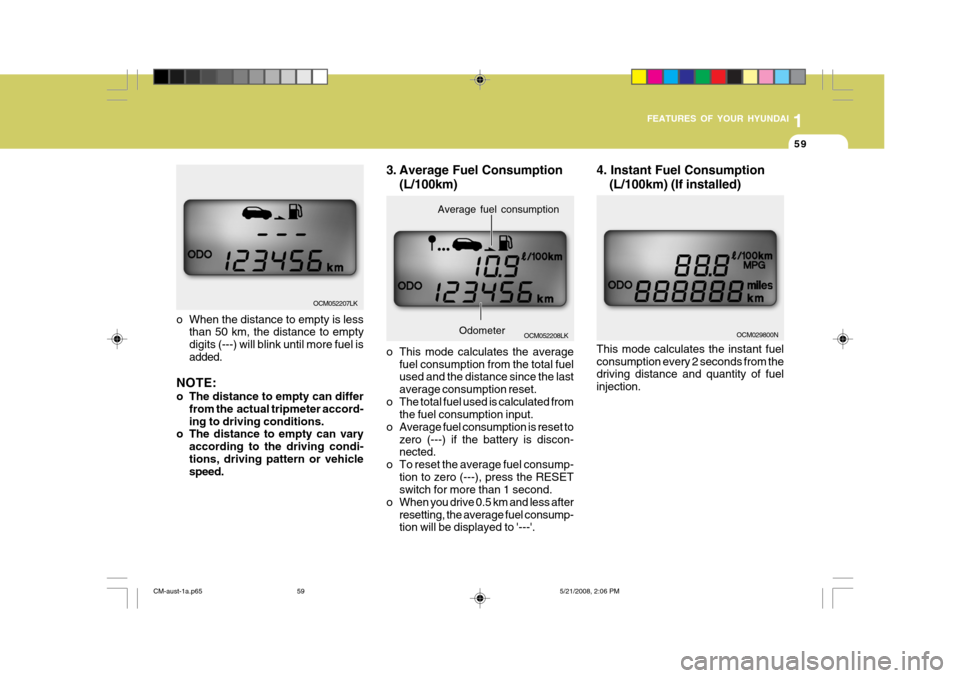

OCM052207LK
o When the distance to empty is less than 50 km, the distance to empty digits (---) will blink until more fuel isadded.
NOTE:
o The distance to empty can differ from the actual tripmeter accord- ing to driving conditions.
o The distance to empty can vary
according to the driving condi-tions, driving pattern or vehicle speed.
OCM052208LK
Average fuel consumption
Odometer
3. Average Fuel Consumption
(L/100km)
o This mode calculates the average fuel consumption from the total fuel used and the distance since the last average consumption reset.
o The total fuel used is calculated from the fuel consumption input.
o Average fuel consumption is reset to zero (---) if the battery is discon- nected.
o To reset the average fuel consump- tion to zero (---), press the RESETswitch for more than 1 second.
o When you drive 0.5 km and less after resetting, the average fuel consump-tion will be displayed to '---'. 4. Instant Fuel Consumption
(L/100km) (If installed)
This mode calculates the instant fuel consumption every 2 seconds from the driving distance and quantity of fuel injection.OCM029800N
CM-aust-1a.p65 5/21/2008, 2:06 PM
59

1FEATURES OF YOUR HYUNDAI
60
B340B01A-DAT Lane Change Signal To indicate a lane change, move the lever up or down to a point where itbegins flashing. The lever will automatically return to the centre position when released.
OCM029065R
MULTI-FUNCTION LIGHT SWITCH
B340A01A-DAT COMBINATION TURN SIGNAL, HEADLIGHT AND HIGH-BEAMSWITCHTurn Signal Operation Pulling down on the lever causes the turn signals on the right side of the car to blink. Pushing upwards on the levercauses the turn signals on the left side of the car to blink. As the turn is com- pleted, the lever will automatically re-turn to the centre position and turn off the turn signals at the same time. If either turn signal indicator light blinksmore rapidly than usual or goes on but does not blink, or does not go on at all, there is a malfunction in the system.Check for a burned-out fuse or bulb or see your Hyundai dealer.
OCM052210LK
Outside temperature
Odometer
5. Outside temperature
(°C) (If installed)
This mode indicates the outside tem- perature between -40°C and 75°C.
CM-aust-1a.p65 5/21/2008, 2:07 PM
60

1
FEATURES OF YOUR HYUNDAI
61

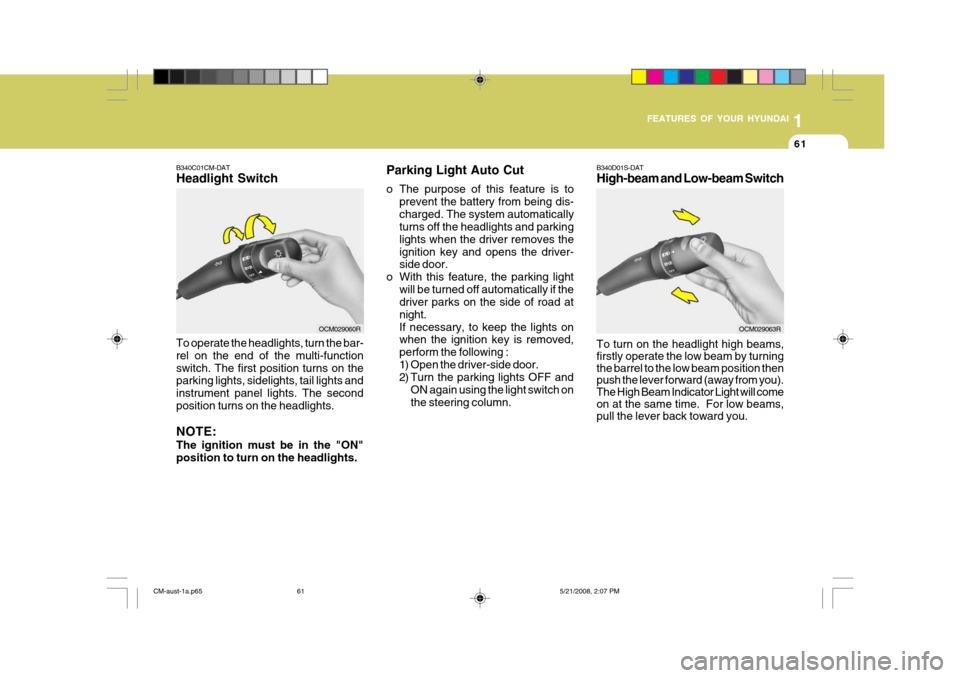

B340C01CM-DAT Headlight Switch To operate the headlights, turn the bar- rel on the end of the multi-functionswitch. The first position turns on the parking lights, sidelights, tail lights and instrument panel lights. The secondposition turns on the headlights. NOTE: The ignition must be in the "ON" position to turn on the headlights. Parking Light Auto Cut
o The purpose of this feature is to
prevent the battery from being dis- charged. The system automatically turns off the headlights and parking lights when the driver removes theignition key and opens the driver- side door.
o With this feature, the parking light will be turned off automatically if thedriver parks on the side of road at night.If necessary, to keep the lights on when the ignition key is removed, perform the following :
1) Open the driver-side door.
2) Turn the parking lights OFF andON again using the light switch on the steering column.
OCM029060R B340D01S-DAT High-beam and Low-beam Switch To turn on the headlight high beams, firstly operate the low beam by turning the barrel to the low beam position then push the lever forward (away from you). The High Beam Indicator Light will come on at the same time. For low beams, pull the lever back toward you.OCM029063R
