118ANTENNA
B870D01FC-GAT Roof Antenna Your car uses a roof antenna to receive both AM and FM broadcast signals. This antenna is a removable type. To remove the antenna, turn the antennacounterclockwise. To install the an- tenna, turn the antenna clockwise.
OCM052140
Type A Type B!
CAUTION:
o Be sure to remove the antenna before washing the car in an auto- matic car wash or it may be dam-aged.
o Before entering a place with a low
height clearance, be sure to adjustthe roof antenna low.
o When reinstalling your antenna, it
is important that it is fully tight-ened to ensure proper reception.
CM-aust-1a.p65 5/21/2008, 2:12 PM
118

1
FEATURES OF YOUR HYUNDAI
119STEREO SOUND SYSTEM
AM reception
Ionosphere
FM reception
B750A01L
Ionosphere
B750A02L Mountains
Buildings Unobstructed
area
FM radio station
B750A03L
Obstructed area Iron bridges

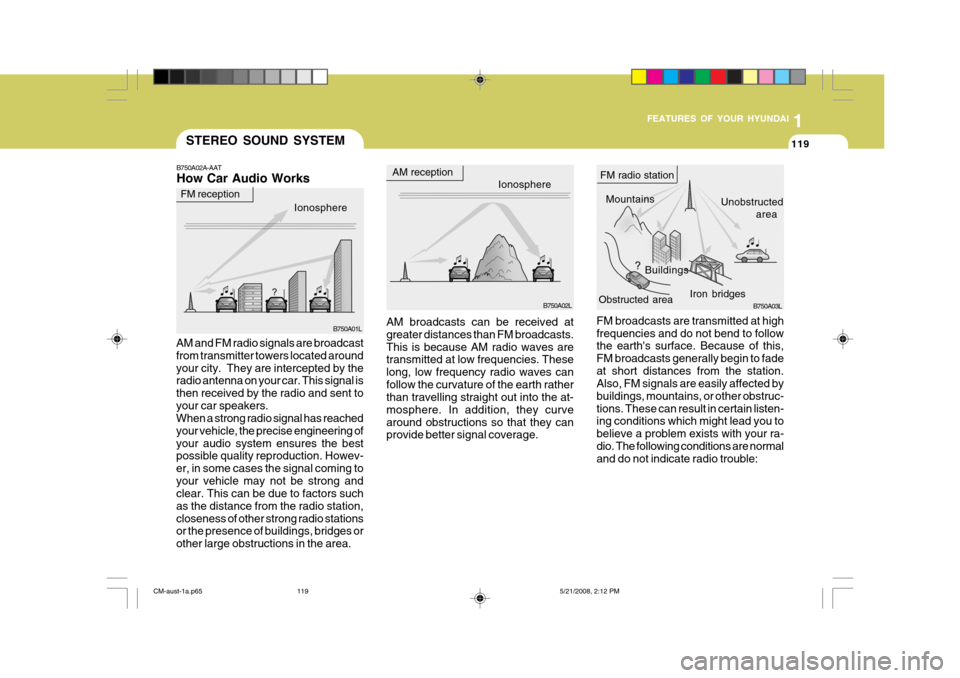

FM broadcasts are transmitted at high frequencies and do not bend to follow the earth's surface. Because of this, FM broadcasts generally begin to fadeat short distances from the station. Also, FM signals are easily affected by buildings, mountains, or other obstruc-tions. These can result in certain listen- ing conditions which might lead you to believe a problem exists with your ra-dio. The following conditions are normal and do not indicate radio trouble:
AM broadcasts can be received atgreater distances than FM broadcasts. This is because AM radio waves are transmitted at low frequencies. These long, low frequency radio waves canfollow the curvature of the earth rather than travelling straight out into the at- mosphere. In addition, they curvearound obstructions so that they can provide better signal coverage.
B750A02A-AAT How Car Audio Works
AM and FM radio signals are broadcast from transmitter towers located aroundyour city. They are intercepted by the radio antenna on your car. This signal is then received by the radio and sent toyour car speakers. When a strong radio signal has reached your vehicle, the precise engineering ofyour audio system ensures the best possible quality reproduction. Howev- er, in some cases the signal coming toyour vehicle may not be strong and clear. This can be due to factors such as the distance from the radio station,closeness of other strong radio stations or the presence of buildings, bridges or other large obstructions in the area.
CM-aust-1a.p65 5/21/2008, 2:12 PM
119

1FEATURES OF YOUR HYUNDAI
120
!
B750B02Y-DAT Using a mobile phone or a two- way radio When a mobile phone is used inside the vehicle, noise may be produced fromthe audio equipment. This does not mean that something is wrong with the audio equipment. In such a case, usethe mobile phone at a place as far as possible from the audio equipment.
CAUTION:
When using a communication sys-tem such a mobile phone or a radio inside the vehicle, a separate exter-nal antenna must be fitted. When a mobile phone or a radio set is used with an internal antenna alone, itmay interfere with the vehicle's elec- trical system and adversely affect safe operation of the vehicle.
WARNING:
Don't use a mobile phone when you are driving, you must stop at a safe place to use a mobile phone.
!
B750A04L B750A05L
o Station Swapping - As an FM signal weakens, another more powerful sig- nal near the same frequency may begin to play. This is because your radio is designed to lock onto the clearest signal. If this occurs, selectanother station with a stronger sig- nal.
o Multi-Path Cancellation - Radio sig- nals being received from several di-rections can cause distortion or flut- tering. This can be caused by adirect and reflected signal from the same station, or by signals from two stations with close frequencies. Ifthis occurs, select another station until the condition has passed.
o Fading - As your car moves away
from the radio station, the signal willweaken and sound will begin to fade. When this occurs, we suggest that you select another stronger station.
o Flutter/Static - Weak FM signals or large obstructions between the trans-mitter and your radio can disturb the signal causing static or flutteringnoises to occur. Reducing the treble level may lessen this effect until the disturbance clears.
CM-aust-1a.p65 5/21/2008, 2:12 PM
120

1
FEATURES OF YOUR HYUNDAI
121CARE OF DISCS
Damaged Disc Do not attempt to play damaged, warped or cracked discs. These could severelydamage the playback mechanism. Storage When not in use, place your discs in their individual cases and store them in a cool place away from the sun, heat,and dust. Do not grip or pull out the disc with your hand while the disc is being pulled intothe unit by the self loading mechanism.
B850A02F-DAT Proper Handling Handle your disc as shown. Do not drop the disc. Hold the disc so you will notleave fingerprints on the surface. If the surface is scratched, it may cause the pickup to skip signal tracks. Do notaffix tape, paper, or gummed labels on the disc. Do not write on the disc.
B850A02LB850A01L
Fingerprints, dust, or foreign material on the surface of a disc could cause the pickup to skip signal tracks. Wipe the surface clean with a clean soft cloth.If the surface is heavily soiled, dampen a clean soft cloth in a solution of mild neutral detergent to wipe it clean.
Keep Your Discs Clean
CM-aust-1a.p65
5/21/2008, 2:12 PM
121

1FEATURES OF YOUR HYUNDAI
122
1. Power ON/OFF&Volume ControlButton
2. FM Selection Button 3. AM Selection Button 4. Automatic Channel Selection Button
5.Preset Button6. AST(AUTO STORE Button) 7. SETUP Button 8. Manual Channel Selector & Sound Quality ControlAUDIO SYSTEM

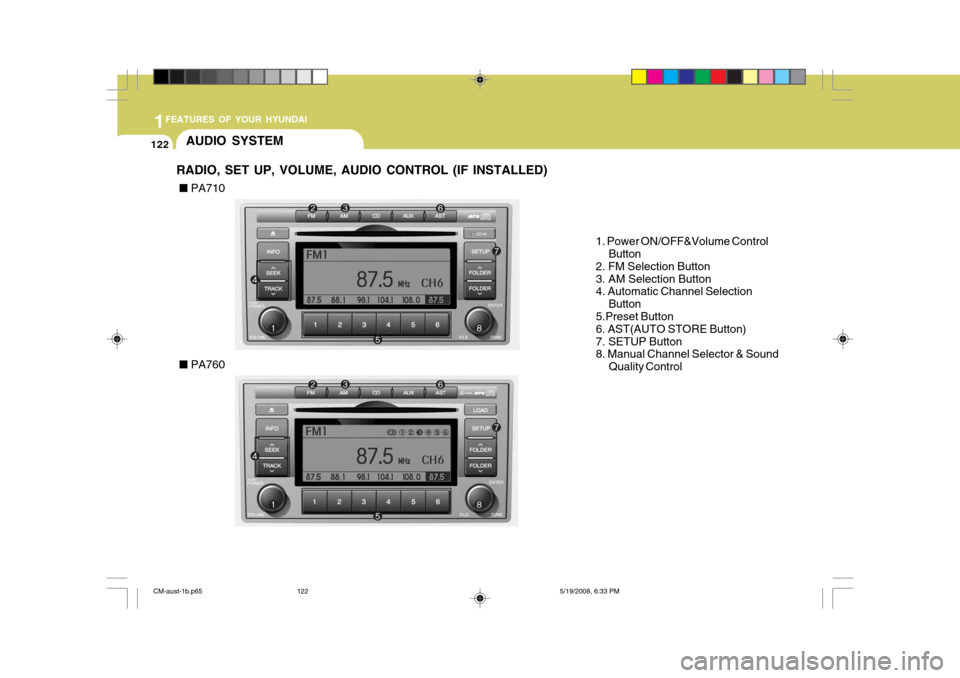

RADIO, SET UP, VOLUME, AUDIO CONTROL (IF INSTALLED)
■ PA710
■ PA760
CM-aust-1b.p65 5/19/2008, 6:33 PM
122

1
FEATURES OF YOUR HYUNDAI
123
1
FEATURES OF YOUR HYUNDAI
123
1
FEATURES OF YOUR HYUNDAI
123
1
FEATURES OF YOUR HYUNDAI
123
1
FEATURES OF YOUR HYUNDAI
123
1. Power ON/OFF&Volume Con- trol Button
Turns on/off the set when the IGNI- TION SWITH is on ACC or ON. If the button is turned to the right, it increasesthe volume and left,decreases the vol- ume. 2. FM Selection Button Turns to FM mode and toggles FM1and FM2 when the button is pressed each time. 3. AM Selection Button Pressing the [AM] button selects the AM band. AM Mode is displayed on the LCD.
4. Automatic Channel Selection
Button
o When the [SEEK
] button is
pressed, it increases the band fre- quency to automatically select chan-nel. Stops at the previous frequency if no channel is found.
o When the [TRACK
] button is
press- ed, it reduces the band fre- quency to automatically select chan- nel. Stops at the previous frequencyif no channel is found. 5. Preset Button Push [1]~[6] buttons less than 0.8 second to play the channel saved in each button. Push Preset button for 0.8second or longer to save current chan- nel to the respective button with a beep. 6. ST(AUTO STORE Button) When the button is pressed, it auto- matically selects and saves channelswith high reception rate to PRESET buttons [1]~[6] and plays the channel saved in PRESET1. If no channel issaved after AST, it will play the previ- ous channel.
7. SETUP Button Press this button to turn to the TEXT SCROLL adjustment mode. If no ac- tion is taken for 5 seconds after press- ing the button, it will return to the playmode. (After entering SETUPmode, PUSH functions of the TUNE button to adjust TEXT SCROLL.)
8. Manual Channel Selector &
Sound Quality Control
Turn this control while listening to a radio channel to manually adjust fre- quency. Turn clockwise to increase fre-quency and counterclockwise to reduce frequency. Pressing the button changes the BASS,MIDDLE, TREBLE, FADER and BAL- ANCE TUNE mode. The mode selected is shown on the display. After selectingeach mode, rotate the Audio control knob clockwise or counterclockwise. BASS Control To increase the BASS, rotate the knob clockwise, while to decrease the BASS,rotate the knob counterclockwise. MIDDLE Control To increase the MIDDLE, rotate the knob clockwise, while to decrease theMIDDLE, rotate the knob counterclock- wise.
CM-aust-1b.p65 5/19/2008, 6:33 PM
123

1FEATURES OF YOUR HYUNDAI
124
TREBLE Control To increase the TREBLE, rotate theknob clockwise, while to decrease the TREBLE, rotate the knob counterclock-wise. FADER Control Turn the control knob clockwise to emphasize rear speaker sound(front speaker sound will be attenuated). Whenthe control knob is turned counterclock- wise, front speaker sound will be emphasized(rear speaker sound will beattenuated). BALANCE Control Rotate the knob clockwise to empha- size right speaker sound(left speaker soundwill be attenuated). When the control knob is turned counter clockwise, left speaker sound will be emphasized(right speaker sound will be attenuated). 9. TA Selection Button In FM, CD, AUX mode, turns on/off the reception of TA channels of RDS. 10. PTY(FLDR) Button
o Moves [FOLDER
] Button when
searching PTY in RDS Broadcasting Program Type selection.
o Moves [PTY
] button when search-
ing PTY in RDS Broadcasting Pro- gram Type selection.
CM-aust-1b.p65 5/19/2008, 6:33 PM
124

1
FEATURES OF YOUR HYUNDAI
125
1
FEATURES OF YOUR HYUNDAI
125
1
FEATURES OF YOUR HYUNDAI
125
1
FEATURES OF YOUR HYUNDAI
125
1
FEATURES OF YOUR HYUNDAI
125

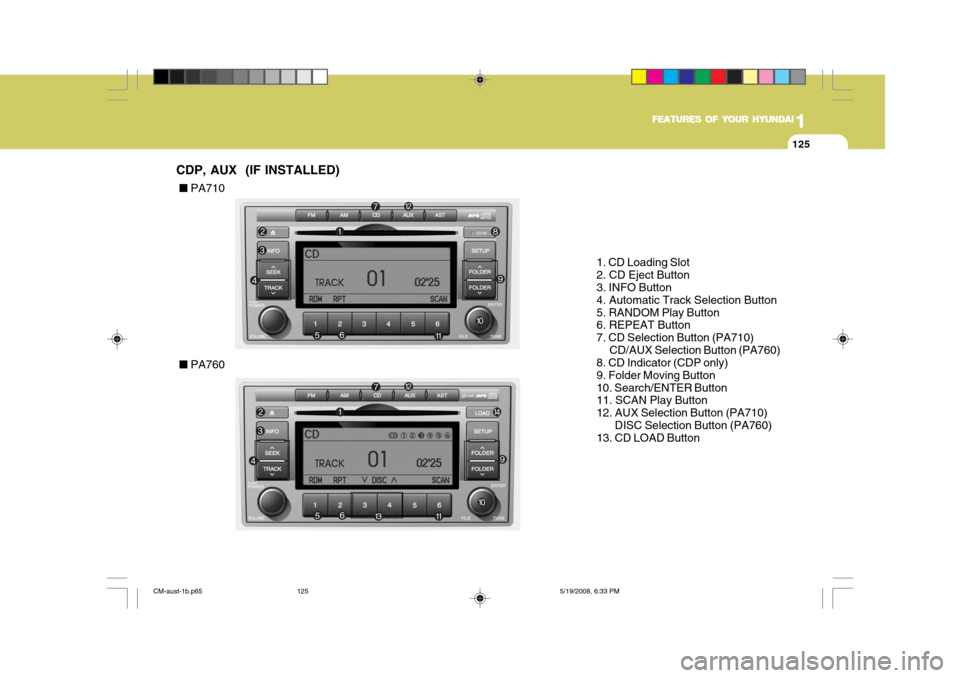

1. CD Loading Slot 2. CD Eject Button 3. INFO Button 4. Automatic Track Selection Button5. RANDOM Play Button 6. REPEAT Button 7. CD Selection Button (PA710) CD/AUX Selection Button (PA760)
8. CD Indicator (CDP only)9. Folder Moving Button10. Search/ENTER Button 11. SCAN Play Button 12. AUX Selection Button (PA710)
DISC Selection Button (PA760)
13. CD LOAD Button
CDP, AUX (IF INSTALLED) ■
