2009 Hyundai Santa Fe Owner's Manual - RHD (UK, Australia)

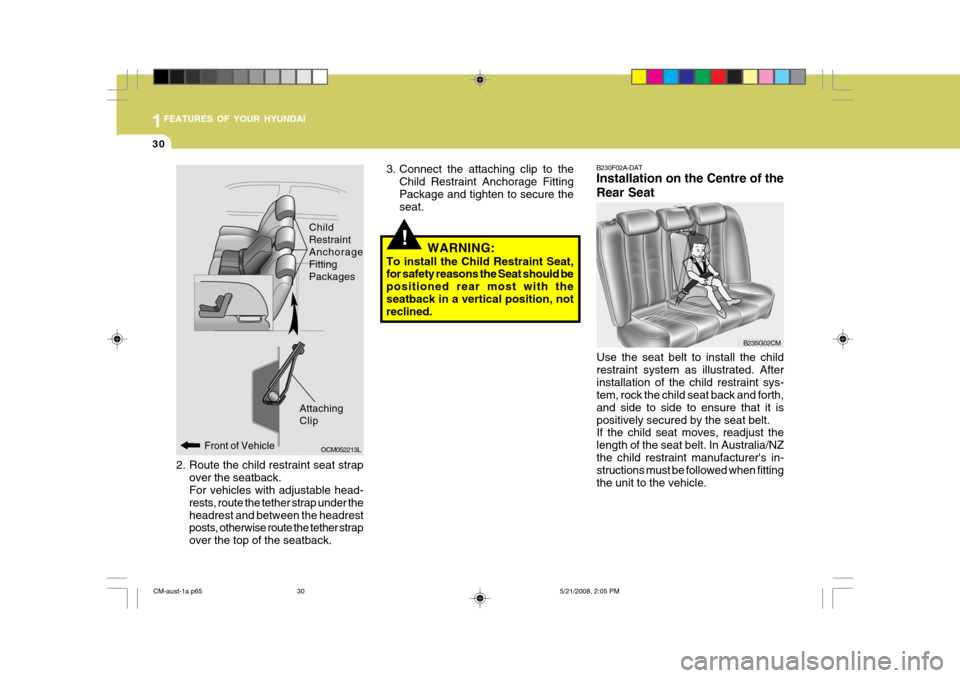

1FEATURES OF YOUR HYUNDAI
30
!
B230F02A-DAT Installation on the Centre of the Rear Seat
3. Connect the attaching clip to the
Child Restraint Anchorage Fitting Package and tighten to secure the seat.
WARNING:
To install the Child Restraint Seat,for safety reasons the Seat should be positioned rear most with theseatback in a vertical position, not reclined.
Front of Vehicle
Attaching Clip ChildRestraintAnchorageFittingPackages
2. Route the child restraint seat strap
over the seatback. For vehicles with adjustable head- rests, route the tether strap under theheadrest and between the headrest posts, otherwise route the tether strap over the top of the seatback. OCM052213L
Use the seat belt to install the childrestraint system as illustrated. Afterinstallation of the child restraint sys- tem, rock the child seat back and forth, and side to side to ensure that it ispositively secured by the seat belt. If the child seat moves, readjust the length of the seat belt. In Australia/NZthe child restraint manufacturer's in- structions must be followed when fitting the unit to the vehicle.
B235G02CM
CM-aust-1a.p65
5/21/2008, 2:05 PM
30

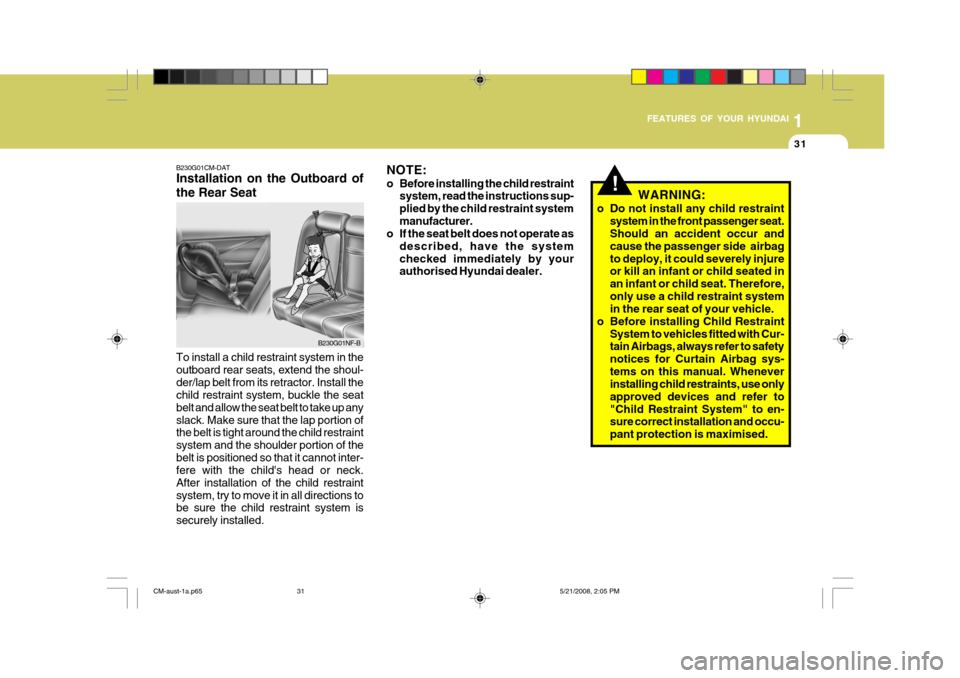

1
FEATURES OF YOUR HYUNDAI
31
!
B230G01CM-DAT Installation on the Outboard of the Rear Seat NOTE:
o Before installing the child restraint
system, read the instructions sup- plied by the child restraint systemmanufacturer.
o If the seat belt does not operate as
described, have the systemchecked immediately by your authorised Hyundai dealer. WARNING:
o Do not install any child restraint system in the front passenger seat.Should an accident occur and cause the passenger side airbagto deploy, it could severely injure or kill an infant or child seated in an infant or child seat. Therefore,only use a child restraint system in the rear seat of your vehicle.
o Before installing Child Restraint System to vehicles fitted with Cur-tain Airbags, always refer to safety notices for Curtain Airbag sys-tems on this manual. Whenever installing child restraints, use only approved devices and refer to"Child Restraint System" to en- sure correct installation and occu- pant protection is maximised.
To install a child restraint system in theoutboard rear seats, extend the shoul-der/lap belt from its retractor. Install the child restraint system, buckle the seat belt and allow the seat belt to take up anyslack. Make sure that the lap portion of the belt is tight around the child restraint system and the shoulder portion of thebelt is positioned so that it cannot inter- fere with the child's head or neck. After installation of the child restraintsystem, try to move it in all directions to be sure the child restraint system is securely installed.
B230G01NF-B
CM-aust-1a.p65
5/21/2008, 2:05 PM
31

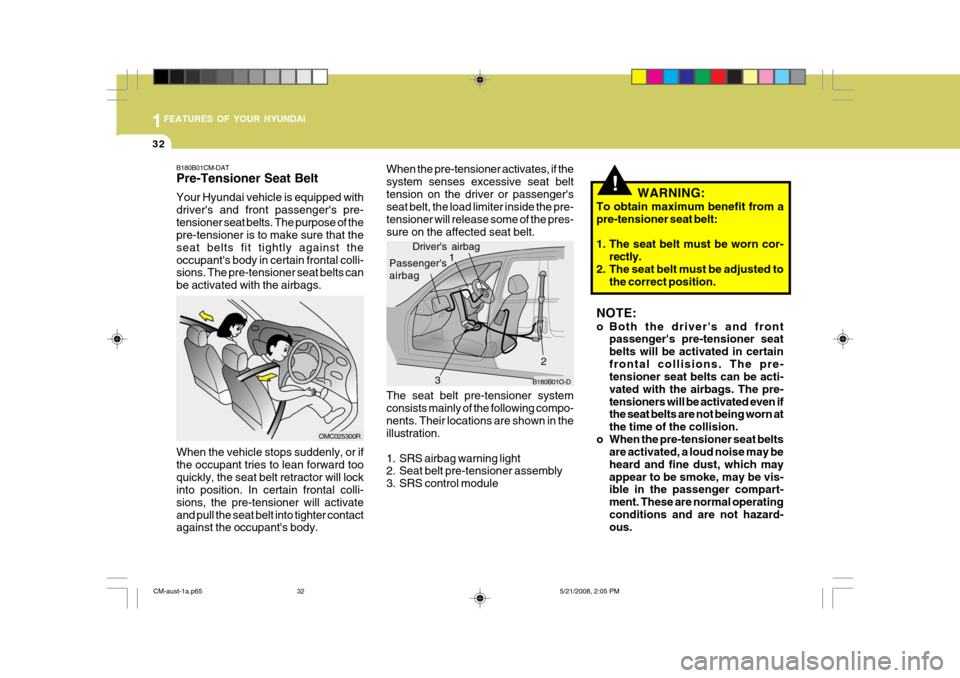

1FEATURES OF YOUR HYUNDAI
32
!WARNING:
To obtain maximum benefit from a pre-tensioner seat belt:
1. The seat belt must be worn cor- rectly.
2. The seat belt must be adjusted to the correct position.
NOTE:
o Both the driver's and front passenger's pre-tensioner seat belts will be activated in certainfrontal collisions. The pre- tensioner seat belts can be acti- vated with the airbags. The pre-tensioners will be activated even if the seat belts are not being worn at the time of the collision.
o When the pre-tensioner seat belts are activated, a loud noise may beheard and fine dust, which mayappear to be smoke, may be vis- ible in the passenger compart- ment. These are normal operatingconditions and are not hazard- ous.
B180B01O-D
Passenger's airbag
1
Driver's airbag
2
3
When the pre-tensioner activates, if the system senses excessive seat belttension on the driver or passenger's seat belt, the load limiter inside the pre- tensioner will release some of the pres-sure on the affected seat belt. The seat belt pre-tensioner system consists mainly of the following compo-nents. Their locations are shown in the illustration.
1. SRS airbag warning light
2. Seat belt pre-tensioner assembly
3. SRS control module
B180B01CM-DAT Pre-Tensioner Seat Belt Your Hyundai vehicle is equipped with driver's and front passenger's pre-tensioner seat belts. The purpose of the pre-tensioner is to make sure that the seat belts fit tightly against theoccupant's body in certain frontal colli- sions. The pre-tensioner seat belts can be activated with the airbags. When the vehicle stops suddenly, or if the occupant tries to lean forward tooquickly, the seat belt retractor will lock into position. In certain frontal colli- sions, the pre-tensioner will activateand pull the seat belt into tighter contact against the occupant's body.
OMC025300R
CM-aust-1a.p65
5/21/2008, 2:05 PM
32

1
FEATURES OF YOUR HYUNDAI
33
!
o Although it is harmless, the fine
dust may cause skin irritation and should not be breathed for pro- longed periods. Wash your hands and face thoroughly after an acci-dent in which the pre-tensioner seat belts were activated.
!
AIR
BAG
CAUTION:
o Because the sensor that activates the SRS airbag is connected with pre-tensioner seat belt, the SRS airbag warning light on the instrument panel will illuminatefor approximately 6 seconds after the ignition key has been turned to the "ON" position, and then itshould turn off.
o If pre-tensioner seat belt is not
working properly, this warninglight will illuminate even if there is no malfunction of the SRS airbag. If the SRS airbag warning lightdoes not illuminate when the igni- tion key is turned to "ON", or if it blinks for a second and remainsilluminated after illuminating for approximately 6 seconds, or if it illuminates while the vehicle isbeing driven, please have an authorised Hyundai dealer inspect the pre-tensioner seat belt or SRSairbag system as soon as pos- sible. WARNING:
o Pre-tensioners are designed to operate once only. After activa-tion, pre-tensioner seat belts must be replaced. All seat belts, of anytype, should always be replaced after they have been worn during a collision.
o The pre-tensioner seat belt assem- bly mechanisms become hot dur-ing activation. Do not touch thepre-tensioner seat belt assemblies for several minutes after they have been activated.
o Do not attempt to inspect or re- place the pre-tensioner seat beltsyourself. This must be done by anauthorised Hyundai dealer.
o Do not strike the pre-tensioner seat
belt assemblies.
o Do not attempt to service or repair the pre-tensioner seat belt systemin any manner.
CM-aust-1a.p65 5/21/2008, 2:05 PM
33

1FEATURES OF YOUR HYUNDAI
34
o Improper handling of the pre-
tensioner seat belt assemblies, and failure to heed the warnings to notstrike, modify, inspect, replace, service or repair the pre-tensioner seat belt assemblies may lead toimproper operation or inadvertent activation and serious injury.
o Always wear seat belts when driv-
ing or riding in a motor vehicle.
CM-aust-1a.p65 5/21/2008, 2:05 PM
34

1
FEATURES OF YOUR HYUNDAI
35
B240D01MC-GAT (If Installed) SUPPLEMENTAL RESTRAINT (AIRBAG) SYSTEM
1. Driver's front airbag
2. Passenger's front airbag
3. Front side impact airbag
4. Curtain airbag
OCM052146R
CM-aust-1a.p65 5/21/2008, 2:06 PM
35

1FEATURES OF YOUR HYUNDAI
36
!
OCM051008L
Driver's Front Airbag
B240A03NF-DAT Driver's and Passenger's Front Airbag Your vehicle is equipped with a Supple- mental Restraint (Air Bag) System andlap/shoulder belts at both the driver and passenger seating positions. The indi- cations of the system's presence arethe letters "SRS AIR BAG" embossed on the airbag pad cover in the steering wheel and the front passenger's panelpad above the glove box. The Hyundai SRS consists of airbagsinstalled under the pad covers in thecentre of the steering wheel and the front passenger's panel above the glove box.The purpose of the SRS is to provide the vehicle's driver or the front passen- ger with additional protection than thatoffered by the seat belt system alone, in case of a frontal impact of sufficient severity. NOTE: Be sure to read information about the SRS on the labels provided on the sun visor.
WARNING:
o As its name implies, the SRS is designed to work with, and besupplemental to, the driver's andthe passenger's three point seat belt systems and is not a substi- tute for them. Therefore your seatbelts must be worn at all times while the vehicle is in motion. The airbags deploy only in certain fron-tal impact conditions severe enough to likely cause significant injury to the vehicle occupants.
o The SRS is designed to deploy the airbags only when the impact issufficiently severe and when theimpact is in the front or frontal angle of the vehicle, and will not deploy in side, rear or rolloverimpacts. Additionally, the airbags will only deploy once. Thus, seat belts must be worn at all times.
CM-aust-1a.p65 5/21/2008, 2:06 PM
36

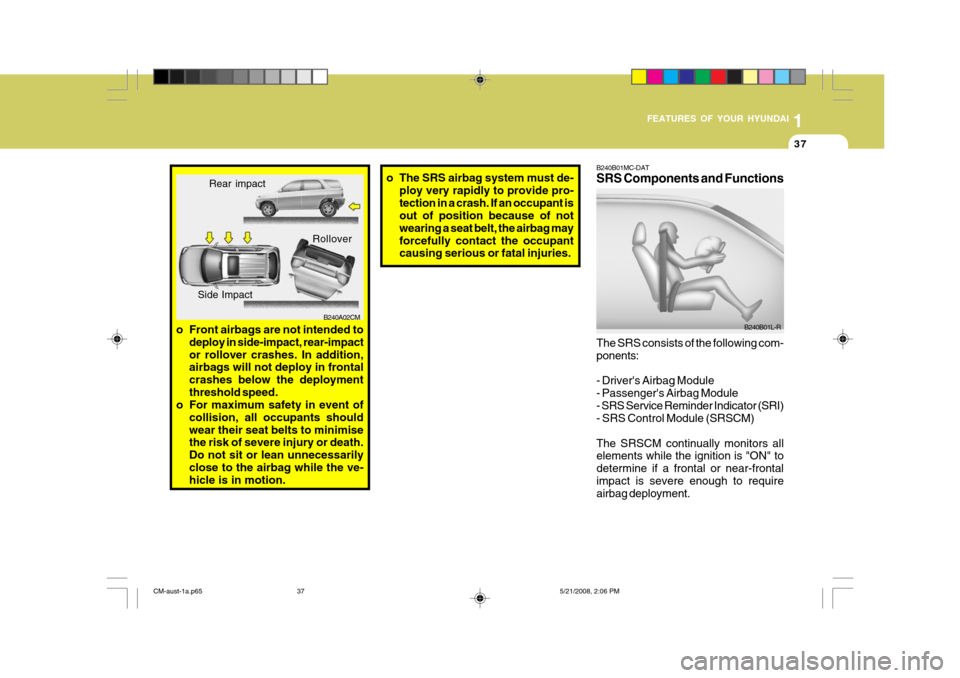

1
FEATURES OF YOUR HYUNDAI
37
B240A02CM o The SRS airbag system must de-
ploy very rapidly to provide pro- tection in a crash. If an occupant is out of position because of not wearing a seat belt, the airbag mayforcefully contact the occupant causing serious or fatal injuries.
B240B01MC-DAT SRS Components and Functions The SRS consists of the following com- ponents: - Driver's Airbag Module - Passenger's Airbag Module- SRS Service Reminder Indicator (SRI) - SRS Control Module (SRSCM) The SRSCM continually monitors all elements while the ignition is "ON" to determine if a frontal or near-frontalimpact is severe enough to require airbag deployment. B240B01L-R
o Front airbags are not intended to
deploy in side-impact, rear-impact or rollover crashes. In addition, airbags will not deploy in frontal crashes below the deploymentthreshold speed.
o For maximum safety in event of
collision, all occupants shouldwear their seat belts to minimise the risk of severe injury or death. Do not sit or lean unnecessarilyclose to the airbag while the ve- hicle is in motion. Rear impact
Side Impact Rollover
