1FEATURES OF YOUR HYUNDAI
134
NOTE - for using iPod device
o Some iPod models might not sup-port the communication protocol and the files will not be played.(iPod models supported: Mini, 4G, Photo, Nano, 5G)
o The order of search or playback of songs in the iPod can be differentfrom the order searched in the audio system.
o If the iPod crashes due to its own trouble, reset iPod. (Reset: Referto iPod manual)
o iPod may not operate normally on low battery.
! Caution in using iPod
device
o You need the power cable exclu- sive for iPod in order to operate iPod with the buttons on the audio system. The PC cable provided by Apple may cause malfunction anddo not use it for vehicle use.
o When connecting the device with
iPod cable, push in the jack fullynot to interfere with communica- tion.
o When adjusting the sound effects of iPod and the audio system, thesound effects of both devices will overlap each and might cause re-duce or distort the quality of the sound.
o Deactivate (turn off) the equalizer function of iPod when adjustingthe audio system’s volume, and turn off the equalizer of the audiosystem when using the equalizer of iPod.
o When the iPod cable is connected,the system can be switched to the AUX mode even without the iPod device and can cause noise. Dis- connect iPod cable when you arenot using the iPod device.
o When the iPod is not used at audio
system, iPod cable has to be sepa-rate from iPod device. Origin dis- play of iPod may not be displayed.
CM-aust-1b.p65 5/19/2008, 6:33 PM
134

2
Engine Exhaust Can Be Dangerous! ............................ 2-2
Risk of Rollover ............................................................ 2-3
Before Starting the Engine ............................................ 2-3
Key Positions ................................................................ 2-5Starting ......................................................................... 2-6
Manual Transaxle ......................................................... 2-7
Automatic Transaxle ..................................................... 2-9Anti-Lock Brake System (ABS) ................................... 2-14
Electronic Stability Program (ESP) ..............................2-15
Full-Time 4WD Operation ............................................ 2-16
4WD Lock System ...................................................... 2-19
Good Braking Practices .............................................. 2-20
Driving for Economy .................................................... 2-21
Winter Driving .............................................................. 2-23
Trailer or Vehicle Towing ............................................. 2-26
DRIVING YOUR HYUNDAI
2
CM-aust-2.p65
5/19/2008, 6:34 PM
1

2DRIVING YOUR HYUNDAI
2
C010A01O-DAT
WARNING: ENGINE EXHAUST CAN BE DANGEROUS!
Engine exhaust fumes can be extremely dangerous. If, at any time, you smell exhaust fumes inside the vehicle, open the windows immediately. o Do not inhale exhaust fumes. Exhaust fumes contain carbon monoxide, a colorless, odorless gas that can cause unconsciousness and death by asphyxiation. o Be sure the exhaust system does not leak. The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose.If you hear a change in the sound of the exhaust or if you drive over something that strikes the underneath sideof the car, have the exhaust system checked as soon as possible by your Hyundai dealer. o Do not run the engine in an enclosed area. Letting the engine idle in your garage, even with the garage door open, is a hazardous practice. Never run theengine in your garage any longer than it takes to start the engine and back the car out. o Avoid idling the engine for prolonged periods with people inside the car. If it is necessary to idle the engine for a prolonged period with people inside the car, be sure to do so only in anopen area with the air intake set at "Fresh" and the fan operating at one of the higher speeds so fresh air is drawn into the interior. If you must drive with the tail gate open because you are carrying objects that make this necessary:
1. Close all windows.
2. Open side vents.
3. Set the air intake control at "Fresh", the air flow control at "Floor" or "Face" and the fan at one of the higher speeds.
To assure proper operation of the ventilation system, be sure the ventilation air intakes located just in front of the windshield are kept clear of snow, ice, leaves or other obstructions.
!
CM-aust-2.p65 5/19/2008, 6:34 PM
2

2
DRIVING YOUR HYUNDAI
3
!
BEFORE STARTING THE ENGINE
C020A01CM-DAT Before you start the engine, you should always:
1. Look around the vehicle to be sure
there are no flat tyres, puddles of oil, water or other indications of possible trouble.
2. After entering the car, check to be sure the hand brake is engaged.
3. Check that all windows, and lights are clean.
4. Check that the interior and exterior
mirrors are clean and in position.
5. Check your seat, seatback and head- rest to be sure they are in their properpositions.
6. Lock all the doors.
7. Fasten your seat belt and be sure
that all other occupants have fas- tened theirs.
8. Turn off all lights and accessories
that are not needed.
9. When you turn the ignition switch to "ON", check that all appropriate warn-ing lights are operating and that youhave sufficient fuel.
10. Check the operation of warning lights
and all bulbs when key is in the "ON"position.
C020A01HP-DAT
o In a collision crash, an unbelted
person is significantly more likelyto die than a person wearing aseatbelt.

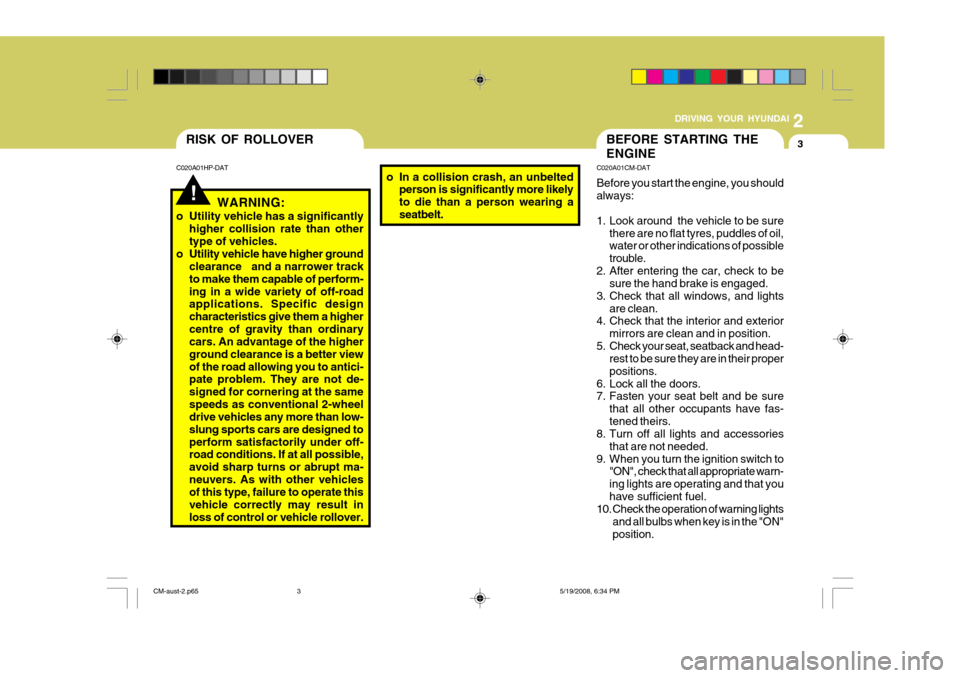

RISK OF ROLLOVER
WARNING:
o Utility vehicle has a significantly higher collision rate than othertype of vehicles.
o Utility vehicle have higher ground clearance and a narrower trackto make them capable of perform-ing in a wide variety of off-road applications. Specific design characteristics give them a highercentre of gravity than ordinary cars. An advantage of the higher ground clearance is a better viewof the road allowing you to antici- pate problem. They are not de- signed for cornering at the samespeeds as conventional 2-wheel drive vehicles any more than low- slung sports cars are designed toperform satisfactorily under off- road conditions. If at all possible, avoid sharp turns or abrupt ma-neuvers. As with other vehicles of this type, failure to operate this vehicle correctly may result inloss of control or vehicle rollover.
CM-aust-2.p65 5/19/2008, 6:34 PM
3

2DRIVING YOUR HYUNDAI
4
!
TO START THE ENGINE
C030A01A-GAT COMBINATION IGNITION SWITCH
o If your Hyundai is equipped with a manual transaxle, place the shift lever in neutral and depress the clutch pedal fully.
o If your Hyundai has an automatic
transaxle, place the shift lever in "P"(park).
o To start the engine, insert the ignition key and turn it to the "START" posi-tion. Release it as soon as the en- gine starts. Do not hold the key in the"START" position for more than 15 seconds.
NOTE: For safety, the engine will not start if the clutch pedal is not depressed
fully (Manual Transaxle) or the shift lever is not in "P" or "N" Position(Automatic Transaxle).
WARNING:
Your vehicle is equipped with tyres designed to provide for safe ride and handling capability.Do not use a size and type of tyre and wheel that is different from the one that was originally installed on yourvehicle. It can affect the safety and performance of your vehicle, which could lead to handling failure orrollover and serious injury. When replacing the tyres, be sure to equip all four tyres with the tyre andwheel of the same size, type, tread, brand and load-carrying capacity. If you nevertheless decide to equipyour vehicle with any tyre/wheel com- bination not recommended by Hyundai for off-road driving, youshould not use these tyres for high- way driving.
!WARNING:
Always wear appropriate shoes when operating your vehicle.Unsuitable shoes (high heels, ski boots, etc.) may interfere with your ability to use the brake and accelera-tor pedal, and the clutch (if installed).
!WARNING (DIESEL ENGINE):
To ensure that sufficient vacuum exists within the brake system dur-ing cold weather start-up conditions, it is necessary to run the engine at idle for several seconds after start-ing the engine.
!WARNING:
When you intend to park or stop the vehicle with the engine on, be care- ful not to depress the accelerator pedal for a long period of time. It mayoverheat the engine or exhaust sys- tem and cause fire.
CM-aust-2.p65 5/19/2008, 6:34 PM
4

2
DRIVING YOUR HYUNDAI
5
!

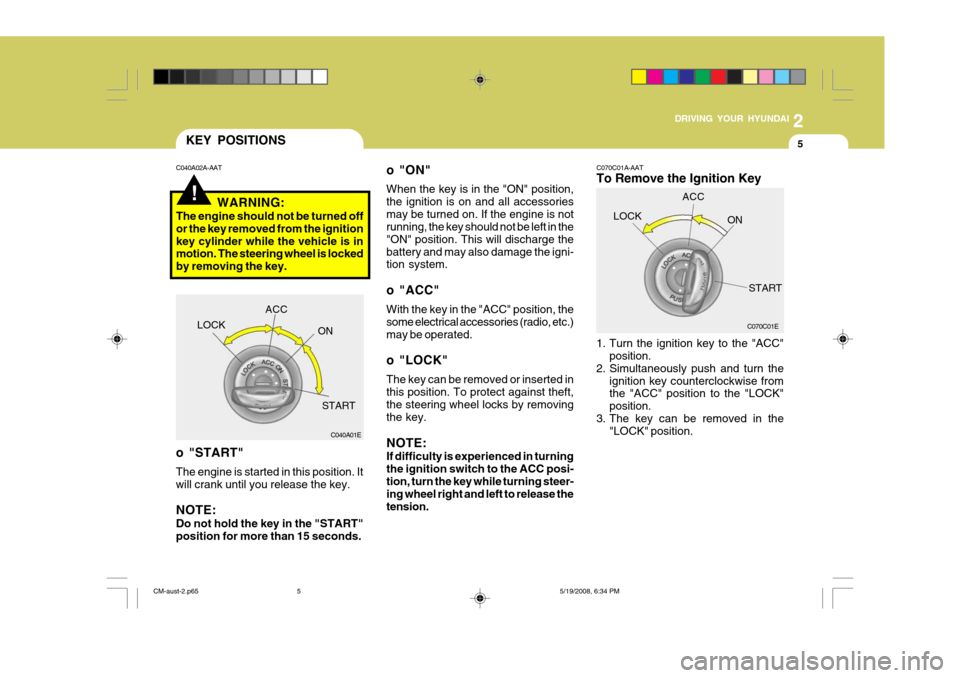

KEY POSITIONS
o "ON" When the key is in the "ON" position, the ignition is on and all accessoriesmay be turned on. If the engine is not running, the key should not be left in the "ON" position. This will discharge thebattery and may also damage the igni- tion system.
o "ACC" With the key in the "ACC" position, the some electrical accessories (radio, etc.)may be operated.
o "LOCK" The key can be removed or inserted in this position. To protect against theft, the steering wheel locks by removing the key. NOTE: If difficulty is experienced in turning the ignition switch to the ACC posi-tion, turn the key while turning steer- ing wheel right and left to release the tension. C070C01A-AAT To Remove the Ignition Key
1. Turn the ignition key to the "ACC"
position.
2. Simultaneously push and turn the
ignition key counterclockwise from the "ACC" position to the "LOCK" position.
3. The key can be removed in the "LOCK" position.
C040A02A-AAT
WARNING:
The engine should not be turned offor the key removed from the ignitionkey cylinder while the vehicle is in motion. The steering wheel is locked by removing the key.
o "START" The engine is started in this position. It will crank until you release the key. NOTE: Do not hold the key in the "START" position for more than 15 seconds. C040A01E
LOCK
ACC
ON
START C070C01E
LOCK
ACC
ON
START
CM-aust-2.p65 5/19/2008, 6:34 PM
5

2DRIVING YOUR HYUNDAI
6
!

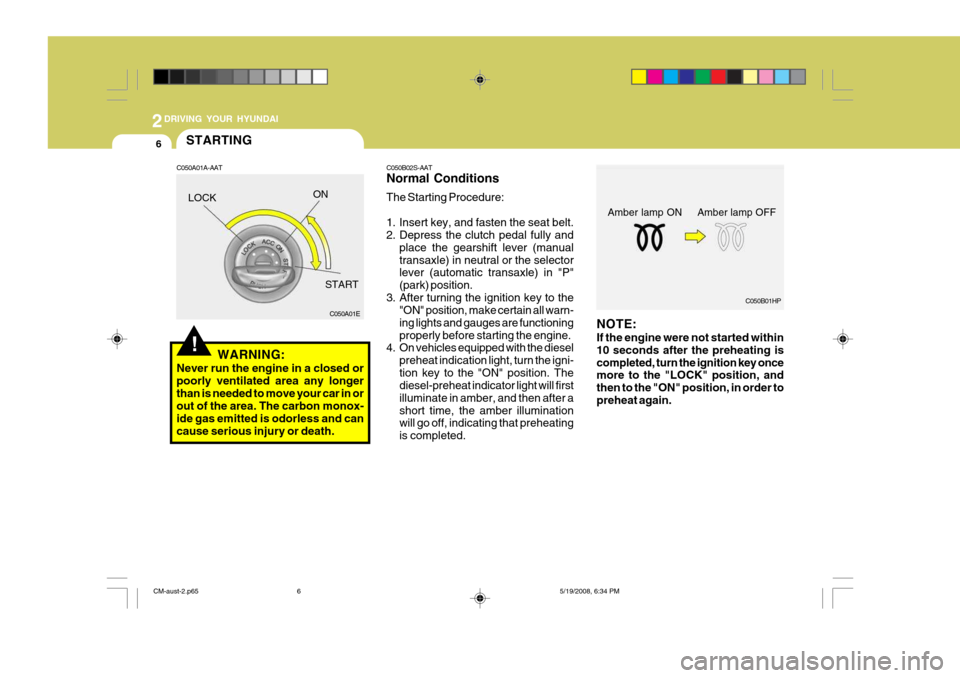

C050B02S-AAT Normal Conditions The Starting Procedure:
1. Insert key, and fasten the seat belt.
2. Depress the clutch pedal fully and
place the gearshift lever (manual transaxle) in neutral or the selector lever (automatic transaxle) in "P" (park) position.
3. After turning the ignition key to the "ON" position, make certain all warn-ing lights and gauges are functioningproperly before starting the engine.
4. On vehicles equipped with the diesel
preheat indication light, turn the igni-tion key to the "ON" position. The diesel-preheat indicator light will first illuminate in amber, and then after ashort time, the amber illumination will go off, indicating that preheating is completed.
STARTING
C050A01A-AAT
WARNING:
Never run the engine in a closed or poorly ventilated area any longerthan is needed to move your car in or out of the area. The carbon monox- ide gas emitted is odorless and cancause serious injury or death. C050A01E
LOCK
ON
START
C050B01HP
Amber lamp ON Amber lamp OFF
NOTE: If the engine were not started within 10 seconds after the preheating iscompleted, turn the ignition key once more to the "LOCK" position, and then to the "ON" position, in order topreheat again.
CM-aust-2.p65 5/19/2008, 6:34 PM
6

2
DRIVING YOUR HYUNDAI
7
!WARNING:
Be sure that the clutch is fully de- pressed when starting a manual transaxle vehicle. Otherwise there isthe potential to cause damage to the vehicle or injury to someone inside or outside the vehicle as a result ofthe forward or backward movement of the vehicle that will occur if the clutch is not depressed when thevehicle is started.
5. Turn the ignition key to the "START" position and release it when the en- gine starts.
OPERATING THE MANUAL TRANSAXLE
NOTE:
o To shift into reverse, rest the le-ver in neutral for at least 3 sec- onds after your car is completely stopped. Then move the leverinto the reverse position.
o During cold weather, shifting may be difficult until the transaxle lu-bricant has warmed up. This is normal and not harmful to the transaxle.
o If you've come to a complete stop and it's hard to shift into 1st orR(Reverse), put the shift lever in N(Neutral) position and release the clutch. Press the clutch pedalback down, and then shift into 1st or R(Reverse) gear position.
o Do not use the shift lever as a handrest during driving, as this can result in premature wear ofthe transaxle shift forks.
C070A02NF-DAT
This shift pattern is imprinted on theshift knob. The transaxle is fullysynchronised in all forward gears so shifting to either a higher or a lower gear is easily accomplished.When shifting into reverse gear, pull the mis-shift prevention tab and shift into reverse gear position.
OCM053003E
Mis-shift prevention tap
CM-aust-2.p65 5/19/2008, 6:34 PM
