2009 Hyundai Santa Fe Owner's Manual - RHD (UK, Australia)

Emission Control System ............................................. 7-2
EGR System ................................................................ 7-3
Catalytic Converter ...................................................... 7-3
7
EMISSION CONTROL SYSTEM
7

7EMISSION CONTROL SYSTEMS
2EMISSION CONTROL SYSTEM
H010A01A-DAT (If installed) Your Hyundai is equipped with an emission control system to meet all ADR requirements. There are three emission control sys- tems which are as follows.
1. Crankcase emission control sys- tem
2. Evaporative emission control sys- tem
3. Exhaust emission control systemIn order to assure the proper function of the emission control systems, it is recommended that you have your carinspected and maintained by an authorised Hyundai dealer in accor- dance with the maintenance schedulein this manual. H010B01A-AAT
1. Crankcase Emission Control
System
The Positive Crankcase Ventilation
(PVC) System is employed to prevent air pollution caused by blow-by gases being emitted from the crankcase. Thissystem supplies fresh filtered air to the crankcase through the air intake hose. Inside the crankcase, the freshair mixes with blow-by gases, which then pass through the PCV valve and into the induction system. H010C02Y-GAT
2. Evaporative Emission Control
System
The Evaporative Emission Control
System is designed to prevent fuel vapors from escaping into the atmo- sphere. Canister
Fuel vapors generated inside the fuel
tank are absorbed and stored in the onboard canister. When the engine isrunning, the fuel vapors absorbed in the canister are drawn into the induc- tion system through the purge controlsolenoid valve. Purge Control Solenoid Valve
The purge control solenoid valve is
controlled by the ECM (Engine Control Module); when the engine coolant tem- perature is low, and during idling, it closes, so that evaporated fuel is nottaken into the engine. After engine warm-up, during ordinary driving, it opens so as to introduce evaporatedfuel to the engine.

7
EMISSION CONTROL SYSTEMS
3EGR SYSTEMCATALYTIC CONVERTER

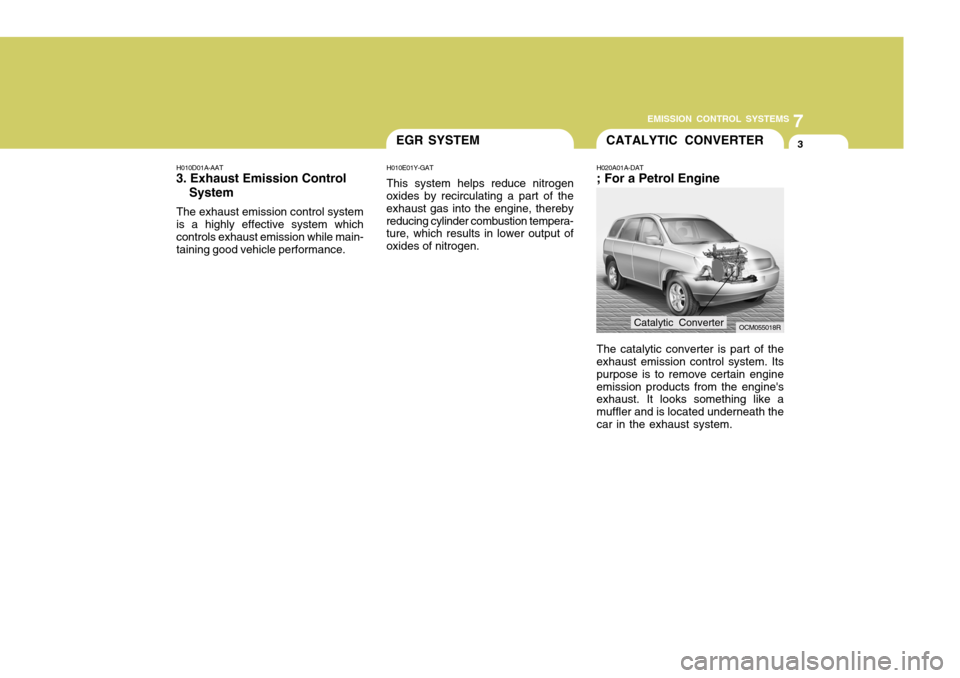

H020A01A-DAT ; For a Petrol Engine The catalytic converter is part of the exhaust emission control system. Its purpose is to remove certain engineemission products from the engine's exhaust. It looks something like a muffler and is located underneath thecar in the exhaust system.
H010D01A-AAT
3. Exhaust Emission Control
System
The exhaust emission control systemis a highly effective system which controls exhaust emission while main- taining good vehicle performance. H010E01Y-GAT This system helps reduce nitrogen
oxides by recirculating a part of the exhaust gas into the engine, therebyreducing cylinder combustion tempera- ture, which results in lower output of oxides of nitrogen.
OCM055018RCatalytic Converter

7EMISSION CONTROL SYSTEMS
4
o Avoid idling the engine for periodslonger than 3 minutes.
o Your Hyundai should not be either pushed or pulled to get it started. This can cause the catalytic con-verter to overload.
o Take care not to park, idle or drive your Hyundai over or near flam- mable objects, such as grass, pa- per, leaves or rags. These materialscould come in contact with the cata- lytic converter and could cause a fire.
o Do not touch the catalytic converter or any other part of the exhaustsystem while the engine is runningas it is very hot and could result in burns.
o Remember that your Hyundai dealer is your best source of assistance.
H020B01CM-DAT About the Catalytic Converter Exhaust gases passing through the catalytic converter cause it to operate at very high temperatures. As a result, the introduction of large amounts ofunburned petrol may cause it to over- heat and create a fire hazard. This can be avoided by observing the following:
o Use unleaded fuel only.
o Maintain your engine in good condi-
tion. Extremely high converter tem- peratures can result from improper operation of the electrical, ignitionor fuel injection systems.
o If your engine stalls, pings, knocks, or is hard to start, take your car to your Hyundai dealer as soon as possible and have the difficulty cor-rected.
o Avoid driving with a very low fuel
level. If you run out of petrol, itcould cause the engine to misfire and result in excessive loading of the catalytic converter. H020D01S-GAT
; For a Diesel Engine
Hyundai vehicles are equipped with
oxidation type catalytic converter to reduce the carbon monoxide, hydro- carbons and particulate contained inthe exhaust gas.

Vehicle Identification Number (VIN) ............................. 8-2
Engine Number ............................................................. 8-2
Vehicle Compliance Plate ............................................ 8-3
Recommended Inflation Pressures .............................. 8-3
Snow Tyres .................................................................. 8-4
Tyre Chains .................................................................. 8-5
Tyre Rotation ................................................................ 8-5
Tyre Balancing ............................................................. 8-6
Tyre Traction ................................................................ 8-6
When to Replace Tyres ............................................... 8-6
Spare Tyre and Tools .................................................. 8-7
8
CONSUMER INFORMATION
8
CM-aust-8.p655/19/2008, 6:41 PM
1

8CONSUMER INFORMATION
2ENGINE NUMBERVEHICLE IDENTIFICATION NUMBER (VIN)
I010A01CM-DAT

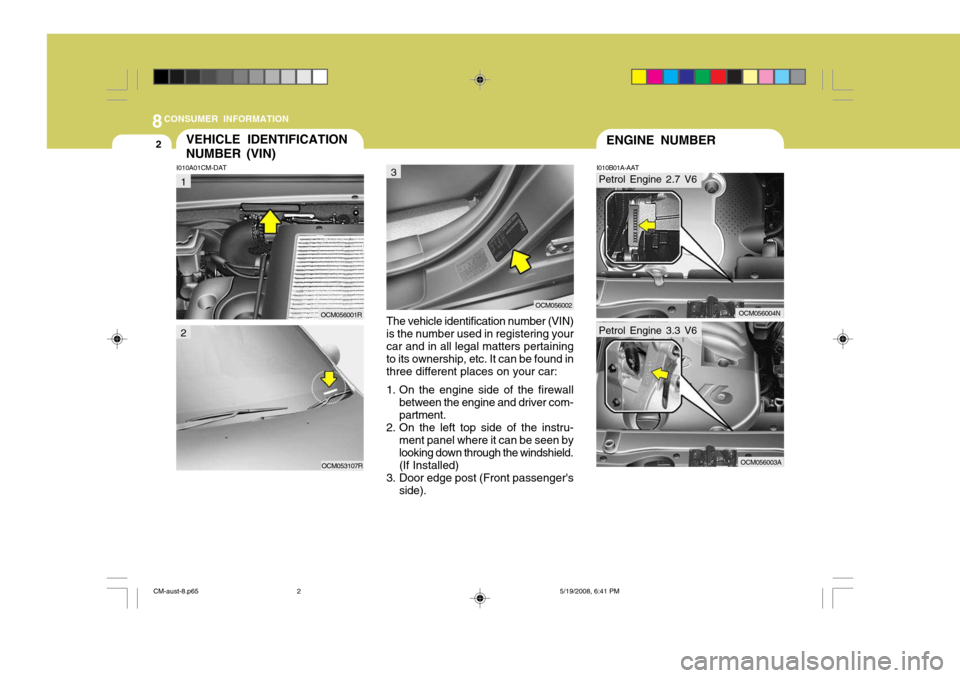

The vehicle identification number (VIN) is the number used in registering your car and in all legal matters pertaining to its ownership, etc. It can be found inthree different places on your car:
1. On the engine side of the firewall
between the engine and driver com- partment.
2. On the left top side of the instru- ment panel where it can be seen bylooking down through the windshield.(If Installed)
3. Door edge post (Front passenger's
side).OCM056001R
OCM053107R
OCM056002
1
2
3I010B01A-AAT
OCM056003A
Petrol Engine 3.3 V6
Petrol Engine 2.7 V6
OCM056004N
CM-aust-8.p65 5/19/2008, 6:41 PM
2

8
CONSUMER INFORMATION
3TYRE
I030A01CM-DAT RECOMMENDED INFLATION PRESSURES The tyre label located on the driver's door centre pillar outer panel gives the tyre pressures recommended for your car.
I020A01A-DAT TYRE INFORMATION The tyres supplied on your new Hyundai are chosen to provide the best perfor- mance for normal driving.
OCM055119R
I010C01A-DAT A vehicle safety Compliance Plate confirming that your Hyundai vehicle complied with Australian Design Rulesapplicable at its time of manufacture is located inside engine compartment.
VEHICLE COMPLIANCE PLATE

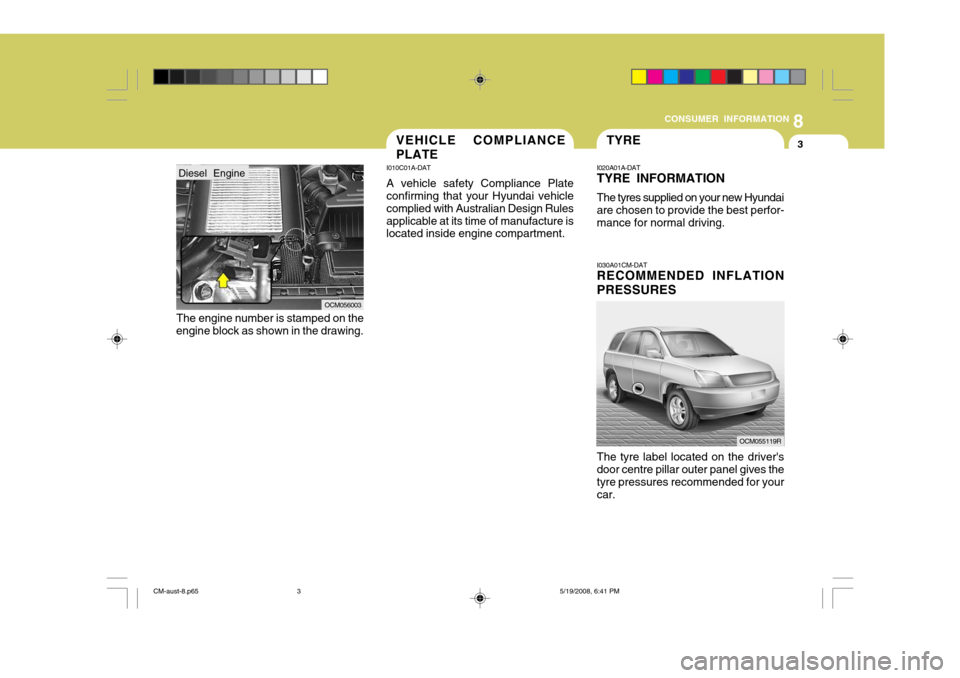

Diesel Engine
The engine number is stamped on the
engine block as shown in the drawing.
OCM056003
CM-aust-8.p65 5/19/2008, 6:41 PM
3

8CONSUMER INFORMATION
4
!
CAUTION:
Always observe the following:
o Check pressures when the tyres are cold. That is, after the car has been parked for at least threehours and hasn't been driven more than 1.6 km or one mile since starting up.
o Check the pressure of your spare tyre each time you check the pres-sure of other tyres.
o Never overload your car. Be espe- cially careful about overloading if you equip your car with a lug- gage rack or car top carrier. I040A01S-DAT
SNOW TYRES
If you equip your car with snow tyres,
they should be the same size and have the same load capacity as the original tyres. Snow tyres should beinstalled on all four wheels; otherwise, poor handling may result.
Snow tyres should carry 28 kPa (4 psi)
more air pressure than the pressure recommended for the standard tyreson the tyre label on the drive side centre pillar outer panel, or up to the maximum pressure shown on the tyresidewall whichever is less.
Do not drive faster than 120 km/h (75
mph) when your car is equipped withsnow tyres.
These pressures were chosen to pro-vide the most satisfactory combina- tion of ride comfort, tyre wear and stability under normal conditions.Tyre pressures should be checkedmonthly at least. Proper tyre inflationpressures should be maintained for these reasons:
o Lower-than-recommended tyre pres-
sures cause uneven tread wear and poor handling.
o Higher-than-recommended tyre pres-
sures increase the chance of dam- age from impacts and cause un- even tread wear.
7.0Jx17 7.0Jx18
4.0Tx17 TYRE SIZE
RIM
SIZE PRESSURE, kPa (PSI)
235/65R17235/60R18
T165/90R17 REAR
210(30)210(30)420(60) FRONT
220(32)220(32) 420(60)
NORMAL LOAD
MAXIMUM LOAD
REAR
220(32) 220(32) 420(60)
FRONT
210(30) 210(30)420(60)
CM-aust-8.p65 5/19/2008, 6:41 PM
4
