2009 Hyundai Santa Fe Owner's Manual - RHD (UK, Australia)

1FEATURES OF YOUR HYUNDAI
102

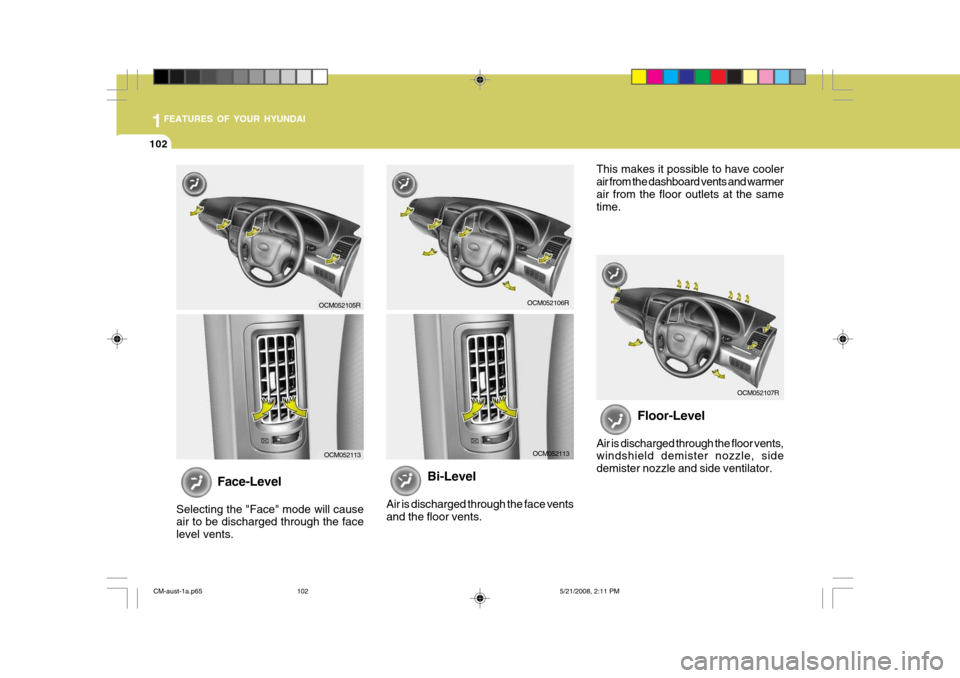

Bi-Level
Air is discharged through the face vents and the floor vents. Floor-Level
Air is discharged through the floor vents, windshield demister nozzle, side demister nozzle and side ventilator.
OCM052106R
OCM052113
OCM052107R
This makes it possible to have cooler air from the dashboard vents and warmerair from the floor outlets at the same time.
Face-Level
Selecting the "Face" mode will causeair to be discharged through the face level vents.
OCM052105R
OCM052113
CM-aust-1a.p65 5/21/2008, 2:11 PM
102

1
FEATURES OF YOUR HYUNDAI
103

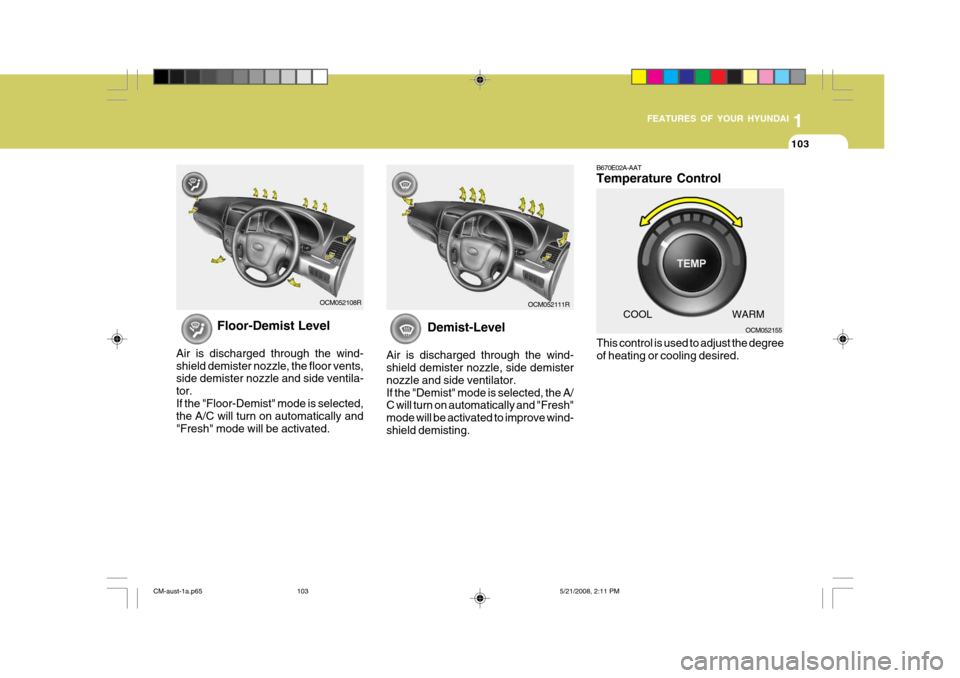

Floor-Demist Level
Air is discharged through the wind- shield demister nozzle, the floor vents, side demister nozzle and side ventila- tor.If the "Floor-Demist" mode is selected, the A/C will turn on automatically and "Fresh" mode will be activated.
OCM052108R Demist-Level
Air is discharged through the wind- shield demister nozzle, side demister nozzle and side ventilator.If the "Demist" mode is selected, the A/ C will turn on automatically and "Fresh" mode will be activated to improve wind-shield demisting. B670E02A-AAT Temperature Control
This control is used to adjust the degree of heating or cooling desired. Cool Warm
OCM052155
OCM052111R
COOL WARM
CM-aust-1a.p65 5/21/2008, 2:11 PM
103

1FEATURES OF YOUR HYUNDAI

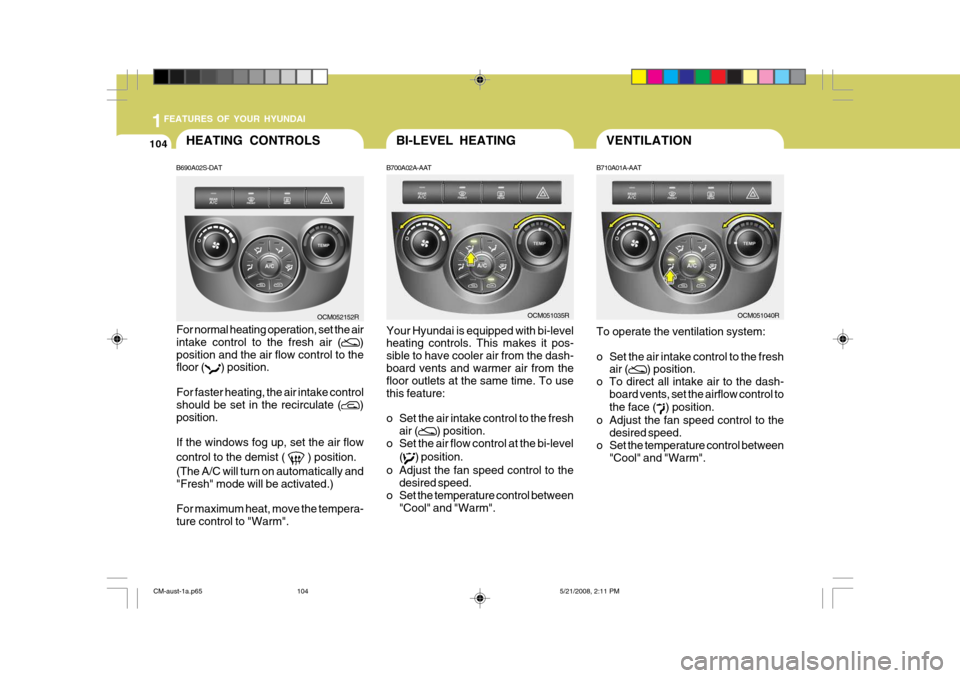

104VENTILATIONBI-LEVEL HEATING
B700A02A-AAT Your Hyundai is equipped with bi-level heating controls. This makes it pos- sible to have cooler air from the dash-board vents and warmer air from the floor outlets at the same time. To use this feature:
o Set the air intake control to the fresh air (
) position.
o Set the air flow control at the bi-level
(
) position.
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm". B710A01A-AAT To operate the ventilation system:
o Set the air intake control to the fresh
air (
) position.
o To direct all intake air to the dash- board vents, set the airflow control to the face (
) position.
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".
HEATING CONTROLS
B690A02S-DAT
For normal heating operation, set the air intake control to the fresh air (
)
position and the air flow control to the floor (
) position.
For faster heating, the air intake control should be set in the recirculate (
)
position. If the windows fog up, set the air flow control to the demist (
) position.
(The A/C will turn on automatically and "Fresh" mode will be activated.) For maximum heat, move the tempera- ture control to "Warm". OCM052152R
OCM051035ROCM051040R
CM-aust-1a.p65
5/21/2008, 2:11 PM
104

1
FEATURES OF YOUR HYUNDAI

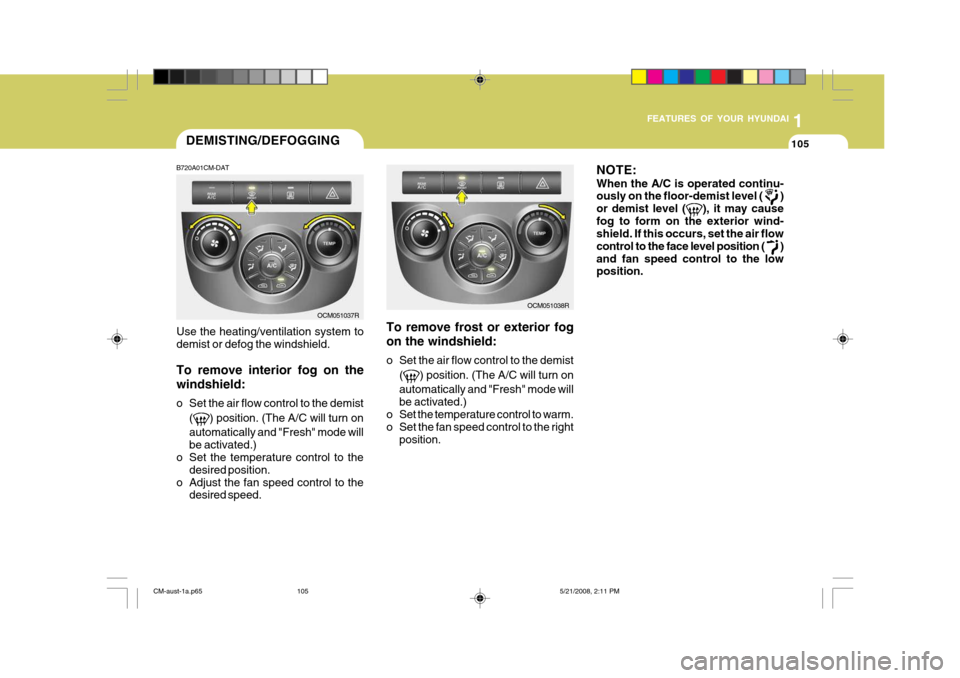

105DEMISTING/DEFOGGING
B720A01CM-DAT Use the heating/ventilation system to demist or defog the windshield. To remove interior fog on the windshield:
o Set the air flow control to the demist (
) position. (The A/C will turn on
automatically and "Fresh" mode will be activated.)
o Set the temperature control to the
desired position.
o Adjust the fan speed control to the desired speed.
OCM051037R
To remove frost or exterior fog on the windshield:
o Set the air flow control to the demist
(
) position. (The A/C will turn on
automatically and "Fresh" mode will be activated.)
o Set the temperature control to warm.
o Set the fan speed control to the right
position. NOTE: When the A/C is operated continu- ously on the floor-demist level (
)
or demist level (
), it may cause
fog to form on the exterior wind- shield. If this occurs, set the air flow control to the face level position (
)
and fan speed control to the low position.
OCM051038R
CM-aust-1a.p65 5/21/2008, 2:11 PM
105

1FEATURES OF YOUR HYUNDAI

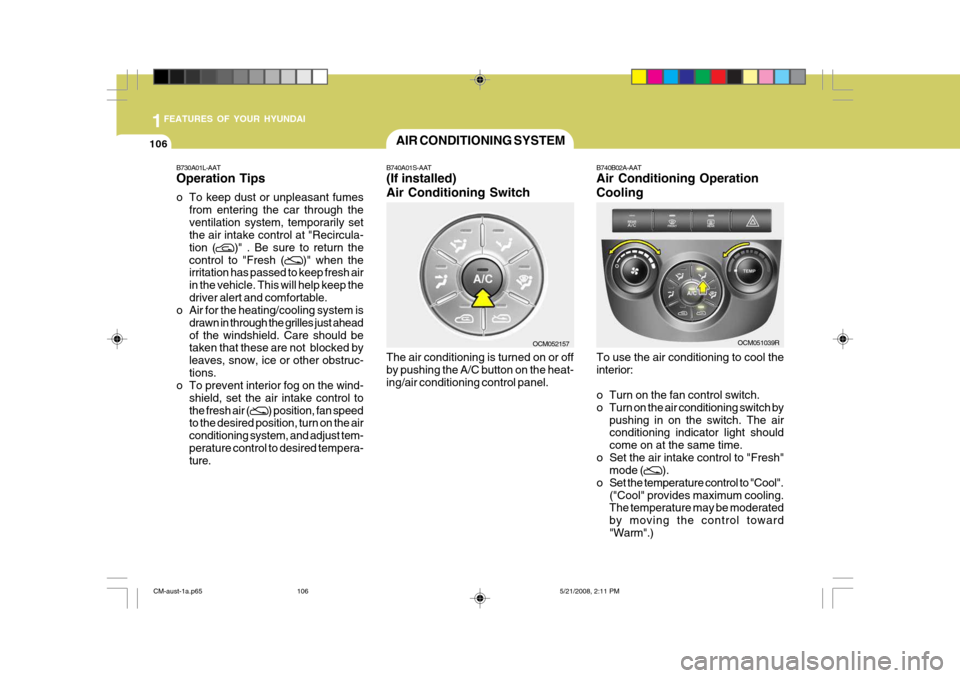

106AIR CONDITIONING SYSTEM
B740A01S-AAT (If installed) Air Conditioning Switch The air conditioning is turned on or off by pushing the A/C button on the heat-ing/air conditioning control panel. B740B02A-AAT Air Conditioning Operation Cooling
B730A01L-AAT Operation Tips
o To keep dust or unpleasant fumes
from entering the car through the ventilation system, temporarily set the air intake control at "Recircula- tion (
)" . Be sure to return the
control to "Fresh (
)" when the
irritation has passed to keep fresh air in the vehicle. This will help keep thedriver alert and comfortable.
o Air for the heating/cooling system is
drawn in through the grilles just aheadof the windshield. Care should be taken that these are not blocked by leaves, snow, ice or other obstruc-tions.
o To prevent interior fog on the wind-
shield, set the air intake control tothe fresh air (
) position, fan speed
to the desired position, turn on the air conditioning system, and adjust tem-perature control to desired tempera- ture.
OCM051039ROCM052157
To use the air conditioning to cool the interior:
o Turn on the fan control switch.
o Turn on the air conditioning switch bypushing in on the switch. The air conditioning indicator light should come on at the same time.
o Set the air intake control to "Fresh" mode (
).
o Set the temperature control to "Cool". ("Cool" provides maximum cooling. The temperature may be moderated by moving the control toward"Warm".)
CM-aust-1a.p65 5/21/2008, 2:11 PM
106

1
FEATURES OF YOUR HYUNDAI
107
o Adjust the fan control to the desired speed. For greater cooling, turn the fan control to one of the higher speeds or temporarily select the "Recircula- tion (
)" position on the air intake
control switch.

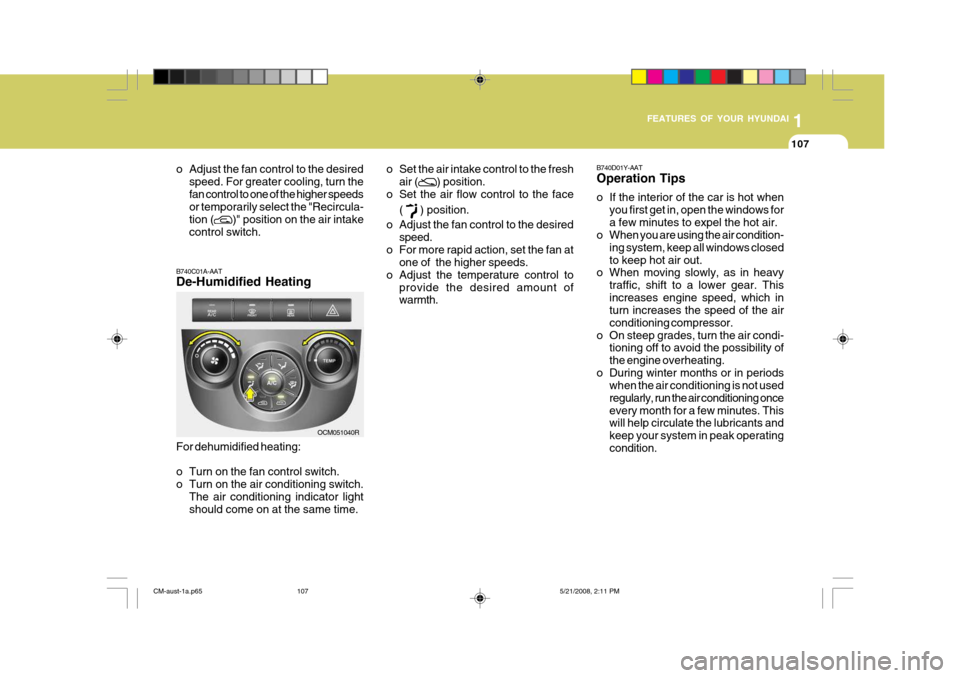

B740C01A-AAT De-Humidified Heating For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch. The air conditioning indicator lightshould come on at the same time.
OCM051040R o Set the air intake control to the fresh
air (
) position.
o Set the air flow control to the face
(
) position.
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at one of the higher speeds.
o Adjust the temperature control to provide the desired amount of warmth. B740D01Y-AAT Operation Tips
o If the interior of the car is hot when
you first get in, open the windows for a few minutes to expel the hot air.
o When you are using the air condition-
ing system, keep all windows closedto keep hot air out.
o When moving slowly, as in heavy
traffic, shift to a lower gear. Thisincreases engine speed, which in turn increases the speed of the air conditioning compressor.
o On steep grades, turn the air condi- tioning off to avoid the possibility ofthe engine overheating.
o During winter months or in periods when the air conditioning is not usedregularly, run the air conditioning onceevery month for a few minutes. This will help circulate the lubricants and keep your system in peak operatingcondition.
CM-aust-1a.p65 5/21/2008, 2:11 PM
107

1FEATURES OF YOUR HYUNDAI
108AUTOMATIC HEATING AND COOLING CONTROL SYSTEM
B970A01Y-AAT (If installed) Your Hyundai is equipped with an auto- matic heating and cooling control sys- tem controlled by simply setting thedesired temperature. B970B01CM-DAT Heating and Cooling Controls
OCM052096R
1. AUTO (Automatic Control) Switch
2. OFF Switch
3. Air Conditioning Switch
4. Display Window (Front passenger's side)
5. Temperature Control Switch (Front passenger's side)
6. Blower Fan Control Switch
7. Air Intake Control Switch
8. Air Quality System Switch (If installed) 9. Display Window (Driver's side)
10. Temperature Control Switch
(Driver's side)
11. Dual Temperature Control Selec- tion Switch
12. Air Flow Control Switch
13. Rear Air Conditioning Switch (If installed)
14. Front Window Demister Switch
15. Rear Window Demister Switch
CM-aust-1a.p65 5/21/2008, 2:11 PM
108

1
FEATURES OF YOUR HYUNDAI
109

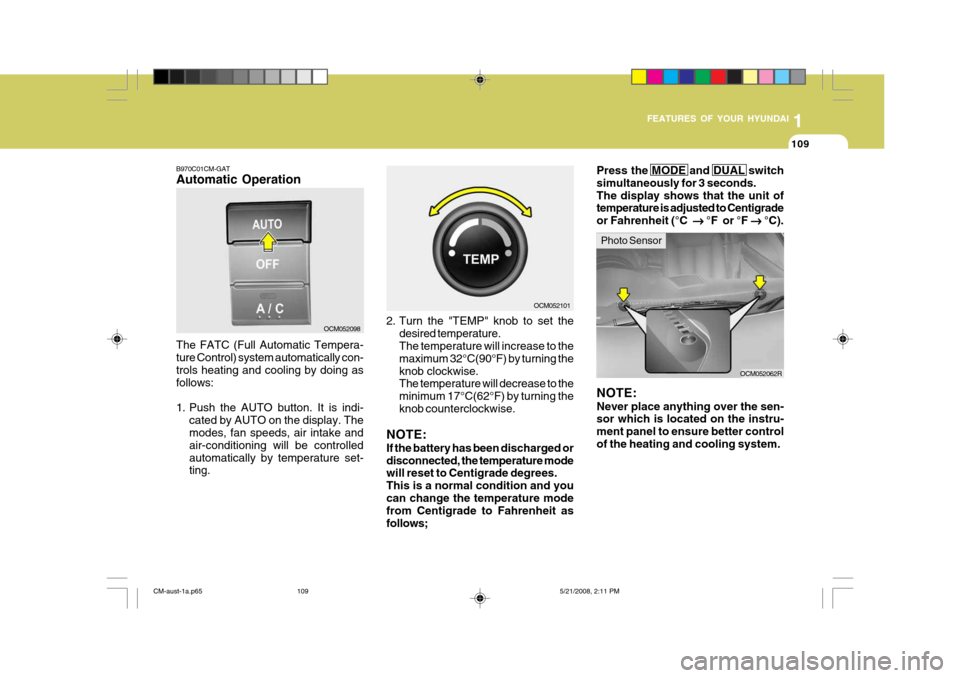

B970C01CM-GAT Automatic Operation The FATC (Full Automatic Tempera- ture Control) system automatically con- trols heating and cooling by doing asfollows:
1. Push the AUTO button. It is indi-
cated by AUTO on the display. The modes, fan speeds, air intake and air-conditioning will be controlledautomatically by temperature set- ting. 2. Turn the "TEMP" knob to set the
desired temperature.The temperature will increase to the maximum 32°C(90°F) by turning theknob clockwise. The temperature will decrease to the minimum 17°C(62°F) by turning theknob counterclockwise.
NOTE: If the battery has been discharged or disconnected, the temperature mode will reset to Centigrade degrees. This is a normal condition and youcan change the temperature mode from Centigrade to Fahrenheit as follows;
OCM052098
OCM052101
OCM052062R
NOTE: Never place anything over the sen- sor which is located on the instru- ment panel to ensure better controlof the heating and cooling system.Press the MODE and DUAL switch simultaneously for 3 seconds.The display shows that the unit of temperature is adjusted to Centigrade or Fahrenheit (°C

°F or °F


°C).
Photo Sensor
CM-aust-1a.p65 5/21/2008, 2:11 PM
109
