6DO-IT-YOURSELF MAINTENANCE
34

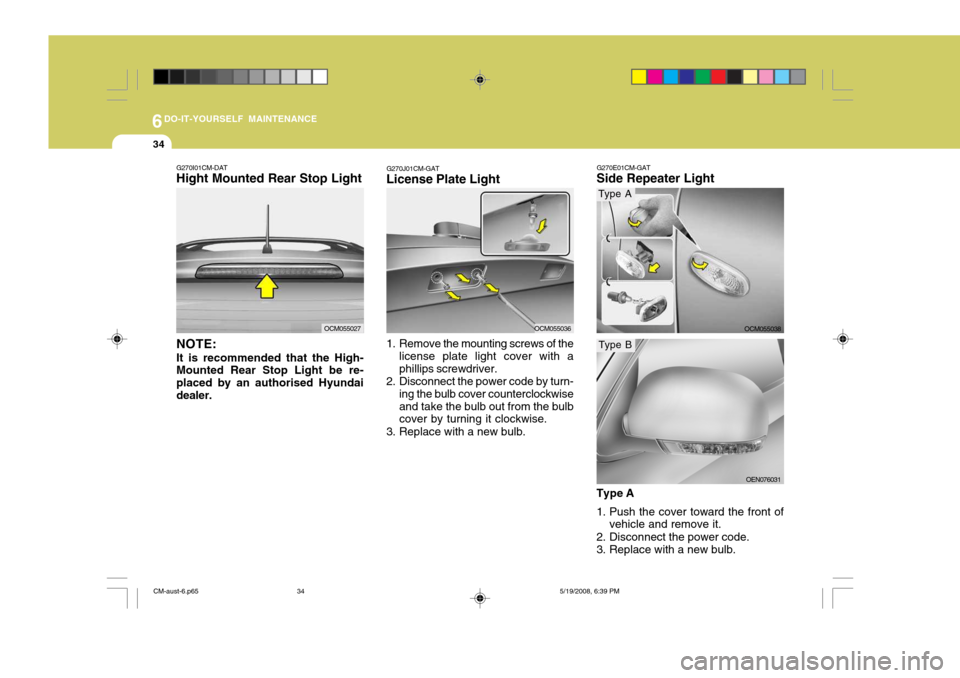

G270I01CM-DAT Hight Mounted Rear Stop Light NOTE: It is recommended that the High- Mounted Rear Stop Light be re- placed by an authorised Hyundaidealer.
OCM055027 G270J01CM-GAT
License Plate Light
1. Remove the mounting screws of the
license plate light cover with a phillips screwdriver.
2. Disconnect the power code by turn-
ing the bulb cover counterclockwiseand take the bulb out from the bulb cover by turning it clockwise.
3. Replace with a new bulb.OCM055036OCM055038
G270E01CM-GAT
Side Repeater Light
OEN076031
Type A
Type B
Type A
1. Push the cover toward the front of vehicle and remove it.
2. Disconnect the power code.
3. Replace with a new bulb.
CM-aust-6.p65 5/19/2008, 6:39 PM
34

6
DO-IT-YOURSELF MAINTENANCE
35
G270G01O-GAT

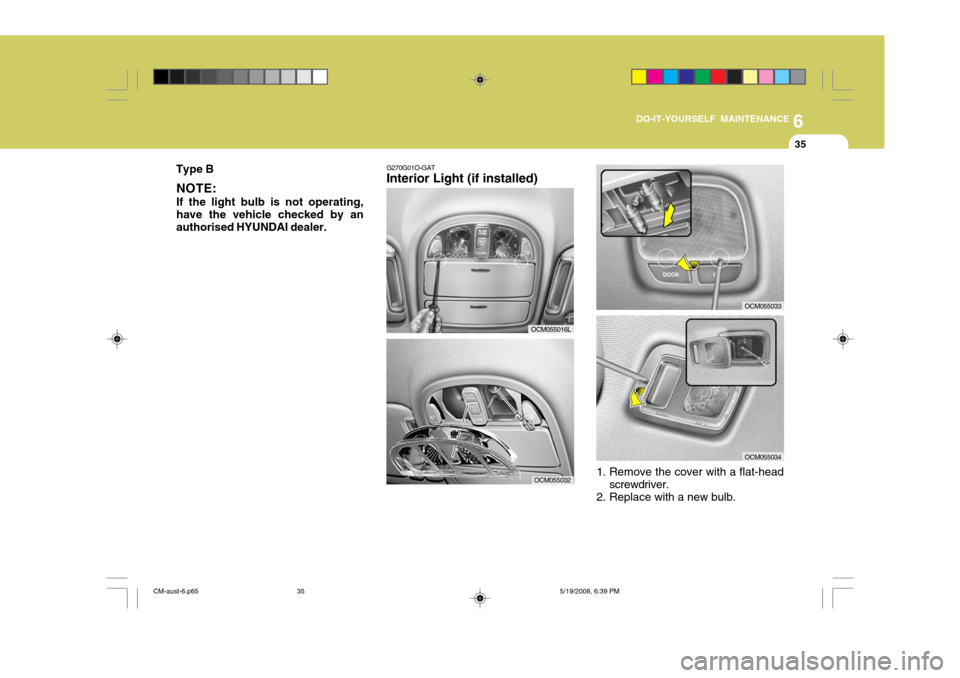

Interior Light (if installed)
OCM055016L
OCM055033
OCM055034
OCM055032 1. Remove the cover with a flat-head
screwdriver.
2. Replace with a new bulb.
Type B
NOTE: If the light bulb is not operating, have the vehicle checked by anauthorised HYUNDAI dealer.
CM-aust-6.p65 5/19/2008, 6:39 PM
35

6DO-IT-YOURSELF MAINTENANCE
36
G270E02L
HTB284
3. Disconnect the connector.
4. Replace with a new bulb.
G270H01O-GAT
Glove Box Illuminated Light
1. Open the glove box.
2. Remove the cover with a flat-head screwdriver.
OCM055017L
G270C01O-GAT
Luggage Compartment Light (if installed)
1. Open the tail gate.
2. Remove the cover with a flat-head
screwdriver.
3. Replace with a new bulb.
OCM055035
CM-aust-6.p65 5/19/2008, 6:40 PM
36

6
DO-IT-YOURSELF MAINTENANCE

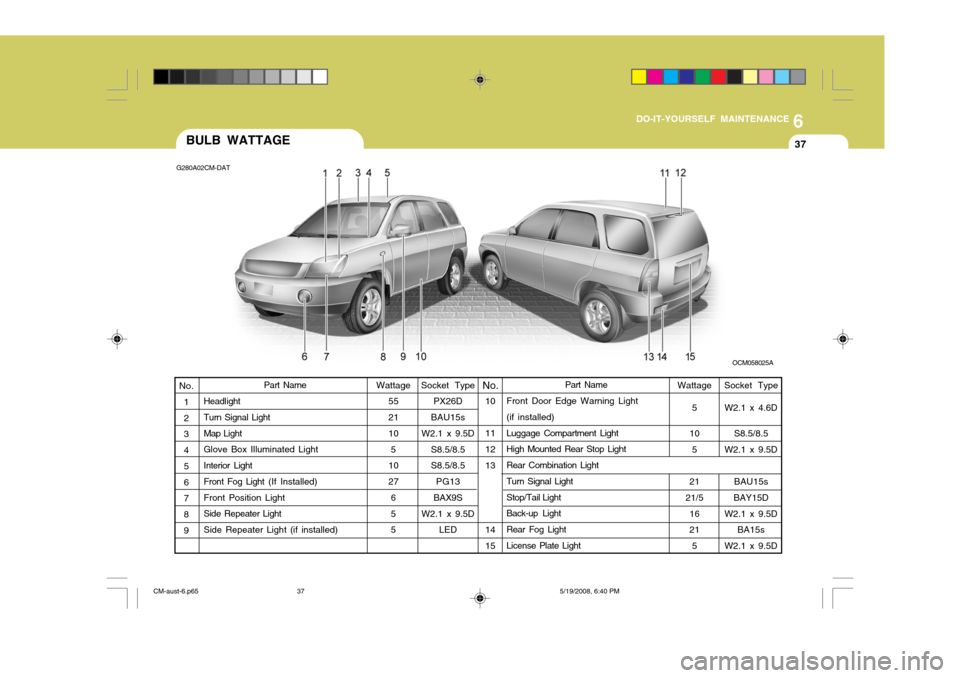

37BULB WATTAGE
G280A02CM-DAT
OCM058025A
Wattage5
10 5
21
21/5
16 215
Socket Type
PX26D
BAU15s
W2.1 x 9.5D
S8.5/8.5S8.5/8.5PG13
BAX9S
W2.1 x 9.5D LED Socket Type
W2.1 x 4.6D
S8.5/8.5
W2.1 x 9.5D
BAU15s
BAY15D
W2.1 x 9.5D BA15s
W2.1 x 9.5D
10 11 12 13 14 15
Part Name
Headlight Turn Signal Light Map Light Glove Box Illuminated Light Interior Light Front Fog Light (If Installed)
Front Position LightSide Repeater Light Side Repeater Light (if installed) Wattage
5521 10
5
10 27 65 5 No.No.
1 2 3 4 5 6 7 8 9Part Name
Front Door Edge Warning Light (if installed) Luggage Compartment Light High Mounted Rear Stop Light Rear Combination Light Turn Signal Light Stop/Tail Light Back-up Light Rear Fog Light License Plate Light
CM-aust-6.p65 5/19/2008, 6:40 PM
37

6DO-IT-YOURSELF MAINTENANCE
38FUSE PANEL DESCRIPTION
G200C01CM-DAT Engine Compartment
OCM055023
NOTE: Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.
FUSE RATING 125A 150A10A 30A 40A50A 40A 40A 40A 15A 40A 15A20A 15A40A 30A 15A 10A 15A 15A 15A10A CIRCUIT PROTECTED
FUSIBLE LINK BOX
ALTERNATOR
A/CON RELAY
RR HTD RELAY
I/PJUNCTION BOX
I/PJUNCTION BOX
I/PJUNCTION BOX
ABS CONTROL MODULE, ESP CONTROL MODULE, MULTIPURPOSE CHECK CONNECTOR
ABS CONTROL MODULE, ESP CONTROL MODULE, MULTIPURPOSE CHECK CONNECTOR
DEICER RELAY
ENGINE CONTROL RELAY
HORN RELAY IGNITION COIL #1~#6(PETROL), CONDENSOR(PETROL), ECM(DIESEL)
ECM(DIESEL), PURGE CONTROL SOLENOID VALVR(PETROL), VARIABLE
INTAKE MANIFOLD VALVE(PETROL), PCM(PETROL), OIL CONTROL
VALVE(PETROL)
RAD FAN RELAY
CON FAN #1 RELAY, CON FAN #2 RELAY
MASS AIR FLOW SENSOR(PETROL), EGR ACTUATOR(DIESEL), OXYGEN
SENSOR #1~#4(PETROL), SOLENOID VALVE(DIESEL), PCM(PETROL),
CAMSHAFT POSITION SENSOR(DIESEL), THROTTLE FLAP ACTUATOR(DIESEL),
FUSIBLE LINK BOX(DIESEL) IMMOBILISER MODULE, INJECTOR #1~#6(PETROL), PCM(PETROL) STOP LAMP
SWITCH(DIESEL), A/CON RELAY, FUEL PUMP RELAY
FUEL PUMP RELAY
H/LP LO LH RELAY
H/LP LO RH RELAY
FR FOG RELAY
DSL ALT
A/CON
RR HTD BLR
B+ #2
P/WDW ABS #1 ABS #2
DEICER
ECU MAIN HORN
IG COIL
SENSOR #3 RAD FAN
CON FAN
SENSOR #2 SENSOR #1 FUEL PUMP H/LP LO LH
H/LP LO RH
FR FOG
FUSE
CM-aust-6.p65 5/19/2008, 6:40 PM
38

6
DO-IT-YOURSELF MAINTENANCE
39
FUSE RATING 10A 25A20A 10A40A 40A 50A20A 15A 10A 10A10A10A 10A 10A 10A10A 15A 20A25A 30A CIRCUIT PROTECTED
I/P JUNCTION BOX
FR WIPER RELAY, RAIN SENSOR RELAY, FRONT WIPER MOTOR, MULTIFUNCTION
SWITCH
H/LP HI RELAY
HEAD LAMP, INSTRUMENT CLUSTER IGNITION SWITCH
IGNITION SWITCH, START RELAY
I/P JUNCTION BOX
ATM RELAY(PETROL), 4WD ECM, ATM CONTROL RELAY(DIESEL)PCM(PETROL), TCM(DIESEL)
ALTERNATOR VEHICLE SPEED SENSOR, PCM(PETROL), MASS AIR FLOW SENSOR(DIESEL)ECM(DIESEL), SEMI ACTIVE CONTROL MODULE(PETROL)
CON FAN #1 RELAY, CON FAN #2 RELAY INPUT SPEED SENSOR, OUTPUT SPEED SENSOR, TCM(DIESEL), TRANSAXLERANGE SWITCH, BACK-UP LAMP SWITCH
ABS CONTROL MODULE, ESP CONTROL MODULE, YAW RATE SENSOR, 4WD
ECM, STOP LAMP SWITCH(PETROL), FUSIBLE LINK BOX(DIESEL), FUEL FILTER
WARNING SWITCH(DIESEL), FUSIBLE LINK BOX(DIESEL) MULTIPURPOSECHECK CONNECTOR
REAR COMBINATION LAMP LH, POSITION LAMP LH
REAR COMBINATION LAMP RH, POSITION LAMP RH
GLOVE BOX LAMP, ICM RELAY BOX - -- - -
H/LP
FR WIPER H/LP HI
H/LP HI IND IGN #1 IGN #2B+ #1
AT MTCU
ALT DSL
ECU
COOLING B/UP UP
ABS
TAIL LH
TAIL RH SPARE
SPARE
SPARE
SPARE
SPARE
FUSE
CM-aust-6.p65 5/19/2008, 6:40 PM
39

6DO-IT-YOURSELF MAINTENANCE
40
G200E01CM-DAT Inner Panel
OCM055024
FUSE RATING15A 25A 15A 10A 15A 10A 10A 10A 30A 10A 15A 10A10A 10A10A10A10A CIRCUIT PROTECTED
CIGARETTE LIGHTER
FRONT POWER OUTLET, REAR POWER OUTLET CENTRE POWER OUTLET
POWER OUTSIDE MIRROR SWITCH, AUDIO, ATM KEY LOCK CONTROL MODULE,
DIGITAL CLOCK
MULTIFUNCTION SWITCH, REAR WIPER CONTROL MODULE,REAR WIPER MOTOR RAIN SENSOR
RHEOSTAT, BCM, INSTRUMENT CLUSTER
A/C CONTROL MODULE, INCAR & HUMIDITY SENSOR, HIGH BLOWER RELAY,
REAR A/CON SWITCH, ICM RELAY BOX, AQS SENSOR, FUSIBLE LINK BOX
(DIESEL), SUNROOF MOTOR, BLOWER BELAY, ELECTRO CHROMIC MIRROR
BLOWER RELAY, BLOWER MOTOR, A/C CONTROL MODULE A/C CONTROL MODULESRS CONTROL MODULE
PAB CUT OFF SWITCH, INSTRUMENT CLUSTER HAZRAD SWITCH
MULTIFUNTION SWITCH, STEERING ANGLE SENSOR, ESP SWITCH, ATM KEY
LOCK CONTROL MODULE SEAT WARMER MODULE OIL LEVEL SENSOR MODULE, BCM
INSTRUMENT CLUSTER, PRE-EXCITATION RESISTOR, BCM, GENERATOR, SEMIACTIVE CONTROL MODULE (PETROL)
BURGLAR ALRAM RELAY
C/LIGHTER P/OUTLET P/OUTLET
CTR
AUDIO #2
RR WIPER IMS
BCM #2
A/CON
BLOWER
A/CON SW
A/BAG #1
A/BAG IND T/SIG
ATM LOCK BCM #1
CLUSTER START
FUSE
CM-aust-6.p65 5/19/2008, 6:40 PM
40

6
DO-IT-YOURSELF MAINTENANCE
41
FUSE RATING 30A 25A30A 15A 10A20A 10A10A 20A 15A15A 10A10A 10A 15A15A 15A 30A30A CIRCUIT PROTECTED
DELPHI AMP, MOBIS AMP
SEAT WARMER CONTROL MODULE
POWER SEAT SWITCH
ICM RELAY BOX
ICM RELAY BOX SUNROOF MOTOR
BURGLAR ALARM HORN RELAYREAR DEFOGGER SWITCH, POWER OUTSIDE MIRROR MOTOR
DOOR LOCK (UN) RELAY, ICM RELAY BOX STOP LAMP SWITCH FUEL LID SWITCH
KEY SOLENOID, SPORTS MODE SWITCH, SEMIACTIVE SOLENOID (PETROL)
INSTRUMENT CLUSTER, LUGGAGE LAMP, MAP LAMP, REAR PERSONAL LAMP,
ROOM LAMP, FRONT DOOR LAMP CARGO LAMP, VANITY LAMP SWITCH
DOOR WARNING SWITCH, BCM, SECURITY INDICATOR
A/C CONTROL MODULE, DATA LINK CONNECTOR, DIGITAL CLOCK DELPHI AUDIO, MOBIS AUDIO
HAZARD SWITCH, HAZARD RELAYPOWER WINDOW MAIN SWITCH, REAR POWER WINDOW SWITCH LH POWER WINDOW MAIN SWITCH, REAR POWER WINDOW SWITCH RH
P/AMP
S/WARMER P/SEAT
RR A/CON
RR FOG/BWS S/ROOF
B/ALARM HORN
MIRR HTD
DR/LOCKSTOP LP
FUEL LID
AT M
ROOM LP BCM #3CLOCK
AUDIO #1
HAZARD
P/WDW LH
P/WDW RH
FUSE
CM-aust-6.p65 5/19/2008, 6:40 PM
