Tyres should be rotated every 10,000
km (6,000 miles). If you notice that tyres are wearing unevenly between rotations, have the car checked by a Hyundai dealer so the cause may becorrected. After rotating, adjust the tyre pres-
sures and be sure to check wheel nuttorque.
I060A01FC-DAT
TYRE ROTATION
WARNING:
o Do not use the temporary spare tyre for tyre rotation.
o Do not mix bias-ply and radial- ply tyres under any circum-stances. This may cause dangerous han- dling characteristics that may cause death, serious injury, orproperty damage.
I050A01O-DAT
TYRE CHAINS
Tyre chains, if necessarly, should be
installed on all wheels. Be sure that the chains are the proper size and that they are installed in accordance withthe manufacturer's instructions. To minimise tyre and chain wear, do
not continue to use tyre chains when they are no longer needed.
WARNING:
o When driving on roads covered with snow or ice, drive at less than 30 km/h (20 mph).
o Use the SAE "S" class or wire &
plastic chains.
o If you have noise caused by chains contacting the body, re-tighten the chain to avoid contactwith the vehicle body.
o To prevent body damage, re- tighten the chains after driving 0.5~1 km (0.3~0.6 mile).
I060A01TG
I060A02TGSpare tyre
Temporary spare tyre type
Full size spare tyre type
CM-aust-8.p65 5/19/2008, 6:41 PM
5

8CONSUMER INFORMATION
6
!

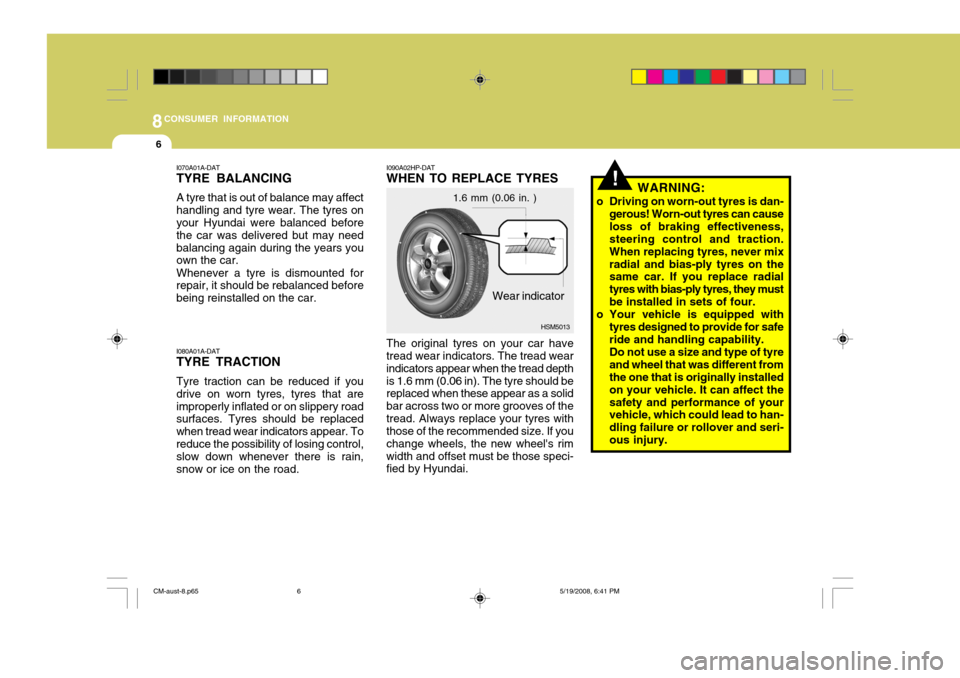

I090A02HP-DAT WHEN TO REPLACE TYRES The original tyres on your car have tread wear indicators. The tread wear indicators appear when the tread depthis 1.6 mm (0.06 in). The tyre should be replaced when these appear as a solid bar across two or more grooves of thetread. Always replace your tyres with those of the recommended size. If you change wheels, the new wheel's rimwidth and offset must be those speci- fied by Hyundai.
Wear indicator
1.6 mm (0.06 in. )
HSM5013 WARNING:
o Driving on worn-out tyres is dan- gerous! Worn-out tyres can cause loss of braking effectiveness, steering control and traction. When replacing tyres, never mixradial and bias-ply tyres on the same car. If you replace radial tyres with bias-ply tyres, they mustbe installed in sets of four.
o Your vehicle is equipped with tyres designed to provide for safe ride and handling capability. Do not use a size and type of tyre and wheel that was different from the one that is originally installed on your vehicle. It can affect thesafety and performance of your vehicle, which could lead to han- dling failure or rollover and seri-ous injury.
I070A01A-DAT TYRE BALANCING A tyre that is out of balance may affect handling and tyre wear. The tyres on your Hyundai were balanced before the car was delivered but may needbalancing again during the years you own the car. Whenever a tyre is dismounted for repair, it should be rebalanced before being reinstalled on the car. I080A01A-DAT TYRE TRACTION Tyre traction can be reduced if you drive on worn tyres, tyres that areimproperly inflated or on slippery road surfaces. Tyres should be replaced when tread wear indicators appear. Toreduce the possibility of losing control, slow down whenever there is rain, snow or ice on the road.
CM-aust-8.p65
5/19/2008, 6:41 PM
6

8
CONSUMER INFORMATION
7SPARE TYRE AND TOOLS

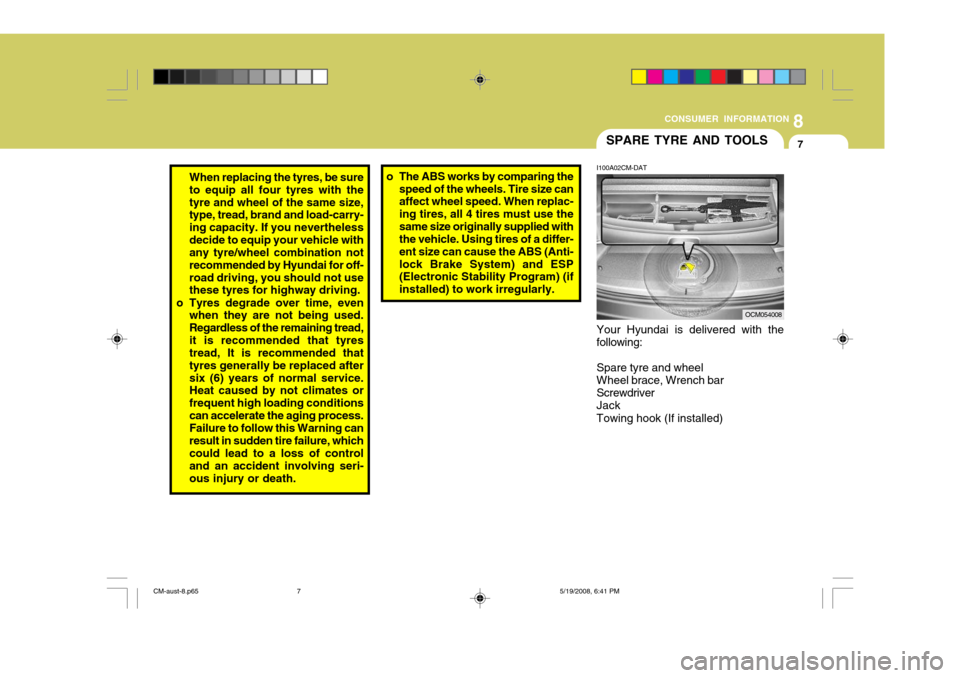

I100A02CM-DAT Your Hyundai is delivered with the following: Spare tyre and wheel Wheel brace, Wrench bar Screwdriver Jack Towing hook (If installed)
When replacing the tyres, be sure to equip all four tyres with thetyre and wheel of the same size, type, tread, brand and load-carry- ing capacity. If you neverthelessdecide to equip your vehicle with any tyre/wheel combination not recommended by Hyundai for off-road driving, you should not use these tyres for highway driving.
o Tyres degrade over time, even when they are not being used. Regardless of the remaining tread,it is recommended that tyres tread, It is recommended that tyres generally be replaced aftersix (6) years of normal service. Heat caused by not climates or frequent high loading conditionscan accelerate the aging process.Failure to follow this Warning canresult in sudden tire failure, which could lead to a loss of control and an accident involving seri-ous injury or death.
OCM054008
o The ABS works by comparing the
speed of the wheels. Tire size can affect wheel speed. When replac- ing tires, all 4 tires must use thesame size originally supplied with the vehicle. Using tires of a differ- ent size can cause the ABS (Anti-lock Brake System) and ESP (Electronic Stability Program) (if installed) to work irregularly.
CM-aust-8.p65 5/19/2008, 6:41 PM
7

DIMENSIONS.............................................................. 9-2
ENGINE ....................................................................... 9-3
LUBRICATION CHART ............................................... 9-4
9
VEHICLE SPECIFICATIONS
9
CM-aust-9.p65 5/19/2008, 6:41 PM
1

9VEHICLE SPECIFICATIONS
2
4650 (183.1) 4675 (184.1)1890 (74.4) 1725 (67.9)1795 (70.7)
2700 (106.3) 1615 (63.6) 1620 (63.7)
J010A01CM-GAT DIMENSIONS
Overall length Overall width Overall height Wheel baseWheel tread
mm (in.)
Standard Option Standard with Roof Rack Front Rear
J030A01CM-DAT
TYRE
Full
Temporary Size
Type Inflation pressure kPa (psi)
235/65R17 235/60R18
T165/90R17 NORMAL
LOAD MAXIMUM
LOAD
220(32) 420(60)
210(30)420(60)
J060A01CM-DAT FUEL SYSTEM
Fuel tank capacity
75 litres
J050A01CM-GAT BRAKE
Dual hydraulic with brake booster Ventilated discDisc typeCable operated on rear wheel
TypeFront brake typeRear brake typeParking brake
CM-aust-9.p65
5/19/2008, 6:41 PM
2

9
VEHICLE SPECIFICATIONS
3ENGINE
PETROL
2.7 V6
6-Cyl., V-type DOHC
86.7 x 752656
2 - 3 - 4 - 5 - 6 - 1 Auto lash Auto lash
680 ± 100
BTDC 7° ± 5°
ITEMS
Engine Type Bore x Stroke (mm) Displacement (cc)Firing orderValve clearance(warm engine)Idle speed (rpm)Ignition timing (at idle)
J070A02CM-DAT
Intake Exhaust
DIESEL
2.2 CRDi
4-Cyl., In-line SOHC
87 x 922188
1 - 3 - 4 - 2
--
790 ± 100
-
3.3 V6
6-Cyl., V-type DOHC 92 x 83.83342
1 - 2 - 3 - 4 - 5 - 6
0.28 0.35
620 ± 100
BTDC 10° ± 5°
CM-aust-9.p65 5/19/2008, 6:41 PM
3

9VEHICLE SPECIFICATIONS
4LUBRICATION CHART
Q'ty (litre)
Drain and refill (With oil filter) : 2.7 V6 : 4.5 3.3 V6 : 5.2 Drain and refill (With oil filter) : 5.9 at Oil Pan : 5.4 (MAX) 3.8 (MIN)
1.75 (Petrol) / 1.85 (Diesel) 2.7 V6 : 8.5 (Petrol) 3.3 V6 : 10.9 (Petrol) 10.9 (Diesel) 0.8 0.9 7 (Petrol) / 8.4 (Diesel) 1 As required
Item
Engine Oil *1 Petrol
Diesel
Engine
(V.G.T *2)
Transaxle Manual Automatic
Transfer caseRear Axle Coolant Power steering gear Brake and clutch fluid
Oil & Grease Standard
API SJ, SL or ABOVE, ILSAC GF-3 or ABOVE
with C.P.F *3 ACEA C3
without C.P.F *3 API CH-4 or Superior
ACEA B4
*1. Refer to the recommended SAE viscosity numbers on page 6-6. *2. V.G.T : Variable Geometry Turbocharger *3. C.P.F : Catalyzed Particulate Filter HYUNDAI GENUINE PARTS MTF 75W/85 (API GL-4) HYUNDAI GENUINE ATF SP-III, DIAMOND ATF SP-III, SK ATF SP-III or other brands approved by Hyundai Motor Co., HYPOID GEAR OIL API GL-5, SAE 75W/90 (SHELL SPIRAX X Equivalent) HYPOID GEAR OIL API GL-5, SAE 75W/90 (SHELL SPIRAX X Equivalent) Ethylene glycol base for aluminum radiator PSF-3 TYPE FLUID DOT 3, DOT 4 or Equivalent
J080A04CM-DAT
CM-aust-9.p65
5/19/2008, 6:41 PM
4
