2007 TOYOTA TUNDRA Owners Manual

3762007 TUNDRA from Jul. ’07 Prod. (OM34463U)
To transfer a call to the phone:
The received call can be transferred from
the hands−free system to the cellular
phone that is connected to Bluetooth
. For
details, refer to the user’s guide for the
cellular phone. While talking on the phone, the display is
as follows. The display differs depending
on whether or not the vehicle is in motion.
When the vehicle is stopped:
Number is displayed.
When the vehicle is in motion:
“Talking“ is displayed.
When the call is finished, push the on
−
hook switch.
In the following situations, your voice may
not reach the party.
Talk alternately with the other party on
the phone. If you talk at the same
time, the voice may not reach each
other. (It is not a malfunction.)
Keep the volume of receiving voice
down. Otherwise, echo is coming up.
When you talk on the phone, speak
clearly towards the microphone.
When driving on a rough road.
When driving at high speeds.
When the window is open.
When the air conditioning vents face
the microphone.
When the sound of the air conditioning
fan is loud. To transfer a call from the phone:
Pushing the off
−hook switch while talking
on the cellular phone that is connected to
Bluetooth
 allows you to talk hands −free.
To transfer a call to the phone:
The call can be transferred from the
hands −free system to the phone that is
connected to Bluetooth
. For details, refer
to the user’s guide for the cellular phone.
—Talking on the phone

3772007 TUNDRA from Jul. ’07 Prod. (OM34463U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Manual air conditioning systemControls 378
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .
Air flow selector settings 382
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips 382
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Automatic air conditioning system Controls 386
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Air flow selector settings 390
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips 390
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Instrument panel and rear vents 393
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air conditioning filter 394
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 1 9

3782007 TUNDRA from Jul. ’07 Prod. (OM34463U)

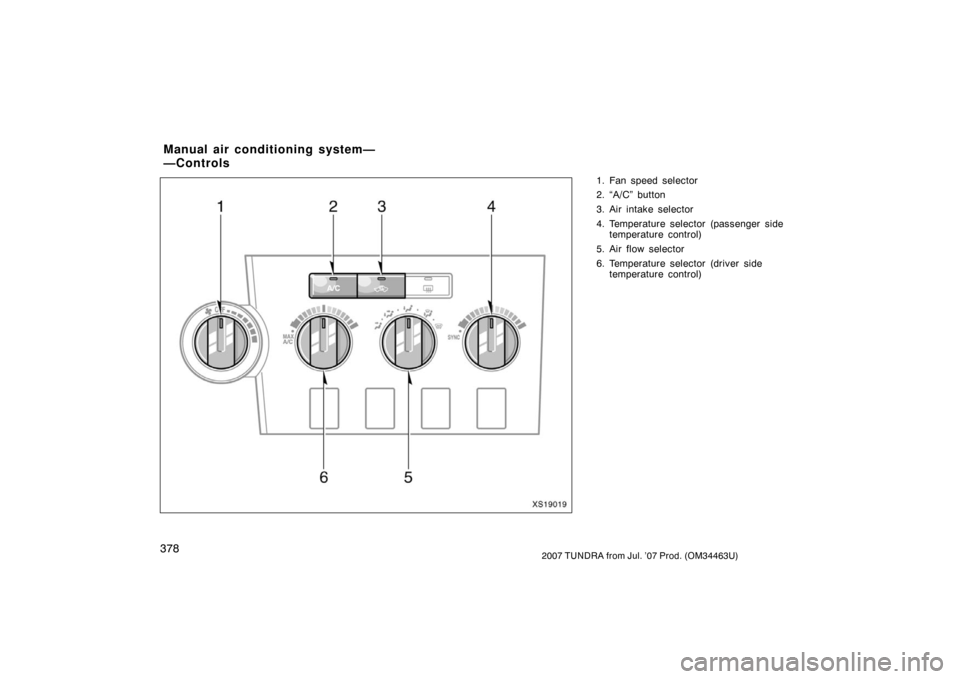

1. Fan speed selector
2. “A/C” button
3. Air intake selector
4. Temperature selector (passenger sidetemperature control)
5. Air flow selector
6. Temperature selector (driver side temperature control)
Manual air conditioning system—
—Controls
XS19019

3792007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Fan speed selector
Turn the knob to adjust the fan speed—to
the right to increase, to the left to de-
crease.
Temperature selector (driver side)
Turn the knob to adjust the temperature—
to the right to warm, to the left to cool.
“MAX A/C” position—Turning the tempera-
ture selector knob to the “MAX A/C” posi-
tion turns on the air conditioning and sets
the air intake selector to RECIRCULATE
for quick cooling.Temperature selector (passenger side)
Turn the knob to adjust the tempera-
ture—to the right to warm, to the left to
cool.
Independent setting—
When the passenger side selector is
in a position other than the “SYNC”
position, the temperature only on pas-
senger side can be adjusted using the
selector. This function is canceled
when the passenger side temperature
selector is turned to the “SYNC” posi-
tion.
Simultaneous setting— When the passenger side selector is
in the “SYNC” position, the tempera-
tures on both driver and passenger
sides can be simultaneously adjusted
using the driver side selector. This
function is canceled when the passen-
ger side temperature selector is
turned to the right.
G18021
Air flow selector
Turn the knob to select the vents used for
air flow.
1. Panel— Air flows mainly from the
instrument panel vents and the rear
vents.
2. Bilevel— Air flows from both the floor
vents, the instrument panel vents and
the rear vents.
3. Floor— Air flows mainly from the floor
vents.

3802007 TUNDRA from Jul. ’07 Prod. (OM34463U)
4. Floor/Windshield—Air flows mainly
from the floor vents and windshield
vents.
Turning the air flow selector to the
floor/windshield position turns on the
defogging/defrosting function with the
purpose of clearing the windshield.
In this position, air intake selector
mode changes to FRESH automatically
to clear the windshield quickly. If you
want to return the setting to RECIRCU-
LATE mode, press the air intake selec-
tor button once again.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears
the windshield more quickly.
5. Windshield— Air flows mainly from the
windshield vents.
Turning the air flow selector to the
windshield position turns on the defog-
ging/defrosting function and the air con-
ditioning with the purpose of clearing
the windshield.
In this position, air intake selector
mode changes to FRESH automatically
to clear the windshield quickly. It is not
possible to return to RECIRCULATE in
this position. In this position, the air conditioning
turns on regardless of the “A/C button
indicator comes on or goes off. This is
not a malfunction.
For details about air flow selector settings,
see “Air flow selector settings” described
below.
XS19014
Air intake selector
Press the button to select the air source.
1. Recirculate (indicator light is on)—Re-
circulates the air inside the vehicle.
2. Fresh (indicator light is off)—Draws
outside air into the system.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system.

3812007 TUNDRA from Jul. ’07 Prod. (OM34463U)
If the ambient temperature drops, the air
intake mode will automatically change
from RECIRCULATE to FRESH after a few
minutes. This automatic change control
mode can be cancelled by pushing and
holding the button for longer than 2 sec-
onds. The automatic change control mode
will be reactivated if the ignition switch is
turned to the “LOCK” or “ACC” position.
“A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.

3822007 TUNDRA from Jul. ’07 Prod. (OM34463U)
:driver side :passenger side
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open long enough for the
hot air to escape. This operation allows
the air conditioning to cool the interior
more quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.

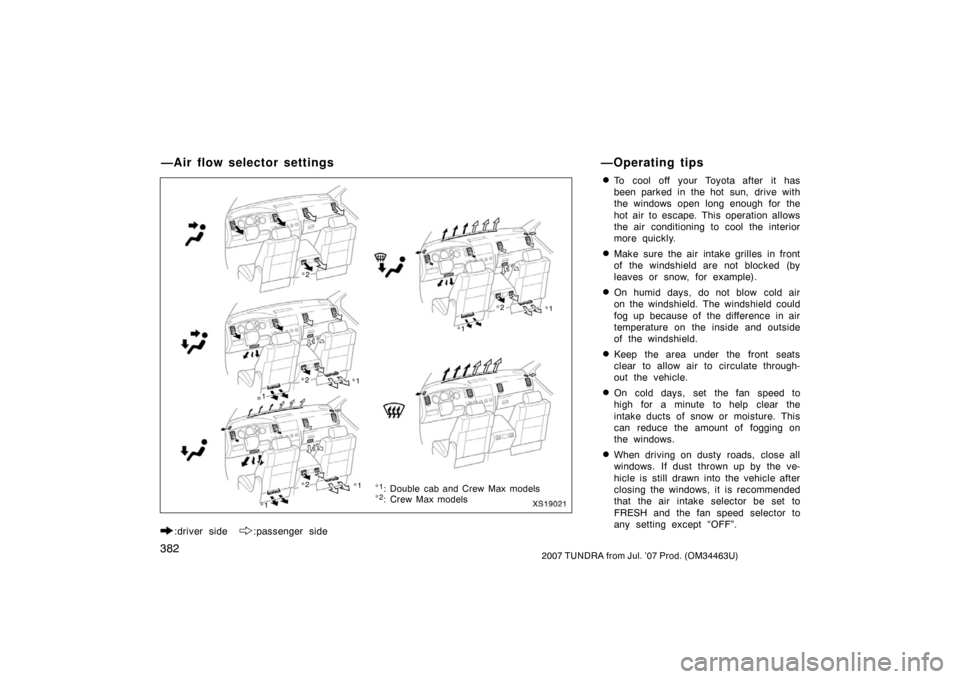

—Air flow selector settings—Operating tips
XS19021
∗
1: Double cab and Crew Max models
∗1
∗ 1 ∗
1
∗2
: Crew Max models
∗1 ∗
1
∗2
∗2
∗ 2
∗ 2
∗1

3832007 TUNDRA from Jul. ’07 Prod. (OM34463U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards red zone
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield. Air conditioning
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards blue zone
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
