2007 TOYOTA TUNDRA Owners Manual

562007 TUNDRA from Jul. ’07 Prod. (OM34463U)
NOTICE
To prevent damage to the seat, avoid
putting heavy loads on the temporary
table.
This system can memorize the position
of the driver’s seat, the tilt and tele-
scopic steering and outside rear view
mirrors, and recall them at the touch of
a button.
Buttons “1” and “2” can memorize two
separate positions.
XS13098a
SETTING THE DRIVING POSITION
The ignition switch must be in the “ON”
position and the selector lever is in the
“P” position.1. Adjust the driver ’s seat, tilt and telescopic steering and outside rear
view mirrors to the desired position.
2. While pushing the “SET” button, push button “1” or “2” until a beep
in heard.
The system can memorize up to 2 posi-
tions by repeating the above steps. If step
2 is performed when both buttons “1” and
“2” are memorized, the previous position
will be erased and a new position will be
set.
Driving position memory
system (on some models)

572007 TUNDRA from Jul. ’07 Prod. (OM34463U)
To make only slight changes to an already
memorized position, the easiest way is to
first activate the memorized position, then
make the desired changes and perform
step 2 above.
XS13099a
RECALLING THE MEMORIZED POSITION
When you push button “1” or “2”, a
beep will sound and the driving posi-
tion will be automatically adjusted to
the position recorded for that button.
The memorized position can be recalled
under the following conditions:
The ignition switch is in the “ON” posi-
tion and the selector lever is in the “P”
position.
The key is not in the ignition switch
and less than 30 seconds have passed
since opening the driver ’s door.
To stop the operation, push any driving
position memory button. To reactivate the system, push the button
“1” or “2” again.
If the vehicle’s battery is disconnected,
the memory will be erased and the posi-
tions will have to be set again.
CAUTION
Do not start the vehicle while the
adjustment are being made.
Take care not to select the wrong
button, or the seat could strike the
rear passenger or hit your body
against the steering wheel. If this
happens, you can stop the move-
ment by pressing another driving
position memory switch, or de-
pressing the brake pedal.

582007 TUNDRA from Jul. ’07 Prod. (OM34463U)
CAUTION
Do not adjust the seat while the
vehicle is moving.
Be careful that the seat does not
hit a passenger or luggage.
Be careful not to get your hands or
feet pinched in the seat.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
personal injury in a collision or
sudden stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
Folding down the rear seatbacks will en-
large the luggage compartment. See
“—Stowage precautions” on page 464 in
Section 2 for precautions when loading
luggage.

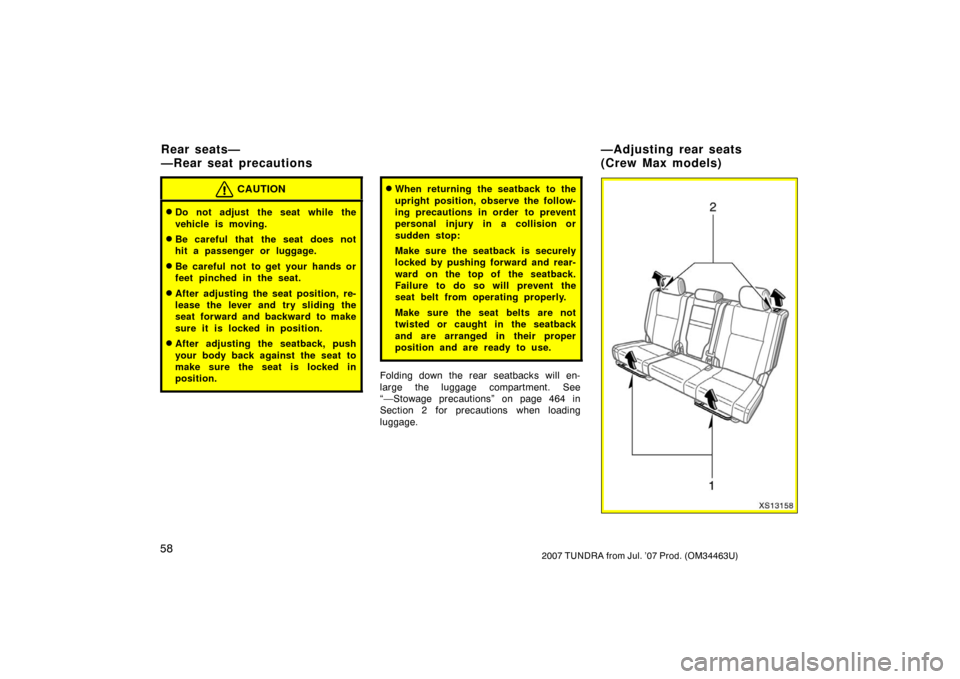

XS13158
Rear seats—
—Rear seat precautions—Adjusting rear seats
( C rew Max mo d els)

592007 TUNDRA from Jul. ’07 Prod. (OM34463U)
1. SEAT POSITION ADJUSTING LEVERS
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEATBACK ANGLE ADJUSTING LEVERS
Pull the lever up. Then lean back to the
desired angle and release the lever.
CAUTION
Do not adjust the seat while the
vehicle is moving.
Be careful that the seat does not
hit a passenger or luggage.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen or
your neck may contact the shoulder
belt. In the event of a frontal colli-
sion, the more the seat is reclined,
the greater the risk of death or se-
rious injury.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
NOTICE
Do not fold the rear seat seatback
forward with the luggage cover hooks
attached.
XS13146b
BEFORE RAISING REAR SEAT CUSHION 1. Stow the rear seat belt buckles as shown in the illustration.
This prevents the seat belt buckles from
falling out when you fold the seatback.
NOTICE
The seat belt and buckles must be
stowed before you raise the rear
seats cushion.
—Raising rear seat cushion
(Double cab models)

602007 TUNDRA from Jul. ’07 Prod. (OM34463U)

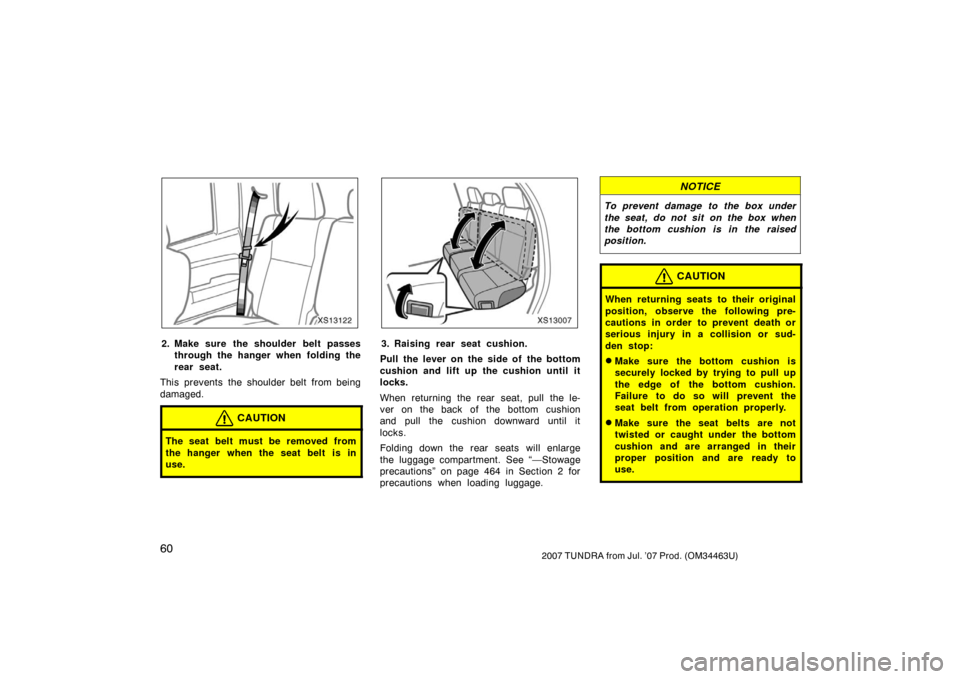

XS13122
2. Make sure the shoulder belt passesthrough the hanger when folding the
rear seat.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
XS13007
3. Raising rear seat cushion.
Pull the lever on the side of the bottom
cushion and lift up the cushion until it
locks.
When returning the rear seat, pull the le-
ver on the back of the bottom cushion
and pull the cushion downward until it
locks.
Folding down the rear seats will enlarge
the luggage compartment. See “—Stowage
precautions” on page 464 in Section 2 for
precautions when loading luggage.
NOTICE
To prevent damage to the box under
the seat, do not sit on the box when
the bottom cushion is in the raised
position.
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent death or
serious injury in a collision or sud-
den stop:
Make sure the bottom cushion is
securely locked by trying to pull up
the edge of the bottom cushion.
Failure to do so will prevent the
seat belt from operation properly.
Make sure the seat belts are not
twisted or caught under the bottom
cushion and are arranged in their
proper position and are ready to
use.

612007 TUNDRA from Jul. ’07 Prod. (OM34463U)

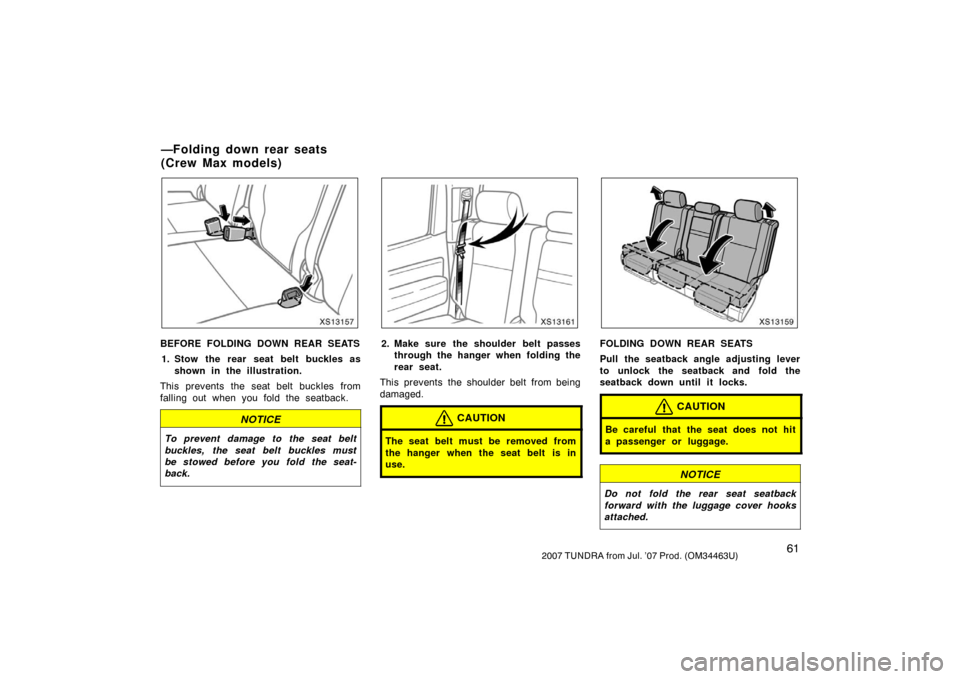

XS13157
BEFORE FOLDING DOWN REAR SEATS1. Stow the rear seat belt buckles as shown in the illustration.
This prevents the seat belt buckles from
falling out when you fold the seatback.
NOTICE
To prevent damage to the seat belt
buckles, the seat belt buckles must
be stowed before you fold the seat-
back.
XS13161
2. Make sure the shoulder belt passes through the hanger when folding the
rear seat.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
XS13159
FOLDING DOWN REAR SEATS
Pull the seatback angle adjusting lever
to unlock the seatback and fold the
seatback down until it locks.
CAUTION
Be careful that the seat does not hit
a passenger or luggage.
NOTICE
Do not fold the rear seat seatback
forward with the luggage cover hooks
attached.
—Folding down rear seats
( C rew Max mo d els)

622007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Folding down the rear seats will enlarge
the luggage compartment. See “—Stowage
precautions” on page 464 in Section 2 for
precautions when loading luggage.CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
death or serious injury in a collision
or sudden stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.

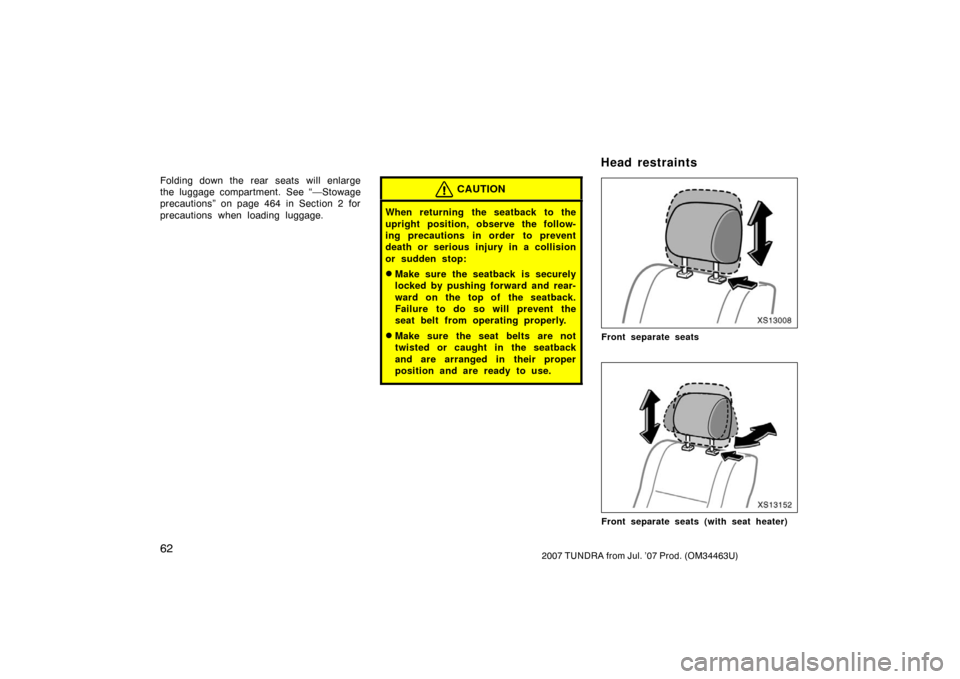

XS13008
Front separate seats
XS13152
Front separate seats (with seat heater)
Head restraints

632007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13009
Front bench seat
XS13010
Rear seats (Double cab models)
XS13196
Rear seats (Crew Max models)
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Front separate seats (with seat heater)
only—
You can pull up or push down the head
restraint. You can also move the front
head restraint forward or backward. If
such adjustment is desired, pull or push
the base of the head restraint.Rear center head restraint and front cen-
ter head restraint (bench seats)—When an
occupant sits on the center position of the
rear seats (Double cab and Crew Max
models) or the front seats (bench seats),
always pull up the center head restraint to
the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
