2007 TOYOTA TUNDRA Owners Manual

5772007 TUNDRA from Jul. ’07 Prod. (OM34463U)
kg (lb.)
Cab type
EngineDriving systemBed typeGradeVehicle capacity weight
Double
4.0 L V6 (1GR −FE)Tw o −wheel drive modelsStandardSR5585 (1300)
4.7 L V8 (2UZ −FE)
Tw o −wheel drive modelsStandard
SR5640 (1415)
605 (1340)∗1
Limited655 (1450)
620 (1375)∗1
LongSR5590 (1305)∗1
Four −wheel drive modelsStandard
SR5600 (1330)
565 (1255)∗1
Limited615 (1360)
580 (1285)∗1
LongSR5550 (1220)∗1
5.7 L V8 (3UR −FE)
Tw o −wheel drive modelsStandard
SR5700 (1550)
665 (1475)∗1
Limited720 (1590)
685 (1515)∗1
LongSR5655 (1455)∗1
Four −wheel drive modelsStandard
SR5665 (1470)
630 (1395)∗1
Limited680 (1505)
645 (1430)∗1
LongSR5615 (1365)∗1
∗
1: With towing package

5782007 TUNDRA from Jul. ’07 Prod. (OM34463U)
kg (lb.)
Cab type
EngineDriving systemBed typeGradeVehicle capacity weight
Crew Max
4.7 L V8 (2UZ −FE)
Tw o −wheel drive models
Short
SR5
605 (1335)
570 (1260)∗1
555 (1225)∗2
Limited
615 (1360)
580 (1285)∗1
565 (1250)∗2
Four −wheel drive models
SR5
570 (1260)
535 (1185)∗1
520 (1150)∗2
Limited
580 (1280)
545 (1205)∗1
530 (1170)∗2
5.7 L V8 (3UR −FE)
Tw o −wheel drive models
SR5
665 (1470)
630 (1395)∗1
615 (1360)∗2
Limited
690 (1530)
655 (1455)∗1
640 (1420)∗2
Four −wheel drive models
SR5
635 (1400)
600 (1325)∗1
585 (1290)∗2
Limited
640 (1420)
610 (1345)∗1
590 (1310)∗2
∗
1: With towing package or electric moon roof∗ 2: With towing package and electric moon roof

5792007 TUNDRA from Jul. ’07 Prod. (OM34463U)
kg (lb.)
Cab type
EngineDriving systemBed typeTowing capacity∗ 1
Regular
4.0 L V6 (1GR −FE)Tw o −wheel drive modelsStandard2310 (5100)
Long2265 (5000)
4.7 L V8 (2UZ −FE)
Tw o −wheel drive models
Standard3175 (7000)
3855 (8500)∗
2
Long3125 (6900)
3810 (8400)∗2
Four −wheel drive models
Standard3035 (6700)
3715 (8200)∗
2
Long2990 (6600)
3670 (8100)∗2
5.7 L V8 (3UR −FE)
Tw o −wheel drive models
Standard
4035 (8900)
4715 (10400)∗
2
4490 (9900)∗2,3
Long3990 (8800)
4895 (10800)∗2
Four −wheel drive models
Standard
3945 (8700)
4580 (10100)∗
2
4350 (9600)∗2,3
Long3900 (8600)
4760 (10500)∗2
∗1: Trailer weight + cargo weight∗ 2: With Towing package∗3: With P275/55R20 tires
Towing capacity∗1

5802007 TUNDRA from Jul. ’07 Prod. (OM34463U)
kg (lb.)
Cab type
EngineDriving systemBed typeGradeTowing capacity∗ 1
Double
4.0 L V6 (1GR −FE)Tw o −wheel drive modelsStandardSR52175 (4800)
4.7 L V8 (2UZ −FE)
Tw o −wheel drive modelsStandard
SR53035 (6700)
3670 (8100)∗
2
Limited2990 (6600)
3670 (8100)∗2
LongSR53625 (8000)∗2
Four −wheel drive modelsStandard
SR52900 (6400)
3535 (7800)∗
2
Limited2855 (6300)
3535 (7800)∗2
LongSR53490 (7700)∗2
5.7 L V8 (3UR −FE)
Tw o −wheel drive modelsStandard
SR53900 (8600)
4805 (10600)∗
2
Limited3900 (8600)
4805 (10600)∗2
LongSR54760 (10500)∗2
Four −wheel drive modelsStandard
SR53760 (8300)
4670 (10300)∗
2
Limited3760 (8300)
4670 (10300)∗2
LongSR54625 (10200)∗2
∗1: Trailer weight + cargo weight∗ 2: With Towing package

5812007 TUNDRA from Jul. ’07 Prod. (OM34463U)
kg (lb.)
Cab type
EngineDriving systemBed typeGradeTowing capacity∗ 1
Crew Max
4.7 L V8 (2UZ −FE)
Tw o −wheel drive models
Short
SR52945 (6500)
3625 (8000)∗
2
Limited2945 (6500)
3625 (8000)∗2
Four −wheel drive models
SR52810 (6200)
3490 (7700)∗
2
Limited2810 (6200)
3490 (7700)∗2
5.7 L V8 (3UR −FE)
Tw o −wheel drive models
SR53810 (8400)
4715 (10400)∗
2
Limited3810 (8400)
4715 (10400)∗2
Four −wheel drive models
SR53670 (8100)
4580 (10100)∗
2
Limited3670 (8100)
4580 (10100)∗2
∗1: Trailer weight + cargo weight∗ 2: With Towing package

5822007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Model:4.0 L V6 (1GR −FE), 4.7 L V8 (2UZ −FE)
and 5.7 L V8 (3UR −FE) engine
Type: 4.0 L V6 (1GR −FE) engine
6 cylinder V type, 4 cycle, gasoline
4.7 L V8 (2UZ −FE) engine
8 cylinder V type, 4 cycle, gasoline
5.7 L V8 (3UR −FE) engine
8 cylinder V type, 4 cycle, gasoline
Bore and stroke, mm (in.): 4.0 L V6 (1GR −FE) engine
94.0 95.0 (3.70 3.74)
4.7 L V8 (2UZ −FE) engine
94.0 84.0 (3.70 3.31)
5.7 L V8 (3UR −FE) engine
94.0 102.0 (3.70 4.02)
Displacement, cm
3 (cu. in.):
4.0 L V6 (1GR −FE) engine
3956 (241.4)
4.7 L V8 (2UZ −FE) engine
4664 (284.5)
5.7 L V8 (3UR −FE) engine
5663 (345.4) Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher.
Fuel tank capacity, L (gal., Imp. gal.): 100 (26.4, 22.0) ENGINE
Valve clearance (engine cold), mm (in.):
4.0 L V6 (1GR −FE) engine
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.29—0.39 (0.011—0.015)
4.7 L V8 (2UZ −FE) engine
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
5.7 L V8 (3UR −FE) engine
Automatic adjustment
Spark plug type: 4.0 L V6 (1GR −FE) engine
DENSO K20HR −U11
NGK LFR6C11
4.7 L V8 (2UZ −FE) engine
DENSO SK20R11
NGK IFR6A11
5.7 L V8 (3UR −FE) engine
DENSO SK20HR11
Spark plug gap, mm (in.): 1.1 (0.043)
Engine FuelService specifications

5832007 TUNDRA from Jul. ’07 Prod. (OM34463U)
ENGINE LUBRICATION
Oil capacity (drain and refill),
L (qt., Imp. qt.):
4.0 L V6 (1GR −FE) engine
With filter 5.2 (5.5, 4.6)
Without filter 4.9 (5.2, 4.3)
4.7 L V8 (2UZ −FE) engine
With filter 6.2 (6.6, 5.5)
Without filter 5.7 (6.0, 5.0)
5.7 L V8 (3UR −FE) engine
With filter 7.0 (7.4, 6.2)
Without filter 6.6 (6.9, 5.8)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.

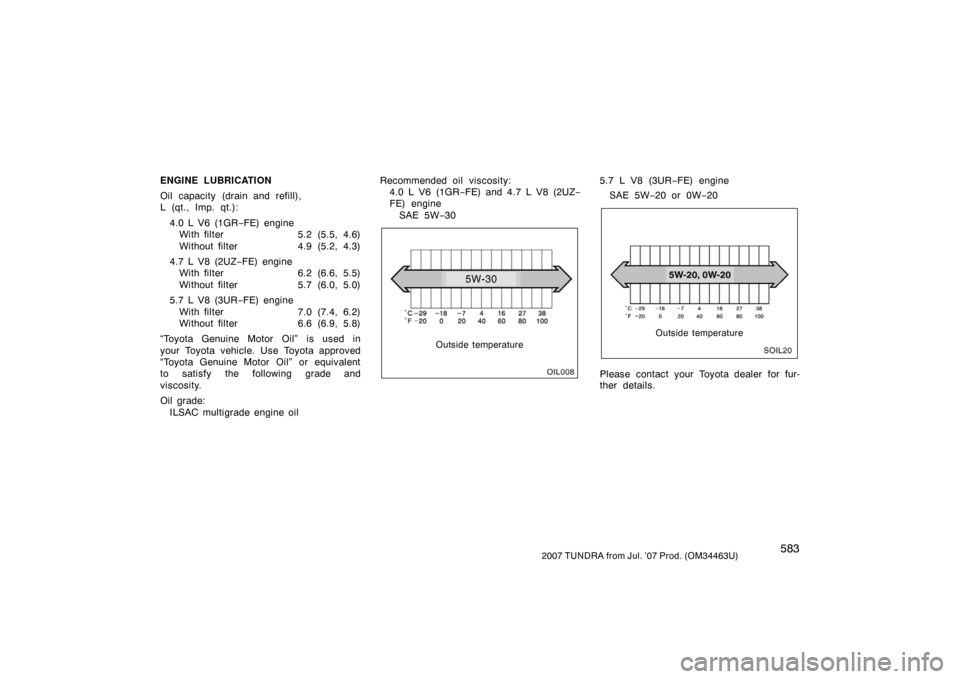

Oil grade: ILSAC multigrade engine oil Recommended oil viscosity:
4.0 L V6 (1GR −FE) and 4.7 L V8 (2UZ −
FE) engine
SAE 5W −30
OIL008
Outside temperature
5.7 L V8 (3UR −FE) engine
SAE 5W −20 or 0W −20
SOIL020
Outside temperature
Please contact your Toyota dealer for fur-
ther details.

5842007 TUNDRA from Jul. ’07 Prod. (OM34463U)
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):4.0 L V6 (1GR −FE) engine
9.6 (10.1, 8.4)
4.7 L V8 (2UZ −FE) engine
9.7 (10.3, 8.5)
5.7 L V8 (3UR −FE) engine
With towing package
13.0 (13.7, 11.4)
Without towing package 12.1 (12.8, 10.6)
Coolant type: “Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details. BATTERY
Open voltage
∗ at 20
°C (68 °F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes after the key is removed with all the
lights turned off
Charging rates: 5 A max. AUTOMATIC TRANSMISSION
Fluid capacity (drain and refill),
L (qt., Imp. qt.):
Up to 3.0 (3.2, 2.6)
Fluid type: Toyota Genuine ATF WS
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF WS” (ATF
JWS3324 or NWS9638) to aid in assuring
optimum transmission performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
WS” may cause deterioration in shift
quality, locking up of your transmission
accompanied by vibration, and ultimate-
ly damage the automatic transmission
of your vehicle.
Please contact your Toyota dealer for fur-
ther details.
