2007 TOYOTA TUNDRA Owners Manual

1282007 TUNDRA from Jul. ’07 Prod. (OM34463U)

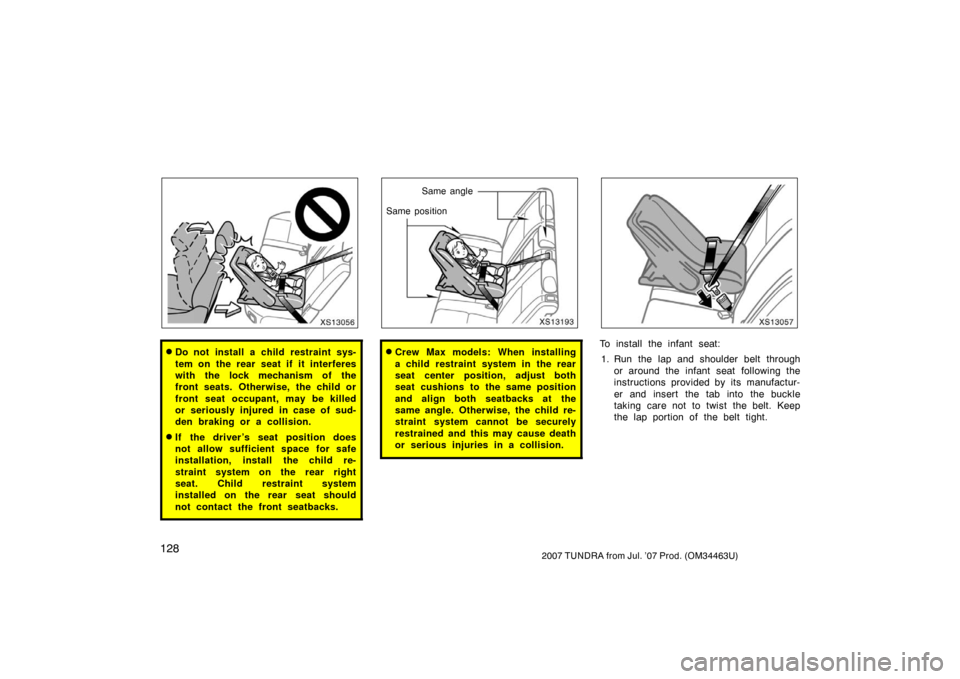

XS13056
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant, may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat. Child restraint system
installed on the rear seat should
not contact the front seatbacks.
XS13193
Same angle
Same position
Crew Max models: When installing
a child restraint system in the rear
seat center position, adjust both
seat cushions to the same position
and align both seatbacks at the
same angle. Otherwise, the child re-
straint system cannot be securely
restrained and this may cause death
or serious injuries in a collision.
XS13057
To install the infant seat: 1. Run the lap and shoulder belt through or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.

1292007 TUNDRA from Jul. ’07 Prod. (OM34463U)

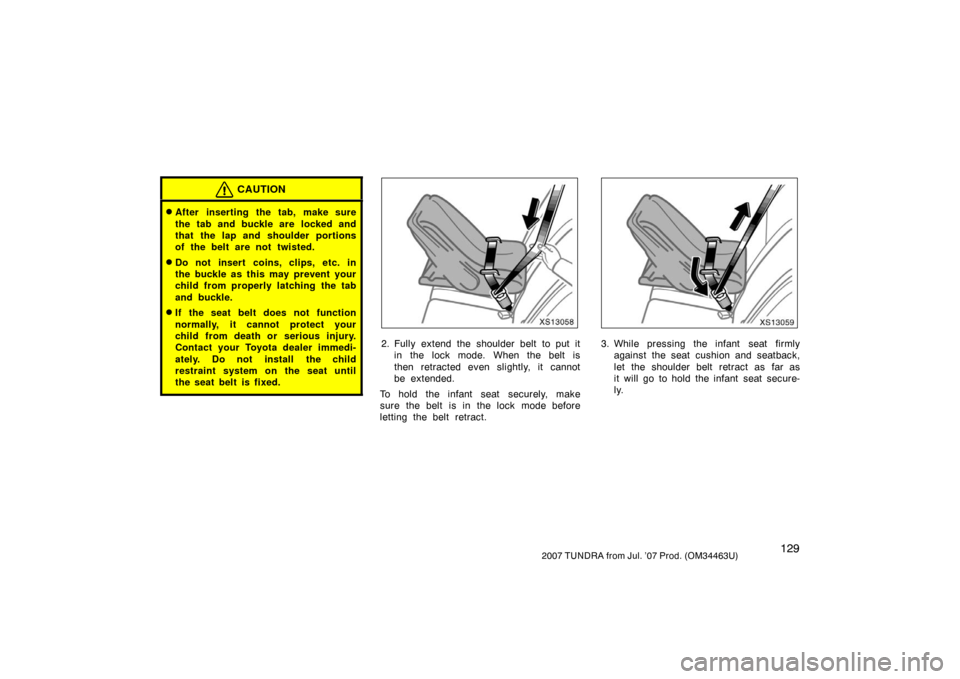

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
XS13058
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.
XS13059
3. While pressing the infant seat firmly against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.

1302007 TUNDRA from Jul. ’07 Prod. (OM34463U)

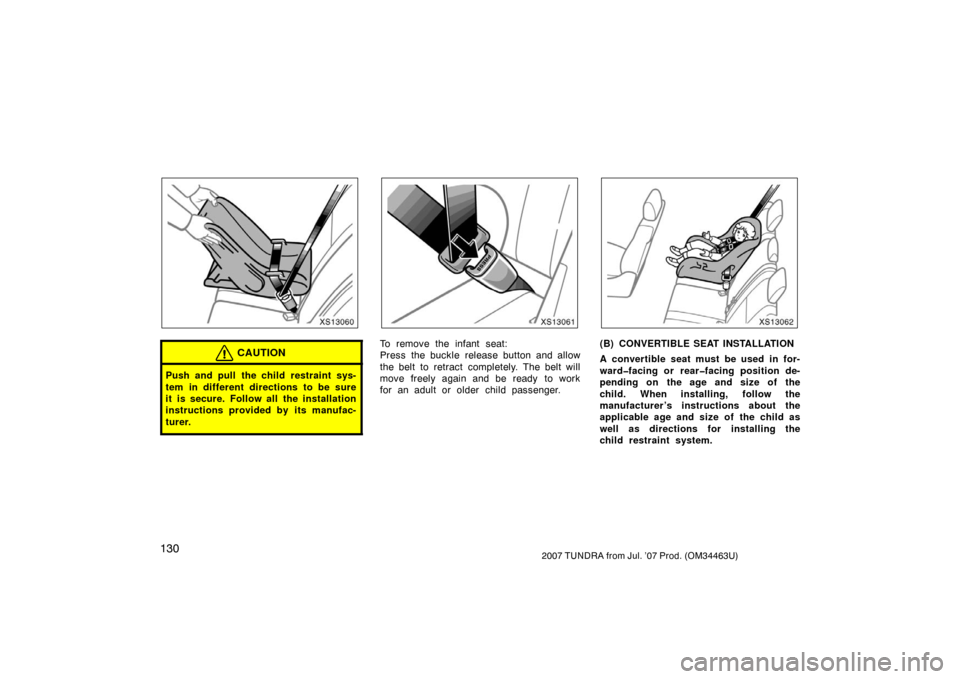

XS13060

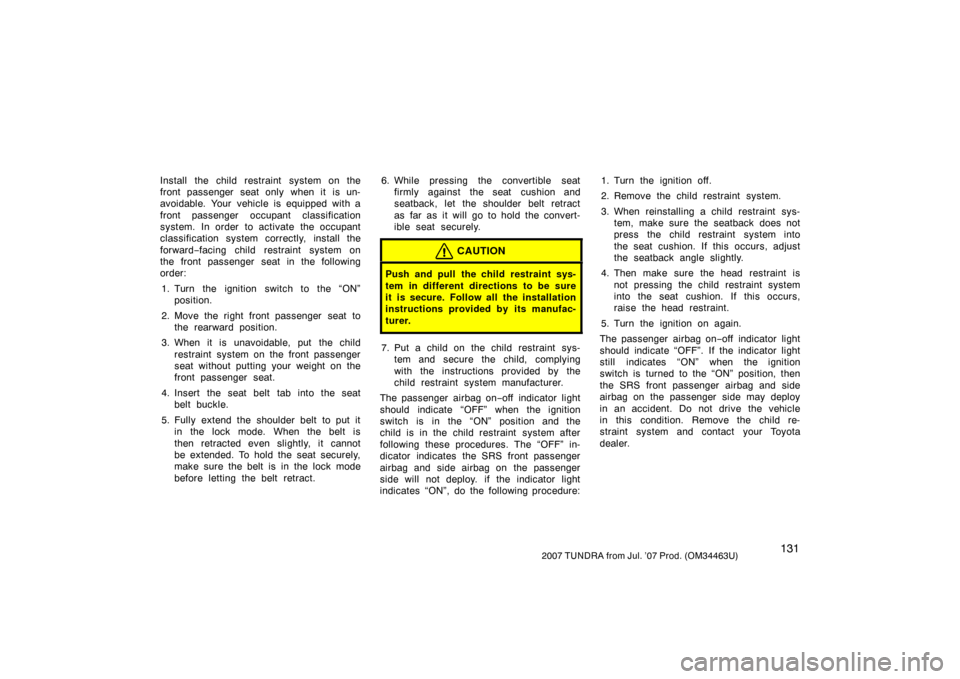

CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
XS13061
To remove the infant seat:
Press the buckle release button and allow
the belt to retract completely. The belt will
move freely again and be ready to work
for an adult or older child passenger.
XS13062
(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
wardfacing or rearfacing position de-
pending on the age and size of the
child. When installing, follow the
manufacturer ’s instructions about the
applicable age and size of the child as
well as directions for installing the
child restraint system.

1312007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Install the child restraint system on the
front passenger seat only when it is un-
avoidable. Your vehicle is equipped with a
front passenger occupant classification
system. In order to activate the occupant
classification system correctly, install the
forward−facing child restraint system on
the front passenger seat in the following
order:
1. Turn the ignition switch to the “ON” position.
2. Move the right front passenger seat to the rearward position.
3. When it is unavoidable, put the child restraint system on the front passenger
seat without putting your weight on the
front passenger seat.
4. Insert the seat belt tab into the seat belt buckle.
5. Fully extend the shoulder belt to put it in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended. To hold the seat securely,
make sure the belt is in the lock mode
before letting the belt retract. 6. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
7. Put a child on the child restraint sys-tem and secure the child, complying
with the instructions provided by the
child restraint system manufacturer.
The passenger airbag on −off indicator light
should indicate “OFF” when the ignition
switch is in the “ON” position and the
child is in the child restraint system after
following these procedures. The “OFF” in-
dicator indicates the SRS front passenger
airbag and side airbag on the passenger
side will not deploy. if the indicator light
indicates “ON”, do the following procedure: 1. Turn the ignition off.
2. Remove the child restraint system.
3. When reinstalling a child restraint sys-
tem, make sure the seatback does not
press the child restraint system into
the seat cushion. If this occurs, adjust
the seatback angle slightly.
4. Then make sure the head restraint is not pressing the child restraint system
into the seat cushion. If this occurs,
raise the head restraint.
5. Turn the ignition on again.
The passenger airbag on −off indicator light
should indicate “OFF”. If the indicator light
still indicates “ON” when the ignition
switch is turned to the “ON” position, then
the SRS front passenger airbag and side
airbag on the passenger side may deploy
in an accident. Do not drive the vehicle
in this condition. Remove the child re-
straint system and contact your Toyota
dealer.

1322007 TUNDRA from Jul. ’07 Prod. (OM34463U)

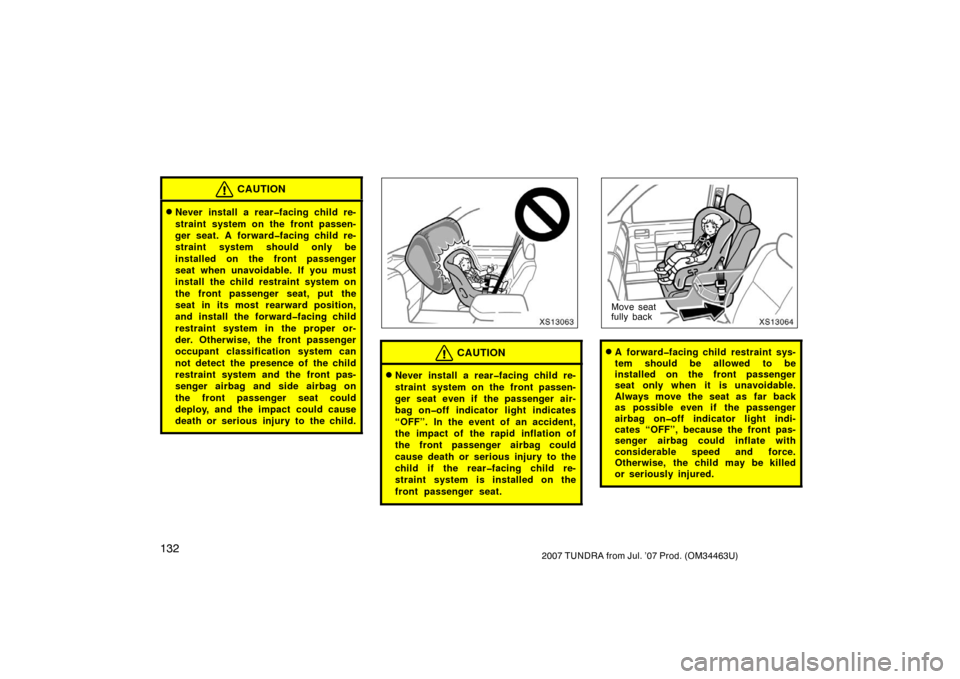

CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat. A forwardfacing child re-
straint system should only be
installed on the front passenger
seat when unavoidable. If you must
install the child restraint system on
the front passenger seat, put the
seat in its most rearward position,
and install the forwardfacing child
restraint system in the proper or-
der. Otherwise, the front passenger
occupant classification system can
not detect the presence of the child
restraint system and the front pas-
senger airbag and side airbag on
the front passenger seat could
deploy, and the impact could cause
death or serious injury to the child.
XS13063
CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the passenger air-
bag onoff indicator light indicates
“OFF”. In the event of an accident,
the impact of the rapid inflation of
the front passenger airbag could
cause death or serious injury to the
child if the rearfacing child re-
straint system is installed on the
front passenger seat.
XS13064
Move seat
fully back
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the passenger
airbag onoff indicator light indi-
cates “OFF”, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.

1332007 TUNDRA from Jul. ’07 Prod. (OM34463U)

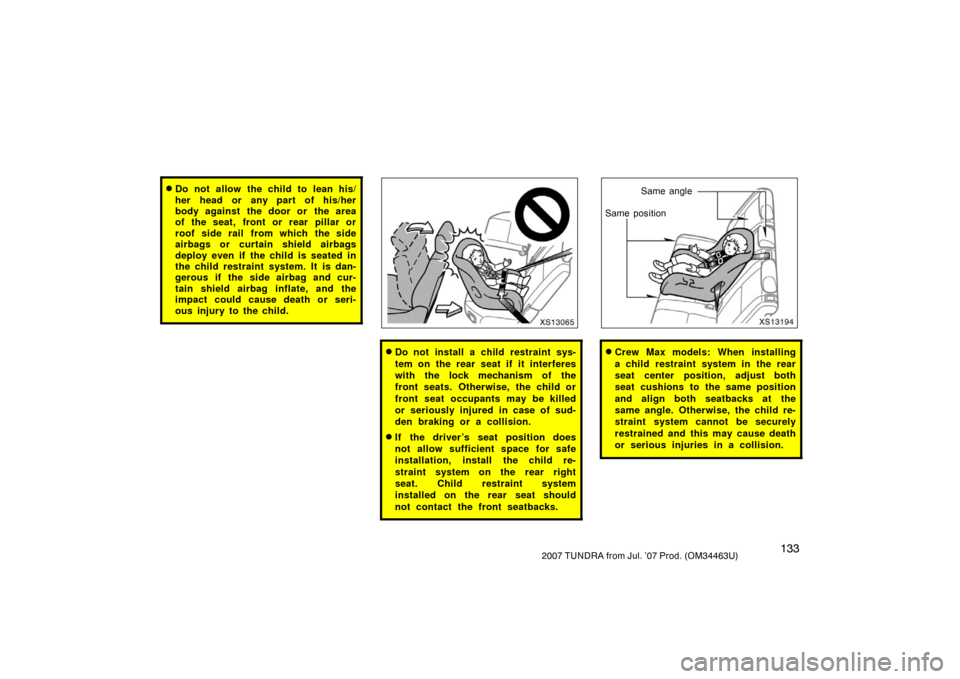

Do not allow the child to lean his/
her head or any part of his/her
body against the door or the area
of the seat, front or rear pillar or
roof side rail from which the side
airbags or curtain shield airbags
deploy even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag and cur-
tain shield airbag inflate, and the
impact could cause death or seri-
ous injury to the child.
XS13065
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupants may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat. Child restraint system
installed on the rear seat should
not contact the front seatbacks.
XS13194
Same angle
Same position
Crew Max models: When installing
a child restraint system in the rear
seat center position, adjust both
seat cushions to the same position
and align both seatbacks at the
same angle. Otherwise, the child re-
straint system cannot be securely
restrained and this may cause death
or serious injuries in a collision.

1342007 TUNDRA from Jul. ’07 Prod. (OM34463U)

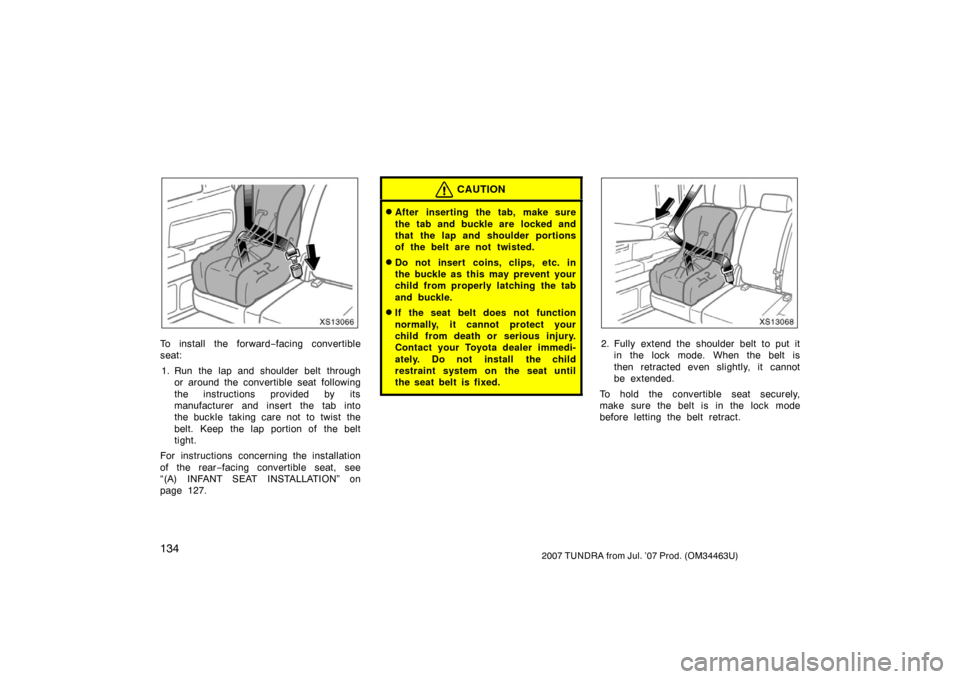

XS13066
To install the forward−facing convertible
seat:
1. Run the lap and shoulder belt through or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
For instructions concerning the installation
of the rear −facing convertible seat, see
“(A) INFANT SEAT INSTALLATION” on
page 127.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
XS13068
2. Fully extend the shoulder belt to put it in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.

1352007 TUNDRA from Jul. ’07 Prod. (OM34463U)

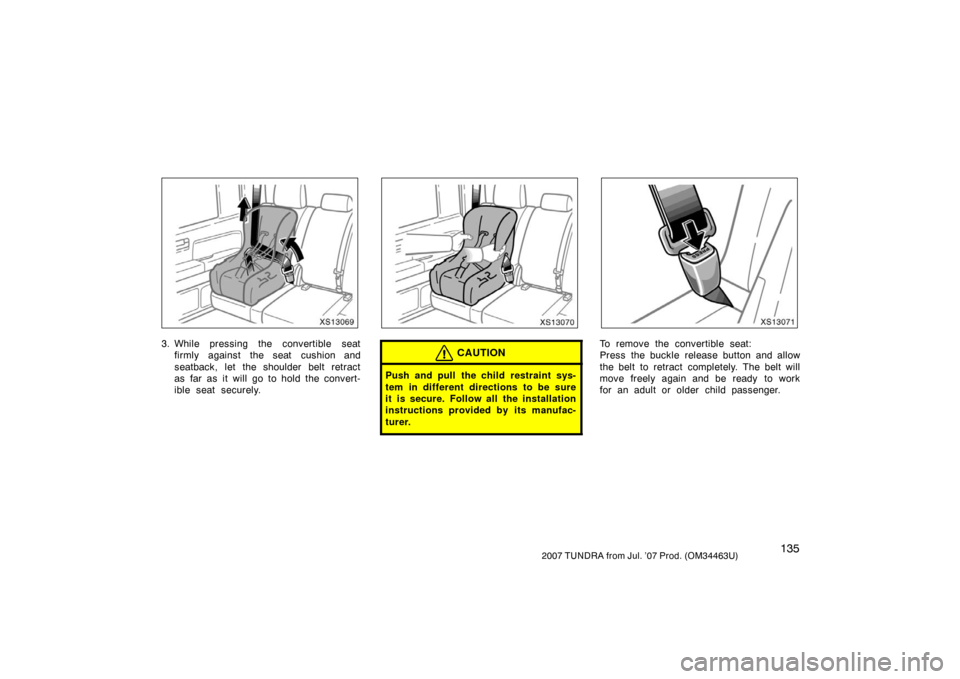

XS13069
3. While pressing the convertible seatfirmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
XS13070
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
XS13071
To remove the convertible seat:
Press the buckle release button and allow
the belt to retract completely. The belt will
move freely again and be ready to work
for an adult or older child passenger.
