2007 TOYOTA TUNDRA Owners Manual

2482007 TUNDRA from Jul. ’07 Prod. (OM34463U)
The vehicle stability control system
helps provide integrated control of the
systems such as antilock brake sys-
tem, traction control, engine control,
etc. This system automatically controls
the output of the brakes or engine to
help prevent the vehicle from skidding
when cornering on a slippery road sur-
face or operating steering wheel abrupt-
ly.
The vehicle stability control system is acti-
vated when the vehicle speed is more
than 15 km/h (9 mph).
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the self−check mode, but does
not indicate a malfunction.CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid serious injury. Reckless driv-
ing will result in an unexpected ac-
cident. If the slip indicator light
blinks and an alarm sounds, special
care should be taken while driving.
Only use tires of specified size. The
size, manufacturer, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer. (See
“Checking and replacing tires” on
page 551 in Section 72.)
XS17004a
Ty p e A
XS17005a
Ty p e B
Vehicle stability control
system

2492007 TUNDRA from Jul. ’07 Prod. (OM34463U)
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the ignition switch is turned
to the “ON” position. If the indicator light
does not come on when the ignition is
turned on, contact your Toyota dealer.

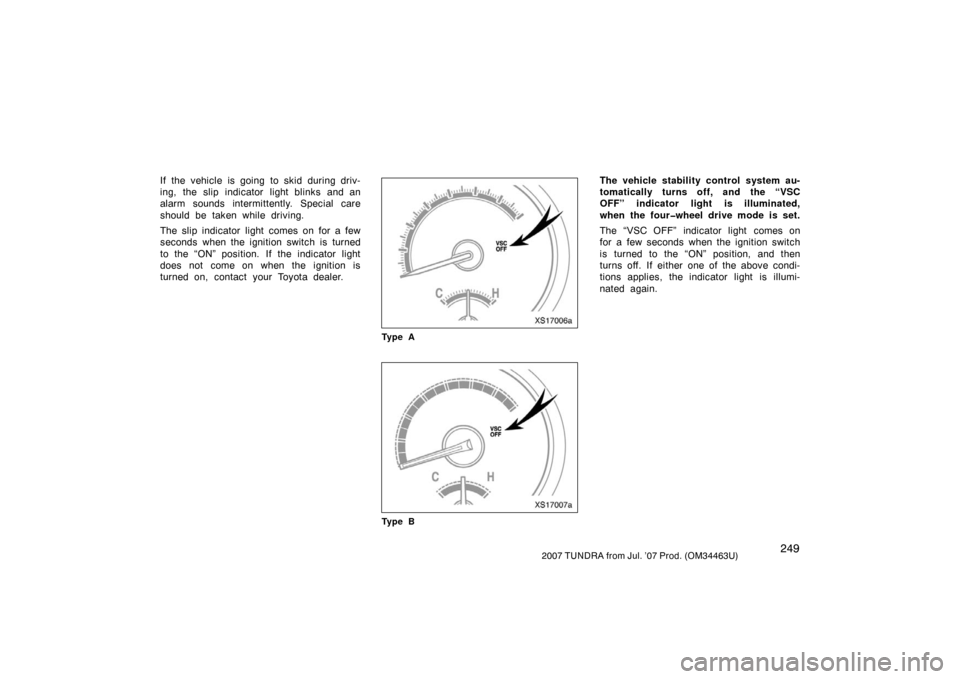

XS17006a
Ty p e A
XS17007a
Ty p e B
The vehicle stability control system au-
tomatically turns off, and the “VSC
OFF” indicator light is illuminated,
when the fourwheel drive mode is set.
The “VSC OFF” indicator light comes on
for a few seconds when the ignition switch
is turned to the “ON” position, and then
turns off. If either one of the above condi-
tions applies, the indicator light is illumi-
nated again.

2502007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS17035a
When getting the vehicle out of mud or
newly fallen snow, etc., it may be bene-
ficial to turn off the vehicle stability
control system. This system that con-
trols engine performance interferes with
the process of freeing rear wheels
(twowheel drive models) or 4 wheels
(fourwheel drive models).
To turn off: First, push the “VSC OFF”
switch to turn off the traction control
system and check that the “AUTO LSD”
and slip indicator lights come on. Then,
push and hold the “VSC OFF” switch
for 3 seconds or more with the vehicle
stopped.
The “VSC OFF” and slip indicator lights
will come on.To turn on: Briefly push the “VSC OFF”
switch once again.
The “VSC OFF” and slip indicator lights
will go off.
If the engine is turned off while the “VSC
OFF” and slip indicator lights are on and
then restarted, the indicator lights will turn
off automatically.
When you briefly push the “VSC OFF”
switch, turn off the vehicle stability control
system. See “Traction control system” on
page 242 in this Section.
The “VSC OFF” and slip indicator lights
come on for a few seconds when the
ignition switch is turned to the “ON” posi-
tion. If the indicator lights do not come on
when the ignition switch is turned to the
“ON” position, contact your Toyota dealer.
CAUTION
Do not drive with the vehicle stability
control system continuously turned
off.
XS17006a
Ty p e A
XS17007a
Ty p e B

2512007 TUNDRA from Jul. ’07 Prod. (OM34463U)
“VSC OFF” warning light
The light flashing warns that there is a
problem somewhere in the following.
Vehicle stability control system
Traction control system
“AUTO LSD” system
The light comes on when the ignition
switch is turned to the “ON” position, and
will go off after a few seconds.
If the light flashes while driving, the ve-
hicle stability control system does not
work. However, if the brakes operate nor-
mally when applied, it is no problem to
continue your driving.
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition switch is turned to the
“ON” position.
The warning light remains on after the
ignition switch is turned to the “ON”
position.
The warning light flashes while driving. The tire pressure warning system warns
you that the tire inflation pressure is
low.
The tire pressure warning system is not
a substitute for checking normal tire infla-
tion pressure. Check the tire inflation
pressure with a tire pressure gauge regu-
larly.
CAUTION
The warning system may not activate
immediately if blowout or sudden air
loss should occur.
XS17013b
Ty p e A
XS17014b
Ty p e B
Tire pressure warning system

2522007 TUNDRA from Jul. ’07 Prod. (OM34463U)
The tire pressure warning light comes on
when the ignition switch is turned to the
“ON” position and goes off after a few
seconds. This means the tire pressure
warning system is operating properly. If
the tire inflation pressure becomes low,
the light comes on again. In this case,
adjusting the tire inflation pressure will
turn off the light after 3 to 6 minutes. If
the light comes on after blinking for 1
minute, the tire pressure warning system
is not working properly.Indicatorstatus
MeaningsDo this
ON
Tire inflation
pressure is
lowAdjust the
tire
inflation
pressure
ON after
blinking for
1 minuteTire pressure
warning
system
malfunctionHave the
system
checked at
your Toyota
dealer

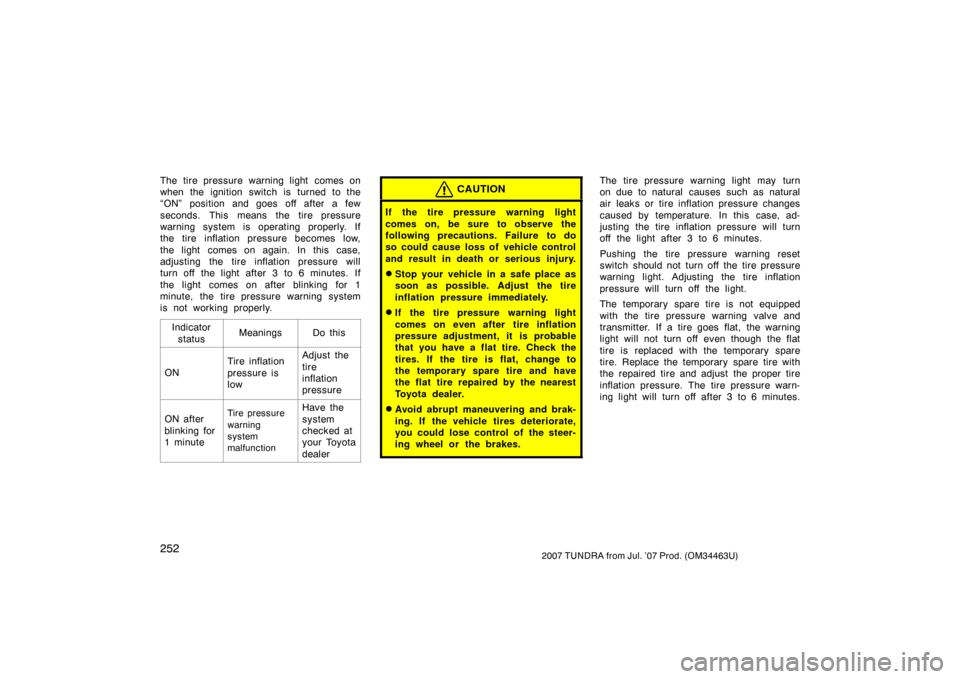

CAUTION
If the tire pressure warning light
comes on, be sure to observe the
following precautions. Failure to do
so could cause loss of vehicle control
and result in death or serious injury.
Stop your vehicle in a safe place as
soon as possible. Adjust the tire
inflation pressure immediately.
If the tire pressure warning light
comes on even after tire inflation
pressure adjustment, it is probable
that you have a flat tire. Check the
tires. If the tire is flat, change to
the temporary spare tire and have
the flat tire repaired by the nearest
Toyota dealer.
Avoid abrupt maneuvering and brak-
ing. If the vehicle tires deteriorate,
you could lose control of the steer-
ing wheel or the brakes.
The tire pressure warning light may turn
on due to natural causes such as natural
air leaks or tire inflation pressure changes
caused by temperature. In this case, ad-
justing the tire inflation pressure will turn
off the light after 3 to 6 minutes.
Pushing the tire pressure warning reset
switch should not turn off the tire pressure
warning light. Adjusting the tire inflation
pressure will turn off the light.
The temporary spare tire is not equipped
with the tire pressure warning valve and
transmitter. If a tire goes flat, the warning
light will not turn off even though the flat
tire is replaced with the temporary spare
tire. Replace the temporary spare tire with
the repaired tire and adjust the proper tire
inflation pressure. The tire pressure warn-
ing light will turn off after 3 to 6 minutes.

2532007 TUNDRA from Jul. ’07 Prod. (OM34463U)

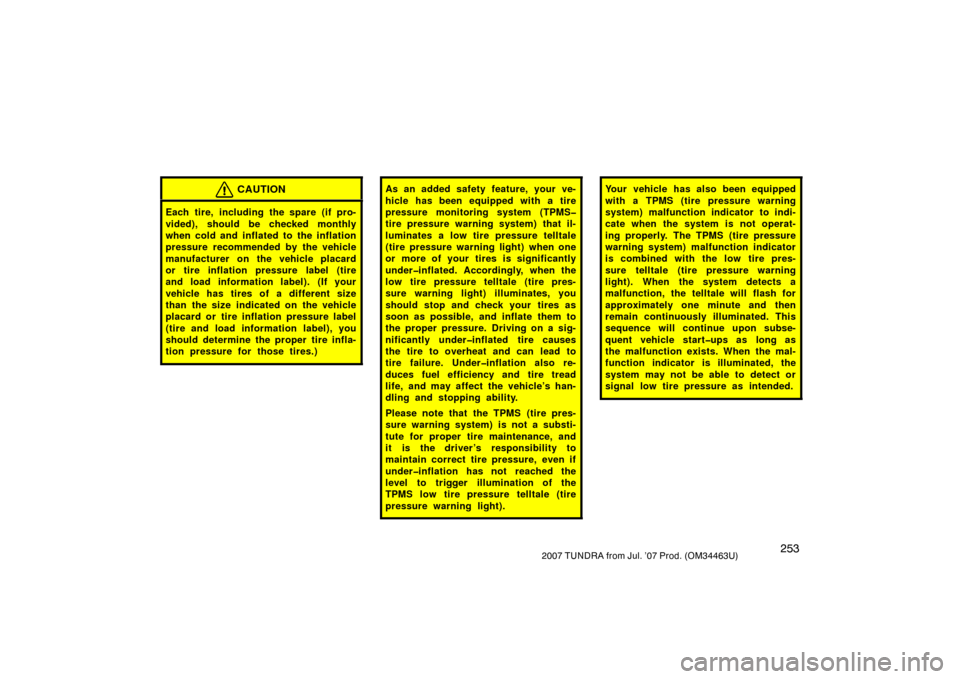

CAUTION
Each tire, including the spare (if pro-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard
or tire inflation pressure label (tire
and load information label). (If your
vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label
(tire and load information label), you
should determine the proper tire infla-
tion pressure for those tires.)
As an added safety feature, your ve-
hicle has been equipped with a tire
pressure monitoring system (TPMS
tire pressure warning system) that il-
luminates a low tire pressure telltale
(tire pressure warning light) when one
or more of your tires is significantly
underinflated. Accordingly, when the
low tire pressure telltale (tire pres-
sure warning light) illuminates, you
should stop and check your tires as
soon as possible, and inflate them to
the proper pressure. Driving on a sig-
nificantly underinflated tire causes
the tire to overheat and can lead to
tire failure. Underinflation also re-
duces fuel efficiency and tire tread
life, and may affect the vehicle’s han-
dling and stopping ability.
Please note that the TPMS (tire pres-
sure warning system) is not a substi-
tute for proper tire maintenance, and
it is the driver ’s responsibility to
maintain correct tire pressure, even if
underinflation has not reached the
level to trigger illumination of the
TPMS low tire pressure telltale (tire
pressure warning light).Your vehicle has also been equipped
with a TPMS (tire pressure warning
system) malfunction indicator to indi-
cate when the system is not operat-
ing properly. The TPMS (tire pressure
warning system) malfunction indicator
is combined with the low tire pres-
sure telltale (tire pressure warning
light). When the system detects a
malfunction, the telltale will flash for
approximately one minute and then
remain continuously illuminated. This
sequence will continue upon subse-
quent vehicle startups as long as
the malfunction exists. When the mal-
function indicator is illuminated, the
system may not be able to detect or
signal low tire pressure as intended.

2542007 TUNDRA from Jul. ’07 Prod. (OM34463U)
TPMS (tire pressure warning system)
malfunction may occur for a variety
of reasons, including the installation
of replacement or alternate tires or
wheels on the vehicle that prevent
the TPMS (tire pressure warning sys-
tem) from functioning properly. Al-
ways check the TPMS (tire pressure
warning system) malfunction telltale
after replacing one or more tires or
wheels on your vehicle to ensure that
the replacement or alternate tires and
wheels allow the TPMS (tire pressure
warning system) to continue to func-
tion properly.NOTICE
Do not use liquid sealants for a flat
tire as tire pressure warning valve
and transmitter will be damaged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Toyota dealer
or an authorized tire dealer. The
tire pressure warning valves and
transmitters will be affected by the
installation or removal of tires.
XS17018b
Ty p e A
XS17017b
Ty p e B

2552007 TUNDRA from Jul. ’07 Prod. (OM34463U)
IF THE TIRE PRESSURE WARNING
LIGHT COMES ON AFTER BLINKING
FOR 1 MINUTE...
If the tire pressure warning light comes
on after blinking for 1 minute when the
ignition switch is turned to the “ON”
position, the tire pressure warning sys-
tem is not working properly.
The system will be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If tires not equipped with tire pressure
warning valves and transmitters are
used.
If the ID code on the tire pressure
warning valves and transmitters is not
registered in the tire pressure warning
computer.
The system may be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work pr operly.)
If electronic devices or facilities using
similar radio wave frequencies are
nearby.
If a radio set at similar frequencies is
in use in the vehicle.
If a window tint that affects the radio
wave signals is installed.
If there is a lot of snow or ice on the
vehicle, in particular around the wheels
or wheel housings.
If non−genuine Toyota wheels are used.
If tire chains are used.
If the tire pressure warning light continues
to come on after blinking for 1 minute
when the ignition switch is turned to the
“ON” position, have the system checked
by your Toyota dealer.
Even if you use genuine wheels, the tire
pressure warning system may not work
properly with some types of tires.
Pushing the tire pressure warning reset
switch should not turn off the tire pressure
warning light.
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:
