2007 TOYOTA TUNDRA Owners Manual

3522007 TUNDRA from Jul. ’07 Prod. (OM34463U)

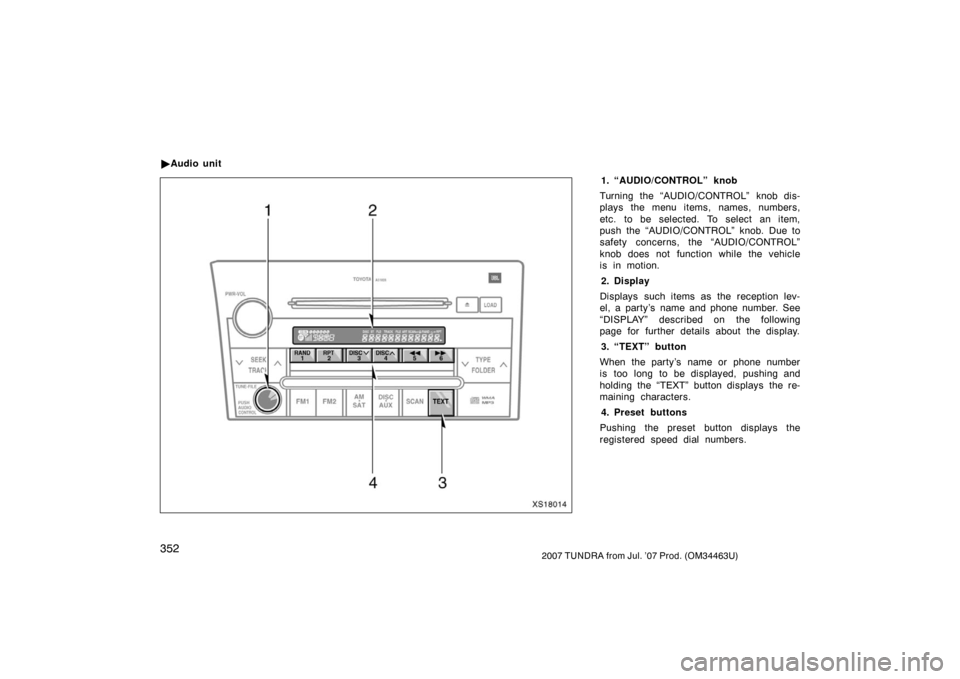

1. “AUDIO/CONTROL” knob
Turning the “AUDIO/CONTROL” knob dis-
plays the menu items, names, numbers,
etc. to be selected. To select an item,
push the “AUDIO/CONTROL” knob. Due to
safety concerns, the “AUDIO/CONTROL”
knob does not function while the vehicle
is in motion.
2. Display
Displays such items as the reception lev-
el, a party’s name and phone number. See
“DISPLAY” described on the following
page for further details about the display.
3. “TEXT” button
When the party’s name or phone number
is too long to be displayed, pushing and
holding the “TEXT” button displays the re-
maining characters.
4. Preset buttons
Pushing the preset button displays the
registered speed dial numbers.

Audio unit
XS18014

3532007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS18015a
DISPLAY1. Bluetooth
 display
Displays when a Bluetooth
 connection is
made. If there is no display, the
Bluetooth
 connection has not been made
and communication between the phone
and system is not possible. When using
the hands −free system, make sure that
“BT” is displayed. The display is updated
in real time. 2. Reception level display
Displays the reception level of the radio
wave signals. This may not match the
display on the cellular phone. The recep-
tion level of some cellular phones may not
be displayed.
The number of bars is greater when the
signal received is stronger.
3. Message display
Displays phone numbers, names, com-
ments, menu items, etc.
—Phone Setup
The phone setup menu includes the fol-
lowing:
Pair Phone
To use the hands −free system, you need
to register your phone in the system.
Once you have registered it, you can
make a hands −free call. Up to 6 phones
can be registered.
Select Phone
When the system connects to Bluetooth
,
the phone previously used is automatically
selected. Select a different phone if nec-
essary. Only the selected phone can be
used with the hands −free system.
Change Name
The registered phone names can be
changed.
List Phones
The registered phone names can be
checked.
The following can be performed during the
name playback:
Select phone
Change name
Delete

3542007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Set Passkey
The passkey can be c hanged. A 4 to 8
digit code can be input as a pa sskey.
Delete
The registered phones can be deleted.
To enter the phone setup menu 1. Push the off −hook switch to turn the
hands −free system on.
2. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
“Setup” is displayed and push the
knob.
“Setup. Please push the talk switch and
say security, or phone setup.” is heard. 3. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
“Phone Setup” is displayed and push
the knob.
“Phone setup. Push the talk switch and
say pair phone, select phone, change
name, list phones, set pa sskey or delete.”
is heard.
“XXX (phone name) already selected.” is
heard and “XXX (phone name)” is dis-
played.
If no phone has been registered, the sys-
tem may not function properly. To pair phones
1. Push the talk switch and say “Pair phone”, or turn the “AUDIO/CONTROL”
knob until “Pair Phone” is displayed
and push the knob.
“Pair. Push the talk switch and say a
name for the phone.” is heard. 2. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
“Record Name” is displayed, push the
knob and say “XXX (desired phone
name)”.
“Push the talk switch and say confirm.
Otherwise, say go back.” is heard. 3. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
“Confirm” is displayed and push the
knob.
“XXX Ready for phone pairing. Please use
the phone to connect it to the hands −free
system. The passkey for the p hone is....”
is heard.
After “HANDS FREE” is displayed, a pass-
key
∗ is displayed and “Searching.” is
heard.
4. Input the passkey displayed on the screen into the phone. “The phone is paired and ready for use.
Returning to the main menu.” is heard and
“Paired” is displayed.
The system may not function in the follow-
ing cases:
If 6 phones have already been regis-
tered.
If the vehicle is moving.
If the system cannot communicate with
the phone.
∗: Passkey is a password r
equired to reg-
ister a phone to the system.
INFORMATION
 To use the handsfree system, you
need to register your phone in the
system. Once you have registered
it, you can make a handsfree call.
Up to 6 phones can be registered.
 For the operation of the phone, see
the manual that comes with your
cellular phone.
 The passkey can be changed. See
page 357 for changing the passkey.

3552007 TUNDRA from Jul. ’07 Prod. (OM34463U)
To select a phone1. Push the talk switch and say “Select phone”, or turn the “AUDIO/CONTROL”
knob until “Select Phone” is displayed
and push the knob.
“Select phone. Push the talk switch and
say the phone name or say list phones.”
is heard. 2. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
the desired phone name is displayed
and push the knob.
When the phone is selected by a voice
command:
“XXX Push the talk switch and say
confirm. Otherwise, say go back.” is heard
and “XXX” is displayed.
Follow voice guidance instructions, or turn
the “AUDIO/CONTROL” knob until
“Confirm” is displayed and push the knob.
“XXX selected. Returning to the phone
setup.” is heard. When the phone is selected by using
the knob:
“XXX selected. Returning to the phone
setup.” is heard.
The system may not function in the follow-
ing cases:
If the phone is not found.
If the system does not recognize the
voice command.
To change a name
1. Push the talk switch and say “Change name”, or turn the “AUDIO/CONTROL”
knob until “Change Name” is displayed
and push the knob.
“Change name. Push the talk switch and
say the phone name to change.” is heard. 2. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
the phone name that you want to
change is displayed and push the
knob.

3562007 TUNDRA from Jul. ’07 Prod. (OM34463U)
When the phone is selected by a voice
command:
“XXX Push the talk switch and say
confirm. Otherwise, say go back.” is heard
and “XXX” is displayed.1. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
“Confirm” is displayed and push the
knob.
“Push the talk switch and say a new
name.” is heard.
2. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
“Record Name” is displayed, push the
knob and say “XXX (desired phone
name)”.
“XXX Push the talk switch and say
confirm. Otherwise, say go back.” is
heard. 3. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
“Confirm” is displayed and push the
knob.
“Name changed. Returning to the phone
setup.” is heard and “Changed” is dis-
played. When the phone is selected by using
the knob:
“XXX Push the talk switch and say
confirm. Otherwise, say go back.” is heard
and “XXX” is displayed.
1. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
“Confirm” is displayed and push the
knob.
“Push the talk switch and say a new
name.” is heard.
2. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
“Record Name” is displayed, push the
knob and say “XXX (desired phone
name)”.
“XXX Push the talk switch and say
confirm. Otherwise, say go back.” is
heard. 3. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
“Confirm” is displayed and push the
knob.
“Name changed. Returning to the phone
setup.” is heard and “Changed” is dis-
played. The system may not function in the follow-
ing cases:
If no phone has been registered.
If the system does not recognize the
voice command.
To list phones 1. Push the talk switch and say “List phones”, or turn the
“AUDIO/CONTROL” knob until “List
Phones” is displayed and push the
knob.
“List phones. To select a name, push the
talk switch during the name playback.” is
heard. 2. Follow voice guidance instructions.
“Push the talk switch and say select
phone, change name, or delete.” is heard.
Select one of the following:

3572007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Select phone
Push the talk switch and say “Select
phone”, or turn the “AUDIO/CONTROL”
knob until “Select Phone” is displayed and
push the knob.
For further details on selecting a phone,
see page 355.
Change name
Push the talk switch and say “Change
name”, or turn the “AUDIO/CONTROL”
knob until “Change Name” is displayed
and push the knob.
For further details on changing a name,
see page 355.
Delete
Push the talk switch and say “Delete”, or
turn the “AUDIO/CONTROL” knob until
“Delete” is displayed and push the knob.
For further details on deleting a phone,
see page 358.
If no phone has been registered, the sys-
tem may not function properly.To set a passkey
1. Push the talk switch and say “Set passkey”, or turn the
“AUDIO/CONTROL” knob until “Set
Passkey” is displayed and push the
knob.
“Set Passkey. The passkey is r equired for
the phone pairing process. Push the talk
switch and say a new passkey.” is heard
and passkey is displayed.
2. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob to
select a number.
When using a voice command:
“XXXX (new pa sskey) Push the talk switch
and say confirm. Otherwise, continue
adding numbers, or say go back or
delete.” is heard and “XXXX (new
passkey)” is displayed.
Follow voice guidance instructions, or turn
the “AUDIO/CONTROL” knob until
“Confirm” is displayed and push the knob.
“Passkey ch anged. Returning to the phone
setup.” is heard. When using the knob:
1. Turn the “AUDIO/CONTROL” knob to select a number. Push the
“AUDIO/CONTROL” knob to set.
2. When the passkey is set, push the “AUDIO/CONTROL” knob.
“Passkey c hanged. Returning to the phone
setup.” is heard.
The system may not function in the follow-
ing cases:
If the passkey has less than 4 digits.
If the passkey has more than 8 digits.

3582007 TUNDRA from Jul. ’07 Prod. (OM34463U)
To delete a phone1. Push the talk switch and say “Delete”, or turn the “AUDIO/CONTROL” knob
until “Delete” is displayed and push the
knob.
“Delete. Push the talk switch and say the
phone name to delete.” is heard. 2. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
the phone name you want to delete is
displayed and push the knob.
When using a voice command:
“XXX Push the talk switch and say
confirm. Otherwise, say go back.” is heard
and “XXX” is displayed.
Follow voice guidance instructions, or turn
the “AUDIO/CONTROL” knob until
“Confirm” is displayed and push the knob.
“Deleted. Returning to the phone setup.”
is heard and “Deleted” is displayed.
When using the knob:
“Deleted. Returning to the phone setup.”
is heard and “Deleted” is displayed. The system may not function in the follow-
ing cases:
If no phone has been registered.
If the system does not recognize the
voice command.
—Security
The security menu includes the following:
Set PIN (Personal Identification Num-
ber)
The PIN can be set or changed.
Phone book lock
The phone book can be locked.
When the phone book is locked, the fol-
lowing functions cannot be used:
Dial by name and number
Redial
Callback
Speed Dial
Phone Setup
PhoneBook
Set PIN
Phone book unlock
The locked phone book can be unlocked.

3592007 TUNDRA from Jul. ’07 Prod. (OM34463U)
To enter the security menu1. Push the off −hook switch to turn the
hands −free system on.
2. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
“Setup” is displayed and push the
knob.
“Setup. Please push the talk switch and
say security, or phone setup.” is heard. 3. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
“Security” is displayed and push the
knob.
“Security. Push the talk switch and say
set PIN, phone book lock, or phone book
unlock.” is heard. To set a PIN
Push the talk switch and say “Set PIN”,
or turn the “AUDIO/CONTROL” knob until
“Set PIN” is displayed and push the knob.
“There is no PIN number set. Please
register a PIN number. Please push the
talk switch and say a four
−digit PIN
number.” is heard. When using a voice command:
1. Push the talk switch and say “XXX (new PIN number)”.
2. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
“Confirm” is displayed and push the
knob.
“The PIN number has been set. Returning
to the security.” is heard and “Completed”
is displayed.
When using the knob: 1. Turn the “AUDIO/CONTROL” knob to select a number. Push the
“AUDIO/CONTROL” knob to set.
2. Repeat the above procedure until the entire four −digit number is set.
3. When the PIN is set, push the “AUDIO/CONTROL” knob.
4. Follow voice guidance instructions, or turn the “AUDIO/CONTROL” knob until
“Confirm” is displayed and push the
knob.
“The PIN number has been set. Returning
to the security.” is heard and “Completed”
is displayed.
