2007 TOYOTA TUNDRA Owners Manual

1202007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13040
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.
XS13041
3. While pressing the infant seat firmly against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.
XS13042
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

1212007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13044
To remove the infant seat:
Press the buckle release button and allow
the belt to retract completely. The belt will
move freely again and be ready to work
for an adult or older child passenger.
XS13067
(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
wardfacing or rearfacing position de-
pending on the child’s age and size of
the child. When installing, follow the
manufacturer ’s instructions about the
applicable age and size of the child as
well as directions for installing the
child restraint system.
XS13155
CAUTION
Rearfacing child restraint system:
Never install a rearfacing child re-
straint system on the front passenger
seat with the passenger airbag off
switch in the “AUTO” position. In the
event of an accident, the force of the
rapid inflation of the front passenger
airbag can cause death or serious in-
jury to the child if the rearfacing
child restraint system is installed on
the front passenger seat.

1222007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13156
When you install a rearfacing child re-
straint system which belongs to a pas-
senger risk group on the right front
passenger seat, turn the passenger air-
bag off switch counterclockwise to the
“OFF” position and remove the key.
(For details, see “—SRS driver airbag
and front passenger airbag” on page 75
in this Section.)
The indicator light comes on when the
system is off.
CAUTION
If you must install a rearfacing
child restraint system on the right
front passenger seat, make sure
that the passenger airbag off switch
is in the “OFF” position with the
key removed and that the indicator
light is on.
Never install a rearfacing child re-
straint system on the center front
seat.
CAUTION
Forwardfacing child restraint system:
A forwardfacing child restraint
system which belongs to a passenger
risk group should never be installed
on the right front passenger seat with
the passenger airbag off switch in the
“AUTO” position, because the force
of the deploying airbag could cause
death or serious injury to the child in
forward seating position. (For details,
see “—SRS driver airbag and front
passenger airbag” on page 75 in this
Section.)

1232007 TUNDRA from Jul. ’07 Prod. (OM34463U)

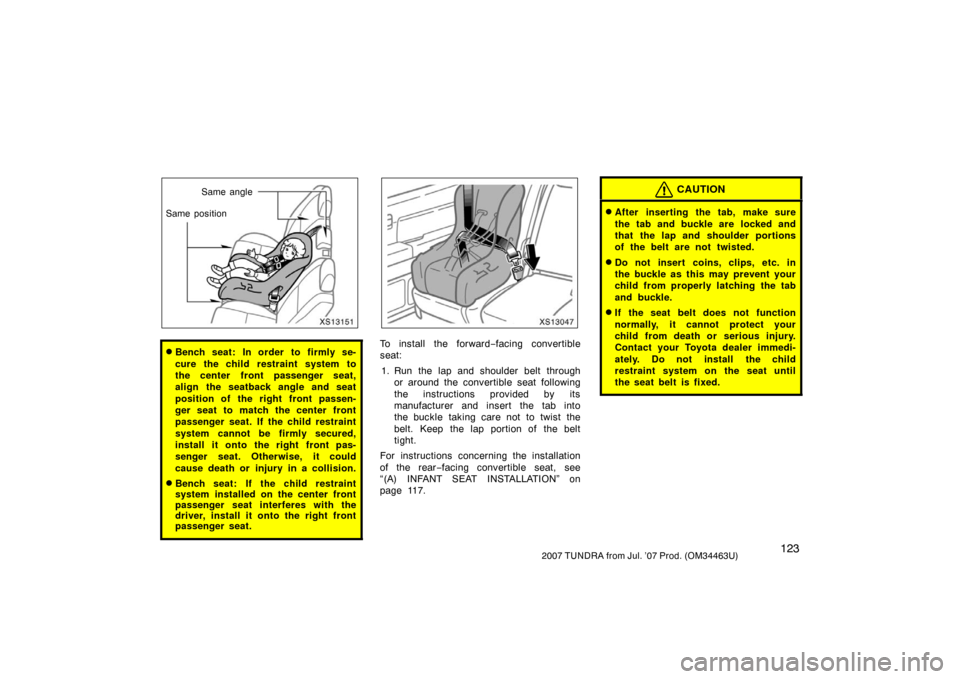

XS13151
Same angle
Same position
Bench seat: In order to firmly se-
cure the child restraint system to
the center front passenger seat,
align the seatback angle and seat
position of the right front passen-
ger seat to match the center front
passenger seat. If the child restraint
system cannot be firmly secured,
install it onto the right front pas-
senger seat. Otherwise, it could
cause death or injury in a collision.
Bench seat: If the child restraint
system installed on the center front
passenger seat interferes with the
driver, install it onto the right front
passenger seat.
XS13047
To install the forward−facing convertible
seat:
1. Run the lap and shoulder belt through or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
For instructions concerning the installation
of the rear −facing convertible seat, see
“(A) INFANT SEAT INSTALLATION” on
page 117.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

1242007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13048
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.
XS13049
3. While pressing the convertible seat firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
XS13050
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

1252007 TUNDRA from Jul. ’07 Prod. (OM34463U)

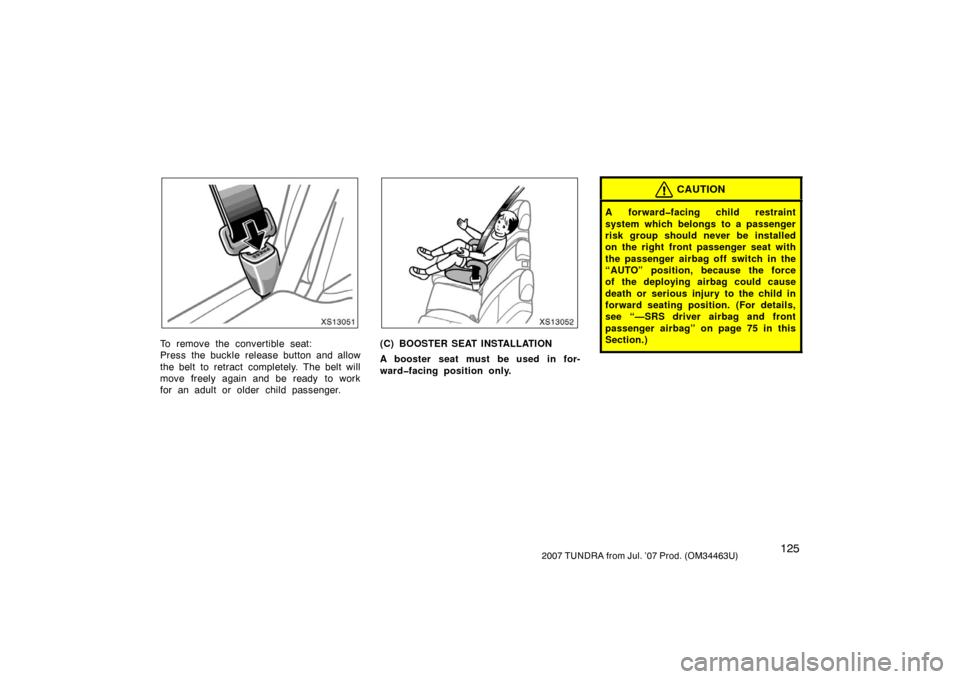

XS13051
To remove the convertible seat:
Press the buckle release button and allow
the belt to retract completely. The belt will
move freely again and be ready to work
for an adult or older child passenger.
XS13052
(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.
CAUTION
A forwardfacing child restraint
system which belongs to a passenger
risk group should never be installed
on the right front passenger seat with
the passenger airbag off switch in the
“AUTO” position, because the force
of the deploying airbag could cause
death or serious injury to the child in
forward seating position. (For details,
see “—SRS driver airbag and front
passenger airbag” on page 75 in this
Section.)

1262007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13053
To install the booster seat:
Sit the child on a booster seat. Run the
lap and shoulder belt through or around
the booster seat and across the child fol-
lowing the instructions provided by its
manufacturer and insert the tab into the
buckle taking care not to twist the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts” on
page 65 in this Section for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

1272007 TUNDRA from Jul. ’07 Prod. (OM34463U)

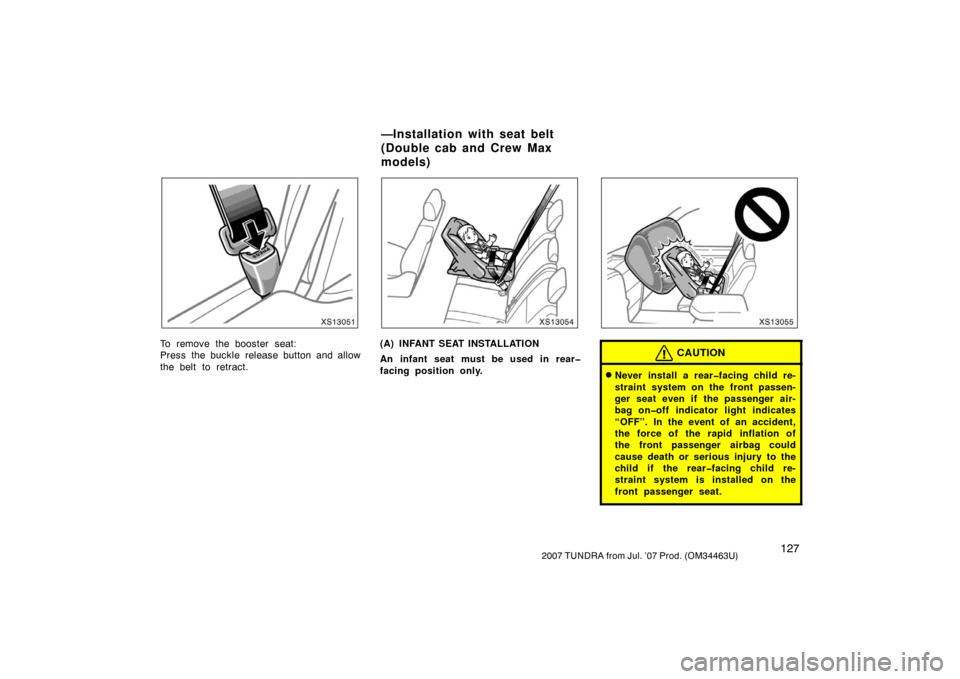

XS13051
To remove the booster seat:
Press the buckle release button and allow
the belt to retract.
XS13054
(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.
XS13055
CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the passenger air-
bag onoff indicator light indicates
“OFF”. In the event of an accident,
the force of the rapid inflation of
the front passenger airbag could
cause death or serious injury to the
child if the rearfacing child re-
straint system is installed on the
front passenger seat.
—Installation with seat belt
(Double cab and Crew Max
models)
