2007 TOYOTA TUNDRA Owners Manual

82007 TUNDRA from Jul. ’07 Prod. (OM34463U)
18. “VSC OFF” switch
19. Power outlet main switch(with rear seat entertainment system)
20. Cruise control switch
21. Ignition switch
22. Accessory meter
23. Engine immobilizer/theft deterrent system indicator light
24. Intuitive parking assist indicator lights

92007 TUNDRA from Jul. ’07 Prod. (OM34463U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Multi −information display/accessory me-
ter control switches
4. Intuitive parking assist switch
5. Emergency flasher switch
6. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
7. Outside rear view mirror defogger switch/Back window and outside rear
view mirror defogger switch
8. Front passenger ’s seat belt reminder light
9. Passenger airbag on −off indicator light
10. Seat heater dials 11. Air conditioning controls
12. Power outlet
13. AUX adapter
14. Cigarette lighter
15. “TOW/HAUL” switch
16. Front drive control switch knob (four −wheel drive models)
17. Tire pressure warning reset switch

Separate seat with automatic air conditioning system (view B)
XS11021

102007 TUNDRA from Jul. ’07 Prod. (OM34463U)
18. “VSC OFF” switch
19. Power outlet main switch(with rear seat entertainment system)
20. Cruise control switch
21. Ignition switch
22. Accessory meter
23. Engine immobilizer/theft deterrent sys- tem indicator light
24. Intuitive parking assist indicator lights
XS10010a

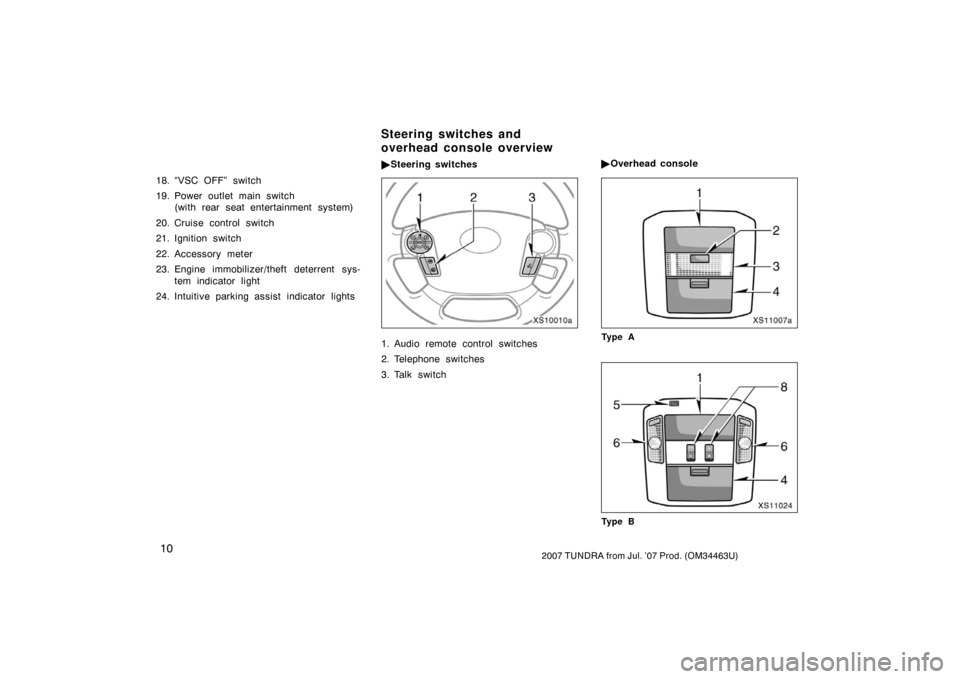

1. Audio remote control switches
2. Telephone switches
3. Talk switch
XS11007a
Ty p e A
XS11024
Ty p e B
Steering switches and
overhead console overview
 Steering switches
Overhead console

112007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS11009e
Ty p e C

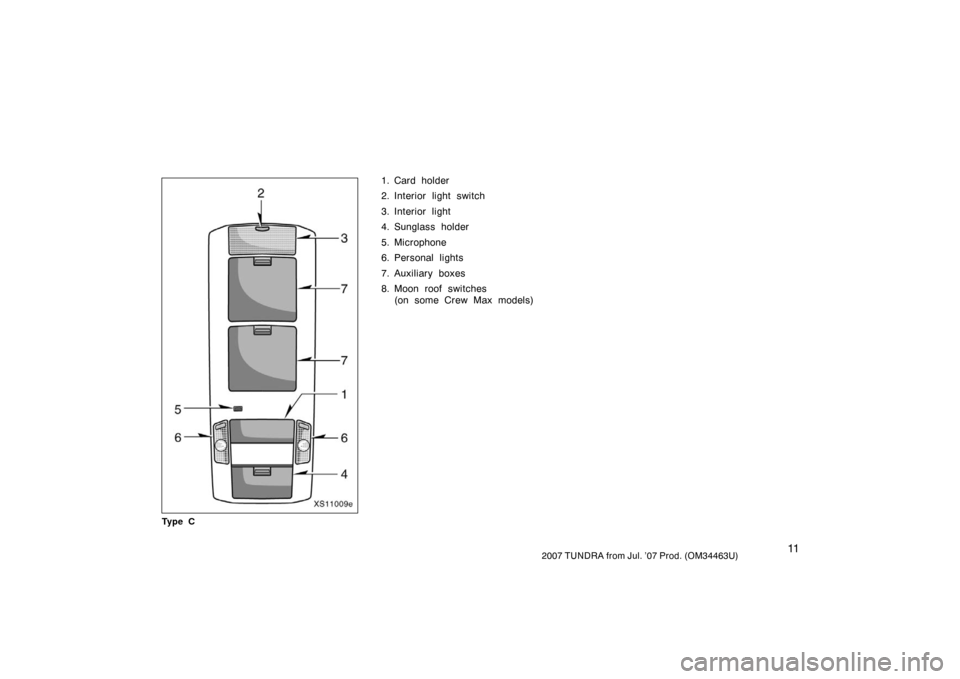

1. Card holder
2. Interior light switch
3. Interior light
4. Sunglass holder
5. Microphone
6. Personal lights
7. Auxiliary boxes
8. Moon roof switches(on some Crew Max models)

122007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS11002c

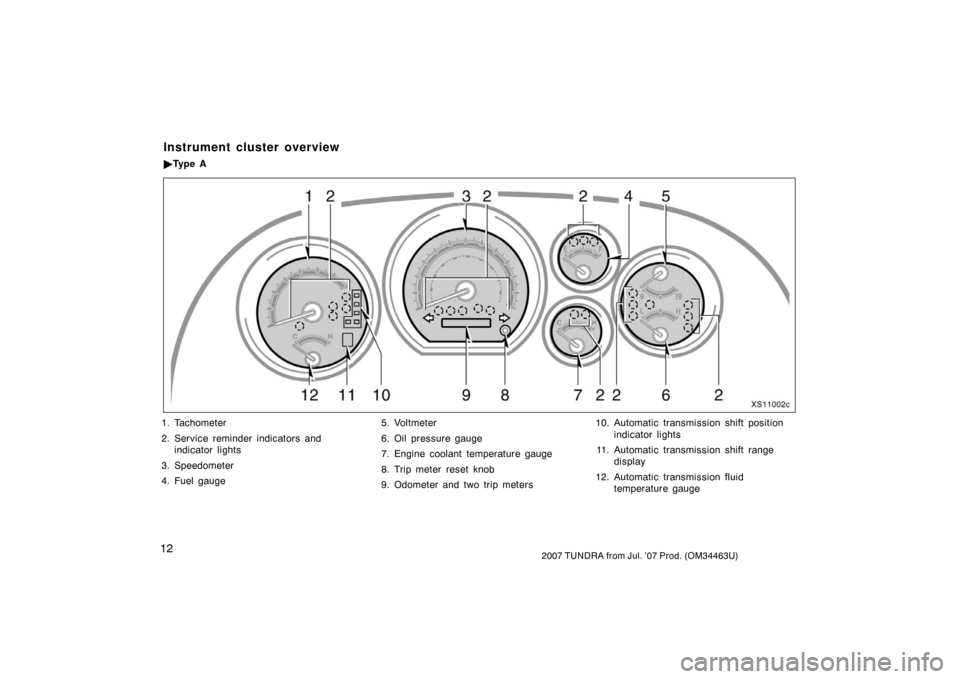

1. Tachometer
2. Service reminder indicators andindicator lights
3. Speedometer
4. Fuel gauge 5. Voltmeter
6. Oil pressure gauge
7. Engine coolant temperature gauge
8. Trip meter reset knob
9. Odometer and two trip meters10. Automatic transmission shift position
indicator lights
11. Automatic transmission shift range display
12. Automatic transmission fluid temperature gauge
Instrument cluster overview
Ty p e A

132007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS11003c

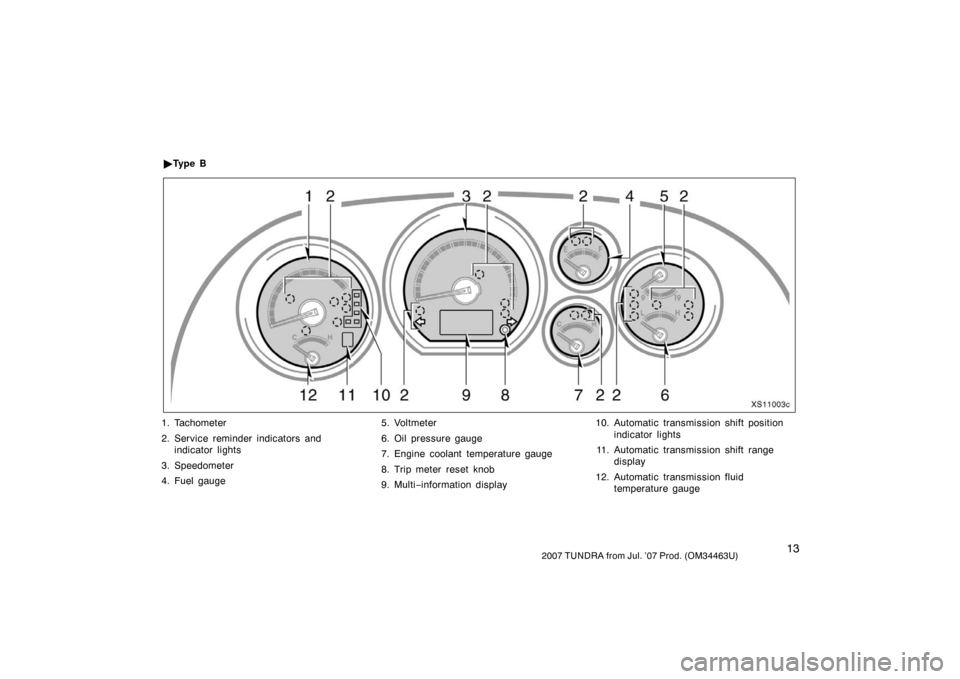

1. Tachometer
2. Service reminder indicators andindicator lights
3. Speedometer
4. Fuel gauge 5. Voltmeter
6. Oil pressure gauge
7. Engine coolant temperature gauge
8. Trip meter reset knob
9. Multi
−information display 10. Automatic transmission shift position
indicator lights
11. Automatic transmission shift range display
12. Automatic transmission fluid temperature gauge

Ty p e B

142007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Driver ’s seat belt reminder light∗1
Low engine oil pressure warning light∗1
Brake system warning light∗1
Charging system warning light∗1
Malfunction indicator lamp∗1
Anti −lock brake system warning light∗
1
SRS warning light∗1
or
Front passenger ’s seat belt reminder light∗1
Passenger airbag on −off indicator light
Engine oil replacement reminder light∗
1
(for vehicles sold in U.S.A.)
Open door warning light∗ 1
Tire pressure warning light∗1
Automatic transmission fluid temperature
warning light∗1
Engine immobilizer/theft deterrent system
indicator lightLow fuel level warning light∗1
Master warning light∗1
Low windshield washer fluid level warning light∗1
or
Indicator symbols on the instrument panel

152007 TUNDRA from Jul. ’07 Prod. (OM34463U)
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 197 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 259 in
Section 1 −7.
∗
3: If this light flashes, see “Four −wheel drive system” on page
239 in Section 1 −7.
∗
4: For details, see “—Roll sensing of curtain shield airbags off
switch” on page 113 in Section 1 −3.
Cruise control indicator light
∗
2
Slip indicator light
Vehicle stability control system off
indicator/warning light
∗1
“AUTO LSD” indicator light
Headlight high beam indicator light
Turn signal indicator lights
Tail light indicator light
Low speed four −wheel drive indicator light∗
3
(four −wheel drive models) Tow/haul mode indicator light
Headlight low beam indicator light
High speed four
−wheel drive indicator light∗
3
(four −wheel drive models)
Roll sensing of curtain shield airbags off
indicator light∗
4
