2562007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
REPLACING TIRES AND WHEELS
When replacing the tires and wheels, be
sure to install tire pressure warning valves
and transmitters. ID codes on the tire
pressure warning valves and transmitters
are registered in the tire pressure warning
computer. When replacing a tire pressure
warning valve and transmitter, it is neces-
sary to register the ID code of tire pres-
sure warning valve and transmitter. Have
the ID code registered by your Toyota
dealer.
If the ID code is not registered, the sys-
tem will not work properly. After driving
for 20 minutes, the tire pressure warning
light comes on after blinking for 1 minute
to indicate a system malfunction.
NOTICE
When the tires or tire pressure warn-
ing valves and transmitters must be
replaced, have them replaced by your
Toyota dealer. The tire pressure warn-
ing valves and transmitters will be
affected by the installation or removal
of tires.
XS17016a
TIRE PRESSURE WARNING RESET
SWITCH
When initializing the system, the present
tire inflation pressure is stored as stan-
dard. The tire pressure warning system
determines decreased air pressure by
comparing the present and the standard
tire inflation pressures. When you change
the set tire inflation pressure, it is neces-
sary to initialize the tire pressure warning
system.
When rotating the tires on vehicles dif-
fering with front and rear tire inflation
pressures.

2572007 TUNDRA from Jul. ’07 Prod. (OM34463U)
When changing the tire inflation pres-
sure according to the instruction for
traveling speed, load weight or tire
size.
To initialize the system, perform the
following:
1. Park the vehicle in a safe place and turn the ignition switch to the “ACC” or
“LOCK” position.
2. Adjust the pressure of all the installed tires to the specified cold tire inflation
pressure level. (See “Tires” on page
586 in Section 8.)
3. Turn the ignition switch to the “ON” position.
4. Push and hold the tire pressure warn- ing reset switch until the tire pressure
warning light blinks slowly three times.
5. Wait for 7 minutes with the ignition switch “ON”, and then turn the ignition
switch to the “ACC” or “LOCK” posi-
tion.
If you push the tire pressure warning re-
set switch while the vehicle is moving,
initialization is not performed. If you push the tire pressure warning re-
set switch accidentally and initialization is
performed, adjust the tire inflation pres-
sure to the specified level and initialize
the system again.

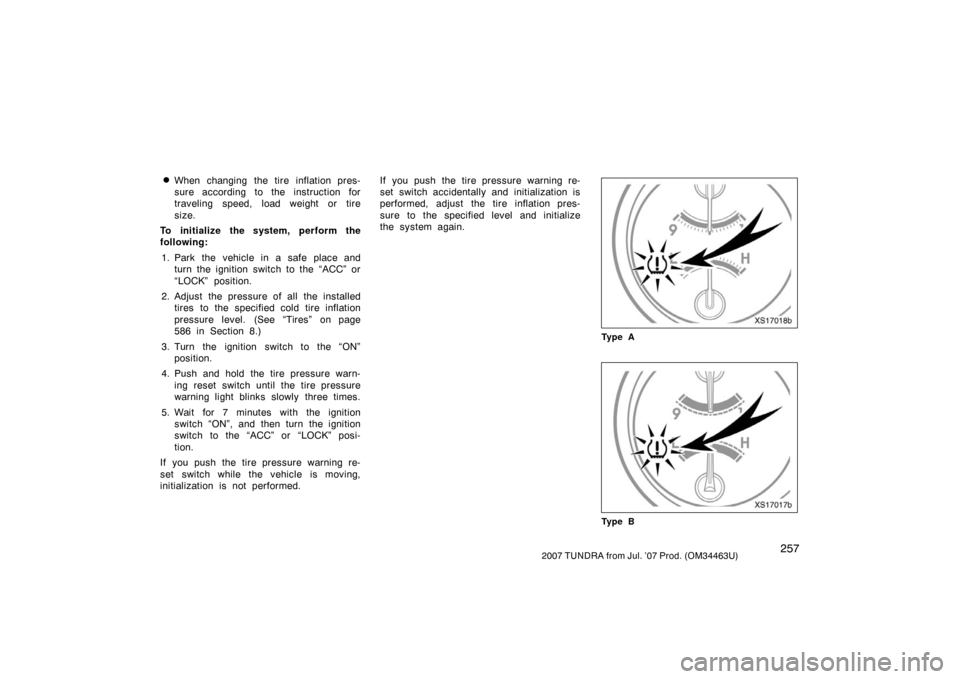

XS17018b
Ty p e A
XS17017b
Ty p e B

2582007 TUNDRA from Jul. ’07 Prod. (OM34463U)
If the tire pressure warning light does not
blink slowly three times when you push
and hold the tire pressure warning reset
switch, initialization has failed and the tire
pressure warning system may not work
properly. In this case, initialize the system
again. If initialization cannot be performed,
have the system checked at your Toyota
dealer.
CAUTION
Do not push the tire pressure warn-
ing reset switch without first adjust-
ing the tire inflation pressure to the
specified level. Otherwise, the tire
pressure warning light may not come
on even if the tire inflation pressure
is low, or it may come on when the
tire inflation pressure is actually nor-
mal.
XS17029
Ty p e A
XS17030
Ty p e B
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal once again.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
Parking brake

2592007 TUNDRA from Jul. ’07 Prod. (OM34463U)
The cruise control is designed to main-
tain a set cruising speed without requir-
ing the driver to operate the accelera-
tor. Cruising speed can be set to any
speed above 40 km/h (25 mph).
Within the limits of the engine’s capabili-
ties, cruising speed can be maintained up
or down grades. However, changes in ve-
hicle speed may occur on steeper grades.
CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snowcovered) or
winding roads.
Be careful about vehicle speed as
it may increase when driving down-
hill with the cruise control on.
XS17022
TURNING THE SYSTEM ON AND OFF
To turn the cruise control on, press the
“ON−OFF” button. The “CRUISE” indicator
light on the instrument panel will come on
to indicate that the cruise control is opera-
tional. Pressing the “ON −OFF” button
again turns the system off.
When the system is turned off, cruising
speed must be reset when the cruise con-
trol is turned on again.
When the ignition switch is turned off, the
system is also automatically turned off. To
use the cruise control again, press the
“ON −OFF” button again to turn it on.
CAUTION
To avoid accidentally engaging the
cruise control, turn the system off
when it is not in use. Make sure the
“CRUISE” indicator light is off.
Cruise control

2602007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS17023
SETTING THE CRUISING SPEED
5−speed models—The transmission must
be in the “D” position or the shift range
position must be in “4” (fourth range) or
“5” (fifth range) in “S” mode before you
set the cruising speed.
6 −speed models—The transmission must
be in the “D” position or the shift range
position must be in between “4” (fourth
range) and “6” (sixth range) in “S” position
before you set the cruising speed. Bring your vehicle to the desired speed,
push the lever down in the “
−SET” direc-
tion and release it. This sets the vehicle
at that speed. If the speed is not satisfac-
tory, tap the lever up for a faster speed,
or tap it down for a slower speed. Each
tap changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal.
If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE CRUISE CONTROL
The cruise control may be temporarily
cancelled by the driver or by the system
itself under certain circumstances. Tempo-
rary cancellation allows the set cruising
speed to remain in memory.
The cruise control can be temporarily can-
celled by doing the following:
Pulling the lever in the “CANCEL” di-
rection and releasing it
Depressing the brake pedal
Under certain circumstances, the cruise
control is temporarily cancelled:
When vehicle speed falls below 40
km/h (25 mph)
When vehicle stability control is acti-
vated
When vehicle speed drops 16 km/h (10
mph) below the set speed, the cruise con-
trol is cancelled and the set speed is
erased from memory.
The “CRUISE” indicator light remains on
to indicate that the system is still in op-
eration.
To turn the cruise control off, press the
“ON −OFF” button. Make sure the
“CRUISE” indicator light is off.
If the cruise control automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.
RESUMING THE CRUISE CONTROL
If the cruise control is temporarily can-
celled, the cruising speed can be resumed
by pushing the lever up in the “+ RES”
direction.
Vehicle speed must be above 40 km/h (25
mph).

2612007 TUNDRA from Jul. ’07 Prod. (OM34463U)
RESETTING TO A FASTER SPEED
Push the lever up in the “+RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “−SET” direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the “ −SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
Even if you downshift from “D” to “S” with
the cruise control on, engine braking will
not be enabled because the cruise control
is not cancelled. To decrease the vehicle
speed, reset to a slower speed with the
cruise control lever or depress the brake
pedal. If you use the brake pedal, cruise
control is cancelled. CRUISE CONTROL FAILURE WARNING
If the “CRUISE” indicator light flashes
when using the cruise control, press the
“ON
−OFF” button to turn the system off
and then press it again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

2622007 TUNDRA from Jul. ’07 Prod. (OM34463U)

2632007 TUNDRA from Jul. ’07 Prod. (OM34463U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio and handsfree phone systems
Reference264
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 265
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Audio remote controls 293
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
AUX adapter 295
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Rear seat entertainment system 296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video system operating hints 339
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Hands −free phone system 347
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For vehicle equipped with Navigation system, please refer to the sepa-
rate “Navigation System Owner’s Manual.”
