2007 TOYOTA TUNDRA Owners Manual

2642007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS18005a
Type 1: AM·FM radio/compact disc player
(with compact disc changer controller)
XS18001a
Type 2: AM·FM radio/compact disc player
with changer (with XM Satellite Radio∗
controller)
XS18002a
Type 3: AM·FM radio/compact disc player
with changer (with XM  Satellite Radio∗
controller)
∗: Use of satellite radio requires XM tun-
er and service. Contact your Toyota
dealer for details.
NOTICE
To clean radio panel, wipe it with a
soft, lintfree cloth (for avoidance of
damage to radio panel’s paint).
Reference

2652007 TUNDRA from Jul. ’07 Prod. (OM34463U)
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
switch is in the “ACC” or “ON” position.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio sys-
tem on longer than necessary when
the engine is not running.
CAUTION
For vehicle sold in U.S.A. and
Canadas:
Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifi-
cations to this equipment will void
the user’s authority to operate this
device.
Laser products
Do not take this unit apart or at-
tempt to make any changes your-
self. This is an intricate unit that
uses a laser pickup to retrieve
information from the surface of
compact discs. The laser is care-
fully shielded so that its rays re-
main inside the cabinet. There-
fore, never try to disassemble the
player or alter any of its parts
since you may be exposed to la-
ser rays and dangerous voltages.
This product ut ilizes a laser. Use
of controls or adjustments or per-
formance of procedures other
than those specified herein may
result in hazardous radiation ex-
posure.
Using your audio system—
—Some basics

2662007 TUNDRA from Jul. ’07 Prod. (OM34463U)
TURNING THE SYSTEM ON AND OFF
Push “PWR·VOL” to turn the audio system
on and off.
Push “AM”, “DISC·AUX”, “FM1”, “FM2”,
“AM·SAT”
∗ or “LOAD” to turn on that func-
tion without pushing “PWR·VOL”. To turn
on the compact disc player, a compact
disc must be loaded in the player.
You can turn on the compact disc player
by inserting a compact disc.
You can turn off the compact disc player
by ejecting the compact disc. If the audio
system was previously off, then the entire
audio system will be turned off when you
eject the compact disc. If the radio was
previously on, it will come on again.
∗: Use of satellite radio r equires XM
tuner and service. Contact your Toyota
dealer for details.
SWITCHING BETWEEN FUNCTIONS
Push “AM”, “DISC·AUX”, “FM1”, “FM2”,
“AM·SAT”
∗ or “LOAD” if the system is al-
ready on but you want to switch from one
function to another.
∗: Use of satellite radio r equires XM
tuner and service. Contact your Toyota
dealer for details. LISTENING TO THE XM
 SATELLITE
RADIO BROADCAST∗ (type 2 and type
3)
To listen to a satellite radio broadcast in
your vehicle, an additional genuine Toyota
satellite receiver and antenna (or equiva-
lents) must be purchased and installed. A
subscription to the XM
 Satellite Radio
service is also necessary.
How to subscribe to an XM
 Satellite
Radio
An XM
 Satellite Radio is a tuner de-
signed exclusively to receive broadcasts
provided under a separate subscription.
Availability is limited to the 48 contiguous
states. How to subscribe:
You must enter into a separate service
agreement with the XM
 Satellite Radio in
order to receive satellite broadcast pro-
gramming in the vehicle. Additional activa-
tion and service subscription fees apply
that are not included in the purchase price
of the vehicle and optional digital satellite
tuner. For complete information on sub-
scription rates and terms, or to subscribe
to the XM
 radio, visit XM on the web
at www.xmradio.com
or call an XM’s Lis-
tener Care at (800) 967 −2346. The XM

Satellite Radio is solely responsible for
the quality, availability and content of the
satellite radio services provided, which are
subject to the terms and conditions of the
XM
 Satellite Radio customer service
agreement.
Customers should have their radio ID
ready; the radio ID can be found by tun-
ing to “channel 000” on the radio. For
details, see “Displaying the radio ID” be-
low.
All fees and programming are the respon-
sibility of the XM
 Satellite Radio and are
subject to change.

2672007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Satellite tuner technology notice:
Toyota’s satellite radio t uners are awarded
Type Approval Certificates from XM
 Sat-
ellite Radio Inc. as proof of compatibility
with the services offered by the XM
 Sat-
ellite Radio.
Displaying the radio ID
Each XM
 tuner is identified with a unique
radio ID. You will need the radio ID when
activating XM
 service or when reporting
a problem.
If you select the “CH 000” using the
“TUNE·FILE” knob, the ID code of 8 al-
phanumeric characters appears. If you se-
lect another channel, display of the ID
code is canceled. The channel (000) alter-
nates the display between the radio ID
and the specific radio ID code.
∗: Use of satellite radio r equires XM
tuner and service. Contact your Toyota
dealer for details.
TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system. Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange (JBL brand audio sys-
tem
∗ only), and bass levels. In fact, differ-
ent kinds of music and vocal programs
usually sound better with different mixes
of treble, midrange, and bass.
You can adjust sound characteristics. Dif-
ferent sound characteristics can be re-
corded for each audio source.
∗: If a JBL brand audio system is installed, the “JBL” logo is shown on
the panel.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another. YOUR RADIO ANTENNA
To remove an antenna, carefully turn it
counterclockwise.
NOTICE
To prevent damage to the antenna,
make sure it is removed before driv-
ing your Toyota through an automatic
car wash.
YOUR COMPACT DISC PLAYER
(type 1)
When you insert a disc, gently push it in
with the label side up. The player will play
from track 1 through to the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
8 cm (3 in.) compact disc singles
Your compact disc player does not need
an adaptor to play compact disc singles.
Compact disc singles are about 8 cm (3
in.) in diameter
−smaller than standard
discs.

2682007 TUNDRA from Jul. ’07 Prod. (OM34463U)
After you eject a compact disc single, do
not insert a standard 12 cm (4.7 in.) disc
until “DISC” disappears from the display.
NOTICE
Do not use an adaptor for compact
disc singles—it could cause tracking
errors or interfere with the ejection of
compact discs.
YOUR COMPACT DISC PLAYER WITH
CHANGER (type 2 and type 3)
When you insert a disc, push the “LOAD”
button, wait for the load/eject status light
to turn green, then gently push the disc
in with the label side up. This compact
disc player can store up to six discs. The
player will play from track 1 through to
the end of the disc. Then it will play from
track 1 of the next disc.
The player is intended for use with 12 cm
(4.7 in.) discs only.
XS18007
NOTICE
Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc player or changer.
Insert only one compact disc into
slot at a time.
 Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.

2692007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Details of specific buttons, controls and
features are described in the alphabetical
list that follows.
—Controls and features

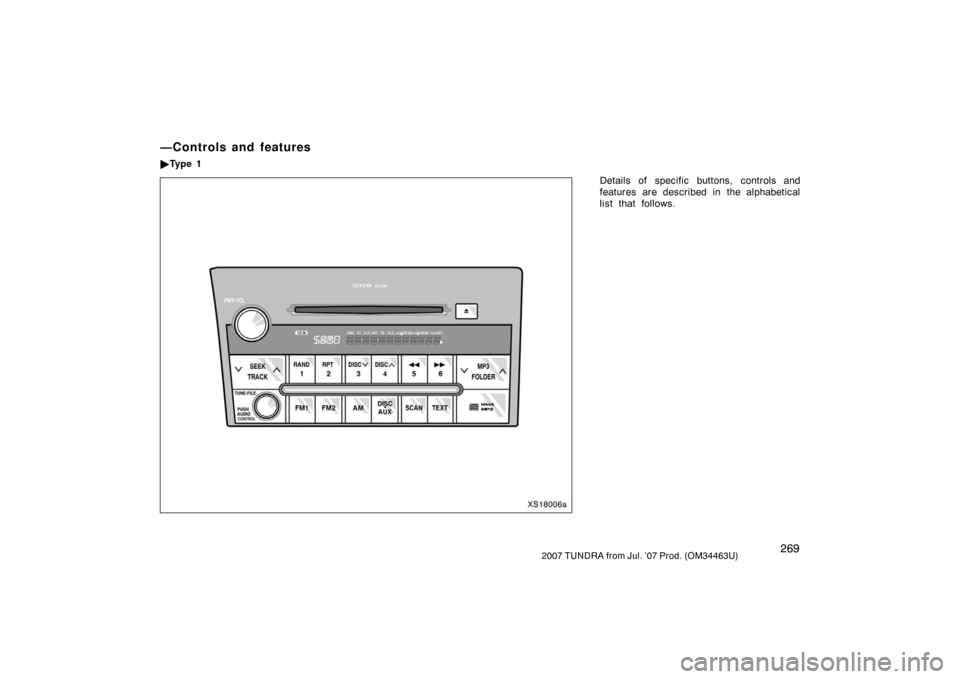

Ty p e 1
XS18006a

2702007 TUNDRA from Jul. ’07 Prod. (OM34463U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE·FILE” or
“SEEK/TRACK”.) Push and hold down the
button until you hear a beep—this will set
the station to the button. The preset but-
ton number will appear on the display.
To recall a preset station: Push the button
for the station you want. The preset but-
ton number and station frequency will ap-
pear on the display.
This radio can store one AM and two FM
stations for each button. (The display will
show “AM”, “FM1” or “FM2” when you
push “AM”, “FM1” or “FM2” button.)
(Eject button)
Push the compact disc eject button to
eject a compact disc.
(Reverse/Fastforward button)
Push and hold “
” (preset button 6) or
“
” (preset button 5) to fast forward or
reverse within a compact disc. When you
release the button, the compact disc play-
er will resume playing.
AM
Push the “AM” button to turn on the radio
and select the AM band. “AM” will appear
on the display.
AUDIO/CONTROL (Tone and sound bal-
ance adjustment function)
Each time you push the
“AUDIO/CONTROL” knob, the mode
changes. To adjust the tone and balance,
turn the knob.
BAS: Adjusts low −pitched tones. The dis-
play ranges from −5 to 5.
TRE: Adjusts high −pitched tones. The dis-
play ranges from −5 to 5.
FAD: Adjusts the sound balance between
the front and rear speakers. The display
ranges from F7 to R7.
BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7. Switching over the Speed Automatic
Sound Levelizer (ASL) level
ASL: The Automatic Sound Levelizer can
be turned on by turning the knob. In addi-
tion, turning the knob allows you to select
from LOW, MID, and HIGH volume and
tone settings. The ASL system automati-
cally adjusts volume and tone in accor-
dance with the driving speed. This helps
ensure an optimal listening experience
even if noise levels rise while driving.
DISC·AUX (Compact disc)
Push the “DISC·AUX” button to play a
compact disc.
When the audio system is set into com-
pact disc operation, the display shows the
track number currently being played.
To switch between CD and AUX (external
device) modes, press the “DISC·AUX” but-
ton. The AUX mode is only available when
AUX adapter is connected to the system.
When the AUX adapter is in use, “AUX”
will appear on the display.
Error messages
If the player malfunctions, your audio sys-
tem will display following error messages.
“WAIT”:
The compact disc player unit
may be too hot. Allow the player to cool
down.

2712007 TUNDRA from Jul. ’07 Prod. (OM34463U)
“ERROR 1”: The disc may be dirty, dam-
aged or inserted incorrectly (up −side
down). Clean the disc and re −insert it.
“NO DISC”: Eject the disc or magazine.
Set the disc or magazine again.
“ERROR 3”: There is a problem inside
the system. Eject the disc or magazine.
Set the disc or magazine again.
“ERROR 4”: Over−current. Ask your
Toyota dealer to inspect.
“CD OPEN”: The compact disc changer
lid of separate unit is open. Close the
compact disc changer lid.
If “NO MUSIC” appears on the display,
it indicates that a disc with no MP3/WMA
data has been inserted. Remove the disc
from the player and insert an MP3/WMA
data disc.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
 DISC
With compact disc changer only—
Use these buttons to select a disc you
want to listen to.
Push “ ” (preset button 3) or “ ” (preset
button 4) until the number of the disc you
want to listen appears on the display. FM1 FM2
Push the “FM1” or “FM2” button to turn on
the radio and select the FM band. “FM1”
or “FM2” will appear on the display. This
system allows you to set twelve FM sta-
tions, two for each of the preset button.
MP3/FOLDER (Folder up/down)
To skip up or down to a different folder:
Push “
” or “ ” side of the
“MP3/FOLDER” several times until the
number of the folder you want to listen to
appears on the display.
To jump to the first file in the first folder:
Push and hold the “ ” side of the button
until you hear a beep.
When playing a disc featuring both audio
data (CD −DA) and MP3/WMA files, audio
data (CD −DA) is played.
PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume. RAND (Random)
Compact disc player
There are two random features—you can
either listen to the tracks on one compact
disc in random order, or listen to the
tracks on all the compact discs in the
magazine in random order.
To play the tracks on one disc in random
order:
Quickly push and release “RAND” (preset
button 1). “
” will appear on the
display and the player will perform the
tracks on the disc you are listening to in
random order. To turn off the random fea-
ture, push this button again.
With compact disc changer only—
To play all the tracks in the magazine in
random order:
Push and hold “RAND” (preset button 1)
until you hear a beep. “
” will ap-
pear on the display and the player will
perform all the tracks on all the discs in
the magazine in random order. To turn off
the random feature, push this button
again.
