2007 TOYOTA TUNDRA Owners Manual

1682007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS15020b
HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.
XS15031a
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The ignition switch must be in the “ON”
position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it. If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs” on page 564 in Section 7
−3.

1692007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS15002a
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
XS15003
To adjust the brightness of the instru-
ment panel lights, turn the dial.
With the dial set in the full intensity posi-
tion, the intensity of the instrument panel
lights will not be reduced even when the
tail lights/headlights are turned on.
Emergency flashersInstrument panel light control

1702007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS15001a
To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.
XS15012
Type A (front)
XS15014
Type B (rear)
XS15022a
Type C (rear)
XS15005
Interior/personal light main switch
Front fog lightsInterior lights

1712007 TUNDRA from Jul. ’07 Prod. (OM34463U)
To turn on the interior lights, operate
the interior/personal light main switch.
The lights can be turned on or off by
pushing each switch when the interior/
personal light main switch is in the
“DOOR” or “OFF” position.
The interior/personal light main switch has
the following positions:
“ON”—Keeps the light on all the time.
“OFF”— The lights can be turned on or off
by pushing each switch.
“DOOR”—Turn the light on when any of
the doors is opened.
If all the doors are closed, when the igni-
tion switch is turned to the “LOCK” posi-
tion, the lights will come on and remain
on for about 15 seconds.
If all the doors are closed and the ignition
switch is in the “ACC” position interior
light will go off immediately.
Type B and Type C—For details, see
“Illuminated entry system” on page 173 in
this Section.
To prevent the battery being discharged,
the lights will automatically turn off when
the key is removed and the door is left
opened with the switch at the “DOOR”
position for 20 minutes or more.
XS15004
Ty p e A
XS15032
Ty p e B
XS15005
Interior/personal light main switch
Perso n al lig h t s (wit h po wer
door lock system)
—Front personal lights

1722007 TUNDRA from Jul. ’07 Prod. (OM34463U)
To turn on the front personal lights,
operate the interior/personal light main
switch.
The lights on your side can be turned
on or off by pushing each lens when
the interior/personal light main switch
is in the “DOOR” or “OFF” position.
The interior/personal light main switch has
the following positions:
“ON”—Keeps the light on all the time.
“OFF”—The lights can be turned on or off
by pushing each lens.
“DOOR”—Turns the light on when any of
the doors is opened. For details, see
“Illuminated entry system” on page 173 in
this Section.
To prevent the battery being discharged,
the lights will automatically turn off when
the key is removed and the door is left
opened with the switch at the “DOOR”
position for 20 minutes or more.
XS15033
Ty p e A
XS15015
Ty p e B
To turn on the rear personal lights, op-
erate the interior/personal light main
switch.
The lights on your side can be turned
on or off by pushing each lens or
switch when the interior/personal light
main switch is in the “DOOR” or “OFF”
position.
The interior/personal light main switch has
the following position:
“ON”—Keeps the light on all the time.
“OFF”—The lights can be turned on or off
by pushing each lens or switch.
“DOOR”—Turns the light on when any of
the doors is opened. For details, see
“Illuminated entry system” on page 173 in
this Section.
To prevent the battery being discharged,
the lights will automatically turn off when
the key is removed and the door is left
opened with the switch at the “DOOR”
position for 20 minutes or more.
—Rear personal lights
( C rew Max mo d els)

1732007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Illuminated entry system (with power door lock system)
The following lights will come on when
any of the doors are opened. After all
the doors are closed, the lights remain
on for about 15 seconds before fading
out.1. Foot light
2. Ignition switch light
3. Front personal lights—with the “DOOR” position
4. Rear personal lights/Interior light (rear)—with the “DOOR” position
When any of the doors are unlocked, the
lights will come on and remain on for
about 15 seconds before fading out.
If all the doors are closed, when the igni-
tion switch is turned to the “LOCK” posi-
tion, the lights will come on and remain
on for about 15 seconds.
The duration of the lighting can be
changed. If your vehicle is equipped with
the multi −information display, it can be
changed by yourself. For details, contact
your Toyota dealer.
If all the doors are closed and the ignition
switch is in the “ACC” position, the igni-
tion switch light, interior light, foot light
and personal lights will go off immediately.
XS15017a

1742007 TUNDRA from Jul. ’07 Prod. (OM34463U)
If all the doors are locked, all the lights
will fade out.
To prevent the battery being discharged,
the lights will automatically turn off when
the ignition key is removed and the door
is left opened for about 20 minutes.

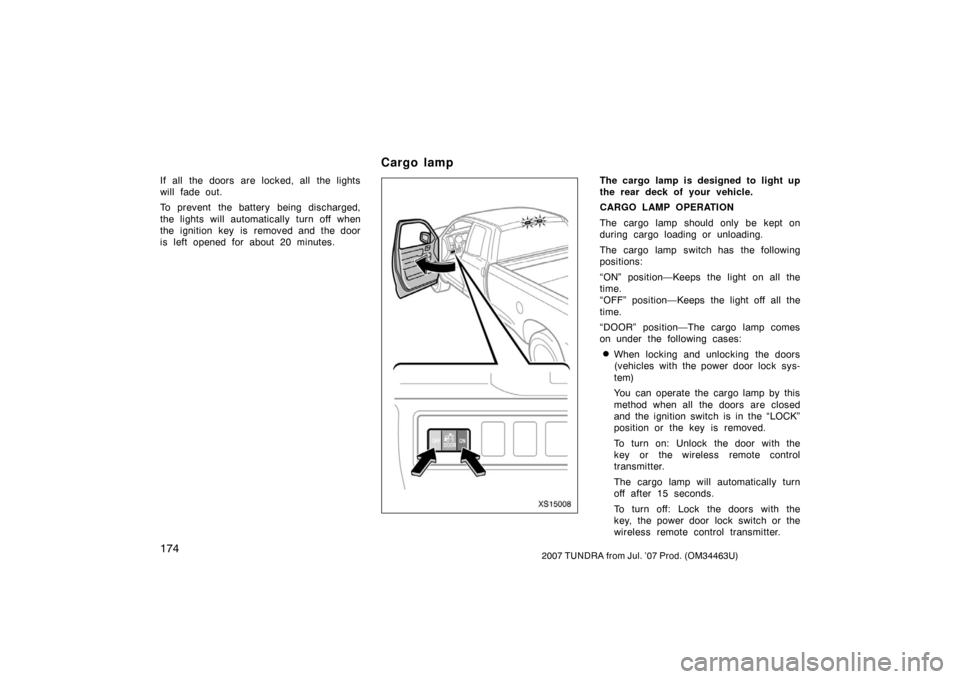

XS15008
The cargo lamp is designed to light up
the rear deck of your vehicle.
CARGO LAMP OPERATION
The cargo lamp should only be kept on
during cargo loading or unloading.
The cargo lamp switch has the following
positions:
“ON” position—Keeps the light on all the
time.
“OFF” position—Keeps the light off all the
time.
“DOOR” position—The cargo lamp comes
on under the following cases:
When locking and unlocking the doors
(vehicles with the power door lock sys-
tem)
You can operate the cargo lamp by this
method when all the doors are closed
and the ignition switch is in the “LOCK”
position or the key is removed.
To turn on: Unlock the door with the
key or the wireless remote control
transmitter.
The cargo lamp will automatically turn
off after 15 seconds.
To turn off: Lock the doors with the
key, the power door lock switch or the
wireless remote control transmitter.
Cargo lamp

1752007 TUNDRA from Jul. ’07 Prod. (OM34463U)
When opening and closing the doors
To turn on: Open any of the doors.
To turn off: Close all the doors.
When the ignition switch is in the “ON”
position, the cargo lamp will go off im-
mediately.
When the ignition switch is in the
“LOCK” position or the key is removed,
the cargo lamp will automatically go off
after 15 seconds.
To prevent the battery being discharged,
the lights will automatically turn off in
about 20 minutes after the ignition key is
removed.
This feature is deactivated when the igni-
tion switch is in the “ON” position.

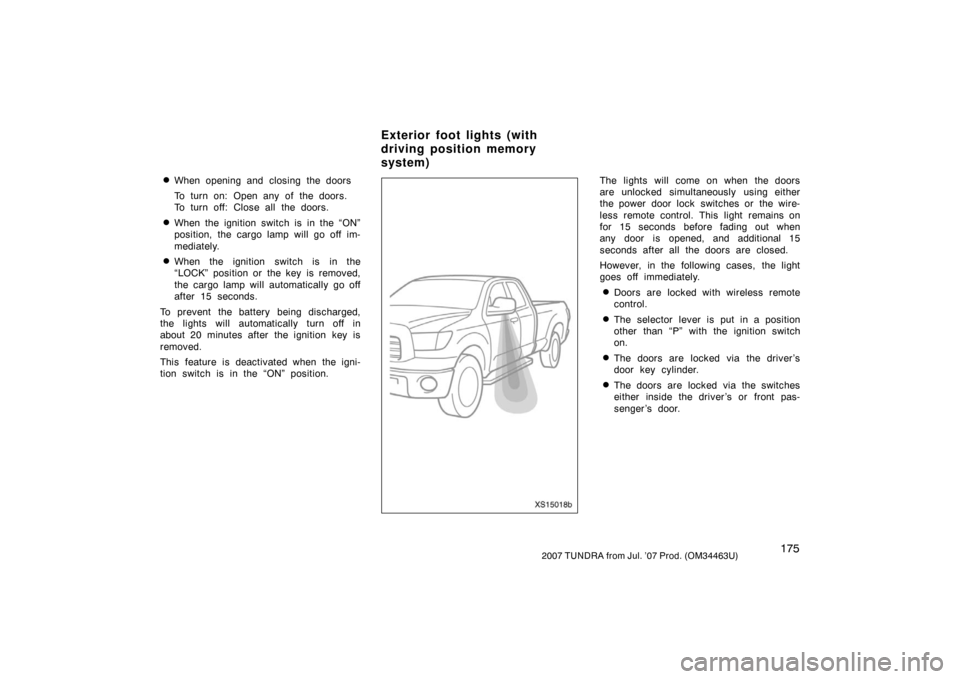

XS15018b
The lights will come on when the doors
are unlocked simultaneously using either
the power door lock switches or the wire-
less remote control. This light remains on
for 15 seconds before fading out when
any door is opened, and additional 15
seconds after all the doors are closed.
However, in the following cases, the light
goes off immediately.
Doors are locked with wireless remote
control.
The selector lever is put in a position
other than “P” with the ignition switch
on.
The doors are locked via the driver’s
door key cylinder.
The doors are locked via the switches
either inside the driver ’s or front pas-
senger ’s door.
Exterior foot lights (with
driving position memory
system)
