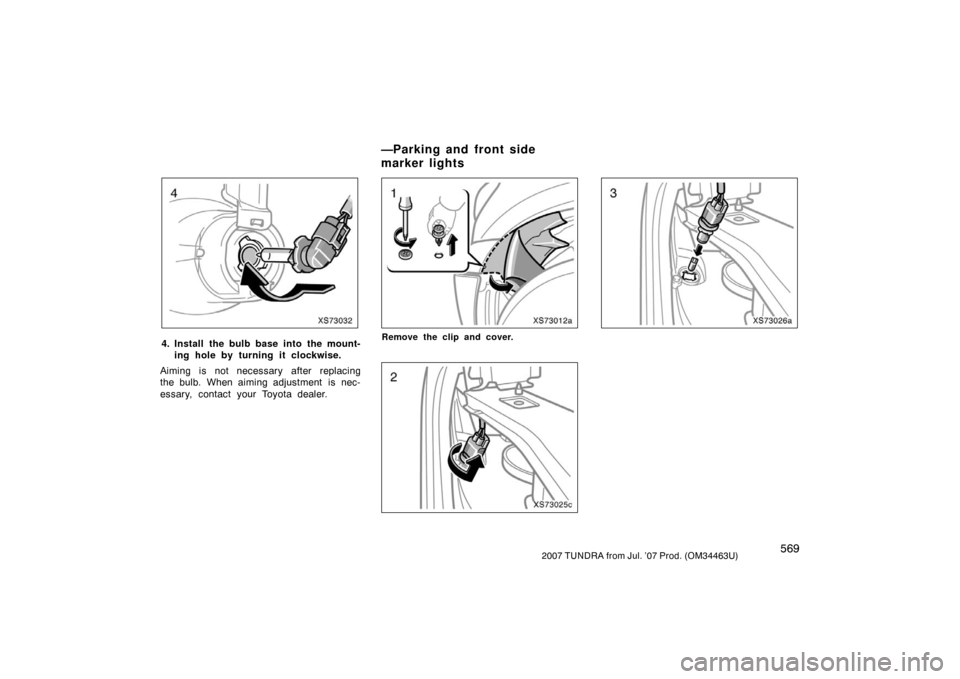

4. Install the bulb base into the mount-ing hole by turning it clockwise.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
XS73012a
Remove the clip and cover.
XS73025c
XS73026a
—Parking and front side
marker lights

5702007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS73015a
XS73016
XS73017d
Cover
Bolt

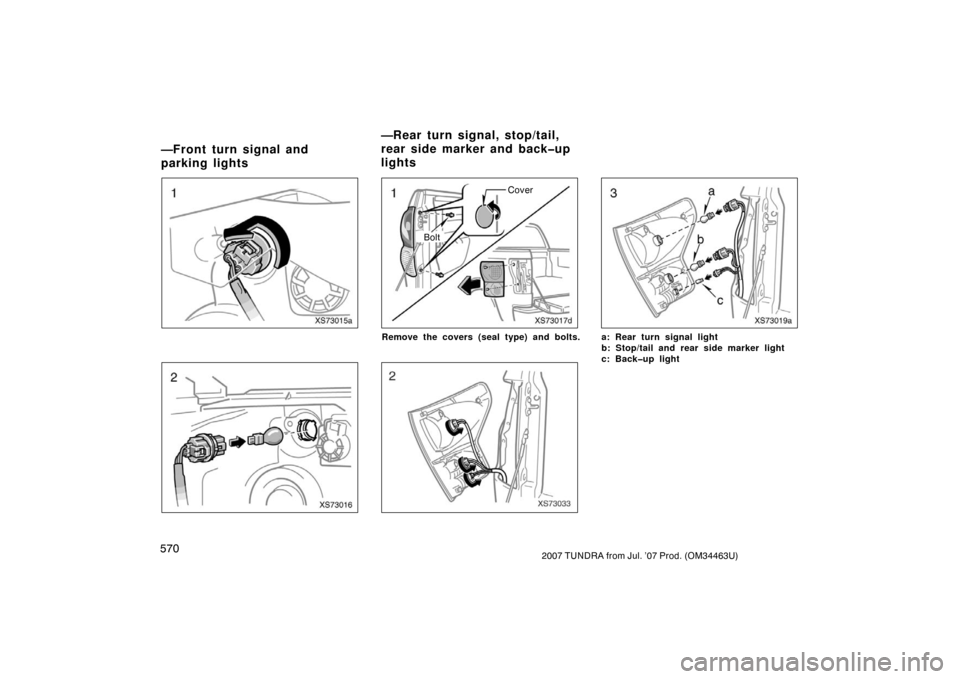

Remove the covers (seal type) and bolts.
XS73033
XS73019a
a: Rear turn signal light
b: Stop/tail and rear side marker light
c: Backup light
—Front turn signal and
parking lights —Rear turn signal, stop/tail,
rear side marker and backup
lights

5712007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS73020

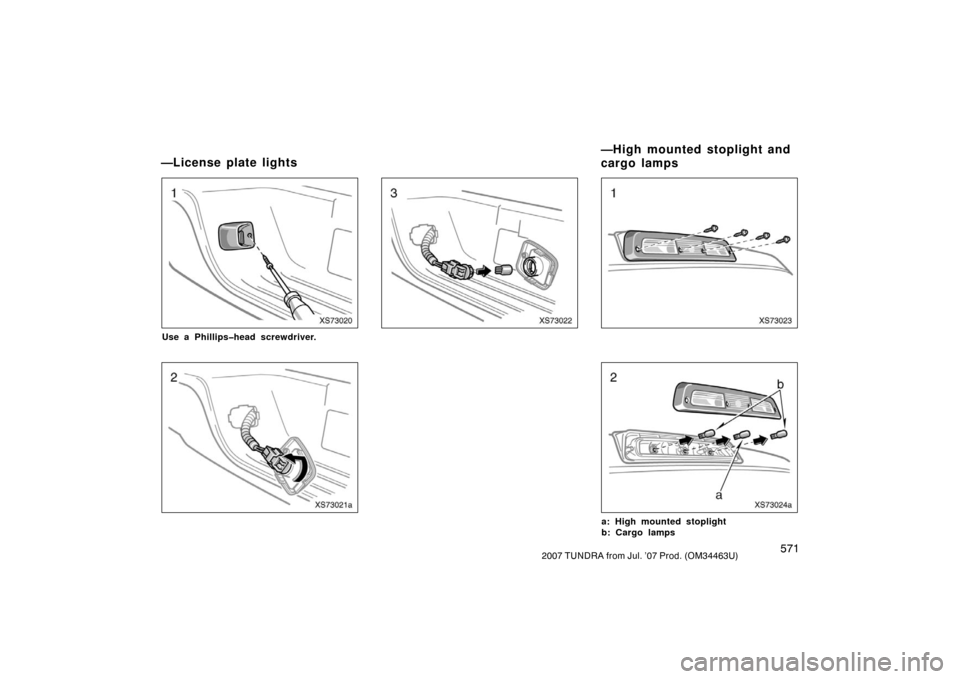

Use a Phillipshead screwdriver.
XS73021a
XS73022XS73023
XS73024
a: High mounted stoplight
b: Cargo lamps
—License plate lights—High mounted stoplight and
cargo lamps

5722007 TUNDRA from Jul. ’07 Prod. (OM34463U)

5732007 TUNDRA from Jul. ’07 Prod. (OM34463U)
SPECIFICATIONS
Specifications
Dimensions574
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Vehicle capacity weight 576
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Towing capacity 579
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Engine 582
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 582
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 582
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 586
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 587
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

5742007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Tw o−wheel drive models
mm (in.)
Cabin type
Regular cab modelsDouble cab modelsCrew Max models
Bed typeStandard bedLong bedStandard bedLong bedShort bed
Overall length5330 (209.8)5810 (228.7)5810 (228.7)6290 (247.6)5810 (228.7)
Overall width2030 (79.9)2030 (79.9)2030 (79.9)2030 (79.9)2030 (79.9)
Overall height1930 (75.9)∗ 11925 (75.7)∗11930 (75.9)∗11925 (75.7)∗11925 (75.7)∗1
1925 (75.7)∗2, ∗
31920 (75.5)∗21925 (75.7)∗2, ∗
31920 (75.5)∗21920 (75.5)∗2, ∗
3
Wheelbase3220 (126.7)3700 (145.6)3700 (145.6)4180 (164.5)3700 (145.6)
Front tread1725 (67.9)1725 (67.9)1725 (67.9)1725 (67.9)1725 (67.9)
Rear tread1725 (67.9)1725 (67.9)1725 (67.9)1725 (67.9)1725 (67.9)
∗1: With P255/70R18 tires
∗ 2: With P275/65R18 tires
∗3: With P275/55R20 tires
Dimensions

5752007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Four−wheel drive models
mm (in.)
Cabin type
Regular cab modelsDouble cab modelsCrew Max models
Bed typeStandard bedLong bedStandard bedLong bedShort bed
Overall length5330 (209.8)5810 (228.7)5810 (228.7)6290 (247.6)5810 (228.7)
Overall width2030 (79.9)2030 (79.9)2030 (79.9)2030 (79.9)2030 (79.9)
Overall height1940 (76.3)∗ 11935 (76.1)∗11940 (76.3)∗11935 (76.1)∗11935 (76.1)∗1
1935 (76.1)∗2, ∗
31930 (75.9)∗21935 (76.1)∗2, ∗
31930 (75.9)∗21930 (75.9)∗2, ∗
3
Wheelbase3220 (126.7)3700 (145.6)3700 (145.6)4180 (164.5)3700 (145.6)
Front tread1725 (67.9)1725 (67.9)1725 (67.9)1725 (67.9)1725 (67.9)
Rear tread1725 (67.9)1725 (67.9)1725 (67.9)1725 (67.9)1725 (67.9)
∗1: With P255/70R18 tires
∗ 2: With P275/65R18 tires
∗3: With P275/55R20 tires

5762007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Vehicle capacity weight
kg (lb.)
Cab type
EngineDriving systemBed typeVehicle capacity weight
Regular
4.0 L V6 (1GR −FE)Tw o −wheel drive modelsStandard675 (1495)
Long710 (1575)
4.7 L V8 (2UZ −FE)
Tw o −wheel drive models
Standard780 (1730)
750 (1655)∗
1
Long830 (1830)
795 (1755)∗1
Four −wheel drive models
Standard755 (1670)
720 (1595)∗
1
Long800 (1765)
765 (1690)∗1
5.7 L V8 (3UR −FE)
Tw o −wheel drive models
Standard750 (1660)
715 (1585)∗
1
Long
895 (1975)
860 (1900)∗1
925 (2045)∗ 2
Four −wheel drive models
Standard725 (1605)
690 (1530)∗
1
Long865 (1910)
830 (1835)∗1
∗1: With towing package∗ 2: Without option
