2007 TOYOTA TUNDRA Owners Manual

11 22007 TUNDRA from Jul. ’07 Prod. (OM34463U)

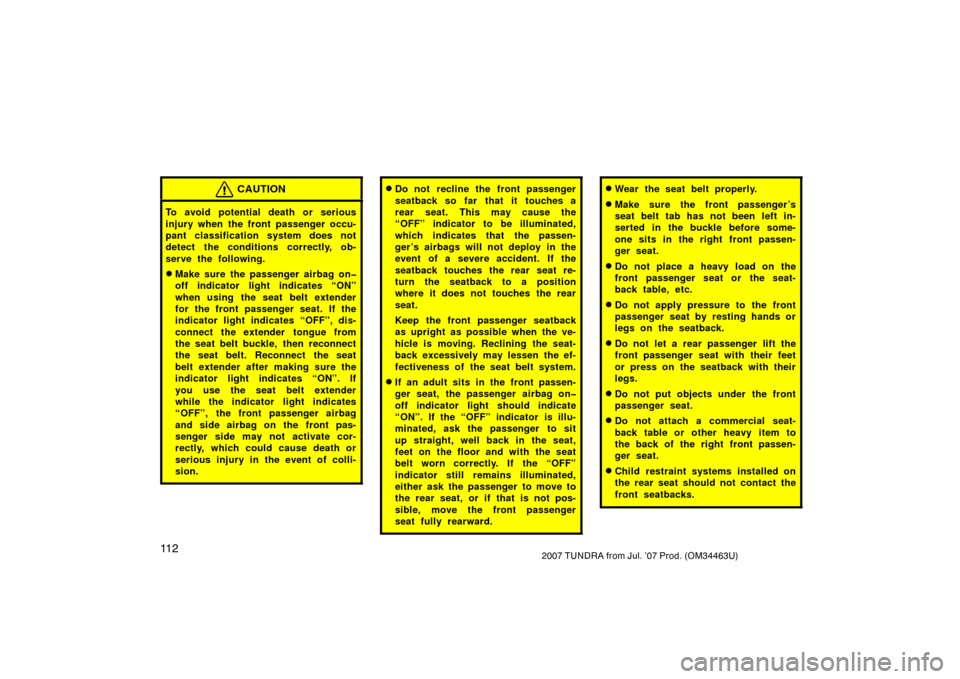

CAUTION
To avoid potential death or serious
injury when the front passenger occu-
pant classification system does not
detect the conditions correctly, ob-
serve the following.
Make sure the passenger airbag on
off indicator light indicates “ON”
when using the seat belt extender
for the front passenger seat. If the
indicator light indicates “OFF”, dis-
connect the extender tongue from
the seat belt buckle, then reconnect
the seat belt. Reconnect the seat
belt extender after making sure the
indicator light indicates “ON”. If
you use the seat belt extender
while the indicator light indicates
“OFF”, the front passenger airbag
and side airbag on the front pas-
senger side may not activate cor-
rectly, which could cause death or
serious injury in the event of colli-
sion.
Do not recline the front passenger
seatback so far that it touches a
rear seat. This may cause the
“OFF” indicator to be illuminated,
which indicates that the passen-
ger’s airbags will not deploy in the
event of a severe accident. If the
seatback touches the rear seat re-
turn the seatback to a position
where it does not touches the rear
seat.
Keep the front passenger seatback
as upright as possible when the ve-
hicle is moving. Reclining the seat-
back excessively may lessen the ef-
fectiveness of the seat belt system.
If an adult sits in the front passen-
ger seat, the passenger airbag on
off indicator light should indicate
“ON”. If the “OFF” indicator is illu-
minated, ask the passenger to sit
up straight, well back in the seat,
feet on the floor and with the seat
belt worn correctly. If the “OFF”
indicator still remains illuminated,
either ask the passenger to move to
the rear seat, or if that is not pos-
sible, move the front passenger
seat fully rearward.
Wear the seat belt properly.
Make sure the front passenger ’s
seat belt tab has not been left in-
serted in the buckle before some-
one sits in the right front passen-
ger seat.
Do not place a heavy load on the
front passenger seat or the seat-
back table, etc.
Do not apply pressure to the front
passenger seat by resting hands or
legs on the seatback.
Do not let a rear passenger lift the
front passenger seat with their feet
or press on the seatback with their
legs.
Do not put objects under the front
passenger seat.
Do not attach a commercial seat-
back table or other heavy item to
the back of the right front passen-
ger seat.
Child restraint systems installed on
the rear seat should not contact the
front seatbacks.

11 32007 TUNDRA from Jul. ’07 Prod. (OM34463U)
When it is unavoidable to install the
forwardfacing child restraint sys-
tem on the front passenger seat,
install the child restraint system on
the right front passenger seat in
the proper order. (As for the instal-
lation order, see “—Installation with
seat belt” on page 127 in this Sec-
tion.)
Do not modify or remove the front
seats.
Do not kick the front passenger
seat or subject it to severe impact.
Otherwise, the SRS warning light
may come on to indicate a malfunc-
tion of the detection system. In this
case, contact your Toyota dealer im-
mediately.
The passenger airbag on−off indicator light
may indicate “ON” (the front passenger
airbag and side airbag on the front
passenger seat may deploy) even if
observing the above cautions, when a
child sits in, or a forward −facing child
restraint system is installed on the front
passenger seat. Refer to all the cautions
in “—SRS driver airbag and front
passenger airbag” on page 86, “—SRS
side airbags and curtain shield airbags” on
page 94 and “Child restraint” on page 114.

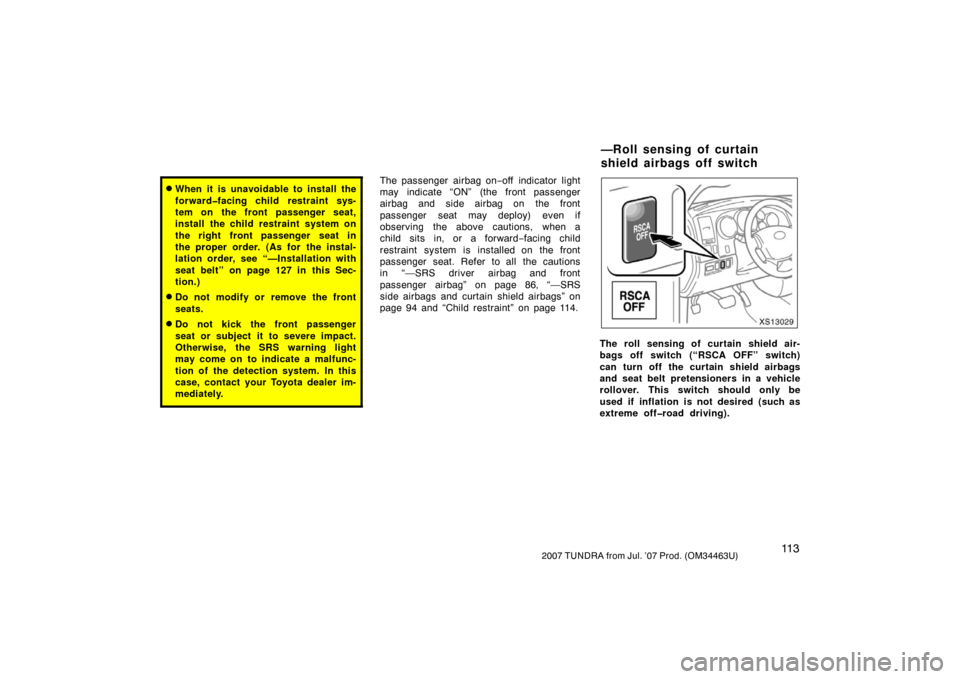

XS13029
The roll sensing of curtain shield air-
bags off switch (“RSCA OFF” switch)
can turn off the curtain shield airbags
and seat belt pretensioners in a vehicle
rollover. This switch should only be
used if inflation is not desired (such as
extreme offroad driving).
—Roll sensing of curtain
shield airbags off switch

11 42007 TUNDRA from Jul. ’07 Prod. (OM34463U)
When you push the “RSCA OFF” switch
for a few seconds with the ignition switch
on, the “RSCA OFF” indicator light comes
on and the roll sensing function is turned
off. When you push the switch again, the
indicator light goes off and the roll sens-
ing function is turned on. (For details
about the roll sensing function, see
“—SRS side airbags and curtain shield
airbags” on page 94 in this Section.)
In a severe side impact, the curtain shield
airbags on impacted side will inflate even
if the roll sensing function is turned off.
(For details about the curtain shield air-
bags, see “—SRS side airbags and curtain
shield airbags” on page 94 in this Sec-
tion.)
In a severe frontal impact, the seat belt
pretensioners will work even if the roll
sensing function is turned off. (For details
about the seat belt pretensioners, see
“—Seat belt pretensioners” on page 72 in
this Section.)
If the ignition switch is turned to “ACC” or
“LOCK” with the roll sensing function off
and then the ignition switch is turned back
to “ON”, the roll sensing function will turn

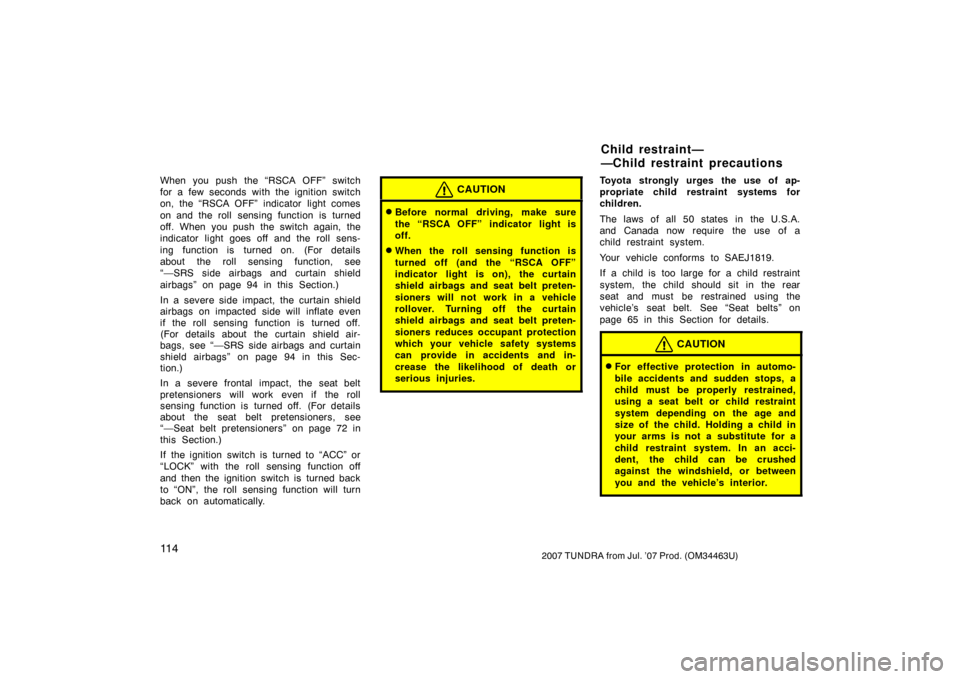

back on automatically.CAUTION
Before normal driving, make sure
the “RSCA OFF” indicator light is
off.
When the roll sensing function is
turned off (and the “RSCA OFF”
indicator light is on), the curtain
shield airbags and seat belt preten-
sioners will not work in a vehicle
rollover. Turning off the curtain
shield airbags and seat belt preten-
sioners reduces occupant protection
which your vehicle safety systems
can provide in accidents and in-
crease the likelihood of death or
serious injuries.
Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 65 in this Section for details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Child restraint—
—Child restraint precautions

11 52007 TUNDRA from Jul. ’07 Prod. (OM34463U)

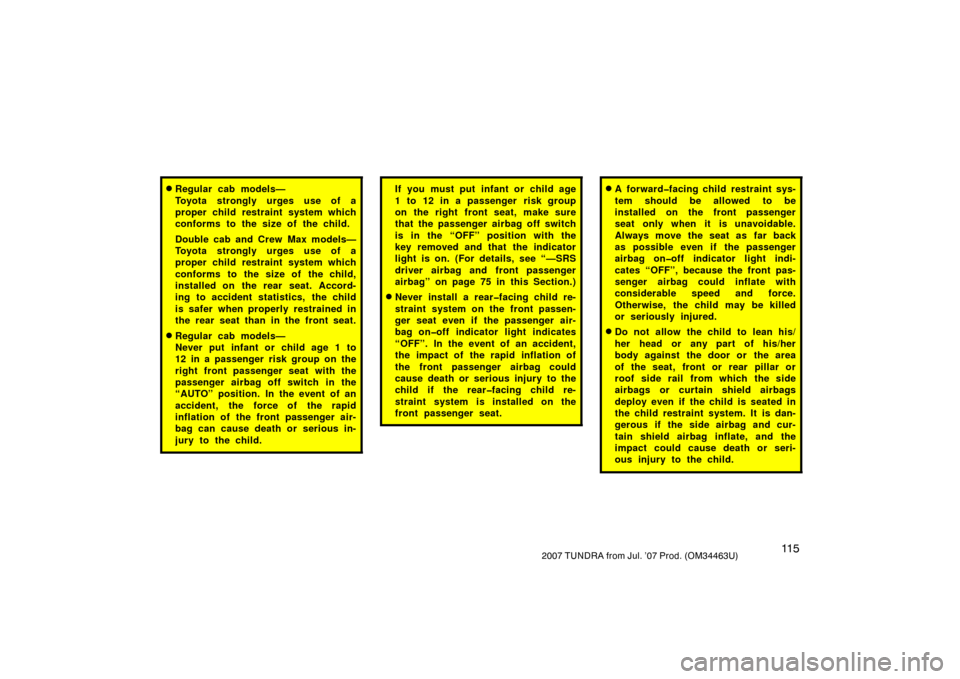

Regular cab models—
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child.
Double cab and Crew Max models—
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Regular cab models—
Never put infant or child age 1 to
12 in a passenger risk group on the
right front passenger seat with the
passenger airbag off switch in the
“AUTO” position. In the event of an
accident, the force of the rapid
inflation of the front passenger air-
bag can cause death or serious in-
jury to the child.
If you must put infant or child age
1 to 12 in a passenger risk group
on the right front seat, make sure
that the passenger airbag off switch
is in the “OFF” position with the
key removed and that the indicator
light is on. (For details, see “—SRS
driver airbag and front passenger
airbag” on page 75 in this Section.)

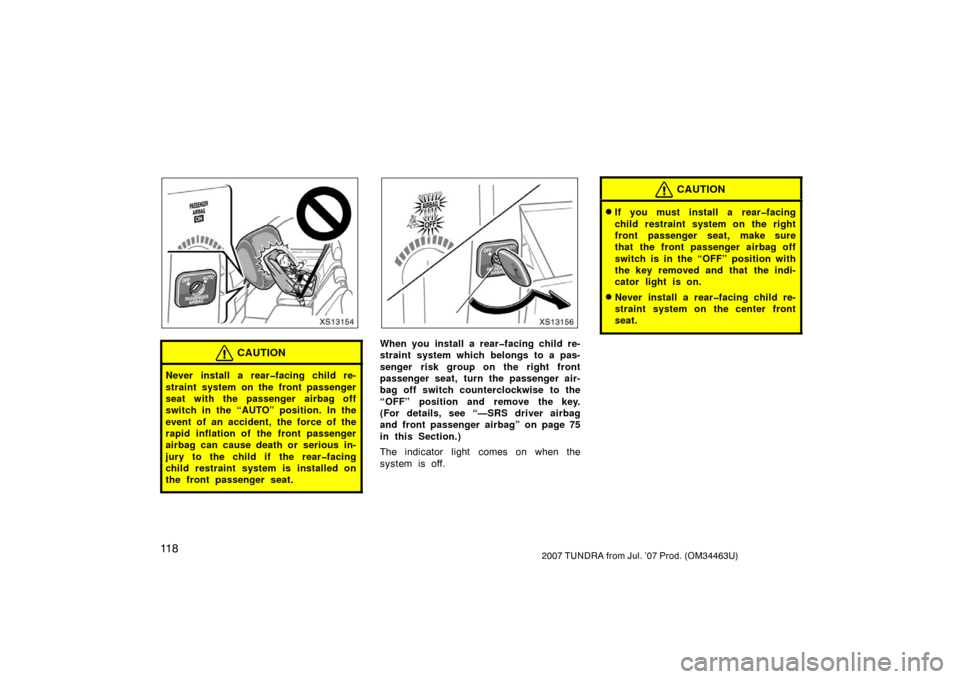

Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the passenger air-
bag onoff indicator light indicates
“OFF”. In the event of an accident,
the impact of the rapid inflation of
the front passenger airbag could
cause death or serious injury to the
child if the rearfacing child re-
straint system is installed on the
front passenger seat.
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the passenger
airbag onoff indicator light indi-
cates “OFF”, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
Do not allow the child to lean his/
her head or any part of his/her
body against the door or the area
of the seat, front or rear pillar or
roof side rail from which the side
airbags or curtain shield airbags
deploy even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag and cur-
tain shield airbag inflate, and the
impact could cause death or seri-
ous injury to the child.

11 62007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly se-
cured. If it is not secured properly,
it may cause death or serious injury
to the child in the event of a sud-
den stop or accident.
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt. You must
carefully consult the manufacturer ’s
instructions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed in the rear seat if your vehicle
is equipped with rear seats. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from in-
juring passengers in the event of a sud-

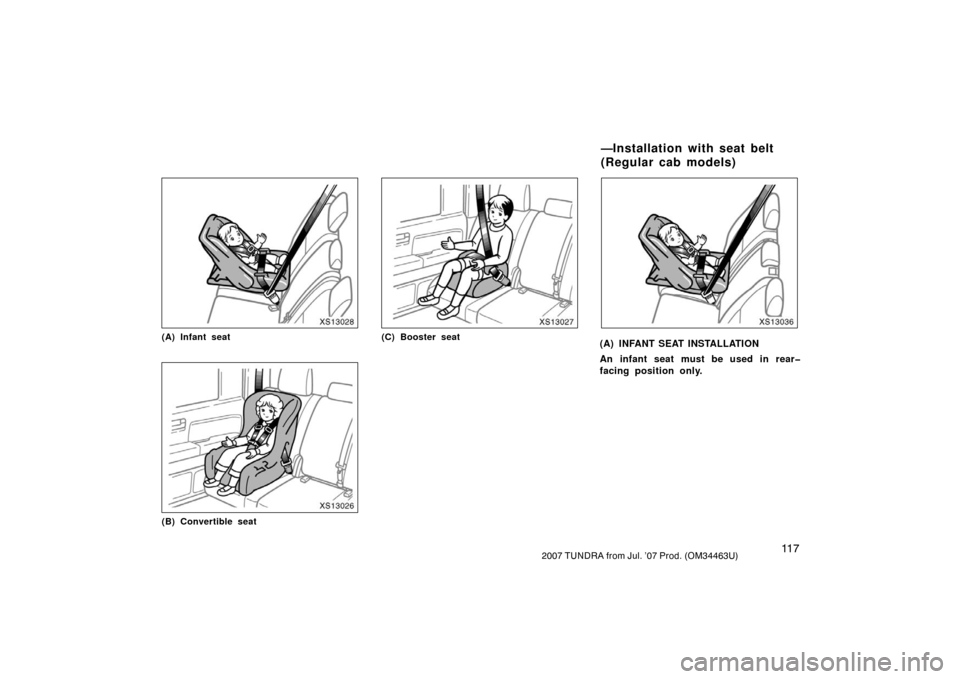

den stop or accident.Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions about how to use the an-
chor bracket, see “—Using a top strap” on
page 138 or 141 in this Section.
The child restraint lower anchorages
approved for your vehicle may also be
used. See “—Installation with child
restraint lower anchorages” on page 146 or
148 in this Section.
—Child restraint system
—Types of child restraint
system

11 72007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13028
(A) Infant seat
XS13026
(B) Convertible seat
XS13027
(C) Booster seat
XS13036
(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.
—Installation with seat belt
(Regular cab models)

11 82007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13154
CAUTION
Never install a rearfacing child re-
straint system on the front passenger
seat with the passenger airbag off
switch in the “AUTO” position. In the
event of an accident, the force of the
rapid inflation of the front passenger
airbag can cause death or serious in-
jury to the child if the rearfacing
child restraint system is installed on
the front passenger seat.
XS13156
When you install a rearfacing child re-
straint system which belongs to a pas-
senger risk group on the right front
passenger seat, turn the passenger air-
bag off switch counterclockwise to the
“OFF” position and remove the key.
(For details, see “—SRS driver airbag
and front passenger airbag” on page 75
in this Section.)
The indicator light comes on when the
system is off.
CAUTION
If you must install a rearfacing
child restraint system on the right
front passenger seat, make sure
that the front passenger airbag off
switch is in the “OFF” position with
the key removed and that the indi-
cator light is on.
Never install a rearfacing child re-
straint system on the center front
seat.

11 92007 TUNDRA from Jul. ’07 Prod. (OM34463U)

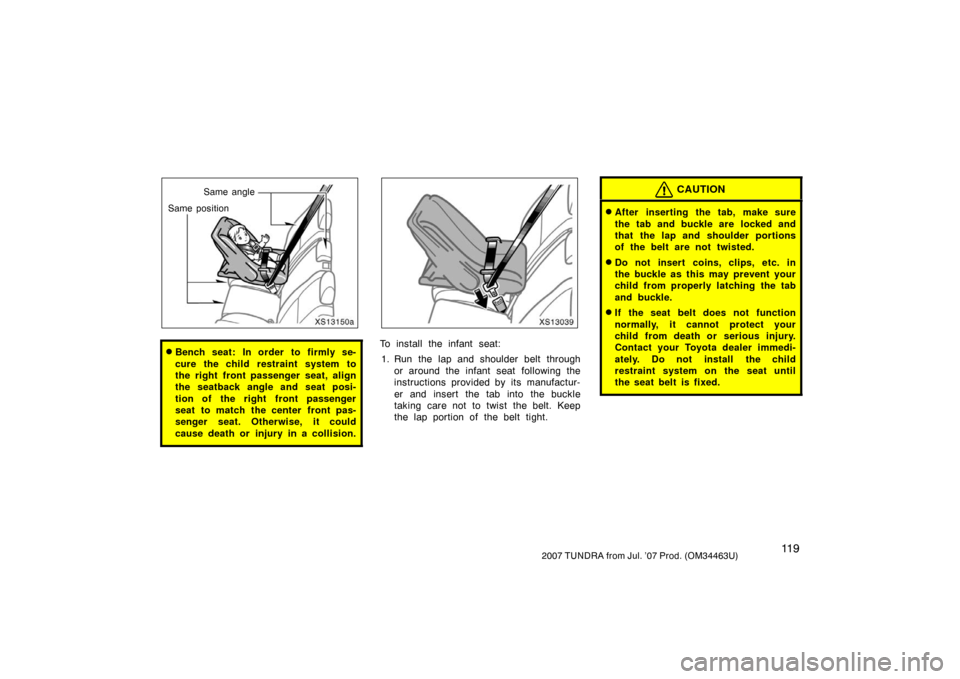

XS13150a
Same angle
Same position
Bench seat: In order to firmly se-
cure the child restraint system to
the right front passenger seat, align
the seatback angle and seat posi-
tion of the right front passenger
seat to match the center front pas-
senger seat. Otherwise, it could
cause death or injury in a collision.
XS13039
To install the infant seat: 1. Run the lap and shoulder belt through or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
