TRANSFER
Oil capacity, L (qt., Imp. qt.):1.12 (1.2, 1.0)
Oil type: Gear Oil API GL−4 or GL−5
Recommended oil viscosity: SAE 75W −90
DIFFERENTIAL
Oil capacity, L (qt., Imp. qt.): Front differential
(four −wheel drive models)
2.10 (2.2, 1.8)
Rear differential 4.0 L V6 (1GR −FE) and 4.7 L V8
(2UZ −FE) engine
Regular cab models
Standard bed 4.05 (4.3, 3.6)
Long bed 4.60 (4.9, 4.0)
Double cab and Crew Max models 4.60 (4.9, 4.0)
5.7 L V8 (3UR −FE) engine
Regular cab models Standard bed 3.45 (3.6, 3.0)
Long bed 3.60 (3.8, 3.2) Double cab models
Standard bed 3.60 (3.8, 3.2)
Long bed 3.75 (4.0, 3.3)
Crew Max models Tw o −wheel drive model
3.75 (4.0, 3.3)
Four −wheel drive model
3.60 (3.8, 3.2)
Oil type and viscosity: Toyota Genuine Differential Gear Oil LT
75W −85 GL− 5 or equivalent
“Genuine Differential Gear Oil” is filled in
your Toyota vehicle at factory fill. Use
Toyota approved “Genuine Differential
Gear Oil” or an equivalent of matching
quality to satisfy the above specification.
Please contact your Toyota dealer for fur-
ther details.
CHASSIS LUBRICATION
Front drive shaft thrust bushings: Synthetic oil and lithium soap base
chassis grease, NLGI No.1
Propeller shafts:
SpidersLithium base chassis grease, NLGI
No.2 Slide yokes
Lithium base chassis grease, NLGI
No.2 or Molybdenum −disulfide lithium
base chassis grease, NLGI No.2
BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.): 104 (4.1)
Pedal free play, mm (in.): 1—5 (0.04—0.20)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment: Pedal type—when depressed with the
force of 300 N (30.6 kgf, 67.1 lbf)6—9 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III

5862007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Tire size, cold tire inflation pressure and wheel size:Ti r e siz e
Cold tire inflation pressurekPa (kgf/cm2 or bar, psi)Temporary spareWheel size
FrontRear
P255/70R18 112T210 (2.1, 30)230 (2.3, 33)230 (2.3, 33)18 8J
P275/65R18 114T210 (2.1, 30)230 (2.3, 33)230 (2.3, 33)18 8J
P275/55R20 111H210 (2.1, 30)230 (2.3, 33)230 (2.3, 33)20 8J
Wheel nut torque, N·m (kgf·m, ft·lbf):
Steel wheels 209 (21.3, 154)
Aluminum wheels 131 (13.4, 97)
NOTE: For complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” through “Wheel precautions”, pages 548 through 557, in Section 7 −2.
Tires

5872007 TUNDRA from Jul. ’07 Prod. (OM34463U)

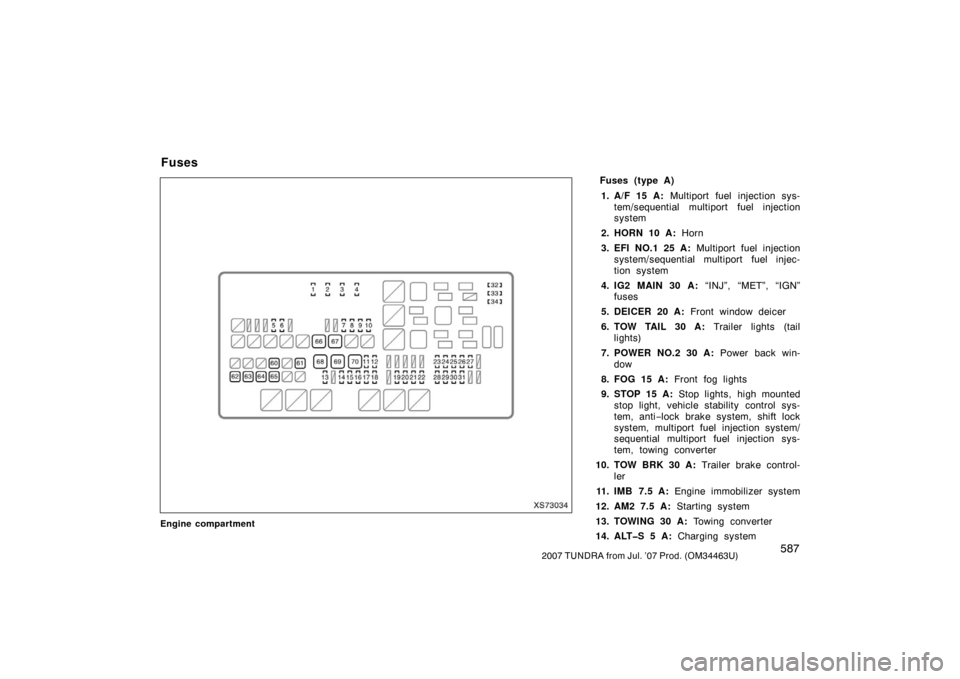

Engine compartment
Fuses (type A)
1. A/F 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
2. HORN 10 A: Horn
3. EFI NO.1 25 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
4. IG2 MAIN 30 A: “INJ”, “MET”, “IGN”
fuses
5. DEICER 20 A: Front window deicer
6. TOW TAIL 30 A: Trailer lights (tail
lights)
7. POWER NO.2 30 A: Power back win-
dow
8. FOG 15 A: Front fog lights
9. STOP 15 A: Stop lights, high mounted
stop light, vehicle stability control sys-
tem, anti− lock brake system, shift lock
system, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, towing converter
10. TOW BRK 30 A: Trailer brake control-
ler
11. IMB 7.5 A: Engine immobilizer system
12. AM2 7.5 A: Starting system
13. TOWING 30 A: Towing converter
14. ALTS 5 A: Charging system
Fuses
XS73034

5882007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS73028

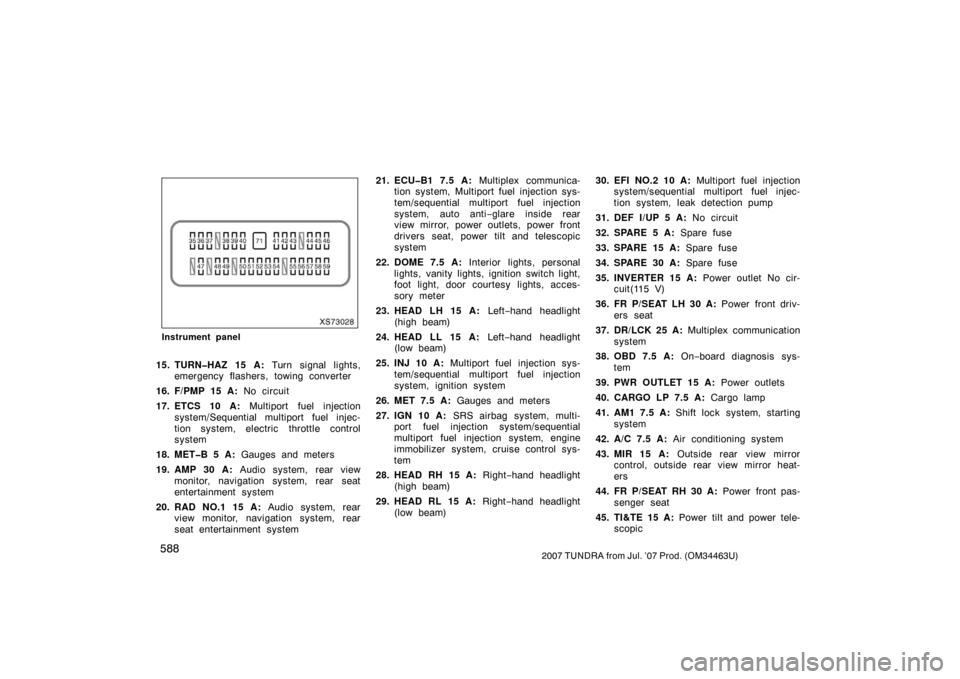

Instrument panel
15. TURNHAZ 15 A: Turn signal lights,
emergency flashers, towing converter
16. F/PMP 15 A: No circuit
17. ETCS 10 A: Multiport fuel injection
system/S equential multiport fuel injec-
tion system, electric throttle control
system
18. METB 5 A: Gauges and meters
19. AMP 30 A: Audio system, rear view
monitor, navigation system, rear seat
entertainment system
20. RAD NO.1 15 A: Audio system, rear
view monitor, navigation system, rear
seat entertainment system 21. ECUB1 7.5 A:
Multiplex communica-
tion system, Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, auto anti− glare inside rear
view mirror, power outlets, power front
drivers seat, power tilt and telescopic
system
22. DOME 7.5 A: Interior lights, personal
lights, vanity lights, ignition switch light,
foot light, door courtesy lights, acces-
sory meter
23. HEAD LH 15 A: Left−hand headlight
(high beam)
24. HEAD LL 15 A: Left−hand headlight
(low beam)
25. INJ 10 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, ignition system
26. MET 7.5 A: Gauges and meters
27. IGN 10 A: SRS airbag system, multi-
port fuel injection system/sequential
multiport fuel injection system, engine
immobilizer system, cruise control sys-
tem
28. HEAD RH 15 A: Right−hand headlight
(high beam)
29. HEAD RL 15 A: Right−hand headlight
(low beam) 30. EFI NO.2 10 A:
Multiport fuel injection
system/s equential multiport fuel injec-
tion system, leak detection pump
31. DEF I/UP 5 A: No circuit
32. SPARE 5 A: Spare fuse
33. SPARE 15 A: Spare fuse
34. SPARE 30 A: Spare fuse
35. INVERTER 15 A: Power outlet No cir-
cuit(115 V)
36. FR P/SEAT LH 30 A: Power front driv-
ers seat
37. DR/LCK 25 A: Multiplex communication
system
38. OBD 7.5 A: On−board diagnosis sys-
tem
39. PWR OUTLET 15 A: Power outlets
40. CARGO LP 7.5 A: Cargo lamp
41. AM1 7.5 A: Shift lock system, starting
system
42. A/C 7.5 A: Air conditioning system
43. MIR 15 A: Outside rear view mirror
control, outside rear view mirror heat-
ers
4

4. FR P/SEAT RH 30 A: Power front pas-
senger seat
45. TI&TE 15 A: Power tilt and power tele-
scopic

5892007 TUNDRA from Jul. ’07 Prod. (OM34463U)
46. S/ROOF 25 A: Electric moon roof
47. ECUIG NO.1 7.5 A: Anti−lock brake
system, vehicle stability control system,
multiplex communication system, intu-
itive parking assist system, power front
drivers seat, power tilt and power tele-
scopic, shift lock, tire pressure warning
system, accessory meter, trailer towing,
power outlet, electric moon roof
48. LHIG 7.5 A: Back−up lights, charging
system, g auge and meters, turn signal
lights, air conditioning system, seat
heaters, back window defogger
49. 4WD 20 A: Four−wheel drive control
system
50. WSH 20 A: Window washer
51. WIPER 30 A: Wiper and washer
52. ECUIG NO.2 7.5 A: Multiplex commu-
nication system
53. TAIL 15 A: Tail lights, trailer lights (tail
lights), parking lights, outside rear view
mirror lights
54. A/C IG 10 A: Air conditioning system
55. SEATHTR 20 A: Seat heaters 56. PANEL 7.5 A:
Instrument panel lights,
glove box light, ashtray, accessory me-
ter, audio system, rear view monitor,
navigation system, rear seat entertain-
ment system, gauges and meters, air
conditioning system
57. ACC 7.5 A: Accessory meter, audio
system, rear seat entertainment sys-
tem, rear view monitor, navigation sys-
tem, back −up lights, trailer lights
(back −up lights), multiplex communica-
tion system, power outlet, outside rear
view mirror
58. BK/UP LP 10 A: Back−up light, gauges
and meters
59. CIG 15 A: Cigarette lighter
Fuses (type B)
60. HTR 50 A: Air conditioning system
61. LHJ/B 150 A: “AM1”, “TAIL”, “PANEL”,
“ACC”, “CIG”, “LH −IG”, “4WD”,
“ECU −IG NO.1”, “BK/UP LP”,
“SEAT −HTR”, “A/C IG”, “ECU −IG
NO.2”, “WSH”, “WIPER”, “OBD”, “A/C”,
“TI&TE”, “FR P/SEAT RH”, “MIR”,
“DR/LCK”, “FR P/SEAT LH”, “CARGO
LP”, “PWR OUTLET”, “POWER NO.1”
fuses 62. ALT 180 A (3URFE engine with
towing package), 140 A (others):
“LH−J/B”, “HTR”, “SUB BATT”, “TOW
BRK”, “STOP”, “FOG”, “TOW TAIL”,
“DEICER” fuses
63. A/PUMP NO.1 50 A: Multiport fuel in-
jection system/sequential multiport fuel
injection system
64. A/PUMP NO.2 50 A: Multiport fuel in-
jection system/sequential multiport fuel
injection system
65. MAIN 40 A: “HEAD LL”, “HEAD RL”,
“HEAD LH”, “HEAD RH” fuses
Fuses (type C)
66. DEFOG 40 A: Back window defogger
67. SUB BATT 40 A:
Trailer towing
6

8. ABS1 50 A: Anti−lock brake system,
vehicle stability control system
69. ABS2 40 A: Anti−lock brake system,
vehicle stability control system
70. ST 30 A: Starting system
71. POWER NO.1 30 A: Power windows,
power back window

5902007 TUNDRA from Jul. ’07 Prod. (OM34463U)

5912007 TUNDRA from Jul. ’07 Prod. (OM34463U)
