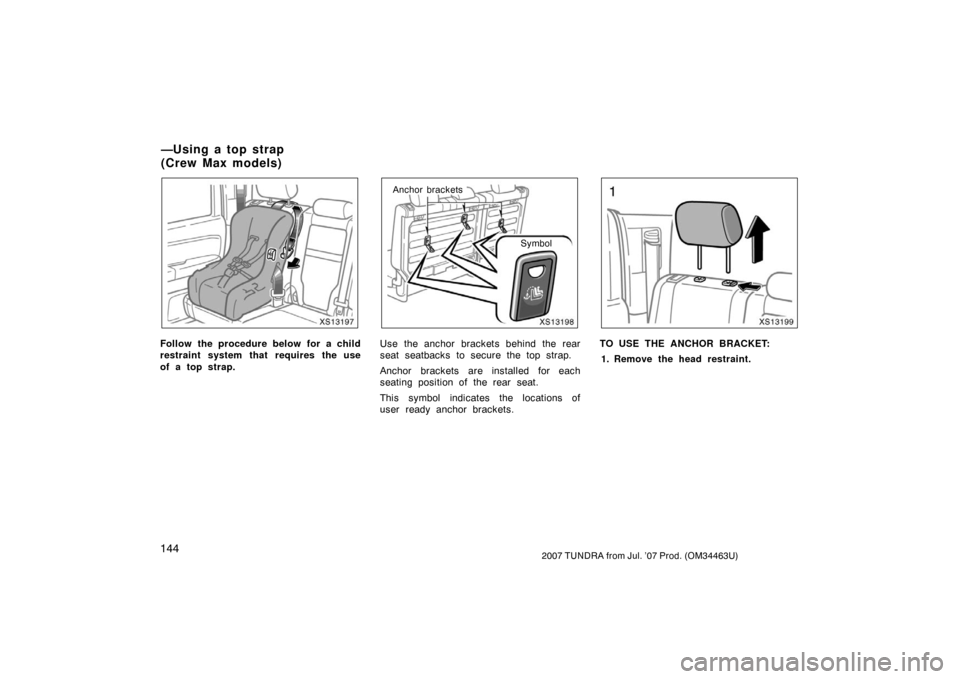

Follow the procedure below for a child
restraint system that requires the use
of a top strap.
XS13198
Symbol
Anchor brackets
Use the anchor brackets behind the rear
seat seatbacks to secure the top strap.
Anchor brackets are installed for each
seating position of the rear seat.
This symbol indicates the locations of
user ready anchor brackets.
XS13199
TO USE THE ANCHOR BRACKET:1. Remove the head restraint.
—U sin g a to p st rap
( C rew Max mo d els)

1452007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13200

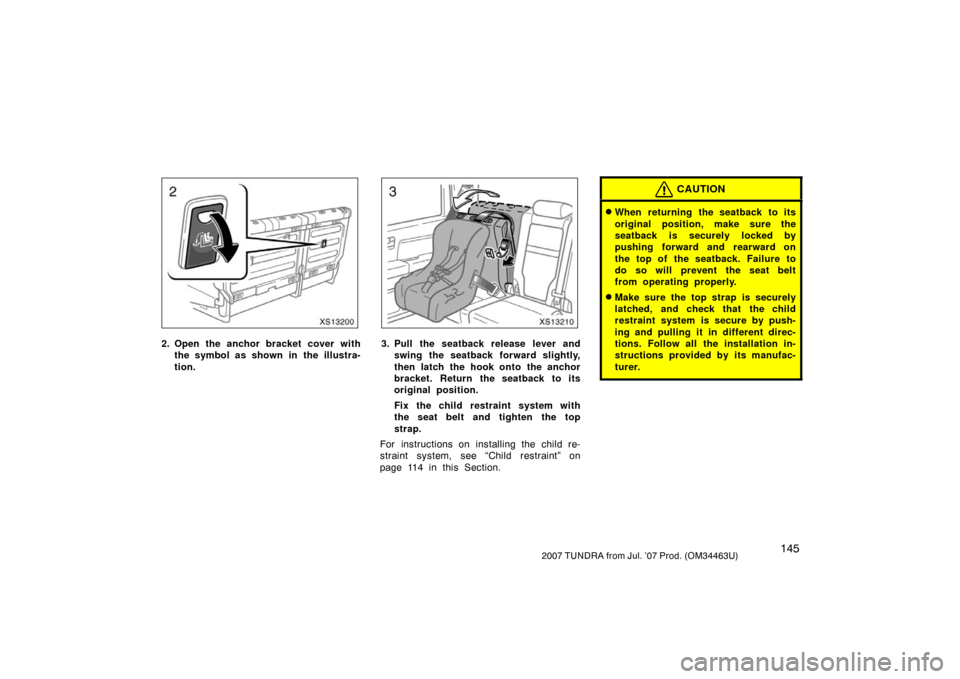

2. Open the anchor bracket cover withthe symbol as shown in the illustra-
tion.
XS13210
3. Pull the seatback release lever andswing the seatback forward slightly,
then latch the hook onto the anchor
bracket. Return the seatback to its
original position.
Fix the child restraint system with
the seat belt and tighten the top
strap.
For instructions on installing the child re-
straint system, see “Child restraint” on
page 114 in this Section.
CAUTION
When returning the seatback to its
original position, make sure the
seatback is securely locked by
pushing forward and rearward on
the top of the seatback. Failure to
do so will prevent the seat belt
from operating properly.
Make sure the top strap is securely
latched, and check that the child
restraint system is secure by push-
ing and pulling it in different direc-
tions. Follow all the installation in-
structions provided by its manufac-
turer.

1462007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13202

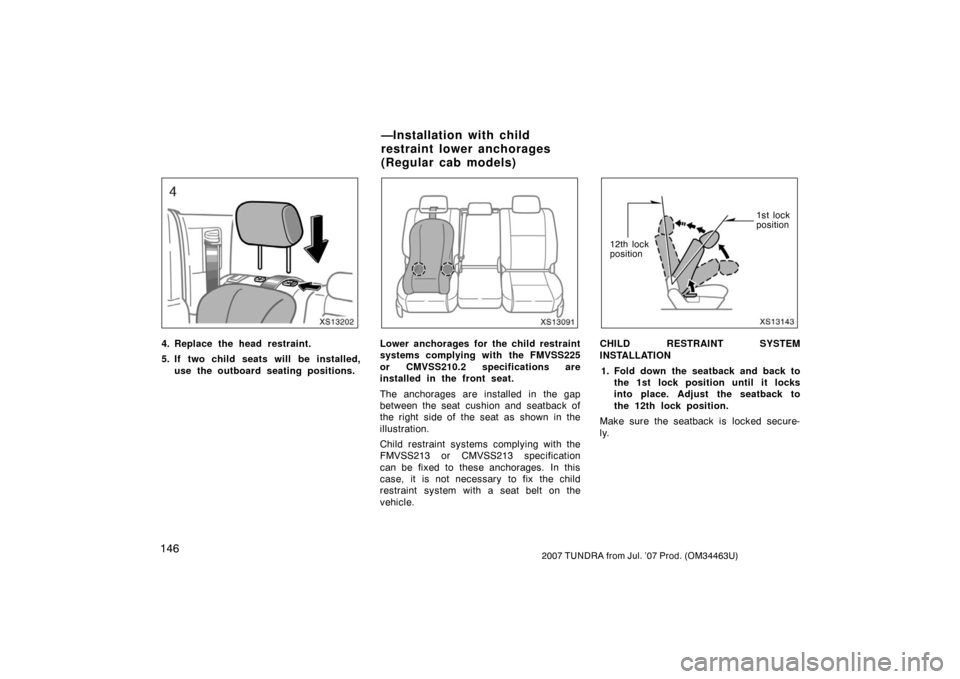

4. Replace the head restraint.
5. If two child seats will be installed,use the outboard seating positions.
XS13091
Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the front seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
the right side of the seat as shown in the
illustration.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
XS1314312th lock
position 1st lock
position
CHILD RESTRAINT SYSTEM
INSTALLATION
1. Fold down the seatback and back to the 1st lock position until it locks
into place. Adjust the seatback to
the 12th lock position.
Make sure the seatback is locked secure-
ly.
—Installation with child
restraint lower anchorages
(Regular cab models)

1472007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13092e
Canada only
Ty p e A
XS13093e
Canada only
Ty p e B

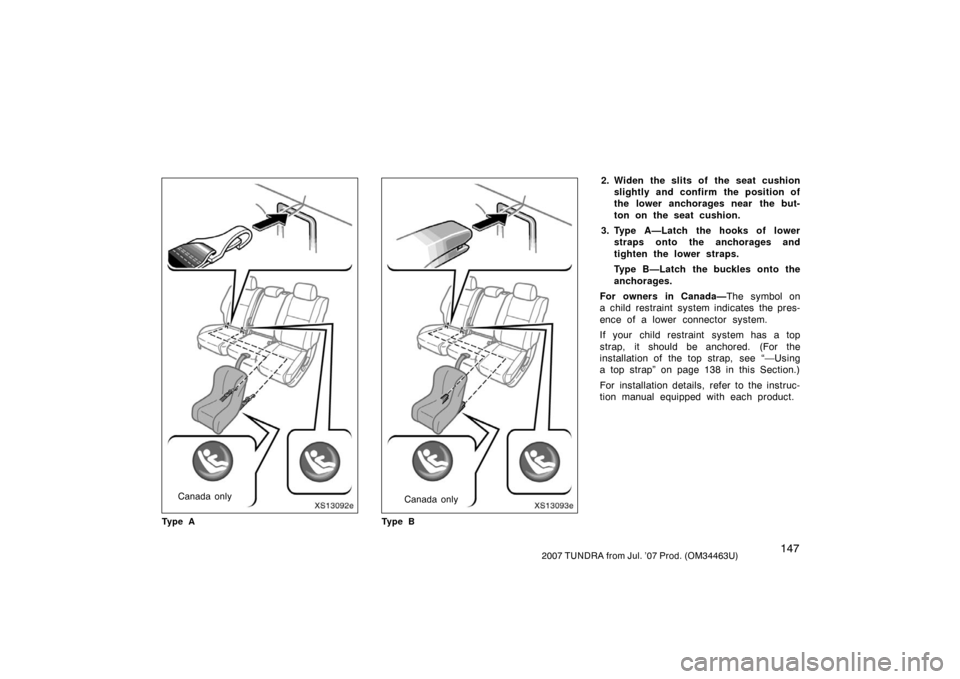

2. Widen the slits of the seat cushionslightly and confirm the position of
the lower anchorages near the but-
ton on the seat cushion.
3. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 138 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.

1482007 TUNDRA from Jul. ’07 Prod. (OM34463U)
CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never slide or recline the
seat.

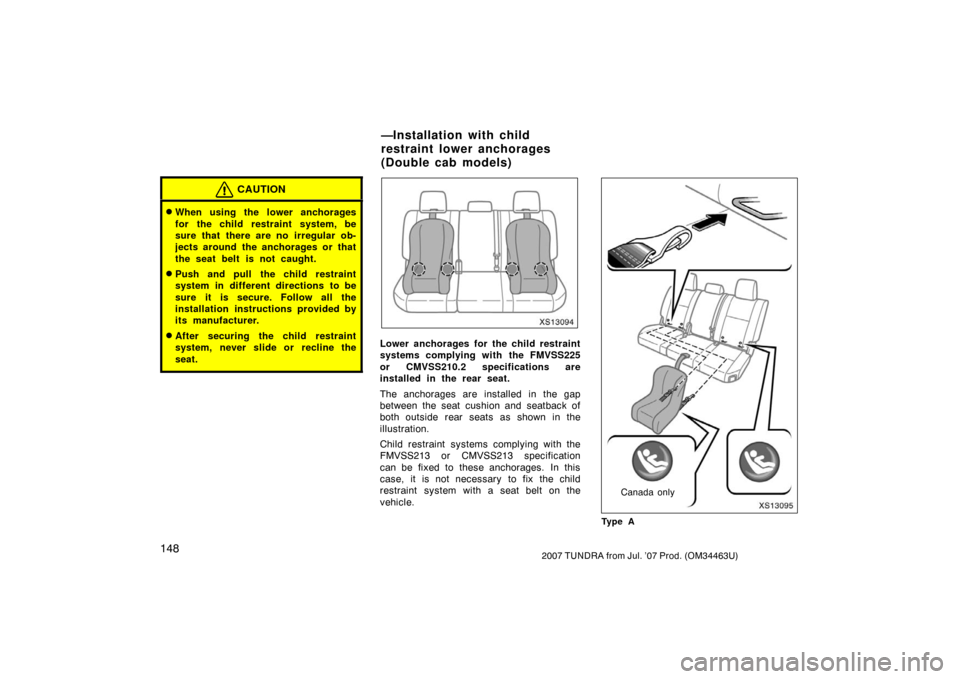

XS13094
Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
both outside rear seats as shown in the
illustration.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.XS13095
Canada only
Ty p e A
—Installation with child
restraint lower anchorages
(Double cab models)

1492007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13096
Canada only
Ty p e B
CHILD RESTRAINT SYSTEM

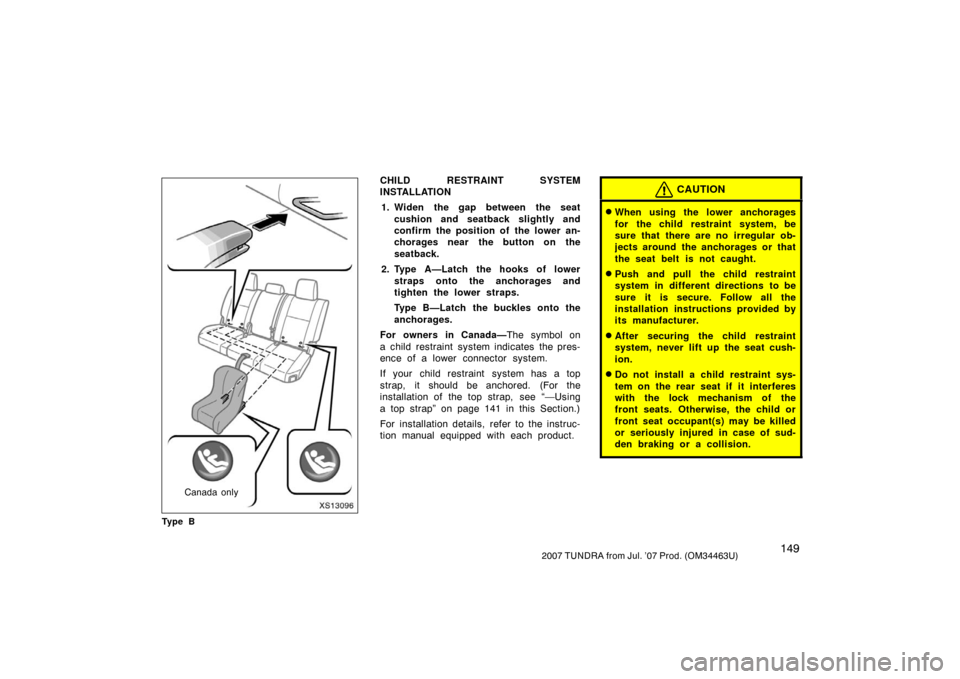

INSTALLATION1. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
2. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 141 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never lift up the seat cush-
ion.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

1502007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13203

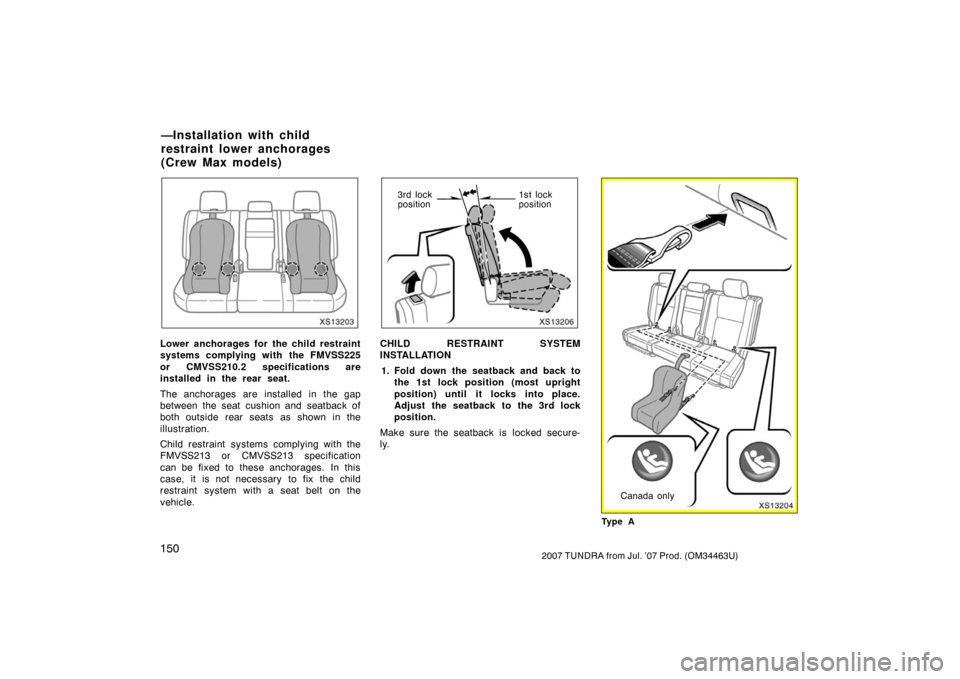

Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
both outside rear seats as shown in the
illustration.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
XS13206
3rd lock
position1st lock
position
CHILD RESTRAINT SYSTEM
INSTALLATION
1. Fold down the seatback and back to the 1st lock position (most upright
position) until it locks into place.
Adjust the seatback to the 3rd lock
position.
Make sure the seatback is locked secure-
ly.XS13204
Canada only
Ty p e A
—Installation with child
restraint lower anchorages
( C rew Max mo d els)

1512007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13205
Canada only
Ty p e B
2. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
3. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 144 in this Section.)
For installation details, refer to the instruc-

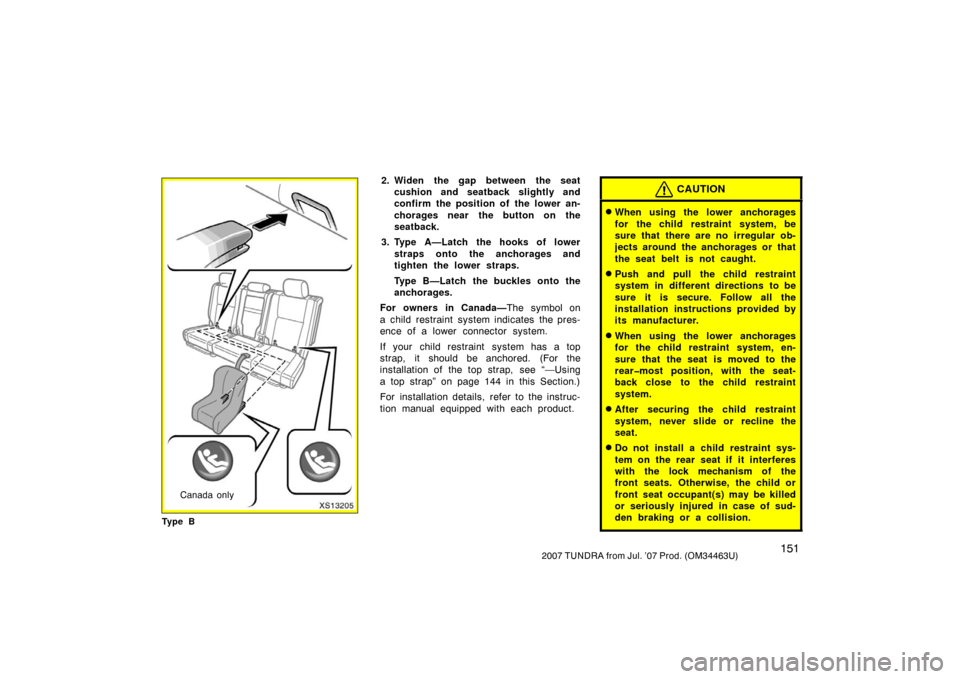

tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
When using the lower anchorages
for the child restraint system, en-
sure that the seat is moved to the
rearmost position, with the seat-
back close to the child restraint
system.
After securing the child restraint
system, never slide or recline the
seat.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.
