2007 TOYOTA TUNDRA Owners Manual

3442007 TUNDRA from Jul. ’07 Prod. (OM34463U)
WMA files can contain a WMA tag that
is used in the same way as an ID3
tag. WMA tags carry information such
as track title, artist name.
The emphasis function is available only
when playing MP3/WMA files recorded
at 32, 44.1 and 48 kHz. (The system
can play MP3 files with sampling fre-
quencies of 16, 22.05, and 24 kHz.
However, the emphasis function is not
available for files recorded at these fre-
quencies.)
The sound quality of MP3/WMA files
generally improves with higher bit
rates. In order to achieve a reasonable
level of sound quality, discs recorded
with a bit rate of at least 128 kbps are
recommended.
Playable bit rates
MP3 files:
MPEG1 LAYER3—64 to 320 kbps
MPEG2 LSF LAYER3—64 to 160 kbps
WMA files:
Ver7, 8 CBR—48 to 192 kbps
Ver9 CBR—48 to 320 kbps
The MP3/WMA player does not play
back MP3/WMA files from discs record-
er using packet write data transfer
(UDF format). Discs should be re-
corded using “pre−mastering” software
rather than packet −write software.
M3u playlists are not compatible with
the audio player.
MP3i (MP3 interactive) and MP3PRO
formats are not compatible with the au-
dio player.
The MP3 player is compatible with
VBR (Variable Bit Rate).
When playing back files recorded as
VBR (Variable Bit Rate) files, the play
time will not be correctly displayed if
fast −forward or reverse operations are
used.
It is not possible to check folders that
do not include MP3/WMA files.
MP3/WMA files in folders up to 8 lev-
els deep can be played. However, the
start of playback may be delayed when
using discs containing numerous levels
of folders. For this reason, we recom-
mend creating discs with no more than
two levels of folders.
It is possible to play up to 192 folders
or 255 files on one disc.

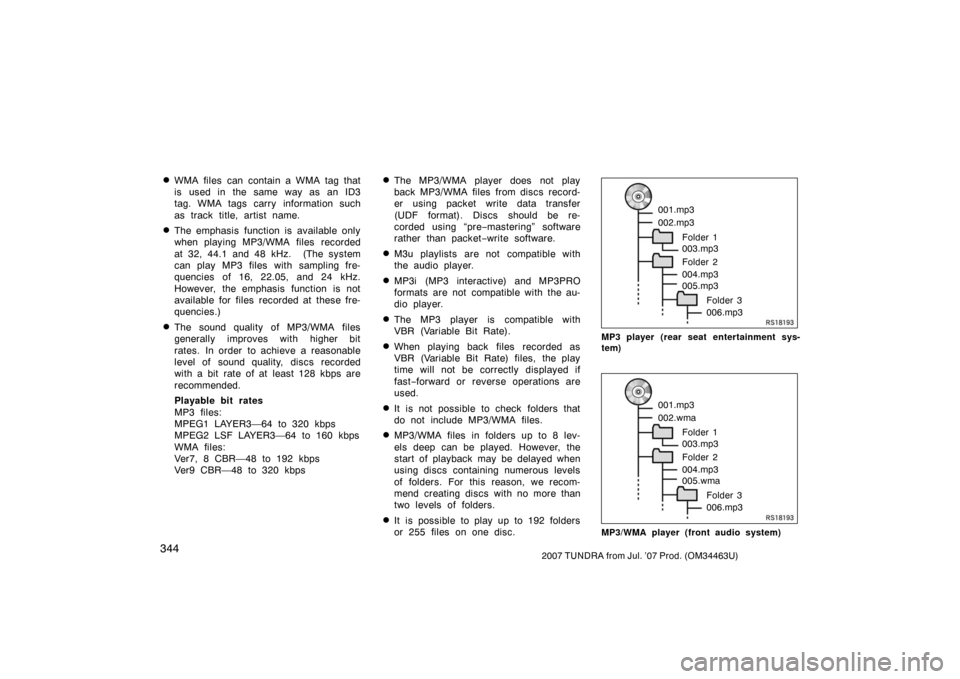

RS18193
001.mp3
002.mp3
Folder 1
003.mp3
Folder 2
004.mp3
005.mp3 Folder 3
006.mp3
MP3 player (rear seat entertainment sys-
tem)
RS18193
001.mp3
002.wma Folder 1
003.mp3
Folder 2
004.mp3
005.wma Folder 3
006.mp3
MP3/WMA player (front audio system)

3452007 TUNDRA from Jul. ’07 Prod. (OM34463U)
The play order of the compact disc
with the structure shown on the left is
as follows:
MP3 player (rear seat entertainment sys-
tem)
001.mp3 002.mp3 . . . 006.mp3
MP3/WMA player (front audio system)
001.mp3 002.wma . . . 006.mp3
MP3 player (rear seat entertainment
system)—It is possible to play up to
253 folders on one disc.
MP3/WMA player (front audio sys-
tem)—It is possible to play up to 192
folders or 255 files on one disc.
The order changes depending on the
PC and MP3/WMA encoding software
you use. CDR and CDRW discs
CD−
R/CD− RW discs that have not been
subject to the “finalizing process” (a
process that allows discs to be played
on a conventional CD player) cannot
be played.
It may not be possible to play CD −
R/CD− RW discs recorded on a music
CD recorder or a personal computer
because of disc characteristics,
scratches or dirt on the disc, or dirt,
condensation, etc. on the lens of the
unit.
It may not be possible to play discs
recorded on a personal computer de-
pending on the application settings and
the environment. Record with the cor-
rect format. (For details, contact the
appropriate application manufacturers of
the applications.)
CD− R/CD− RW discs may be damaged
by direct exposure to sunlight, high
temperatures or other storage condi-
tions. The unit may be unable to play
some damaged di scs.
If you insert a CD −RW disc into the
MP3/WMA player, playback will begin
more slowly than with a conventional
CD or CD −R disc.
Recordings on CD −R/CD− RW cannot
be played using the DDCD (Double
Density CD) system.

3462007 TUNDRA from Jul. ’07 Prod. (OM34463U)
TERMS
Packet write—
This is a general term that describes the
process of writing data on−demand to
CD− R, etc., in the same way that data is
written to floppy or hard di scs.
ID3 Tag—
This is a method of embedding track −re-
lated information in an MP3 file. This em-
bedded information can include the track
title, the artist’s name, the album title, the
music genre, the year of production, com-
ments and other data. The contents can
be freely edited using software with ID3
tag editing functions. Although the tags
are restricted to the number of characters,
the information can be viewed when the
track is played back.
WMA Tag—
WMA files can contain a WMA tag that is
used in the same way as an ID3 tag.
WMA tags carry information such as track
title, artist name. ISO 9660 format—
This is the international standard for the
formatting of CD
−ROM folders and files.
For the ISO 9660 format, there are two
levels of regulations.
Level 1:
The file name is in 8.3 format (8 charac-
ter file names, with a 3 character file ex-
tension. File names must be composed of
one− byte capital letters and numbers. The
“_” symbol may also be included.)
Level 2:
The file name can have up to 31 charac-
ters (including the separation mark “.” and
file extension). Each folder must contain
fewer than 8 hierarchies.
m3u—
Playlists created using “WINAMP” software
have a playlist file extension (.m3u).
MP3—
MP3 is an audio compression standard
determined by a working group (MPEG) of
the ISO (International Standard Organiza-
tion). MP3 compresses audio data to
about 1/10 the size of that on convention-
al discs. WMA—
WMA (Windows Media Audio) is an audio
compression format developed by Micro-
soft. It compresses files into a size small-
er than that of MP3 files. The decoding
formats for WMA files are Ver. 7, 8, and
9.

3472007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Phone Setup (see page 353)
Pair phone
To use the hands−free system, you
need to register your phone in the sys-
tem.
Change name
The registered phone names can be
changed.
Delete
The registered phone can be deleted.
List phone
The registered phone names can be
checked.
Select phone
The registered phones can be selected.
Set passkey
The passkey can be c hanged.Security (see page 358)
Set PIN
The PIN can be set or changed.
Phone book lock
The phone book can be locked.
Phone book unlock
The locked phone book can be un-
locked.
System Setup (see page 362)
Adjust Guidance Volume
Guidance volume can be adjusted.
Initialize
Phone Book (see page 362)
Add Entry
Phone numbers and voice tags can be
registered.
Change Name
The registered names can be changed.
Delete Entry
The registered names can be deleted.
Delete Speed Dial
The registered speed dial can be de-
leted.
List names
The registered names can be checked.
Set Speed Dial
Speed dials can be set
Redial (see page 370)
Callback (see page 371)
Making a phone call (see page 373)
Receiving a phone call (see page 375)
Talking on the phone (see page 376)
Handsfree phone system—
—Reference

3482007 TUNDRA from Jul. ’07 Prod. (OM34463U)
—Some basics

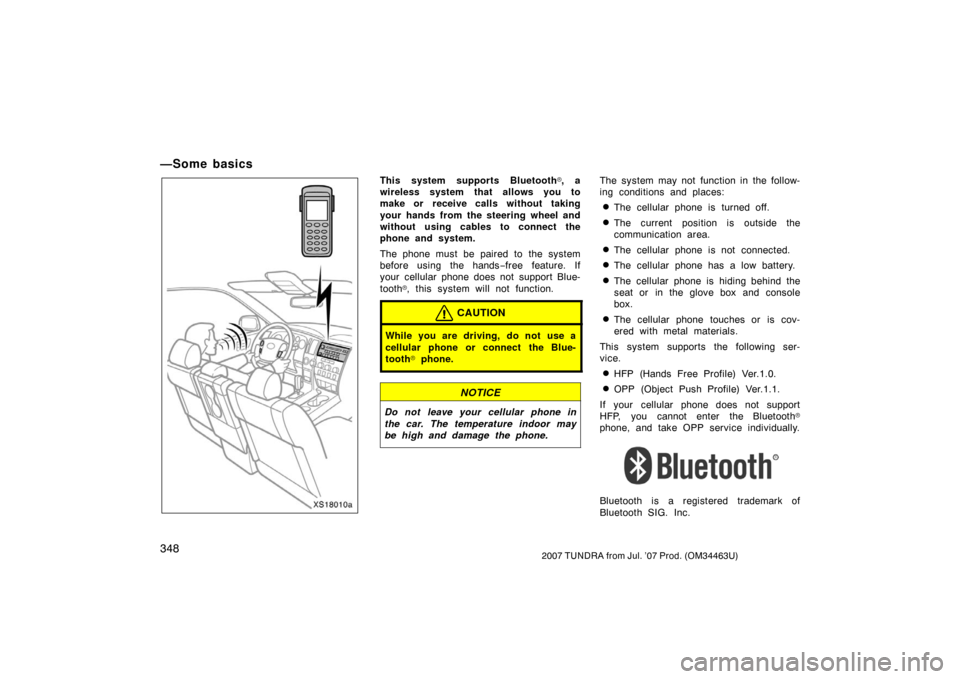

XS18010a
This system supports Bluetooth, a
wireless system that allows you to
make or receive calls without taking
your hands from the steering wheel and
without using cables to connect the
phone and system.
The phone must be paired to the system
before using the hands −free feature. If
your cellular phone does not support Blue-
tooth
, this system will not function.
CAUTION
While you are driving, do not use a
cellular phone or connect the Blue-
tooth
 phone.
NOTICE
Do not leave your cellular phone in
the car. The temperature indoor may
be high and damage the phone.
The system may not function in the follow-
ing conditions and places:
The cellular phone is turned off.
The current position is outside the
communication area.
The cellular phone is not connected.
The cellular phone has a low battery.
The cellular phone is hiding behind the
seat or in the glove box and console
box.
The cellular phone touches or is cov-
ered with metal materials.
This system supports the following ser-
vice.
HFP (Hands Free Profile) Ver.1.0.
OPP (Object Push Profile) Ver.1.1.
If your cellular phone does not support
HFP, you cannot enter the Bluetooth

phone, and take OPP service individually.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

3492007 TUNDRA from Jul. ’07 Prod. (OM34463U)
When transferring ownership of the ve-
hicle:
A lot of personal data is registered
when you use the handsfree system.
When transferring ownership of the ve-
hicle, initialize the system.
If you initialize it, the former state will
never come back again. Pay much atten-
tion when initializing the data.
You can initialize the following data in the
system.
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code

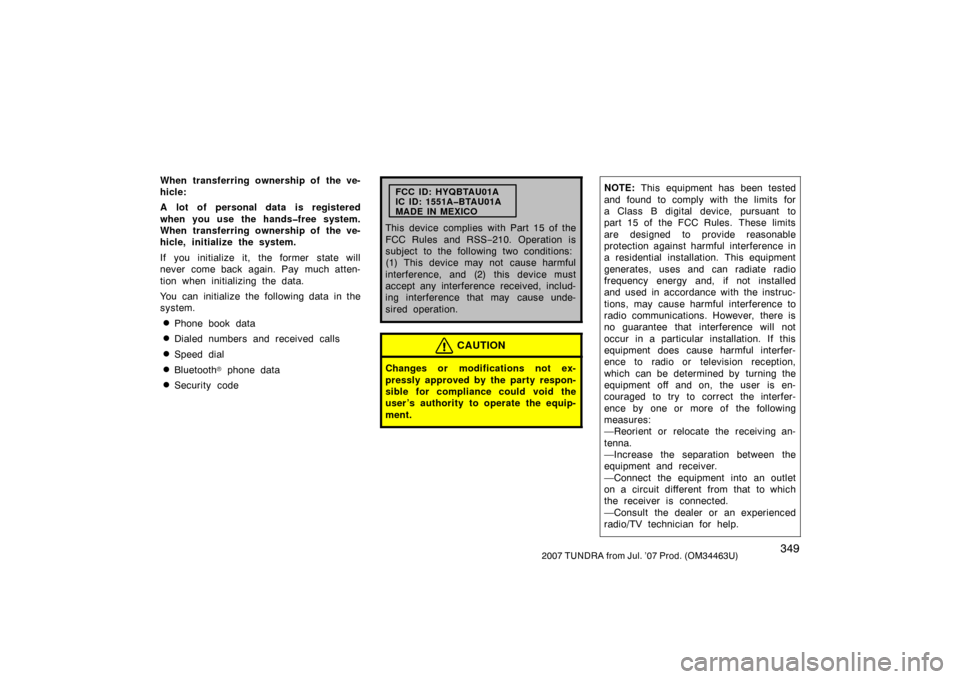

FCC ID: HYQBTAU01A
IC ID: 1551ABTAU01A
MADE IN MEXICO
This device complies with Part 15 of the
FCC Rules and RSS−210. Operation is
subject to the following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
NOTE: This equipment has been tested
and found to comply with the limits for
a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits
are designed to provide reasonable
protection against harmful interference in
a residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:
—Reorient or relocate the receiving an-
tenna.
—Increase the separation between the
equipment and receiver.
—Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced
radio/TV technician for help.

3502007 TUNDRA from Jul. ’07 Prod. (OM34463U)
CAUTION: Radio Frequency Radiation
Exposure
This equipment complies with FCC radi-
ation exposure limits set forth for uncon-
trolled equipment and meets the FCC
radio frequency (RF) Exposure Guide-
lines in Supplement C to OET65. This
equipment has very low levels of RF
energy that it deemed to comply without
maximum permissive exposure evalua-
tion (MPE). But it is desirable that it
should be installed and operated with at
least 20 cm and more between the ra-
diator and person’s body (excluding ex-
tremities: hands, wrists, feet and legs).
Colocation: This transmitter must not
be co− located or operated in conjunction
with any other antenna or transmitter.

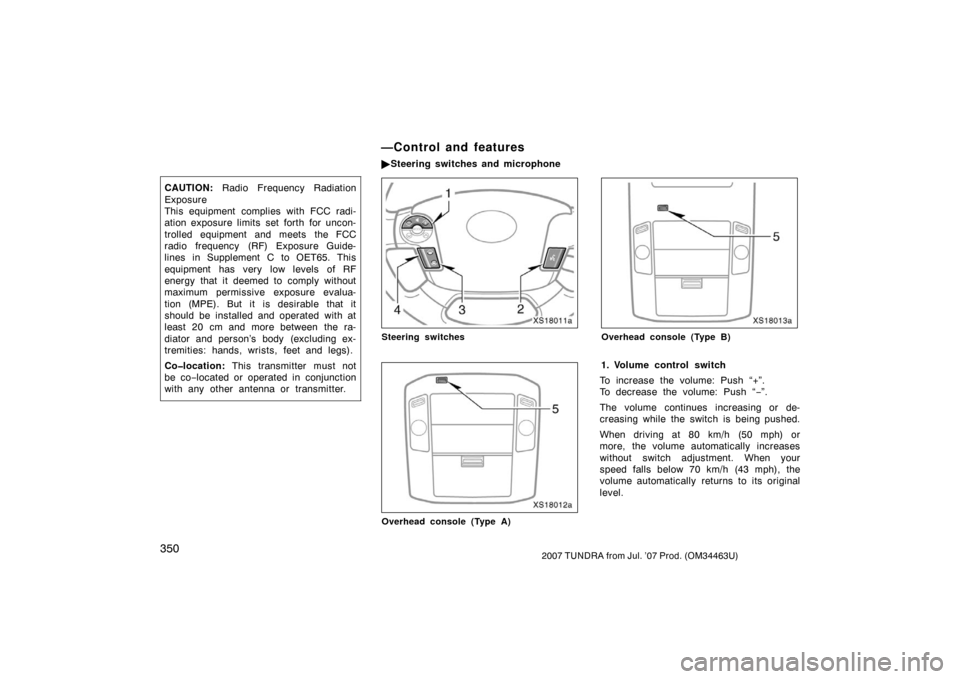

XS18011a
Steering switches
XS18012a
Overhead console (Type A)
XS18013a
Overhead console (Type B)
1. Volume control switch
To increase the volume: Push “+”.
To decrease the volume: Push “ −”.
The volume continues increasing or de-
creasing while the switch is being pushed.
When driving at 80 km/h (50 mph) or
more, the volume automatically increases
without switch adjustment. When your
speed falls below 70 km/h (43 mph), the
volume automatically returns to its original
level.
—Control and features
 Steering switches and microphone

3512007 TUNDRA from Jul. ’07 Prod. (OM34463U)
2. Talk switch
Pushing the talk switch turns the hands −
free system on and initiates the speech
command system.
Pushing and holding the talk switch ends
the speech command system.
3. Offhook switch
Pushing the off −hook switch turns the
hands −free system on.
When receiving a call, pushing the off −
hook switch allows you to talk on the
phone.
4. Onhook switch
When the hands −free system is on, push-
ing the on −hook switch turns the hands −
free system off.
5. Microphone
The microphone is used when talking on
the phone or using the speech command
system.
