(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.
XS13073

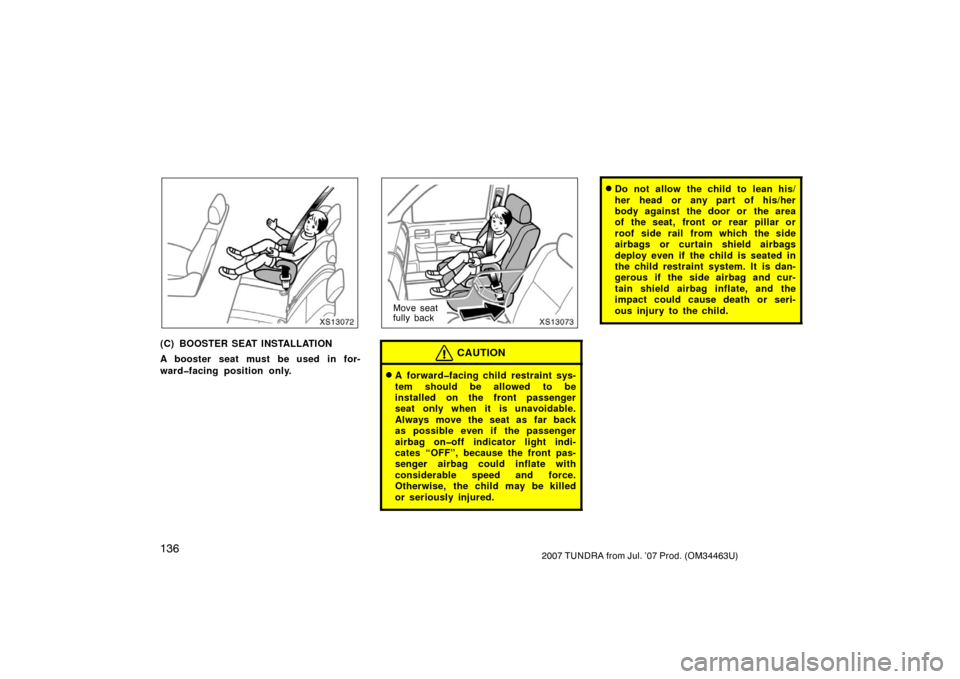

Move seat
fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the passenger
airbag onoff indicator light indi-
cates “OFF”, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
Do not allow the child to lean his/
her head or any part of his/her
body against the door or the area
of the seat, front or rear pillar or
roof side rail from which the side
airbags or curtain shield airbags
deploy even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag and cur-
tain shield airbag inflate, and the
impact could cause death or seri-
ous injury to the child.

1372007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13195

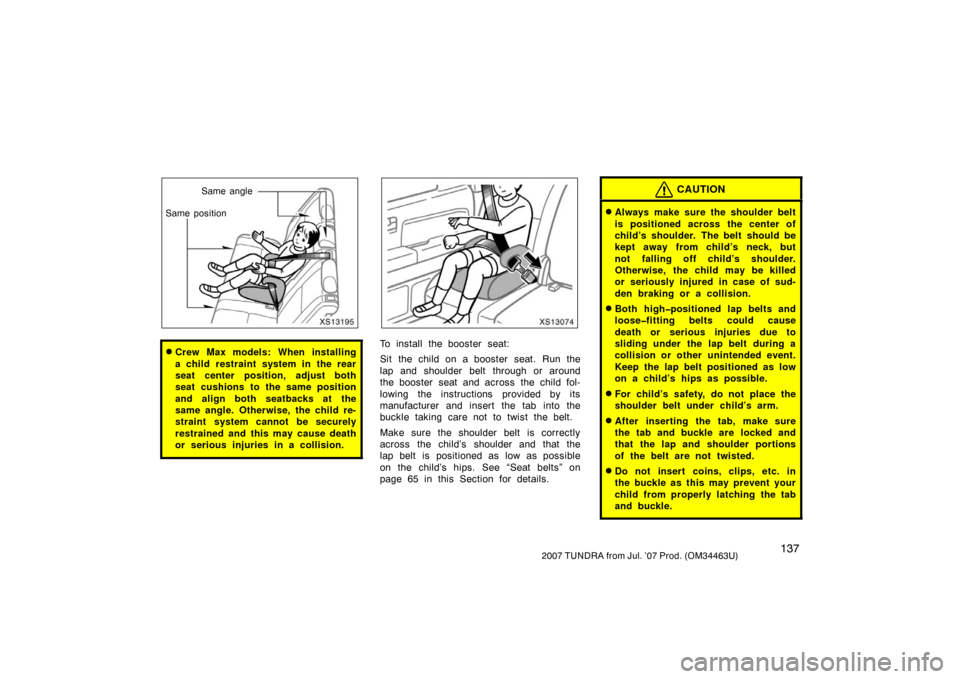

Same angle
Same position
Crew Max models: When installing
a child restraint system in the rear
seat center position, adjust both
seat cushions to the same position
and align both seatbacks at the
same angle. Otherwise, the child re-
straint system cannot be securely
restrained and this may cause death
or serious injuries in a collision.
XS13074
To install the booster seat:
Sit the child on a booster seat. Run the
lap and shoulder belt through or around
the booster seat and across the child fol-
lowing the instructions provided by its
manufacturer and insert the tab into the
buckle taking care not to twist the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts” on
page 65 in this Section for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s s houlder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.

1382007 TUNDRA from Jul. ’07 Prod. (OM34463U)
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
XS13071
To remove the booster seat:

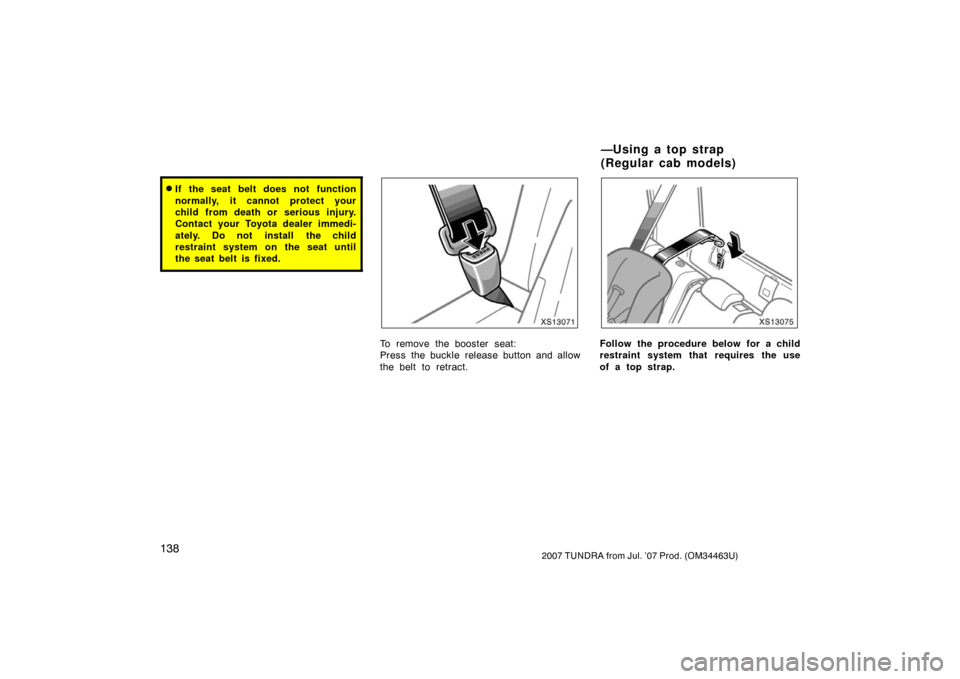

Press the buckle release button and allow
the belt to retract.
XS13075
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
—U sin g a to p st rap
(Regular cab models)

1392007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13076a

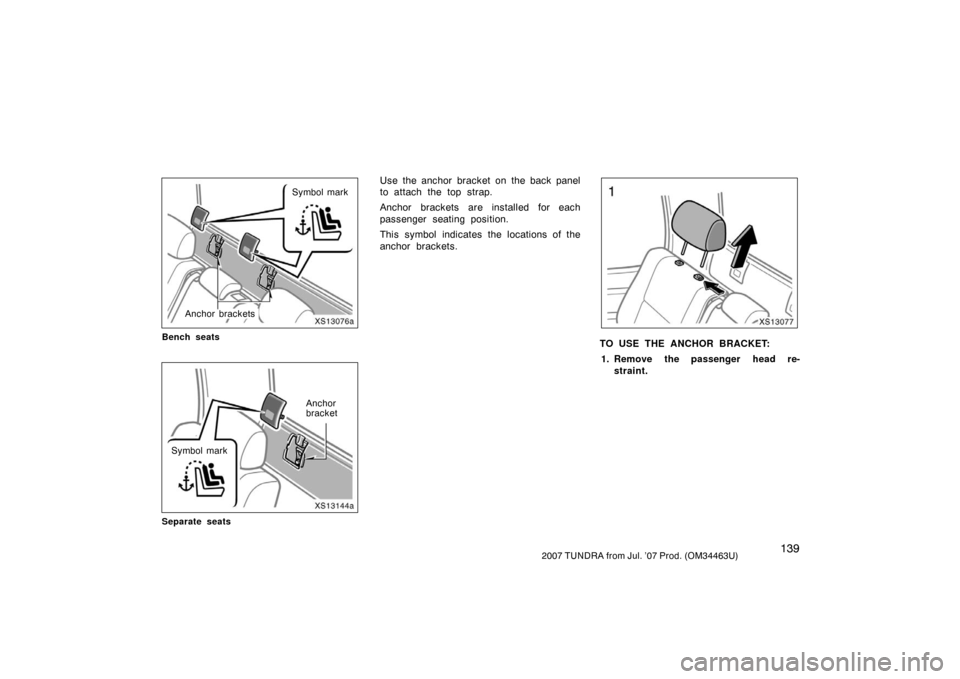

Symbol mark
Anchor brackets
Bench seats
XS13144aSymbol mark Anchor
bracket
Separate seats
Use the anchor bracket on the back panel
to attach the top strap.
Anchor brackets are installed for each
passenger seating position.
This symbol indicates the locations of the
anchor brackets.
XS13077
TO USE THE ANCHOR BRACKET:
1. Remove the passenger head re- straint.

1402007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13078

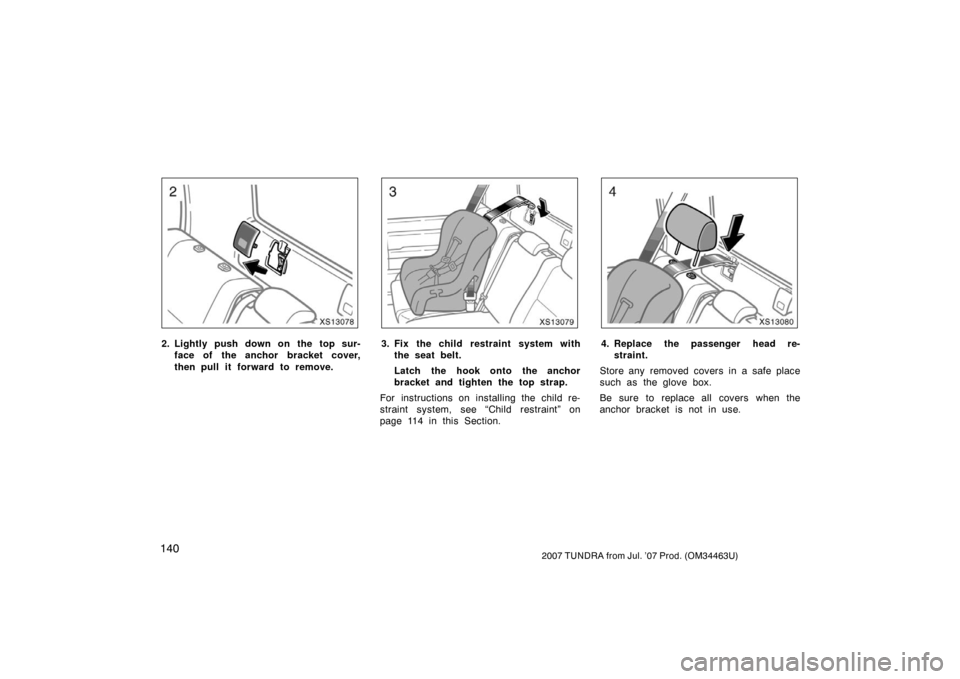

2. Lightly push down on the top sur-face of the anchor bracket cover,
then pull it forward to remove.
XS13079
3. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions on installing the child re-
straint system, see “Child restraint” on
page 114 in this Section.
XS13080
4. Replace the passenger head re- straint.
Store any removed covers in a safe place
such as the glove box.
Be sure to replace all covers when the
anchor bracket is not in use.

1412007 TUNDRA from Jul. ’07 Prod. (OM34463U)
CAUTION
When returning the seatback to its
original position, make sure the
seatback is securely locked by
pushing forward and rearward on
the top of the seatback.
Make sure the top strap is securely
latched, and check that the child
restraint system is secure by push-
ing and pulling it in different direc-
tions. Follow all the installation in-
structions provided by its manufac-
turer.
XS13082a

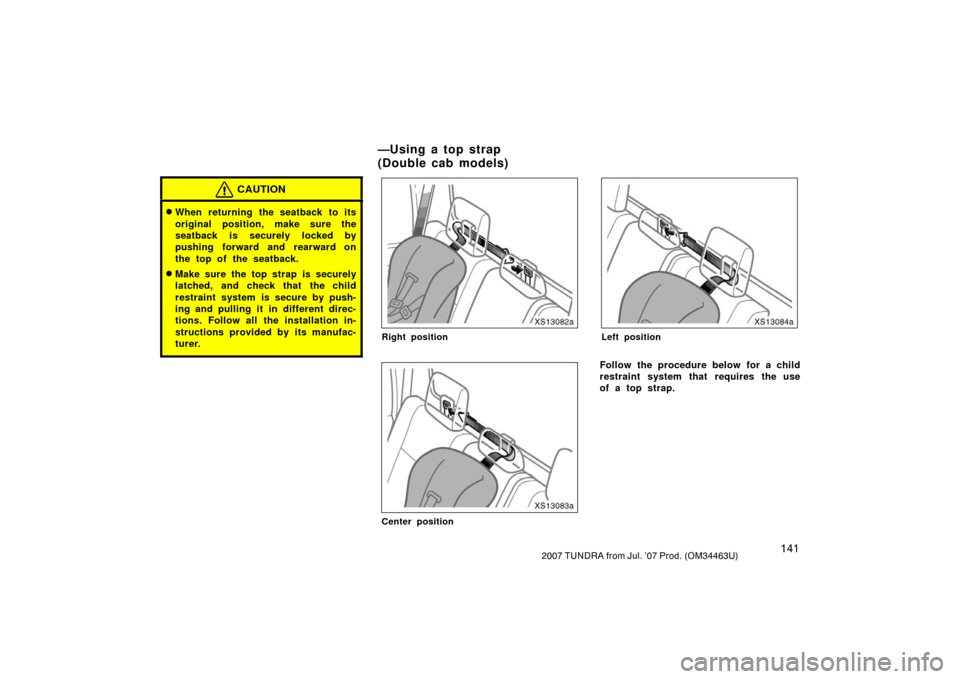

Right position
XS13083a
Center position
XS13084a
Left position
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
—U sin g a to p st rap
(Double cab models)

1422007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13085d

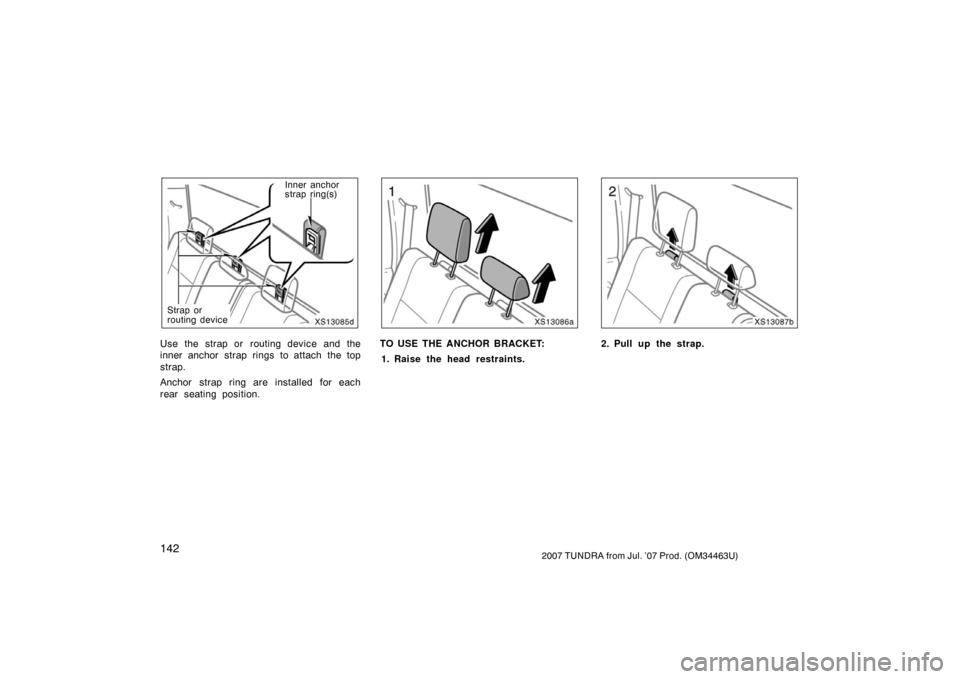

Inner anchor
strap ring(s)
Strap or
routing device
Use the strap or routing device and the
inner anchor strap rings to attach the top
strap.
Anchor strap ring are installed for each
rear seating position.
XS13086a
TO USE THE ANCHOR BRACKET: 1. Raise the head restraints.
XS13087b
2. Pull up the strap.

1432007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13088b

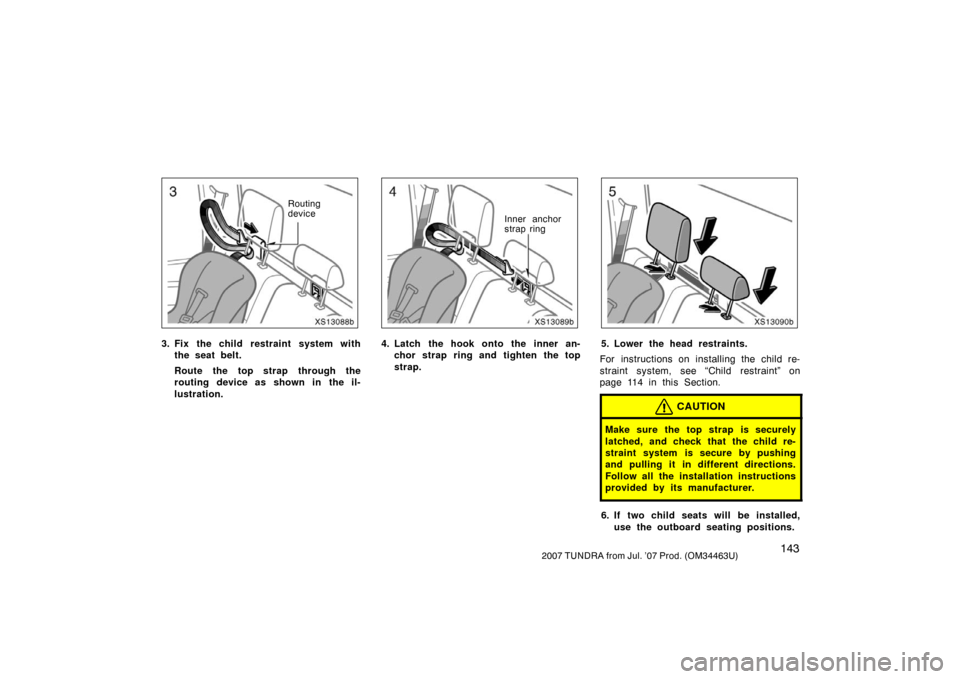

Routing
device
3. Fix the child restraint system withthe seat belt.
Route the top strap through the
routing device as shown in the il-
lustration.
XS13089b
Inner anchor
strap ring
4. Latch the hook onto the inner an-chor strap ring and tighten the top
strap.
XS13090b
5. Lower the head restraints.
For instructions on installing the child re-
straint system, see “Child restraint” on
page 114 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
6. If two child seats will be installed, use the outboard seating positions.
