202007 TUNDRA from Jul. ’07 Prod. (OM34463U)
LS12042
Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
LS12043
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.

232007 TUNDRA from Jul. ’07 Prod. (OM34463U)
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may be depleted. Check
the battery in the transmitter. To
replace the battery, see “—Replacing
battery” on page 25. If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an
accident. (See “If you lose your wireless
remote control transmitter” on page 518 in
Section 4.)
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
For vehicles sold in Canada
NOTE
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
XS12035a
Locking operation
XS12034a
Unlocking operation
—Locking and unlocking
doors

782007 TUNDRA from Jul. ’07 Prod. (OM34463U)
The SRS front airbags are designed to
deploy in severe (usually frontal) colli-
sions where the magnitude and duration
of the forward deceleration of the ve-
hicle exceeds the designed threshold
level.
The SRS front airbags will deploy if the
severity of the impact is above the de-
signed threshold level, comparable to an
approximate 25 km/h (15 mph) collision
when the vehicle has the impact straight
into a fixed barrier that does not move or
deform.
However, this threshold velocity will be
considerably higher if the vehicle strikes
an object, such as a parked vehicle or
sign pole, which can move or deform on
impact, or if the vehicle is involved in an
underride collision (e.g. a collision in
which the front of the vehicle “underrides”,
or goes under, the bed of a truck, etc.).
It is possible that in some collisions
where the forward deceleration of the ve-
hicle is very close to the designed thresh-
old level, the SRS front airbags and seat
belt pretensioners may not activate togeth-
er.
Always wear your seat belts properly.TABLE 1: A PASSENGER RISK GROUP
Infant. An infant (less than 1 year old) who must ride in the front seat because:
Vehicle has no rear seat;
Vehicle has a rear seat too small to accommodate a rear −facing infant seat;
or
The infant has a medical condition which, according to the infant’s physician,
makes it necessary for the infant to ride in the front seat so that the driver
can constantly monitor the child’s condition.
Child age 1 to 12. A child age 1 to 12 must ride in the front seat because:
Vehicle has no rear seat:
Although children ages 1 to 12 ride in the rear seat(s) whenever possible,
children ages 1 to 12 sometimes must ride in the front because no space is
available in the rear seat(s) of vehicle; or
The child has a medical condition which, according to the child’s physician,
makes it necessary for the child to ride in the front seat so that the driver can
constantly monitor the child’s condition.
Medical condition. A passenger has a medical condition which according to his
or her physician:
Causes the passenger airbag to pose a special risk for the passenger: and
Makes the potential harm from the passenger airbag in a crash greater than the
potential harm from turning off the airbag and allowing the passenger, even if
belted, to hit the dashboard, or windshield in a crash.
For more detailed information concerning about the passenger risk group, please
contact NHTSA at 1 −888− 327−4236 or Transport Canada at 1 −800− 333−0371.

812007 TUNDRA from Jul. ’07 Prod. (OM34463U)
CAUTION
The driver or front passenger who is
too close to the steering wheel or
dashboard during airbag deployment
can be killed or seriously injured.
Toyota strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants be properly
restrained using the available seat
belts.
If the seat belt extender has been
connected to the driver ’s seat belt
buckle without the driver actually
wearing the seat belt, the SRS driv-
er ’s airbag system will judge that
the driver is wearing it. In this
case, the driver ’s airbag may not
activate correctly, causing death or
serious injury in the event of colli-
sion. Be sure to wear the seat belt
with the seat belt extender.
For instructions and precautions con-
cerning the seating position, see
“—Front seat precautions” on page
48 in this Section.CAUTION
A member of a passenger risk group
should never sit or be occupied in
the right front passenger seat with
airbag off switch in the “AUTO” posi-
tion. (For details, see “—SRS driver
airbag and front passenger airbag” on
page 75 in this Section.)

822007 TUNDRA from Jul. ’07 Prod. (OM34463U)

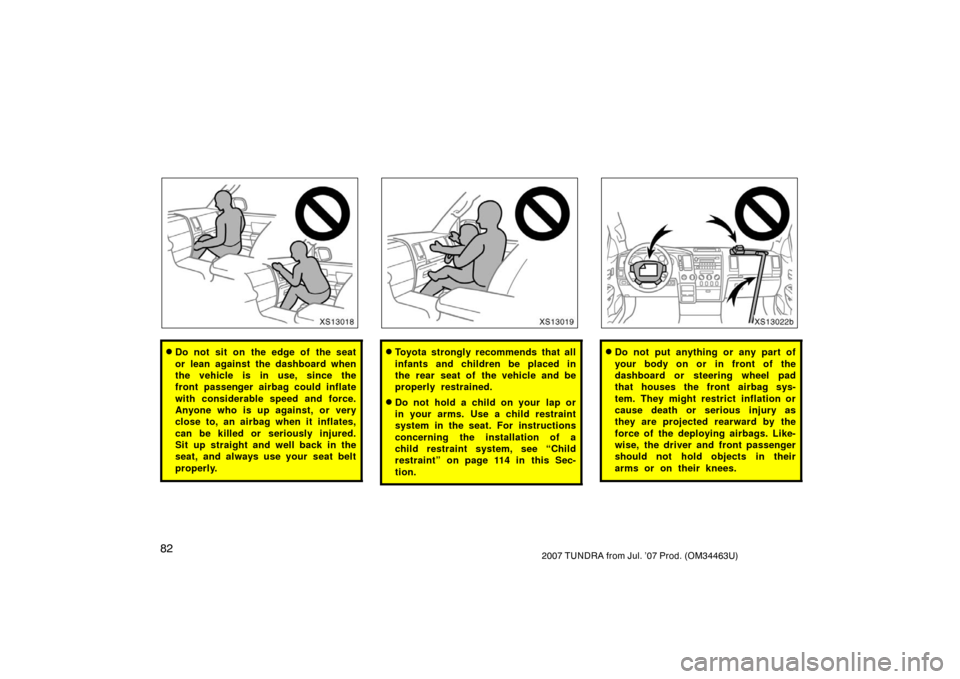

XS13018
Do not sit on the edge of the seat
or lean against the dashboard when
the vehicle is in use, since the
front passenger airbag could inflate
with considerable speed and force.
Anyone who is up against, or very
close to, an airbag when it inflates,
can be killed or seriously injured.
Sit up straight and well back in the
seat, and always use your seat belt
properly.
XS13019
Toyota strongly recommends that all
infants and children be placed in
the rear seat of the vehicle and be
properly restrained.
Do not hold a child on your lap or
in your arms. Use a child restraint
system in the seat. For instructions
concerning the installation of a
child restraint system, see “Child
restraint” on page 114 in this Sec-
tion.
XS13022b
Do not put anything or any part of
your body on or in front of the
dashboard or steering wheel pad
that houses the front airbag sys-
tem. They might restrict inflation or
cause death or serious injury as
they are projected rearward by the
force of the deploying airbags. Like-
wise, the driver and front passenger
should not hold objects in their
arms or on their knees.

832007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, dashboard
near the front passenger airbag,
front passenger airbag cover, front
passenger airbag or airbag sensor
assembly. Doing so may prevent the
front airbag system from activating
correctly, cause sudden activation
of the system or disable the sys-
tem, which could result in death or
serious injury.
Do not modify or change the sus-
pension system. Such changes may
cause the driver airbag, front pas-
senger airbag, seat belt pretension-
ers and curtain shield airbags to
inflate accidentally, which could re-
sult in death or serious injury.
Do not use tires or wheels other
than the manufacturer ’s recom-
mended size. Such a use may cause
the driver airbag, front passenger
airbag, seat belt pretensioners and
curtain shield airbags to inflate ac-
cidentally, which could result in
death or serious injury. For details,
see “Checking and replacing tires”
on page 551 in Section 72.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with a physical disability,
consult your Toyota dealer. It may
dangerously interfere with the SRS
front airbags operation.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS airbag system in some cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel, front passenger ’s seat or
dashboard near the front passenger
airbag

902007 TUNDRA from Jul. ’07 Prod. (OM34463U)
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is designed to reduce serious inju-
ries, primarily to the head and chest, it
may also cause other, less severe injuries
to the face, chest, arms and hands. These
are usually in the nature of minor burns
or abrasions and swelling, but the force of
a deploying airbag can cause more seri-
ous injuries, especially if an occupant’s
hands, arms, chest or head is in close
proximity to the airbag module at the time
of deployment. This is why it is important
for the occupant to: avoid placing any
object or part of the body between the
occupant and the airbag module; sit
straight and well back into the seat; wear
the available seat belt properly; and sit as
far as possible from the airbag module,
while still maintaining control of the ve-
hicle.
Parts of the airbag module (steering wheel
hub, airbag cover and inflator) may be hot
for several minutes after deployment, so
do not touch! The airbags inflate only
once. The windshield may be damaged by
absorbing some of the force of the inflat-
ing airbag.CAUTION
The driver or front passenger who is
too close to the steering wheel or
dashboard during airbag deployment
can be killed or seriously injured.
Toyota strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants be properly
restrained using the available seat
belts.
If the seat belt extender has been
connected to the driver ’s seat belt
buckle without the driver actually
wearing the seat belt, the SRS driv-
er ’s airbag system will judge that
the driver is wearing it. In this
case, the driver ’s airbag may not
activate correctly, causing death or
serious injury in the event of colli-
sion. Be sure to wear the seat belt
with the seat belt extender.
For instructions and precautions con-
cerning the seating position, see
“—Front seat precautions” on page
48 in this Section.

912007 TUNDRA from Jul. ’07 Prod. (OM34463U)
XS13018
Do not sit on the edge of the seat
or lean against the dashboard when
the vehicle is in use, since the
front passenger airbag could inflate
with considerable speed and force.
Anyone who is up against, or very
close to, an airbag when it inflates,
can be killed or seriously injured.
Sit up straight and well back in the
seat, and always use your seat belt
properly.
XS13019
Toyota strongly recommends that all
infants and children be placed in
the rear seat of the vehicle and be
properly restrained.
Do not hold a child on your lap or
in your arms. Use a child restraint
system in the rear seat. For instruc-
tions concerning the installation of
a child restraint system, see “Child
restraint” on page 114 in this Sec-
tion.
XS13022b
Do not put anything or any part of
your body on or in front of the
dashboard or steering wheel pad
that houses the front airbag sys-
tem. They might restrict inflation or
cause death or serious injury as
they are projected rearward by the
force of the deploying airbags. Like-
wise, the driver and front passenger
should not hold objects in their
arms or on their knees.
