DRIVE SHAFT ASSEMBLY
FRONT AXLE26-16
<>RH DRIVE SHAFT/DRIVE SHAFT AND
INNER SHAFT ASSEMBLY REMOVAL
1. Use special tools MB990242, MB990244, MB991354 and
MB990767 to push out the drive shaft or the drive shaft and
inner shaft assembly from the hub.
2. Remove the drive shaft from the hub by pulling the bottom of
the brake disc towards you.
Do not pull on the drive shaft; doing so will damage the
PTJ; be sure to use the pry bar.
When pulling the drive shaft out from the transaxle, be
careful that the spline part of the drive shaft does not
damage the oil seal.
3. Insert a pry bar between the transaxle case and the drive
shaft, and then pry and remove the drive shaft from the
transaxle.
NOTE: Insert a pry bar, taking care not to damage the pro-
trusion of transaxle case when removing the drive shaft LH.

DRIVE SHAFT ASSEMBLY
FRONT AXLE26-17
4. If the inner shaft is hard to remove from the transaxle, strike
the bracket assembly lightly with a plastic hammer and
remove the inner shaft.
Do not apply pressure to the wheel bearing by the vehicle
weight to avoid possible damage when the drive shaft is
removed. If, however, vehicle weight must be applied to
the bearing to move the vehicle, temporarily secure the
wheel bearing by using special tools MB991000 and
MB990998.
INSTALLATION SERVICE POINTS
.
>>A<< DRIVE SHAFT AND INNER SHAFT ASSEM-
BLY RH DRIVE SHAFT INSTALLATION
When installing the drive shaft or the drive shaft and inner
shaft assembly, be careful that the spline part of the drive
shaft or the drive shaft and inner shaft assembly do not
damage the oil seal.
.
>>B<< DRIVE SHAFT NUT INSTALLATION
1. Be sure to install the drive shaft washer in the specified
direction.
Before securely tightening the drive shaft nuts, make sure
there is no load on the wheel bearings. Otherwise the
wheel bearing will be damaged.
2. Using special tool MB990767, tighten the drive shaft nut to
the specified torque.
Tightening torque: 226
29 Nm (167 21 ft-lb)

DRIVE SHAFT ASSEMBLY
FRONT AXLE26-18
DISASSEMBLY AND ASSEMBLYM1261003700490
For vehicles with ABS, be careful not to damage the ABS rotor, which is attached to the BJ outer
race during disassembly and reassembly.
Never disassemble the BJ assembly except when replacing the BJ boot.
NOTE: .
PTJ: Pillow Tripod Joint

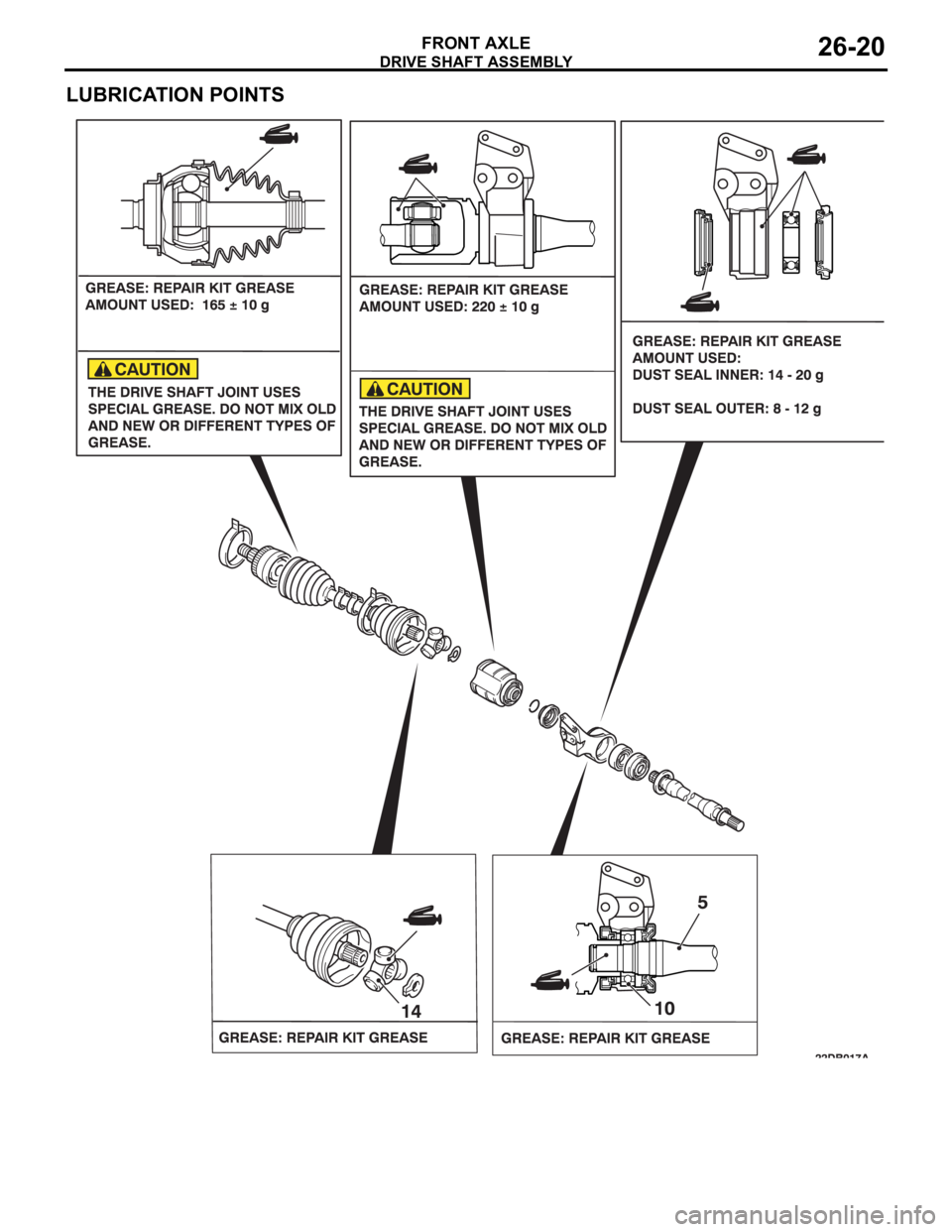

DISASSEMBLY STEPS
>>G<<1. PTJ BOOT BAND (LARGE)
>>G<<2. PTJ BOOT BAND (SMALL)
3. PTJ CASE AND INNER SHAFT
ASSEMBLY RH

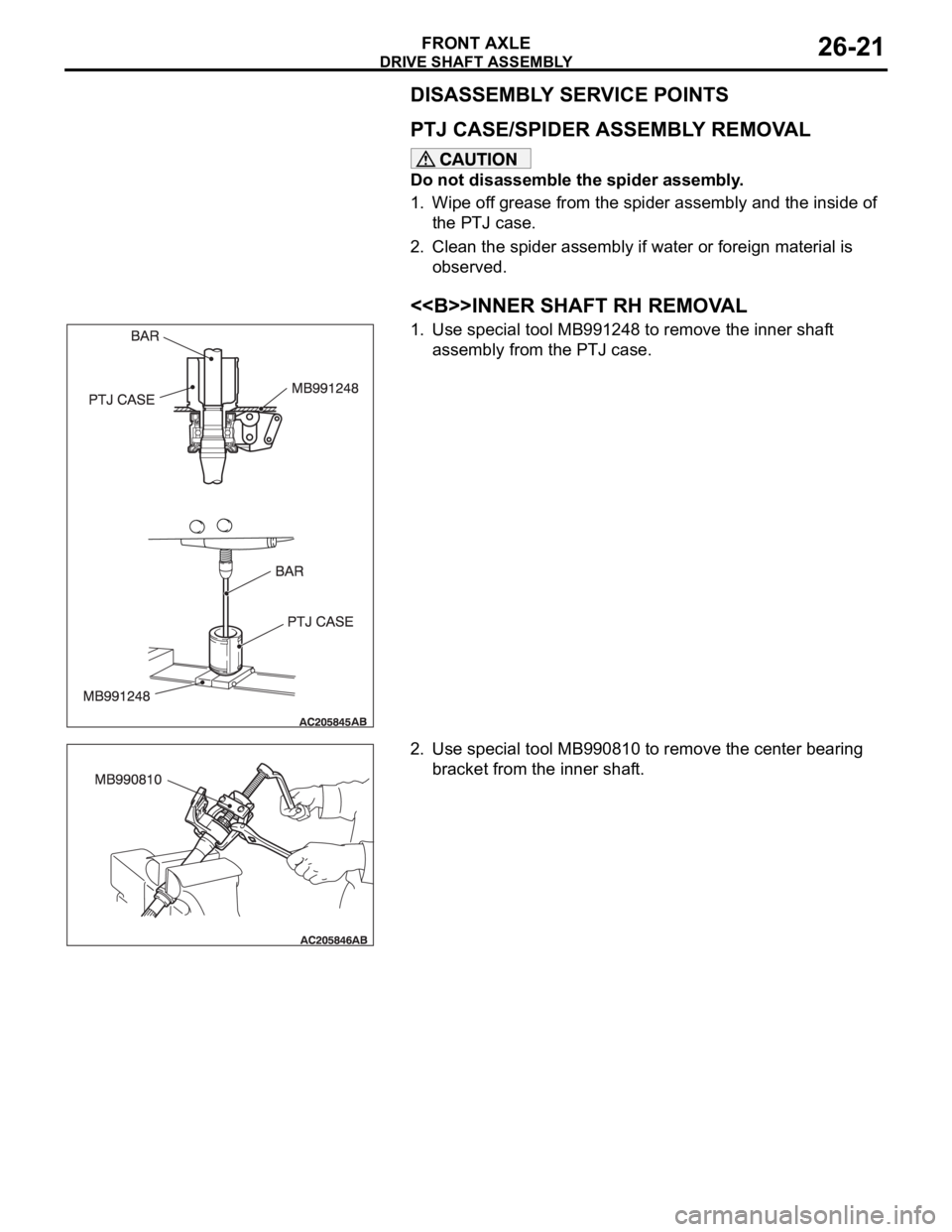

<> >>F<<4. PTJ CASE
<> >>E<<5. INNER SHAFT RH
6. DUST COVER RH
7. BRACKET ASSEMBLY RH
>>D<<8. DUST SEAL OUTER RH
>>D<<9. DUST SEAL INNER RH
<> >>C<<10. CENTER BEARING RH11. CENTER BEARING BRACKET RH
12. CIRCLIP
13. SNAP RING

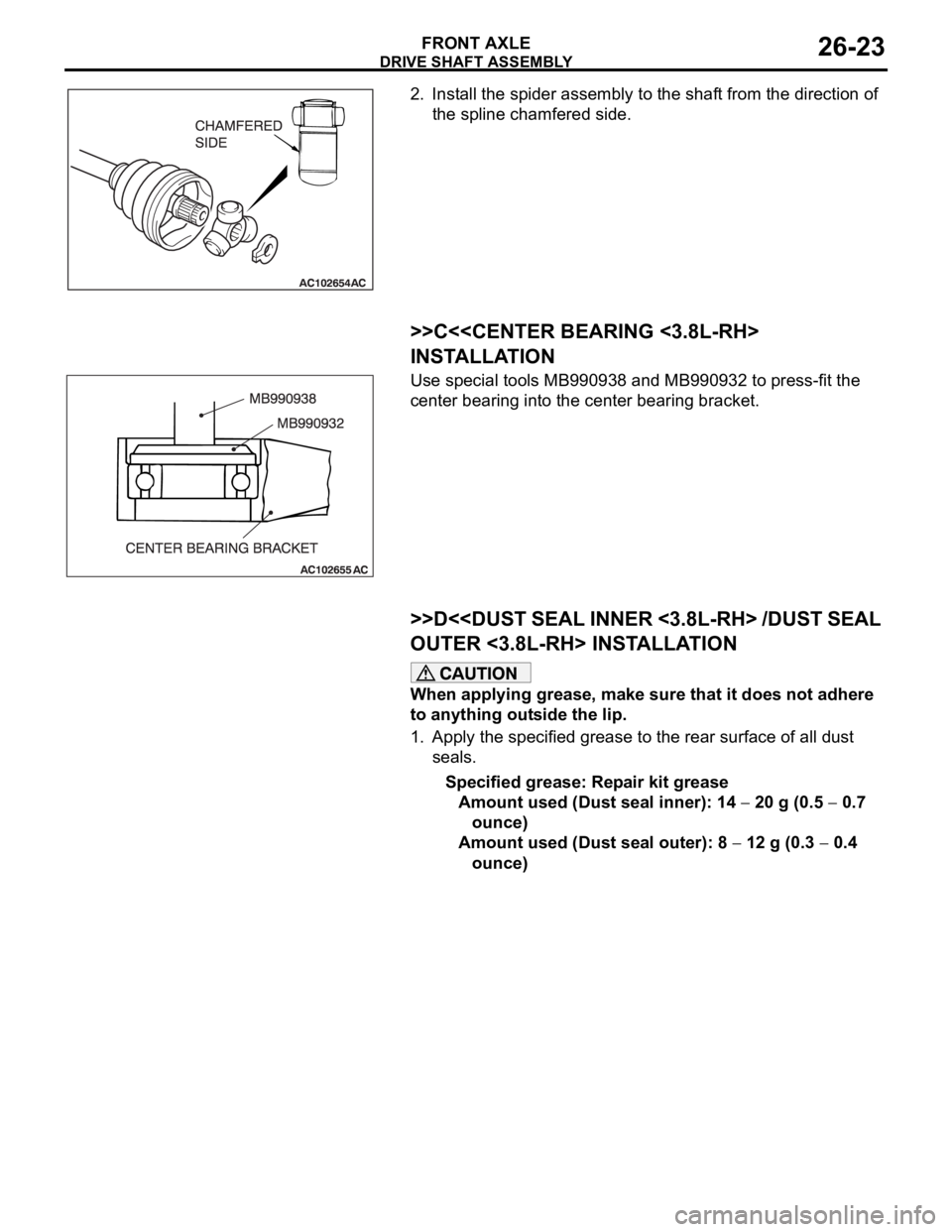

<> >>B<<14. SPIDER ASSEMBLY
<> >>A<<15. PTJ BOOT
19. BJ ASSEMBLY
20. BJ BOOT BAND (SMALL)
21. BJ BOOT BAND (LARGE)
22. BJ BOOTDISASSEMBLY STEPS
