2005 MITSUBISHI 380 Workshop Manual

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-361
STEP 1. Use diagnostic tool MB991958 to select "ECU
COMM Check" on the SWS monitor display.
Check the ETACS-ECU.
To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958. Connect special tool MB991910 before con-
necting special tool MB991812. Be sure to connect special
tool MB991806 after turning on special tool MB991824.
(1) Connect the special tool. Refer to "How to connect SWS
monitor P.54B-13."
(2) Turn the ignition switch to the "LOCK" (OFF) position.
(3) Operate diagnostic tool MB991958 according to the
procedure below to display "ECU COMM Check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "ECU COMM Check."
(4) Diagnostic tool MB991958 should show "OK" on the "ECU
COMM Check" menu for the "ETACS ECU" menu.
Q: Is "OK" displayed for the "ETACS ECU" menu?
YES : Go to Step 2.
NO : Refer to Inspection Procedure A-3 "Communication
with the ETACS-ECU is not possible P.54B-74."

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-362
STEP 2. Check the input signal by using "DATA LIST"
menu of the SWS monitor.
Check the input signals from the following switches:
Ignition switch: ON or START
Driver’s or front passenger’s door: open
(1) Operate diagnostic tool MB991958 according to the
procedure below to display "ETACS ECU."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "Data List."
f. Select "ETACS ECU."
(2) Check that normal conditions are displayed for the items
described in the table below.
Q: Does the diagnostic tool MB991958 display the items
"IG SW (IG1)" and "FRONT DOOR SW" as normal
condition?
Normal conditions are displayed for all the items : Go to
St e p 3 .
Normal condition is not displayed for "IG SW (IG1)" :
Refer to Inspection Procedure M-2 "ETACS-ECU
does not receive any signal from the ignition switch
(IG1) P.54B-408."
Normal condition is not displayed for "FRONT DOOR
SW" : Refer to Inspection Procedure M-4 "ETACS-ECU
does not receive any signal from the front door
switches P.54B-413." ITEM NO. ITEM NAME NORMAL CONDITION
ITEM 30 IG SW (IG1) ON
ITEM 32 FRONT DOOR SW ON

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-363
STEP 3. Check the input signal (by using the pulse check
mode of the monitor).
Check the following switches and input signals:
Key reminder switch
Interior lamp loaded signal
Door switches
(1) Operate diagnostic tool MB991958 according to the
procedure below to display "Pulse check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "Pulse Checking."
(2) Check if diagnostic tool MB991958 sounds or not.
Q: When the key reminder switch, any door switch or
interior lamp is operated, does diagnostic tool
MB991958 sound?
Buzzer of diagnostic tool MB991958 sounds normally. :
Go to Step 4.
Diagnostic tool MB991958 does not sound when the
ignition key is removed and reinserted : Refer to
Inspection Procedure N-1 "ETACS-ECU does not
receive any signal from the key reminder switch
P.54B-432."
When one of the interior lamps is illuminated,
diagnostic tool MB991958 does not sound : Refer to
Inspection Procedure N-9 "ETACS-ECU does not
receive any interior lamp loaded signal P.54B-474."
When one of the doors is opened and closed,
diagnostic tool MB991958 does not sound : Refer to
Inspection Procedure N-3 "ETACS-ECU does not
receive any signal from any of the door switches
P.54B-440." ITEM NAME CONDITION
key reminder switch Remove and reinsert the ignition
key
interior lamp loaded
signalTurn on one of the interior lamps
door switches Open or close one of the doors

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-364
STEP 4. Check ETACS-ECU connector C-219 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-219 in good condition?
YES : Go to Step 5.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2. Verify that the dome lamp illuminates
normally.
STEP 5. Check the wiring harness between map lamp
assembly connector D-02 (terminal 1)
or overhead console assembly connector D-03 (terminal 1)
and ETACS-ECU connector C-219 (terminal
6).

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-365
NOTE: Also check junction block connector C-205 for loose,
corroded, or damaged terminals, or terminals pushed back in
the connector. If junction block connector C-205 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection P.00E-2.
Q: Is the wiring harness between map lamp assembly
connector D-02 (terminal 1) or
overhead console assembly connector D-03 (terminal 1)
and ETACS-ECU connector C-219
(terminal 6) in good condition?
YES : Replace the ETACS-ECU. Verify that the dome lamp
illuminates normally.
NO : The wiring harness may be damaged or the
connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the dome lamp illuminates normally.

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-366
INSPECTION PROCEDURE K-2: Interior Light: The front dome lamp, rear dome lamp or trunk lamp do
not illuminate or go out normally.
.
CIRCUIT OPERATION
The ETACS-ECU operates the dome lamp according
to the following signals:
Ignition switch (IG1): ON or OFF
Key reminder switch: ON or OFF
Door switches: ON or OFF
Trunk lid latch assembly: ON or OFF
Driver’s door lock actuator switch: LOCK or
UNLOCK
.

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-367
TECHNICAL DESCRIPTION (COMMENT)
Is the dome lamp does not flash normally, a
burned-out dome lamp bulb, the input circuits from
the switches described in "CIRCUIT OPERATION",
the power supply line to the switches or the
ETACS-ECU may be defective.
.
TROUBLESHOOTING HINTS
Refer to circuit diagrams GROUP-90
Refer to configuration diagrams GROUP-80
The front dome lamp bulb may be defective
The rear dome lamp bulb may be defective
The trunk lamp bulb may be defective
The wiring harness or connectors may have
loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector
The ETACS-ECU may be defective

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-368
DIAGNOSIS
Required Special Tools:
MB991223: Harness Set
MB991958: Diagnostic Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.)
MB991827: MUT-III USB Cable
MB991910: MUT-III Main Harness A
STEP 1. Check which of the front dome lamp, rear dome
lamp or trunk lamp do not illuminate normally.
Q: Which of the front dome lamp, rear dome lamp or trunk
lamp fail to illuminate normally?
Front dome lamp and rear dome lamp : Go to Step 2.
Front dome lamp : Go to Step 4.
Rear dome lamp : Go to Step 9.
Tru n k l am p : Go to Step 14.

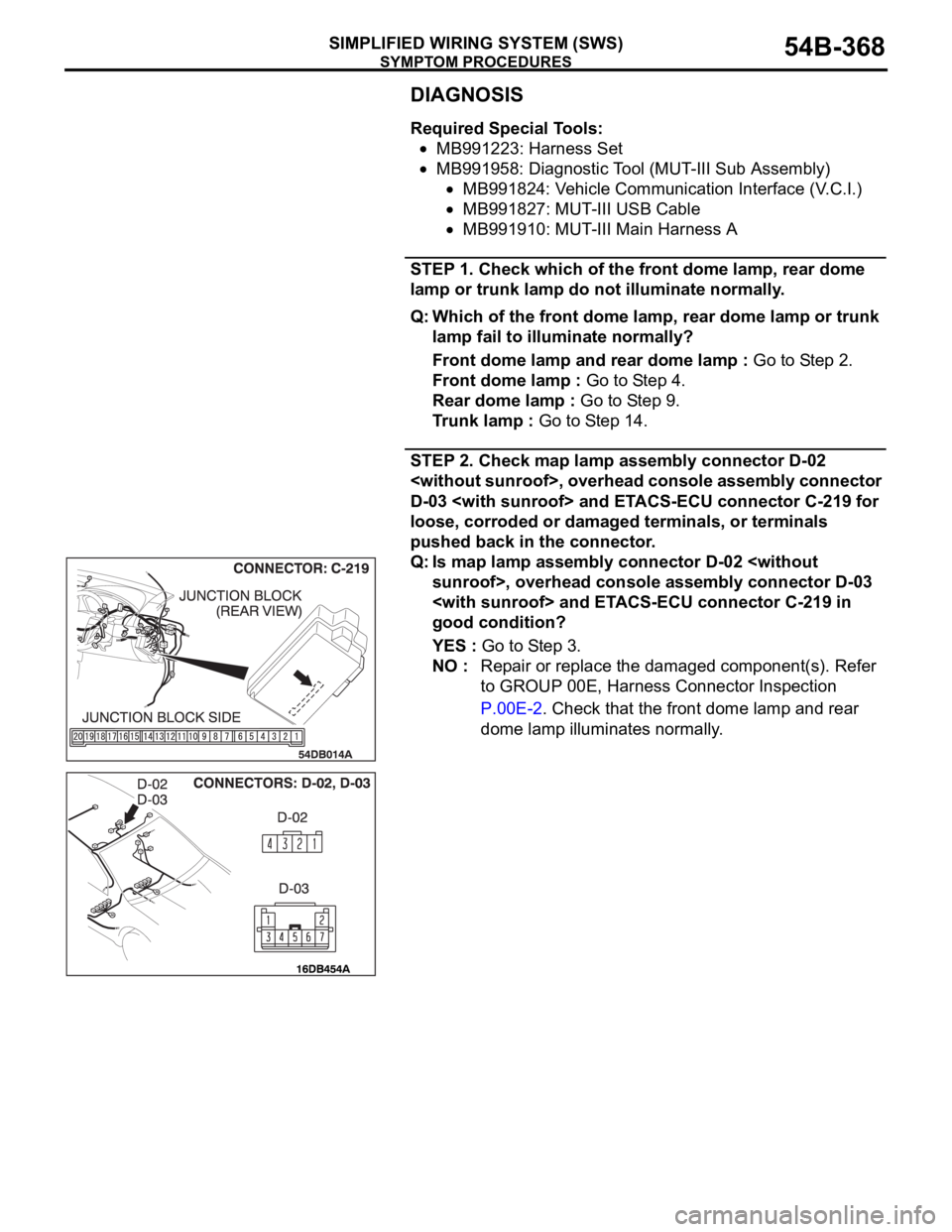

STEP 2. Check map lamp assembly connector D-02
, overhead console assembly connector
D-03 and ETACS-ECU connector C-219 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is map lamp assembly connector D-02 sunroof>, overhead console assembly connector D-03
and ETACS-ECU connector C-219 in
good condition?
YES : Go to Step 3.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2. Check that the front dome lamp and rear
dome lamp illuminates normally.
