WINDSHIELD WIPER AND WASHER
EXTERIOR51-16
If the windshield intermittent wiper interval control is operated,
the wiper interval should change.
To prevent damage to diagnostic tool, always turn the igni-
tion switch to the "LOCK" (OFF) position before connect-
ing or disconnecting.
1. Connect diagnostic tool to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Operate diagnostic tool according to the procedure below to
display "Simulated Vehicle Speed Output."
(1) Select "SYSTEM SELECT."
(2) Select "SWS."
(3) Select "Simulated Vehicle Speed Output."
4. Holding the windshield intermittent wiper interval control,
input the simulated vehicle speed with diagnostic tool and
check that the wiper interval changes as the vehicle speed
changes.
5. If not, carry out the troubleshooting (Refer to GROUP 54B,
SWS Diagnosis P.54B-57).
WINDSHIELD WASHER FLUID SPRAY CHECKM1511018400060
The windshield washer nozzle aiming cannot be adjusted. If the
washer nozzles do not spray washer fluid within the windshield
wiper wiping area, check the nozzles as follows:
1. Check that the windshield washer nozzles are fitted on the
hood correctly, and reinstall them if necessary.
2. If the windshield washer nozzles are damaged, replace
them (Refer to P.51-23).

WINDSHIELD WIPER AND WASHER
EXTERIOR51-17

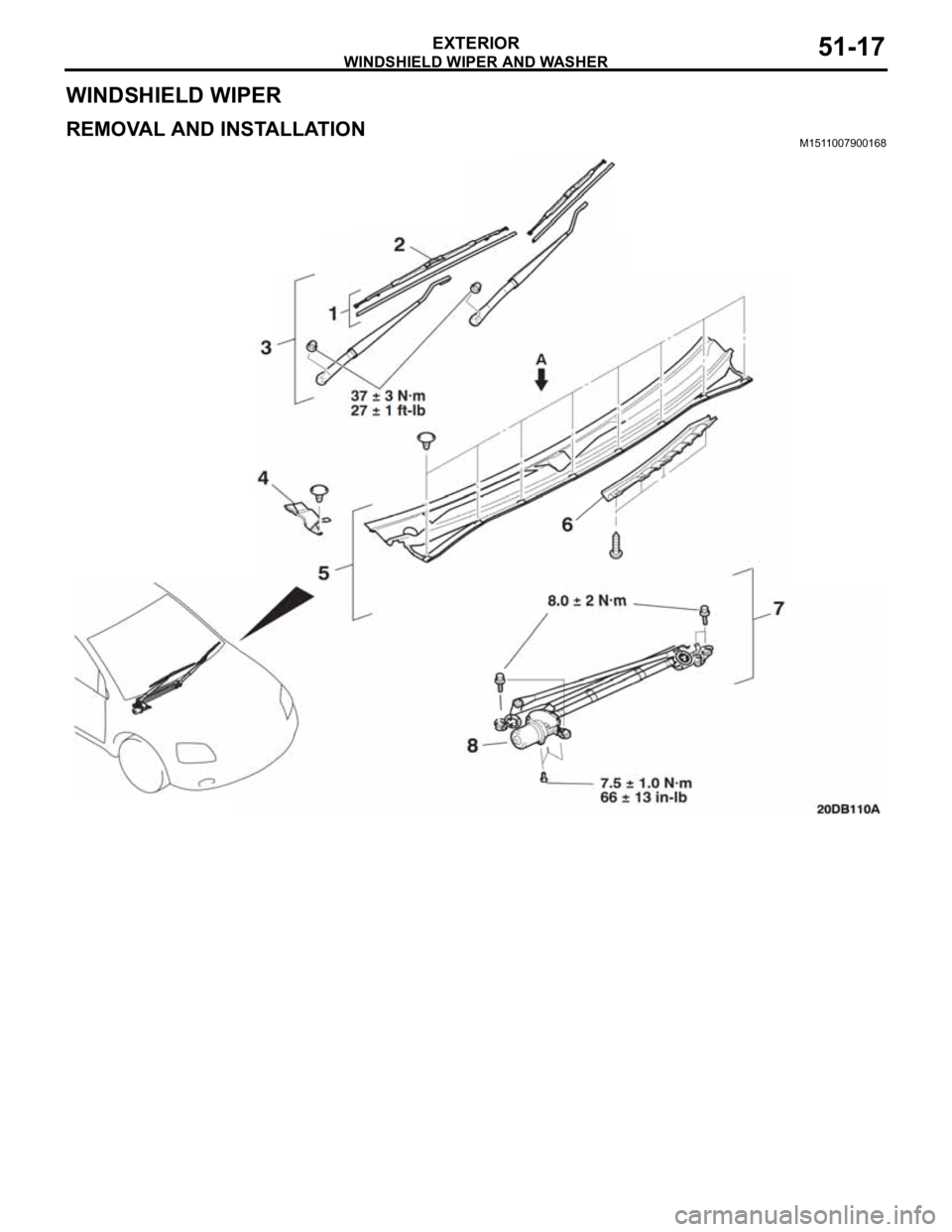

WINDSHIELD WIPER
REMOVAL AND INSTALLATIONM1511007900168

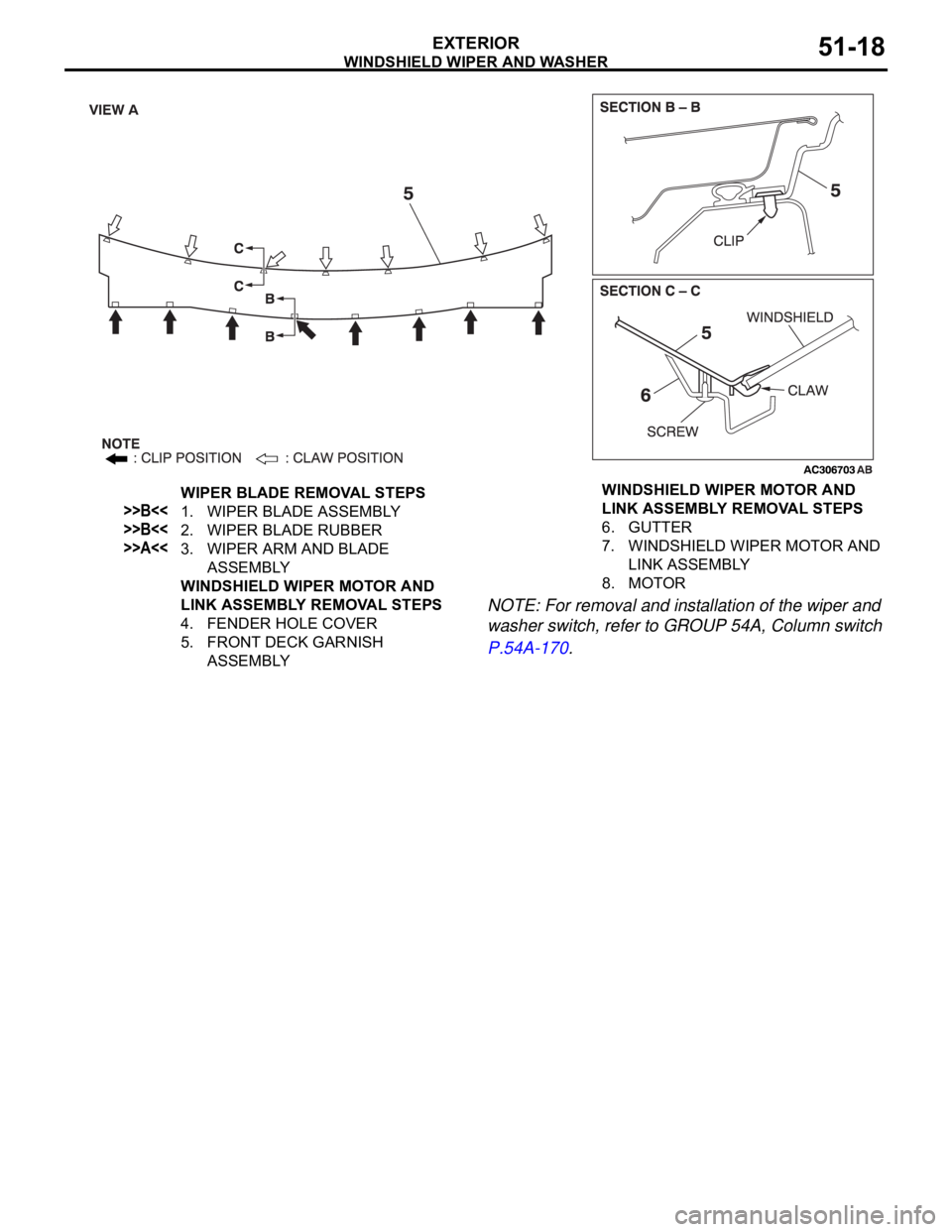

WINDSHIELD WIPER AND WASHER
EXTERIOR51-18
NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch
P.54A-170.
WIPER BLADE REMOVAL STEPS
>>B<<1. WIPER BLADE ASSEMBLY
>>B<<2. WIPER BLADE RUBBER
>>A<<3. WIPER ARM AND BLADE
ASSEMBLY
WINDSHIELD WIPER MOTOR AND
LINK ASSEMBLY REMOVAL STEPS
4. FENDER HOLE COVER
5. FRONT DECK GARNISH
ASSEMBLY6. GUTTER
7. WINDSHIELD WIPER MOTOR AND
LINK ASSEMBLY
8. MOTOR WINDSHIELD WIPER MOTOR AND
LINK ASSEMBLY REMOVAL STEPS

WINDSHIELD WIPER AND WASHER
EXTERIOR51-19
INSTALLATION SERVICE POINTS
.

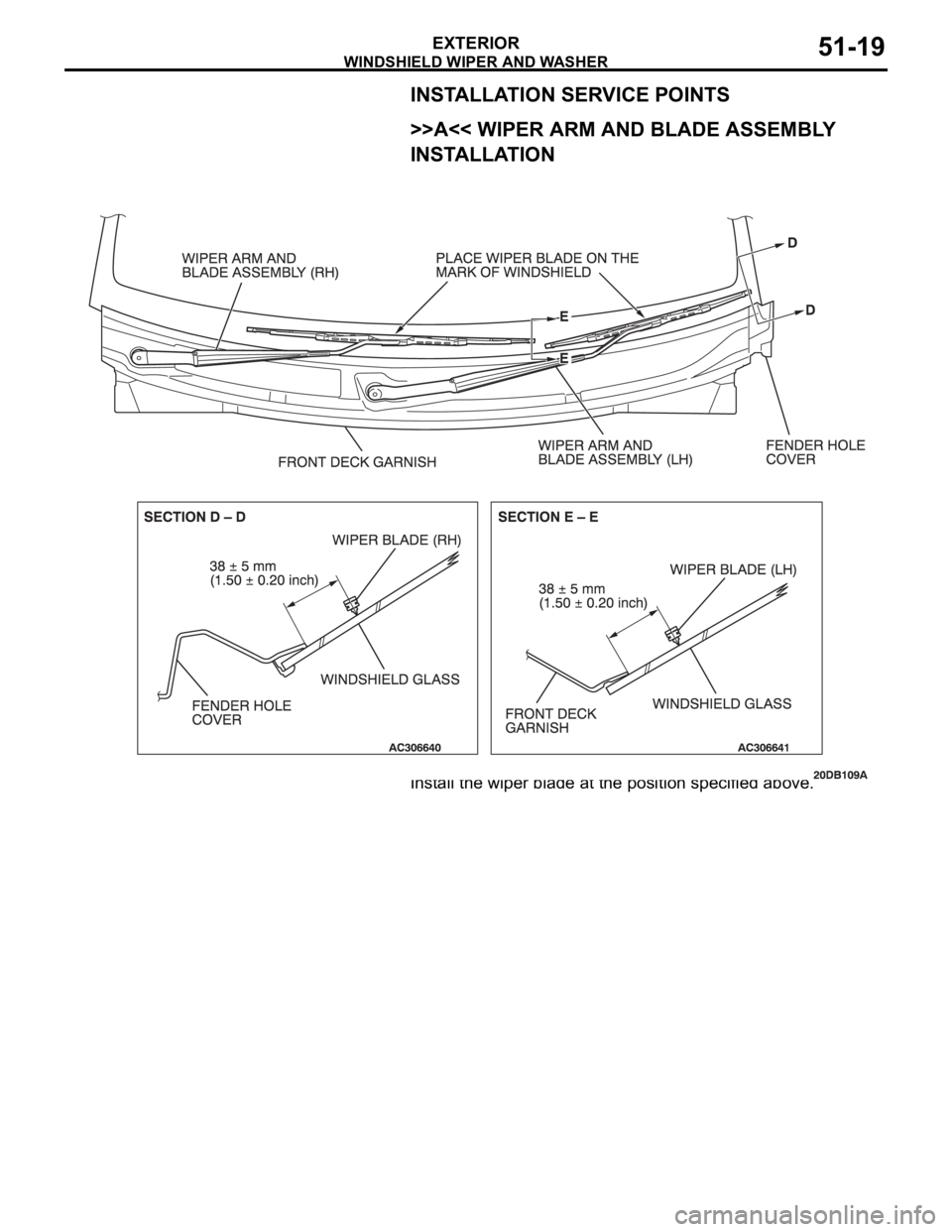

>>A<< WIPER ARM AND BLADE ASSEMBLY
INSTALLATION
Install the wiper blade at the position specified above.
.

WINDSHIELD WIPER AND WASHER
EXTERIOR51-20

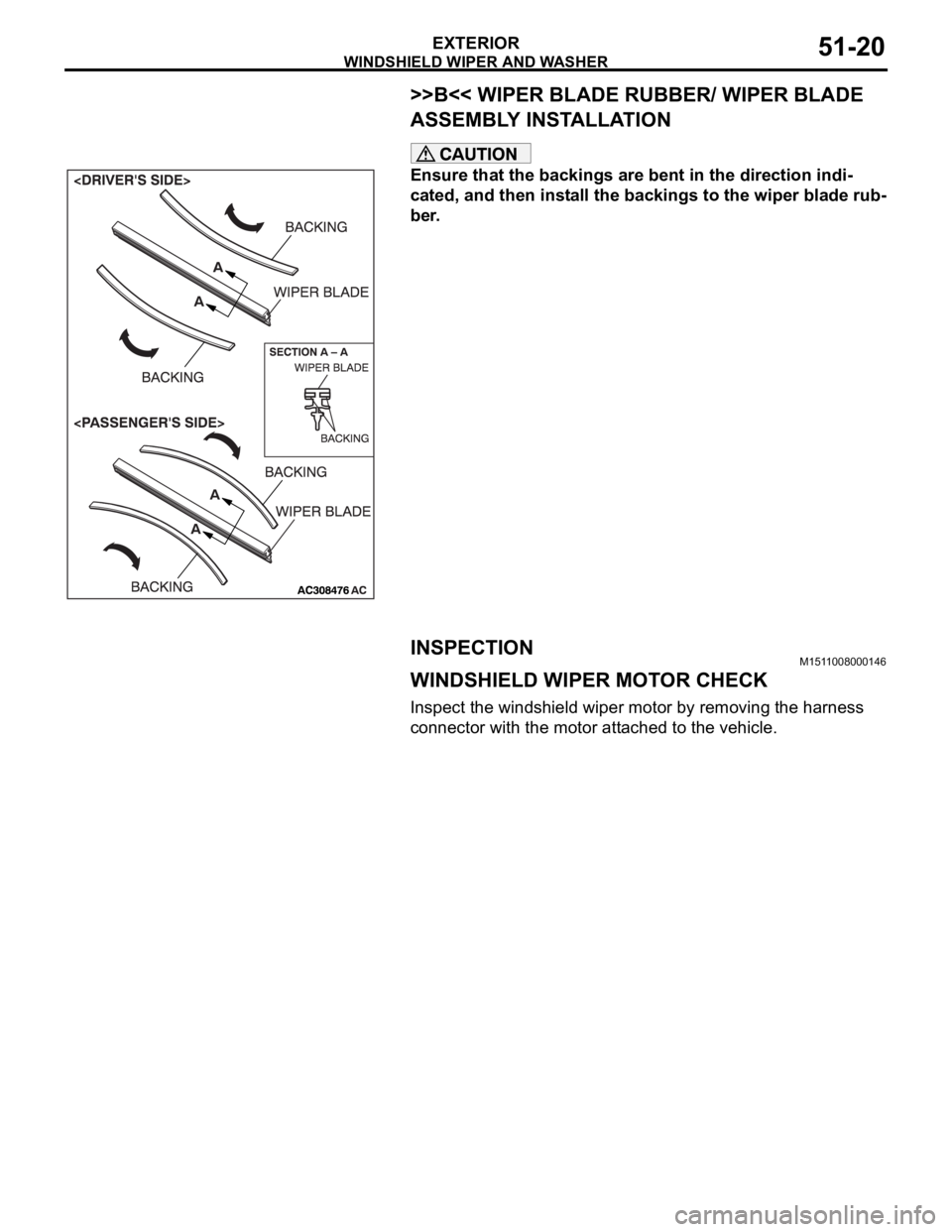

>>B<< WIPER BLADE RUBBER/ WIPER BLADE
ASSEMBLY INSTALLATION
Ensure that the backings are bent in the direction indi-
cated, and then install the backings to the wiper blade rub-
ber.
INSPECTIONM1511008000146
WINDSHIELD WIPER MOTOR CHECK
Inspect the windshield wiper motor by removing the harness
connector with the motor attached to the vehicle.
.

WINDSHIELD WIPER AND WASHER
EXTERIOR51-21
Wiper Motor at Low-Speed and High-Speed
Operation
Connect the battery to the windshield wiper motor to inspect
the operation of motor rotation in low or high speed.
.
Wiper Motor at Stop Position Operation
1. Connect the battery to the windshield wiper motor as shown
in the illustration (A).
2. Run the windshield wiper motor at low speed, then
disconnect the battery in the middle of the motor turning and
check to see that the motor stops.
3. As shown in the illustration (B), connect the terminals of the
windshield wiper motor connectors.
4. Check to see that the windshield wiper motor runs at low
speed and then stops at the automatic stop position.

WINDSHIELD WIPER AND WASHER
EXTERIOR51-22
WINDSHIELD WIPER SWITCH CHECK
Check continuity between the switch terminals.
WINDSHIELD INTERMITTENT WIPER INTERVAL
CHECK
Check that the resistance varies between 0 and 1 kiloohm
when the windshield intermittent interval is turned from FAST to
SLOW by after measuring resistance between connector termi-
nals 27 and 28 at the column switch.SWITCH POSITION TESTER
CONNECTIONSPECIFIED
CONDITION
OFF 23
32, 23 31,
23
30, 23 21Open circuit
Windshield mist wiper
switch23
32 Less than 2 ohms
Windshield
intermittent wiper
switch23
31
Windshield low-speed
wiper switch23
30
Windshield
high-speed wiper
switch21
23

WINDSHIELD WIPER AND WASHER
EXTERIOR51-23
WINDSHIELD WASHER
REMOVAL AND INSTALLATIONM1511008200270

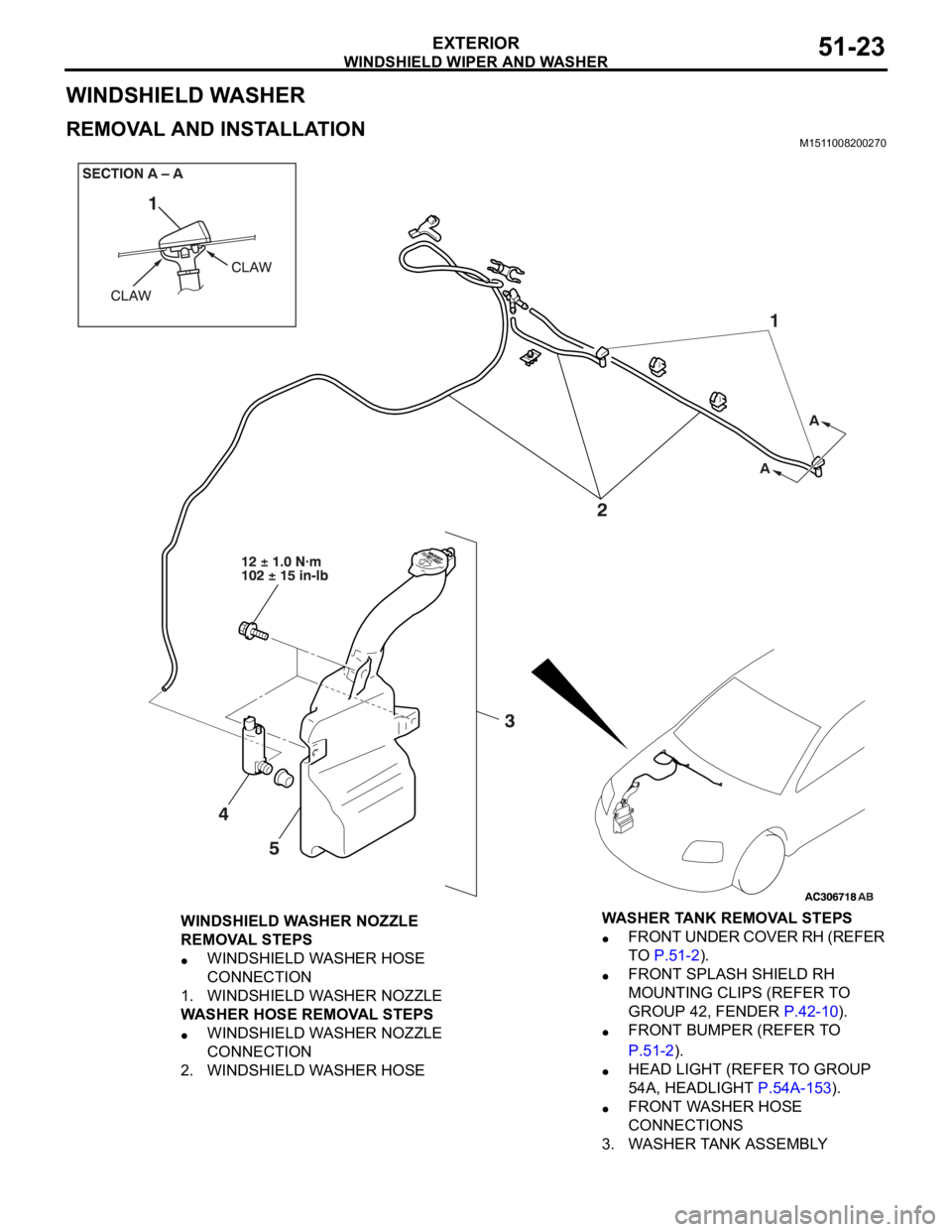

WINDSHIELD WASHER NOZZLE
REMOVAL STEPS
WINDSHIELD WASHER HOSE
CONNECTION
1. WINDSHIELD WASHER NOZZLE
WASHER HOSE REMOVAL STEPS
WINDSHIELD WASHER NOZZLE
CONNECTION
2. WINDSHIELD WASHER HOSEWASHER TANK REMOVAL STEPS
FRONT UNDER COVER RH (REFER
TO P.51-2).
FRONT SPLASH SHIELD RH
MOUNTING CLIPS (REFER TO
GROUP 42, FENDER P.42-10).
FRONT BUMPER (REFER TO
P.51-2).
HEAD LIGHT (REFER TO GROUP
54A, HEADLIGHT P.54A-153).
FRONT WASHER HOSE
CONNECTIONS
3. WASHER TANK ASSEMBLY
