Page 531 of 1500
FRONT SEAT ASSEMBLY
INTERIOR52A-42
REMOVAL SERVICE POINT
.
<> HEADREST REMOVAL
1. Raise the head restraint fully.
2. Insert a probe that is suited to fit into the hole (1) in the right
hand head restraint sleeve (2) as illustrated in the figure
below.
3. Whilst the probe is inserted slightly, apply slight pressure on
the head restraint. Apply and hold pressure upwards.
4. To remove the head restraint, you must depress the sleeve
height adjuster lock (3) on the left-hand head restraint
sleeve as illustrated below.
<> HEADREST SLEEVE REMOVAL
1. To reveal upper portion of the seat back frame or
active head restraint frame (1) as shown in figure
below, push down on the surrounding seat cover.
2. By using a small flat blade screwdriver, depress
the sleeve locking tab (2), and remove the head
restaint sleeve (3) in upwards movement from the
frame as illustrated below.
3. If required, repeat process for the remaining
sleeve.
<> SEAT BACK PANEL REMOVAL
AND FITMENT
1. Move front seat to the most forward position.
2. Pull the lower edge of seat panel towards you, as
shown below (1).
3. Slide the panel downwards (2) as the top section
is held in by 2 locating hooks (lugs).
4. Upon fitment, be sure to firstly locate the top 2
lugs into position (2), as shown above.
5. Approximately square up panel to the seat, so by
doing this you will be able to locate the bottom 2
clips to press in the panel (1), as shown above.
Page 533 of 1500

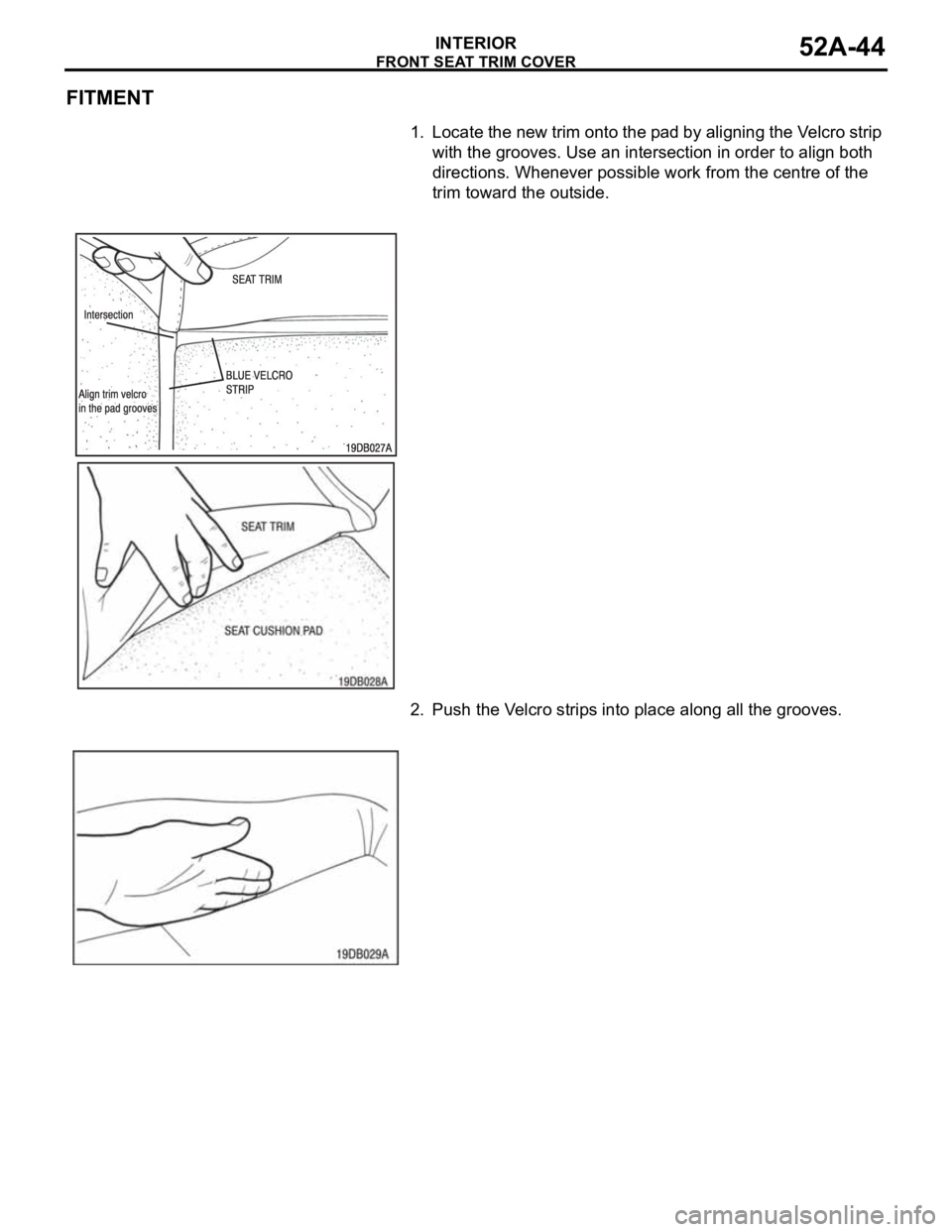

FRONT SEAT TRIM COVER
INTERIOR52A-44
FITMENT
.
1. Locate the new trim onto the pad by aligning the Velcro strip
with the grooves. Use an intersection in order to align both
directions. Whenever possible work from the centre of the
trim toward the outside.
2. Push the Velcro strips into place along all the grooves.
Page 536 of 1500
REAR SEAT CUSHION TRIM COVER
INTERIOR52A-47
REAR SEAT CUSHION TRIM FITMENT
.
1. Locate the new trim onto the pad by aligning the Velcro strip
with the grooves. Use an intersection in order toalign both
directions. Whenever possible work from the centre of the
trim toward the outside.
2. Pull the cover around the sides of the pad.
3. Pull trim through the seat belt slots as shown and attach to
wires
Page 540 of 1500
REAR SEAT BACK TRIM COVER
INTERIOR52A-51
REAR SEAT BACK TRIM FITMENT
.
1. Fit the trim over the lower wire brackets.
2. Locate the new trim onto the pad by aligning the Velcro strip
with the grooves. Use an intersection in order to align both
directions. Whenever possible work from the centre of the
trim toward the outside.
3. When all the grooves are aligned pull the cover over the
pad.
Page 852 of 1500
HEATER UNIT, HEATER CORE, BLOWER ASSEMBLY AND EVAPORATOR UNIT
HEATER, AIR CONDITIONING AND VENTILATION55-151
HEATER UNIT, HEATER CORE, BLOWER ASSEMBLY AND
EVAPORATOR UNIT
REMOVAL AND INSTALLATIONM1552021400012
Before removing the front seat assembly, refer to GROUP 52B, Service Precautions
P.52B-16 and Air Bag Module and Clock Spring P.52B-237.
Pre-removal and Post-installation Operation
Refrigerant draining and Refilling (Refer to Charging and
Discharging P.55-142).
Engine coolant Draining and Refilling (Refer to GROUP
00, Engine coolant P.00-47).
Instrument Panel Removal and Installation (Refer to
GROUP 52A, Instrument Panel P.52A-4).
Steering Column Shaft Assembly Removal and Installa-
tion (Refer to GROUP 37A, Steering ShaftP.37-25).
Floor Console Removal and Installation (Refer to GROUP
52A, Floor Console P.52A-10).
Front Seat Assembly Removal and Installation (Refer to
GROUP 52A, Front Seat P.52A-21).
² Strut Tower Bar (Refer to GROUP 42, Removal And
InstallationP.42-12.)
REMOVAL STEPS
BATTERY
AIR CLEANER BODY (REFER TO
GROUP 15, AIR CLEANER
P.15-4.)
1. HEATER HOSE CONNECTION
<>2. SUCTION PIPE CONNECTION
<>3. LIQUID PIPE CONNECTION
4. O-RING
REAR HEATER DUCT A AND B
(REFER TO P.55-175.)
5. JUNCTION BLOCKREMOVAL STEPS (Continued)
Page 869 of 1500
Page 942 of 1500
ON-VEHICLE SERVICE
ENGINE COOLING14-27
RADIATOR CAP PRESSURE CHECKM1141001300419
NOTE: Be sure that the cap is clean before testing. Rust or
other foreign material on the cap seal will cause an improper
reading.
1. Use a cap adapter to attach the cap to the tester.
2. Increase the pressure until the indicator of the gauge stops
moving.
Minimum limit: 83 kPa (12 psi)
Standard value: 93
123 kPa (14 18 psi)
3. Replace the radiator cap if the reading does not remain at or
above the limit.
ENGINE COOLANT REPLACEMENTM1141001200478
When removing the radiator cap, use care to avoid
contact with hot coolant or steam. Place a shop towel
over the cap and turn the cap counterclockwise a lit-
tle to let the pressure escape through the vinyl tube.
After relieving the steam pressure, remove the cap by
slowly turning it counterclockwise.
1. Drain the water from the radiator, heater core and engine
after unplugging the radiator drain plug and removing the
radiator cap.
Page 950 of 1500
THERMOSTAT
ENGINE COOLING14-35
THERMOSTAT
REMOVAL AND INSTALLATIONM1141002400475
Pre-removal and Post-installation Operation
Engine Coolant Draining and Refilling (Refer to 27).
Engine Cover Removal and Installation (Refer to GROUP
11C, Engine Assembly 11A-14).
Engine Control Unit (ECU) Removal and Installation
(Refer to GROUP 00, General 00-7).
Air Cleaner Removal and Installation (Refer to GROUP
15, Air Cleaner 4).
Strut Tower Bar Removal and Installation (Refer to
GROUP 42, Strut Tower Bar 12).
Battery and Battery Tray Removal and Installation
REMOVAL STEPS
1. LEFT BANK HEATED OXYGEN
SENSOR (REAR) CONNECTOR
2. LEFT BANK HEATED OXYGEN
SENSOR (FRONT) CONNECTOR
3. RIGHT BANK HEATED OXYGEN
SENSOR (REAR) CONNECTOR
4. RIGHT BANK HEATED OXYGEN
SENSOR (FRONT) CONNECTOR
5. THROTTLE BODY ASSEMBLY
CONNECTOR
6. EVAPORATIVE EMISSION
PURGE SOLENOID CONNECTOR7. MANIFOLD ABSOLUTE
PRESSURE SENSOR
CONNECTOR
8. POWER STEERING PRESSURE
SWITCH CONNECTOR
9. CONTROL WIRING HARNESS
AND WIRING HARNESS
COMBINATION CONNECTOR
10. KNOCK SENSOR CONNECTOR
11. CRANKSHAFT POSITION
SENSOR CONNECTOR
13. INJECTOR CONNECTORREMOVAL STEPS (Continued)
