Removal (Ram Pickup)
1) EVAP leak detection pump and EVAP leak detection pump
filter must be replaced as an assembly. EVAP leak detection pump and
EVAP leak detection pump filter are located at passenger's side front
corner of engine compartment, near wheelwell. See Fig. 41.
2) Disconnect hose from bottom of EVAP leak detection pump
filter that goes to EVAP leak detection pump. Remove retaining bolt
and EVAP leak detection pump filter.
3) Disconnect electrical connector and vacuum hoses at EVAP
leak detection pump. Use care not to damage vacuum hoses during
removal. Remove retaining bolts and EVAP leak detection pump.
NOTE: Vacuum hoses and hose to EVAP leak detection pump filter must
be properly installed on EVAP leak detection pump and all
hoses must be in good condition. If hoses are not properly
installed or are damaged, a Diagnostic Trouble Code (DTC)
will be set in the Powertrain Control Module (PCM).
Installation
1) Install EVAP leak detection and EVAP leak detection pump
filter. Tighten retaining bolts to specification. See TORQUE
SPECIFICATIONS.
2) To install remaining components, reverse removal
procedure. Ensure vacuum hoses and hose to EVAP leak detection pump
filter are in good condition and properly installed on EVAP leak
detection pump.
Removal (Ram Van & Ram Wagon)
1) EVAP leak detection pump and EVAP leak detection pump
filter must be replaced as an assembly. EVAP leak detection pump and
EVAP leak detection pump filter are located on mounting bracket at
driver's side of engine compartment, near the wheelwell. See Fig. 42.
2) Disconnect electrical connector and vacuum hoses at EVAP
purge solenoid. Use care not to damage vacuum hoses during removal.
Remove EVAP purge solenoid from mounting bracket. Disconnect
electrical connector and vacuum hoses at EVAP leak detection pump. Use
care not to damage vacuum hoses during removal.
3) Remove retaining bolts from mounting bracket. Remove
mounting bracket with EVAP leak detection pump and EVAP leak detection
pump filter as an assembly. Remove retaining bolts, EVAP leak
detection pump and EVAP leak detection pump filter from mounting
bracket.
NOTE: All vacuum hoses and hose to EVAP leak detection pump filter
must be properly installed on EVAP leak detection pump and
all hoses must be in good condition. If hoses are not
properly installed or are damaged, a Diagnostic Trouble Code
(DTC) will be set in the Powertrain Control Module (PCM).
Installation
1) Install EVAP leak detection and EVAP leak detection pump
filter on mounting bracket. Tighten retaining bolts to specification.
See TORQUE SPECIFICATIONS.
2) To install remaining components, reverse removal
procedure. Ensure vacuum hoses and hose to EVAP leak detection pump
filter are in good condition and properly installed.

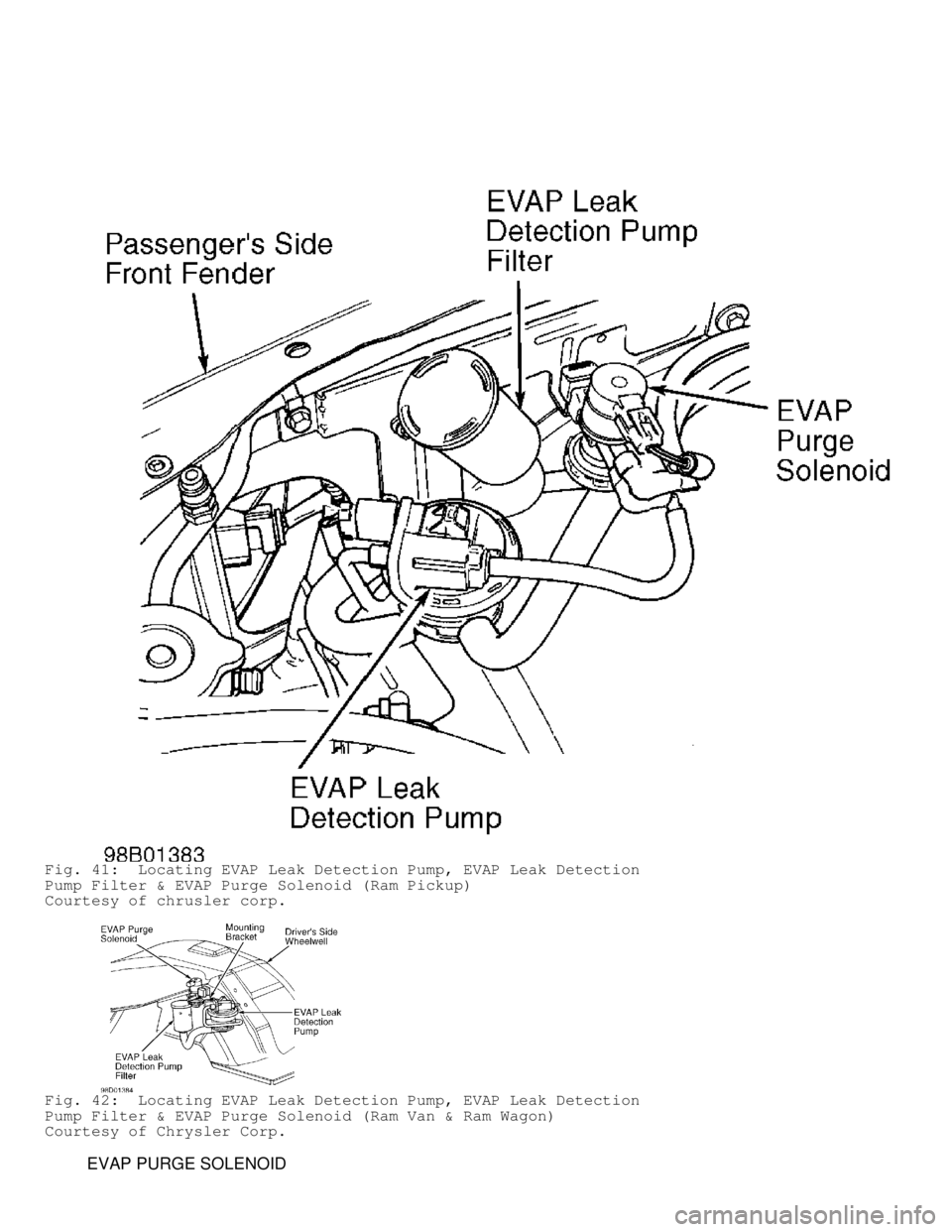

Fig. 41: Locating EVAP Leak Detection Pump, EVAP Leak Detection
Pump Filter & EVAP Purge Solenoid (Ram Pickup)
Courtesy of chrusler corp.
Fig. 42: Locating EVAP Leak Detection Pump, EVAP Leak Detection
Pump Filter & EVAP Purge Solenoid (Ram Van & Ram Wagon)
Courtesy of Chrysler Corp.
EVAP PURGE SOLENOID

NOTE: EVAP purge solenoid may also be referred to as EVAP canister
purge solenoid, duty cycle solenoid or proportional purge
solenoid.
Removal & Installation (Dakota & Durango)
1) On Dakota 2.5L, EVAP purge solenoid is located on firewall
at passenger's side of engine compartment. See Fig. 43. On Dakota 3.
9L, 5.2L and 5.9L and Durango, EVAP purge solenoid is located at
driver's side of engine compartment, near brake booster. See Fig. 44.
2) On all models, disconnect electrical connector and vacuum
hoses at EVAP purge solenoid. Use care not to damage vacuum hoses
during removal. Remove retaining nuts and EVAP purge solenoid.
3) To install, reverse removal procedure. Tighten retaining
nuts to specification. See TORQUE SPECIFICATIONS. Ensure vacuum hoses
are in good condition and properly installed.

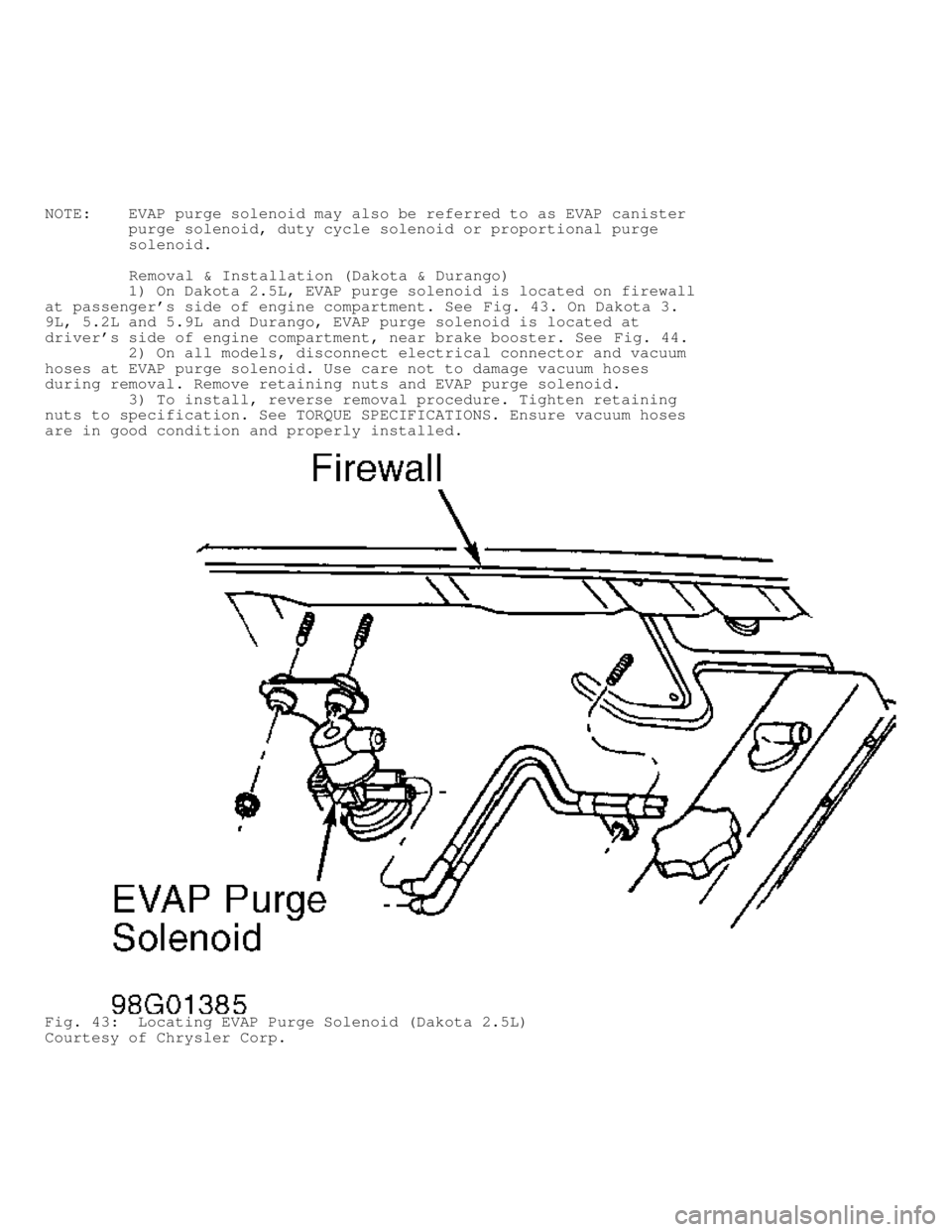

Fig. 43: Locating EVAP Purge Solenoid (Dakota 2.5L)
Courtesy of Chrysler Corp.

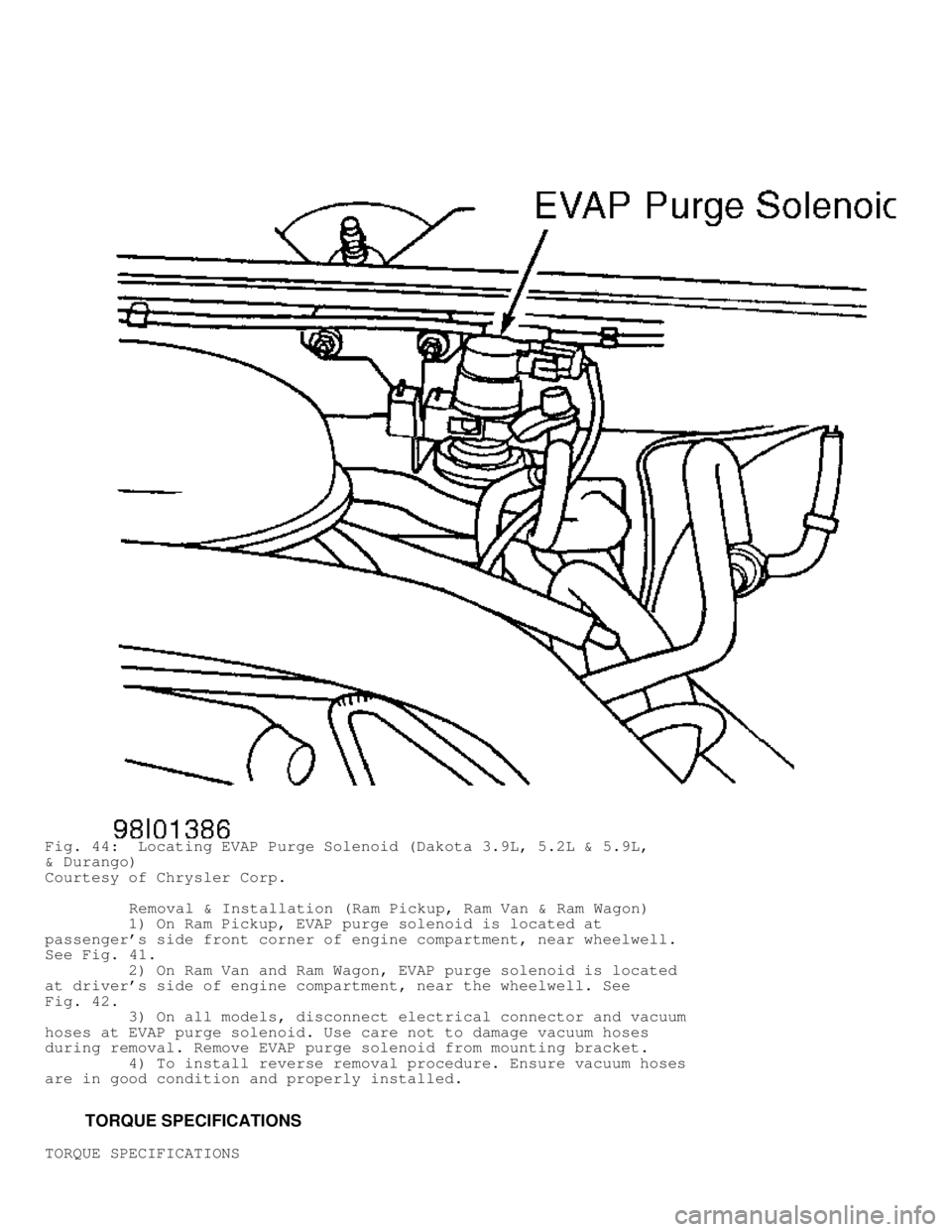

Fig. 44: Locating EVAP Purge Solenoid (Dakota 3.9L, 5.2L & 5.9L,
& Durango)
Courtesy of Chrysler Corp.
Removal & Installation (Ram Pickup, Ram Van & Ram Wagon)
1) On Ram Pickup, EVAP purge solenoid is located at
passenger's side front corner of engine compartment, near wheelwell.
See Fig. 41 .
2) On Ram Van and Ram Wagon, EVAP purge solenoid is located
at driver's side of engine compartment, near the wheelwell. See
Fig. 42 .
3) On all models, disconnect electrical connector and vacuum
hoses at EVAP purge solenoid. Use care not to damage vacuum hoses
during removal. Remove EVAP purge solenoid from mounting bracket.
4) To install reverse removal procedure. Ensure vacuum hoses
are in good condition and properly installed.
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS

\









\









\









\









\









\









\







Application Ft. Lbs. (N.m)\
Crankshaft Position Sensor Bolt
2.5L ..................................................... 14 (19)\
3.9L, 5.2L & 5.9L ............................................ (1)
8.0L ......................................................... ( 1)
Downstream Oxygen Sensor ................................... 22 (30)\
Distributor Hold-Down Bolt ................................. 17 (23)\
EVAP Canister-To-Mounting Bracket Nut
Dakota & Durango ......................................... 17 (23)\
Ram Pickup ................................................... ( 2)
Ram Van & Ram Wagon .......................................... ( 3)
Fuel Pump Module Lock Nut
Dakota ................................................... 40 (54)\
Ram Pickup ............................................... 32 (43)\
Ram Van & Ram Wagon ...................................... 40 (54)\
Fuel Rail Bolt
2.5L ......................................................... ( 4)
3.9L, 5.2L & 5.9L ........................................ 17 (23)\
8.0L ..................................................... 11 (15)\
Fuel Tank Strap Nut
Dakota & Durango ......................................... 40 (54)\
Ram Pickup ............................................... 30 (41)\
Ram Van & Ram Wagon .......................................... ( 5)
IAT Sensor ................................................. 20 (27)\
Park/Neutral Switch ........................................ 25 (34)\
Power Steering Pressure Switch (2.5L) ...................... 16 (22\
)
Spark Plug ................................................. 30 (41)\
Throttle Body Bolt
2.5L ......................................................... ( 4)
3.9L, 5.2L & 5.9L ........................................ 17 (23)\
Throttle Body Nut (8.0L) ................................... 16 (22\
)
Upper Intake Manifold Bolt (8.0L) ...................... ( 6) 16 (22)
Upstream Oxygen Sensor ..................................... 22 (30)\
Wheel Lug Nut (Dakota & Durango) ......................... 100 (136\
)
INCH Lbs. (N.m)
Air Cleaner Housing-To-Throttle
Body Nut (Dakota & Durango) ............................. 96 (10.8\
)
Camshaft Position Sensor Bolt (8.0L) ...................... 50 (5.6\
)
Engine Coolant Temperature Sensor ........................ 96 (10.8)\
EVAP Canister Mounting Bracket-To
Body Nut (Ram Van & Ram Wagon) .......................... 95 (10.7\
)
EVAP Leak Detection Pump Filter
Bolt (Ram Pickup, Ram Van & Ram Wagon) ................... 65 (7.3\
)
EVAP Leak Detection Pump Bolt ............................. 11 (1.2)\
EVAP Purge Solenoid Nut (Dakota & Durango) ................ 75 (8.5\
)
IAC Motor Bolt ............................................ 60 (6.8)\
Ignition Coil Bolt/Nut
Dakota, Durango, Ram Van & Ram Wagon ......................... ( 7)
Ram Pickup
3.9L, 5.2L & 5.9L ........................................... ( 7)
8.0L .................................................. 90 (10.2)\
MAP Sensor Bolt
Dakota & Durango ........................................ 25 (2.8)\
Ram Pickup
3.9L, 5.2L & 5.9L ...................................... 25 (2.8)\
8.0L ................................................... 20 (2.3)\
Ram Van & Ram Wagon ..................................... 25 (2.8)\
PCM Bolt .................................................. 35 (4.0)\
TP Sensor Bolt ............................................ 60 (6.8)\

(1) - Tighten retaining bolts to 70 INCH lbs. (7.9 N.m).
( 2) - Tighten nuts to 80 INCH lbs. (9.0 N.m).
( 3) - Tighten nuts to 71 INCH lbs. (8.0 N.m).
( 4) - Tighten bolts to 100 INCH lbs. (11.3 N.m).
( 5) - Tighten retaining nuts to 60 INCH lbs. (6.8 N.m).
( 6) - Tighten bolts to specification in sequence. See 39.
( 7) - On ignition coil using only bolts, tighten bolts to 50 INCH lbs.
(5.6 N.m). On ignition coil using bolts and nuts, tighten
bolts/nuts to 100 INCH lbs. (11.3 N.m).









\









\









\









\









\









\









\

SCHEDULED SERVICES - NORMAL SERVICE (DIESEL)

1999 D odge P ic ku p R 1500
1997-99 MAINTENANCE
Chrysler Maintenance & Service Intervals
Diesel Engines
Normal Service
DODGE; RAM PICKUP Cummins Turbo Diesel: 5.9L VIN [D]
* READ THIS FIRST *
Before preforming maintenance on vehicle, ensure that all
cautions and warnings have been observed to prevent vehicle damage or
personal injury. See CAUTIONS & WARNINGS in MAINTENANCE INFORMATION
article in this section.
Introduction
The frequency of scheduled inspection and maintenance
services in this article are based on normal vehicle usage ONLY. The
following Severe conditions are NOT taken into account:
* Frequent short driving less than 5 Miles (8 Km).
* Frequent driving in dusty conditions.
* Frequent trailer towing.
* Extensive idling.
* More than 50% of your driving is at sustained high speeds
during hot weather, above 90
F (32C).
If the vehicle is operated mainly under any of these
conditions, this Normal service schedule article is inadequate. DO NOT
USE. Instead, use the Severe service schedule: See
SCHEDULED SERVICES - NORMAL SERVICE (DIESEL) .
6,000 MILE (10,000 KM)/6 MONTH NORMAL SERVICE
6,000 MILE (10,000 KM)/6 MONTH NORMAL SERVICE
\
\
\
\
\
\
\

INSPECT

\b\
\
\
\
\
\
\


 Exhaust System


\
\
\
\
\
\
\


 Brake Hoses


\
\
\
\
\
\
\


 Engine Coolant Level, Hoses & Clamps

\
\
\
\
\
\
\



SERVICE

\b\
\
\
\
\
\
\


 Rotate Tires


\
\
\
\
\
\
\


 Lubricate Steering Linkage

\
\
\
\
\
\
\



REPLACE

\b\
\
\
\
\
\
\


 Engine Oil


\
\
\
\
\
\
\


 Engine Oil Filter

\
\
\
\
\
\
\



LUBRICATION SPECIFICATIONS

\
\b\
\
\
\b\
\
\



Material  Condition  Specification

\

\
\
\

\
\
\


 Engine Oil Ambient Temperature Above 10F SAE 15W-40

(
1)  (-12C) To Over 30F (-1C)


\
\
\

\
\


Ambient Temperature Less Than  SAE 10W-30

0F (-18C) To Over 30F(-1C)


\
\
\

\
\


Ambient Temperature Less Than  With Block Heater:

-10F(-23C) Up To 0F (-18C) SAE 10W-30

  Without Block Heater:

  SAE 5W-30

\

\
\
\

\
\
\


Engine  All  50/50 Mixture Of

Coolant   Distilled Water &

  Ethylene Glycol

\

\
\
\

\
\
\


Brake Fluid  All  DOT 3

\

\
\
\

\
\
\


Steering  All  Mopar Multi-Mileage

Linkage   Lubricant

Lubricant

\
\
\
\
\
\
\


(
1) - SAE 10W-30 engine oil is preferred for use in all Dodge

trucks. Use only API approved oil with Starburst Symbol.

\
\
\
\
\
\
\



FLUID CAPACITIES

\
\b\
\
\
\b\
\
\



Item  Condition  Specification (1)

\

\
\
\

\
\
\


Engine Oil  Capacity, Upper Safe Mark  10 Qts. (9.5L)


\
\
\

\
\


 Capacity, Lower Safe Mark  8 Qts. (7.5L)

\

\
\
\

\
\
\


Engine  Drained  26 Qts. (24.5L)

Coolant

\
\
\
\
\
\
\


(
1) - Capacities are recommended or calculated levels. Always use

dipstick (if available) to measure level.
\f
\
\
\
\
\
\
\


12,000 MILE (19,000 KM)/12 MONTH NORMAL SERVICE
12,000 MILE (19,000 KM)/12 NORMAL SERVICE
\
\
\
\
\
\
\

INSPECT

\b\
\
\
\
\
\
\


 Exhaust System


\
\
\
\
\
\
\


 Brake Hoses


\
\
\
\
\
\
\


 Engine Coolant Level, Hoses & Clamps


\
\
\
\
\
\
\


 Water Pump Weep Hole For Blockage

\
\
\
\
\
\
\



SERVICE

\b\
\
\
\
\
\
\


 Rotate Tires


\
\
\
\
\
\
\


 Lubricate Steering Linkage


\
\
\
\
\
\
\


 Clean Fuel Strainer

\
\
\
\
\
\
\



REPLACE
