1999 DODGE RAM Service Repair Manual

TORQUE SPECIFICATIONS - CARS & TRUCKS








\









\









\









\









\









\









\







Application Ft. Lbs. (N.m)\
Starter Mounting Bolts & Nuts
All Except Dakota, Durango,
Ram Pickup, Ram Van & Ram Wagon ......................... 40 (54)\
Dakota & Durango
2.5L .................................................... 33 (45)\
3.9L, 5.2L & 5.9L ....................................... 50 (68)\
Ram Pickup
Diesel Engines .......................................... 32 (43)\
Gasoline Engines ........................................ 50 (68)\
Ram Van & Ram Wagon ...................................... 50 (68)\









\









\









\









\









\









\









\







WIRING DIAGRAMS

Fig. 3: Starting System Wiring Diagram (Breeze, Cirrus & Stratus)

Fig. 4: Starting System Wiring Diagram (Caravan, Town & Country,
& Voyager)

Fig. 5: Starting System Wiring Diagram (Concorde, Intrepid, LHS &
300M)

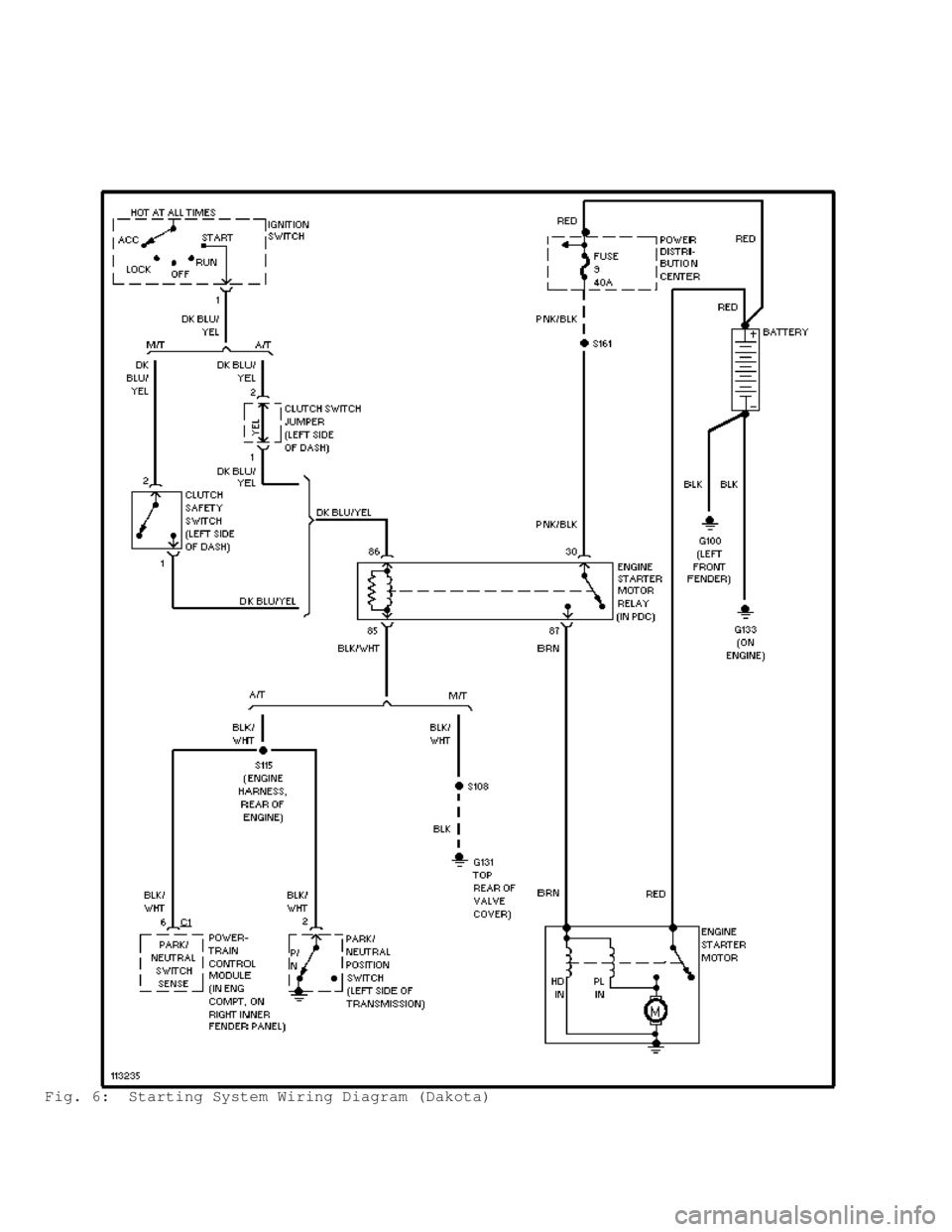

Fig. 6: Starting System Wiring Diagram (Dakota)

Fig. 7: Starting System Wiring Diagram (Durango)

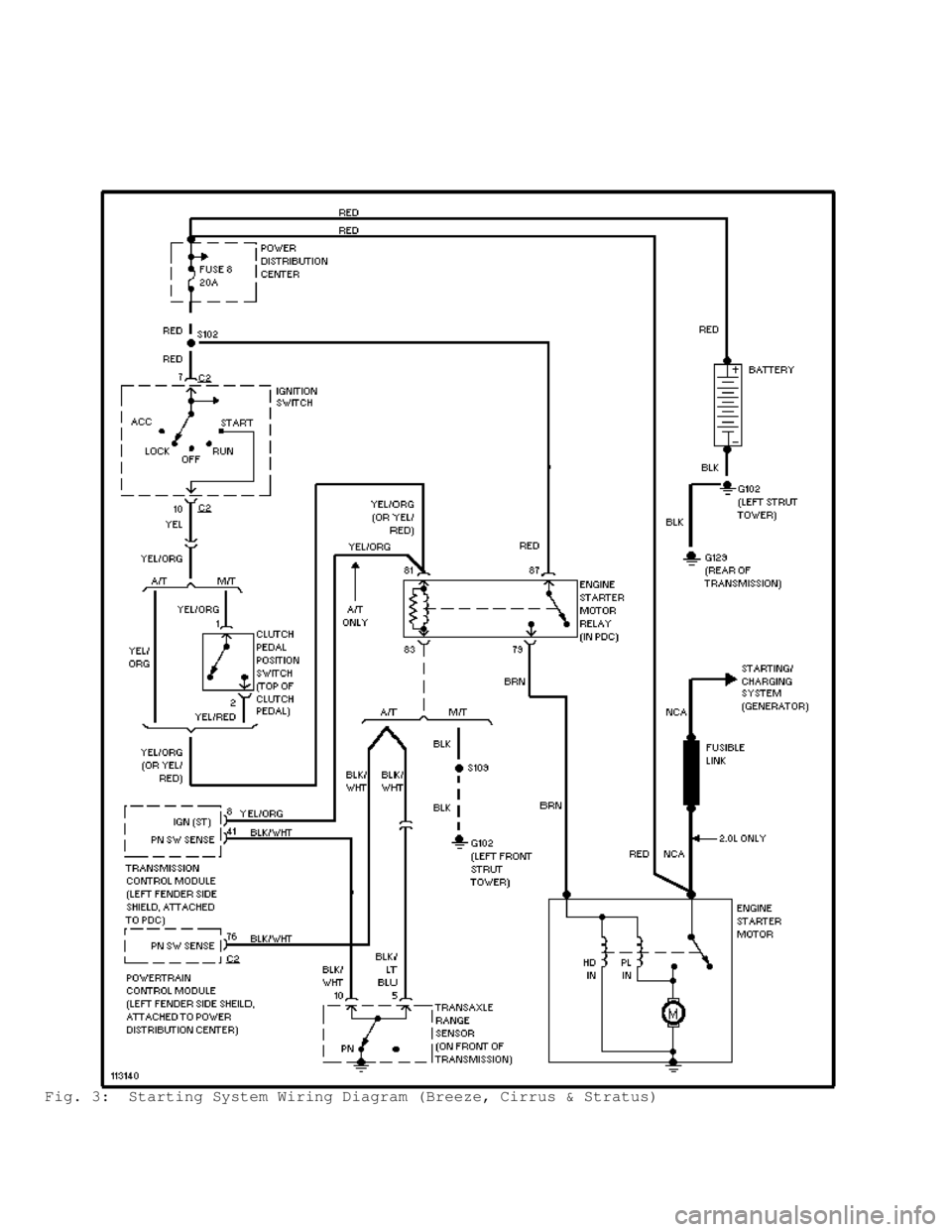

Fig. 8: Starting System Wiring Diagram (Neon)

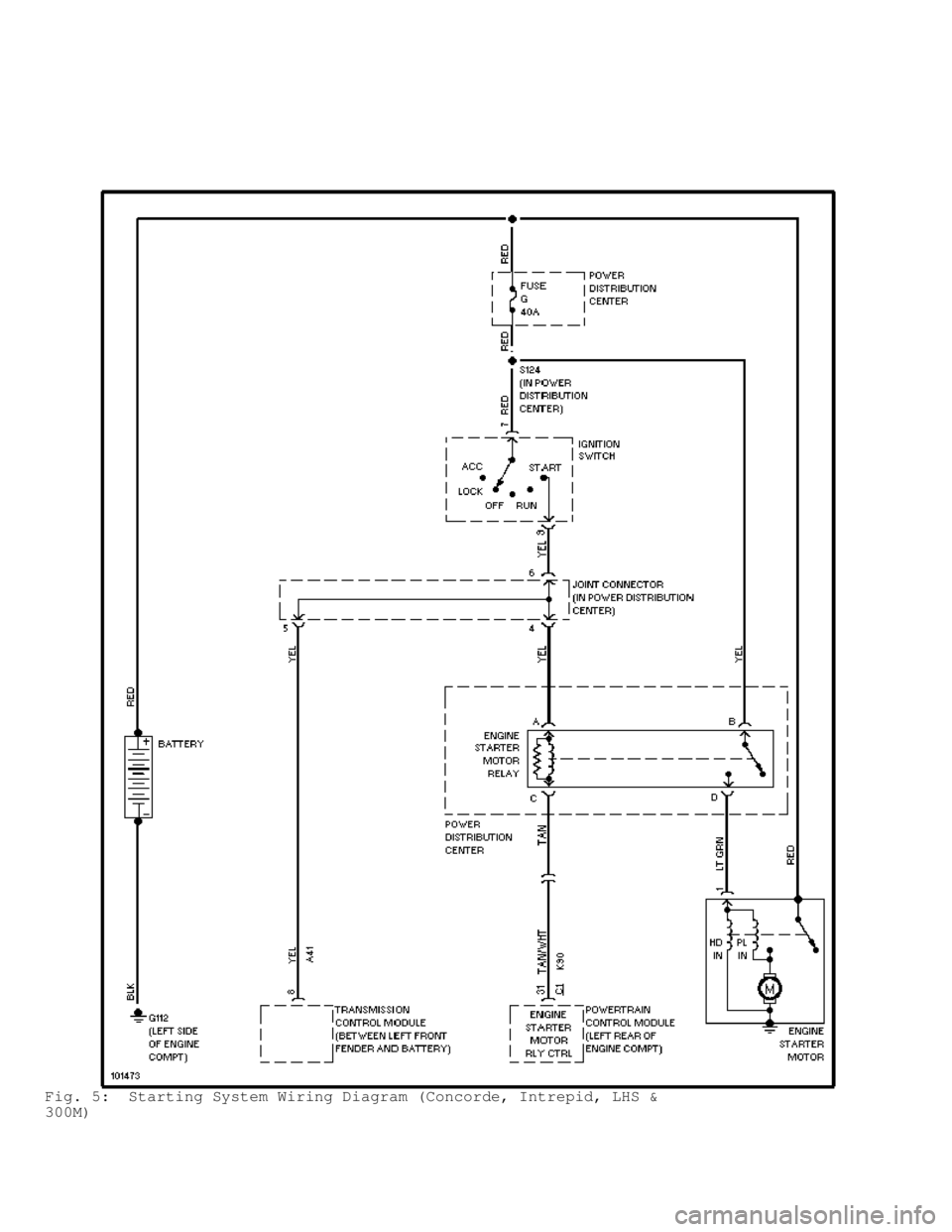

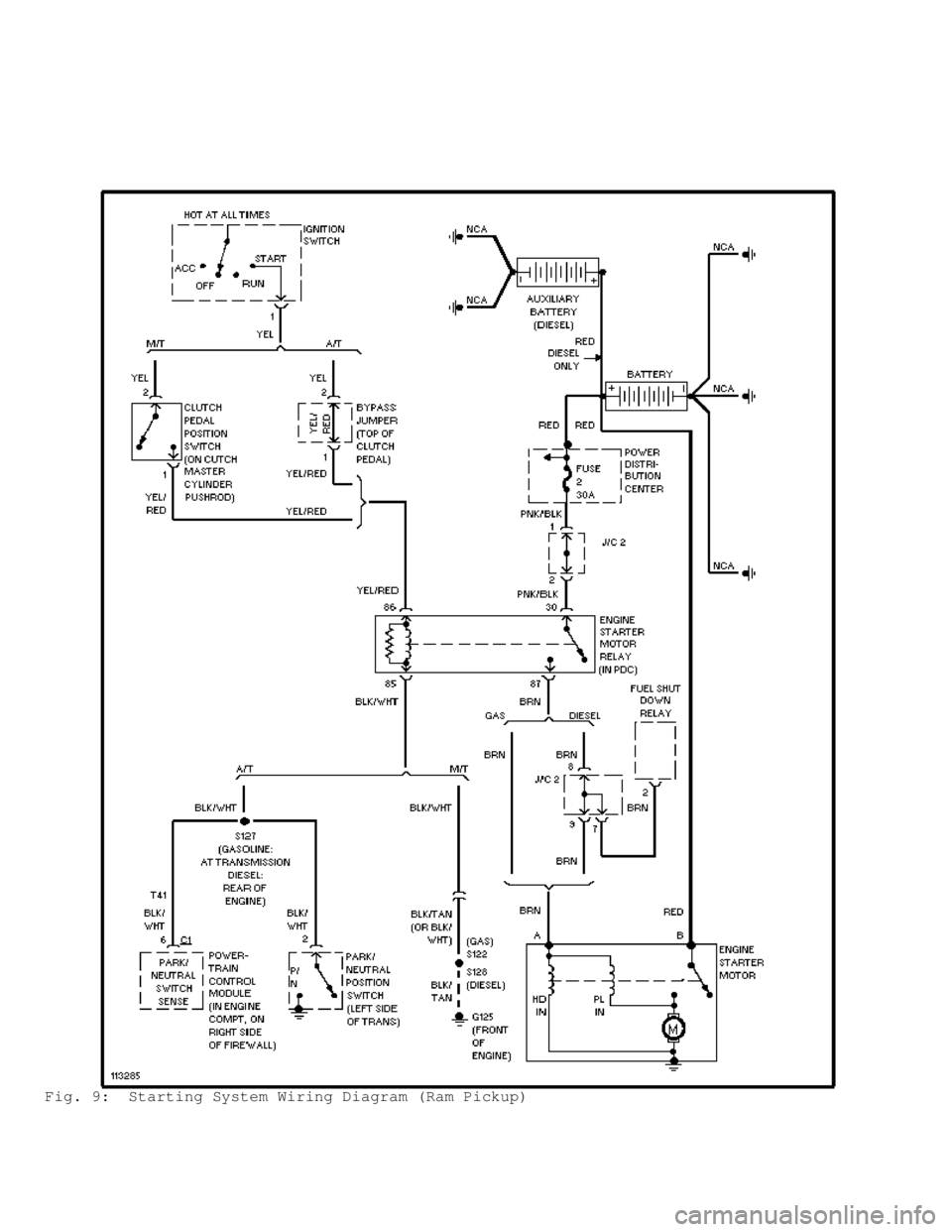

Fig. 9: Starting System Wiring Diagram (Ram Pickup)
