1999 DODGE RAM Service Repair Manual

Fig. 2: Identifying Retainer Type Fuel Line Disconnect Fittings
Courtesy of Chrysler Corp.
ENGINE
Removal (Ram Van/Wagon)
1) Release fuel pressure. See FUEL PRESSURE RELEASE.
Disconnect negative battery cable. Drain cooling system and engine
oil. Remove and discard oil filter.
2) Remove engine cover, air cleaner and oil dipstick.
Discharge A/C system (if equipped) using approved refrigerant
recovery/recycling equipment. Disconnect A/C lines at condenser, and
plug openings. Remove A/C compressor. Disconnect fan shroud.
3) Remove front bumper, grille and support brace. Disconnect
coolant hoses. Remove radiator, condenser and support as an assembly.
4) Remove upper fan shroud. Remove power steering pump with
hoses attached, and set aside. Remove air pump, spark plug wires and
distributor cap. Disconnect necessary electrical wiring, coolant hoses
and vacuum hoses. Disconnect fuel lines. See FUEL LINE DISCONNECT

FITTINGS. Remove air cleaner, throttle body, drive belts, generator,
fan and fan pulley. Remove lower fan shroud.
CAUTION: When removing engine, DO NOT lift engine by intake manifold.
5) Remove intake manifold. See INTAKE MANIFOLD. Raise and
support vehicle. Remove starter. Remove exhaust pipe and heat shields.
Disconnect transmission shift linkage. Remove crank sensor.
6) On A/T models, remove transmission inspection cover. Mark
torque converter-to-flexplate position for installation reference.
Remove torque converter-to-flexplate bolts. On M/T models, disconnect
clutch release mechanism at clutch housing.
7) Attach engine hoist to cylinder heads (at intake manifold
flanges). On all models, support transmission using a floor jack.
Remove transmission or clutch housing-to-cylinder block bolts. Remove
engine mount bolts. Remove engine out front of vehicle.
Installation
To install, reverse removal procedure. Tighten bolts/nuts to
specification. See TORQUE SPECIFICATIONS table. On A/T models, ensure
reference marks on torque converter and flexplate are aligned.
Evacuate and charge A/C system.
Removal ( Dakota 2WD, Durango 2WD, Grand Cherokee & Ram
Pickup)
1) Release fuel pressure. See FUEL PRESSURE RELEASE.
Disconnect and remove battery. On all except Pickup, scribe hood
hinges for installation reference and remove hood.
2) On all models, drain cooling system. Disconnect coolant
hoses. Remove radiator, fan and shroud. Discharge A/C system (if
equipped) using approved refrigerant recovery/recycling equipment.
Disconnect A/C lines, and plug openings. On Pickup, remove upper core
support, transmission cooler and A/C condenser. On all models, remove
belt, air cleaner, vacuum lines, distributor cap and wiring.
3) Disconnect necessary electrical wiring. Disconnect fuel
lines. See FUEL LINE DISCONNECT FITTINGS. Remove throttle body and
linkage. Remove intake manifold. Remove starter, generator, charcoal
canister and horns. Disconnect power steering hoses (if equipped).
Raise and support vehicle. Drain oil. Disconnect exhaust pipe at
exhaust manifold.
4) On A/T models, remove transmission housing inspection
plate. Mark torque converter-to-flexplate position for installation
reference. Remove torque converter-to-flexplate bolts. Remove bracket
for transmission cooler lines.
NOTE: It may be necessary to remove manual transmission if
transmission cannot be supported using floor jack.
5) On M/T models, disconnect clutch release mechanism at
clutch housing. On all models, support transmission using a floor
jack. Remove transmission or clutch housing-to-cylinder block bolts.
Install engine lifting fixture, and attach chain.
CAUTION: When removing engine, DO NOT lift engine by intake manifold.
6) On Ram Pickup and Grand Cherokee, remove front engine
mount bolts. Remove engine from vehicle. On Dakota 2WD and Durango 2WD
models, remove front engine mount through-bolts. See Fig. 3. Remove
engine from vehicle.
Installation
To install, reverse removal procedure. Tighten bolts/nuts to
specification. See TORQUE SPECIFICATIONS table. On A/T models, ensure

reference marks on torque converter and flexplate are aligned.
Evacuate and charge A/C system.
Removal (Durango 4WD & Dakota 4WD)
1) Release fuel pressure. See FUEL PRESSURE RELEASE.
Disconnect and remove battery. Scribe hood hinges for installation
reference and remove hood.
2) Drain cooling system. Disconnect coolant hoses. Remove
radiator, fan and shroud. Discharge A/C system (if equipped) using
approved refrigerant recovery/recycling equipment. Disconnect A/C
lines, and plug openings. Remove air cleaner, vacuum lines,
distributor cap and wiring.
3) Disconnect necessary electrical wiring. Disconnect fuel
lines. See FUEL LINE DISCONNECT FITTINGS. Disconnect accelerator
linkage. Remove throttle body. Remove starter and generator.
Disconnect power steering hoses. Raise and support vehicle. Drain oil.
Disconnect exhaust pipe at exhaust manifold.
NOTE: Engine, transmission and front axle are connected and
supported with insulators and brackets. See Fig. 3.
4) On left side, remove 2 bolts attaching differential pinion
nose bracket-to-bellhousing bolts. Remove pinion nose bracket-to-
adapter bolts (located on top of differential, near pinion). Separate
engine from engine mount by removing engine mount through-bolt and nut
located on top of engine mount.
5) On right side, remove 2 axle-to-bracket bolts and bracket-
to-bellhousing bolt. Separate engine from engine mount by removing
engine mount through-bolt and nut located on top of engine mount.
Remove engine from vehicle.

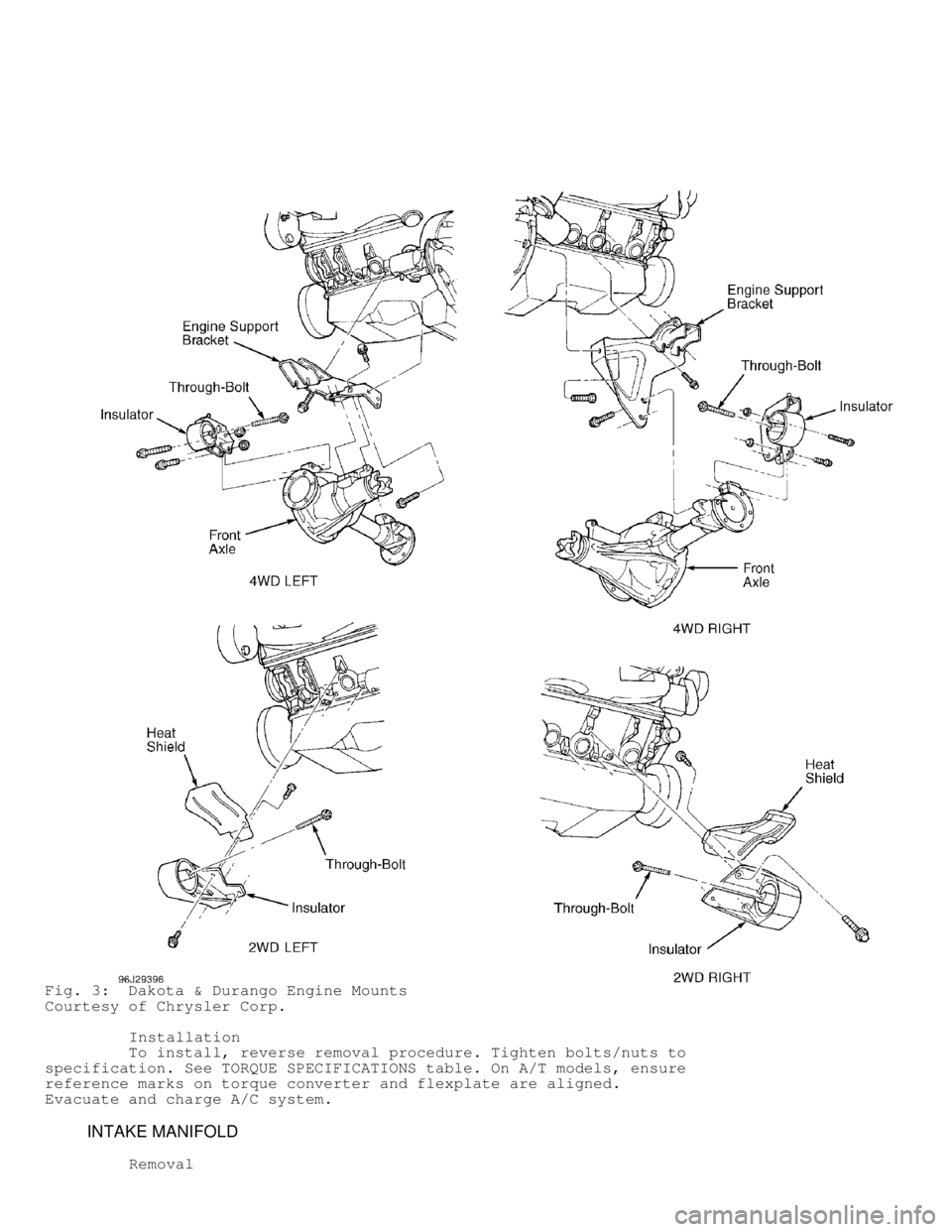

Fig. 3: Dakota & Durango Engine Mounts
Courtesy of Chrysler Corp.
Installation
To install, reverse removal procedure. Tighten bolts/nuts to
specification. See TORQUE SPECIFICATIONS table. On A/T models, ensure
reference marks on torque converter and flexplate are aligned.
Evacuate and charge A/C system.
INTAKE MANIFOLD
Removal

1) Release fuel pressure. See FUEL PRESSURE RELEASE.
Disconnect negative battery cable. Drain cooling system. Disconnect
accelerator, cruise control, and transmission kickdown cables.
Disconnect fuel lines at throttle body. See FUEL LINE DISCONNECT
FITTINGS.
2) Remove engine cover (Ram Van/Wagon), air cleaner and
generator. Disconnect necessary electrical wiring, coolant hoses and
vacuum hoses. Remove distributor cap and spark plug wires. Remove
valve covers (if necessary).
3) Remove bolts, intake manifold and gaskets. Separate
throttle body from intake manifold (if necessary). Turn intake
manifold upside-down and remove plenum pan (if necessary).
Fig. 4: Plenum Pan Bolt Tightening Sequence
Courtesy of Chrysler Corp.
Installation
1) Install plenum pan and install all bolts finger tight.

Tighten bolts to specification, in steps, and in sequence. See Fig. 4.
See TORQUE SPECIFICATIONS table.
2) Install manifold flange gaskets on cylinder head with
MANIFOLD SIDE words visible. Place a 13/64" (5 mm) bead of silicone
rubber adhesive sealant at 4 corner joints. Install front and rear
gaskets. Ensure holes in front and rear gaskets engage with dowels in
cylinder block.
3) Install intake manifold and install all bolts finger
tight. Tighten bolts to specification, in steps, and in sequence. See
Figs. 5 and 6. See TORQUE SPECIFICATIONS table. To install remaining
components, reverse removal procedure.

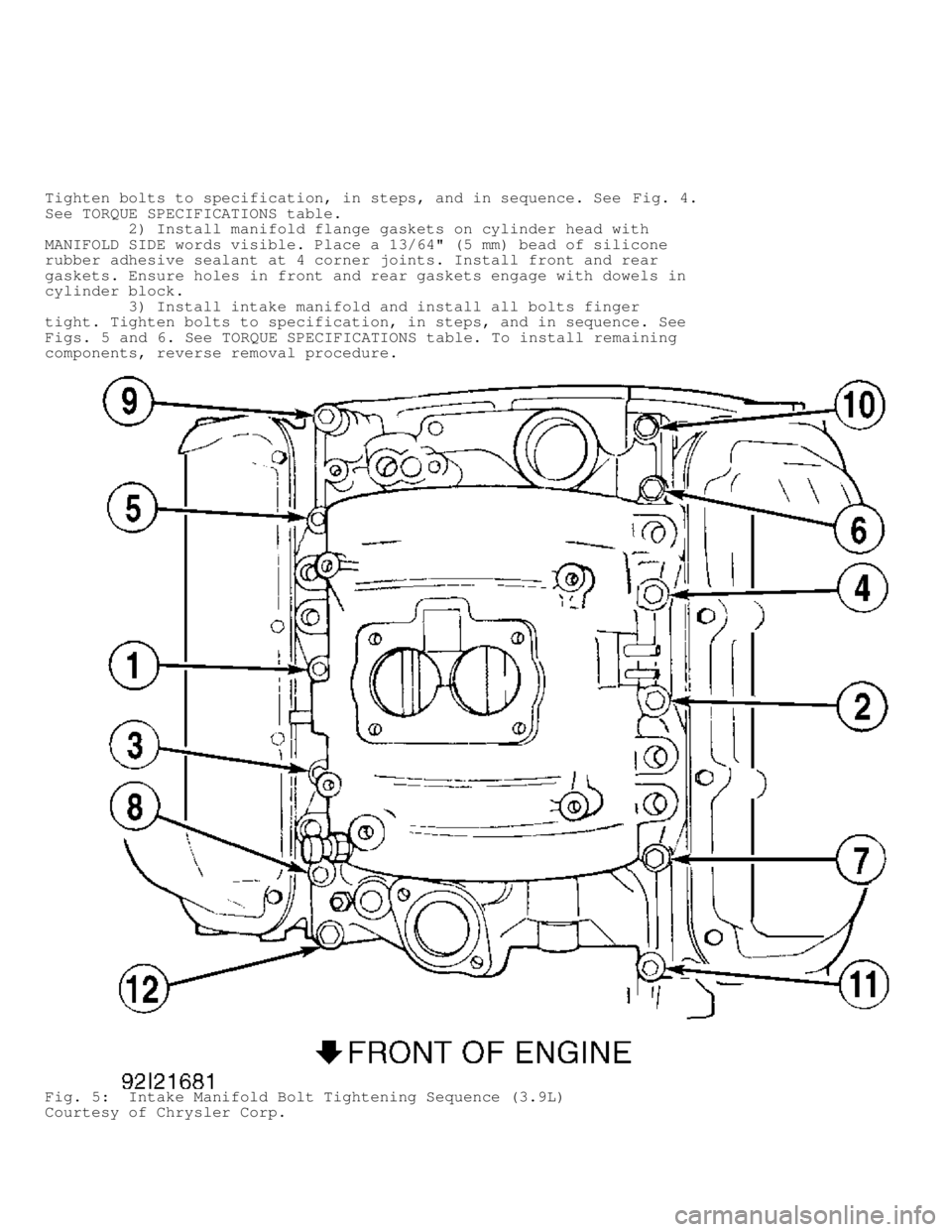

Fig. 5: Intake Manifold Bolt Tightening Sequence (3.9L)
Courtesy of Chrysler Corp.

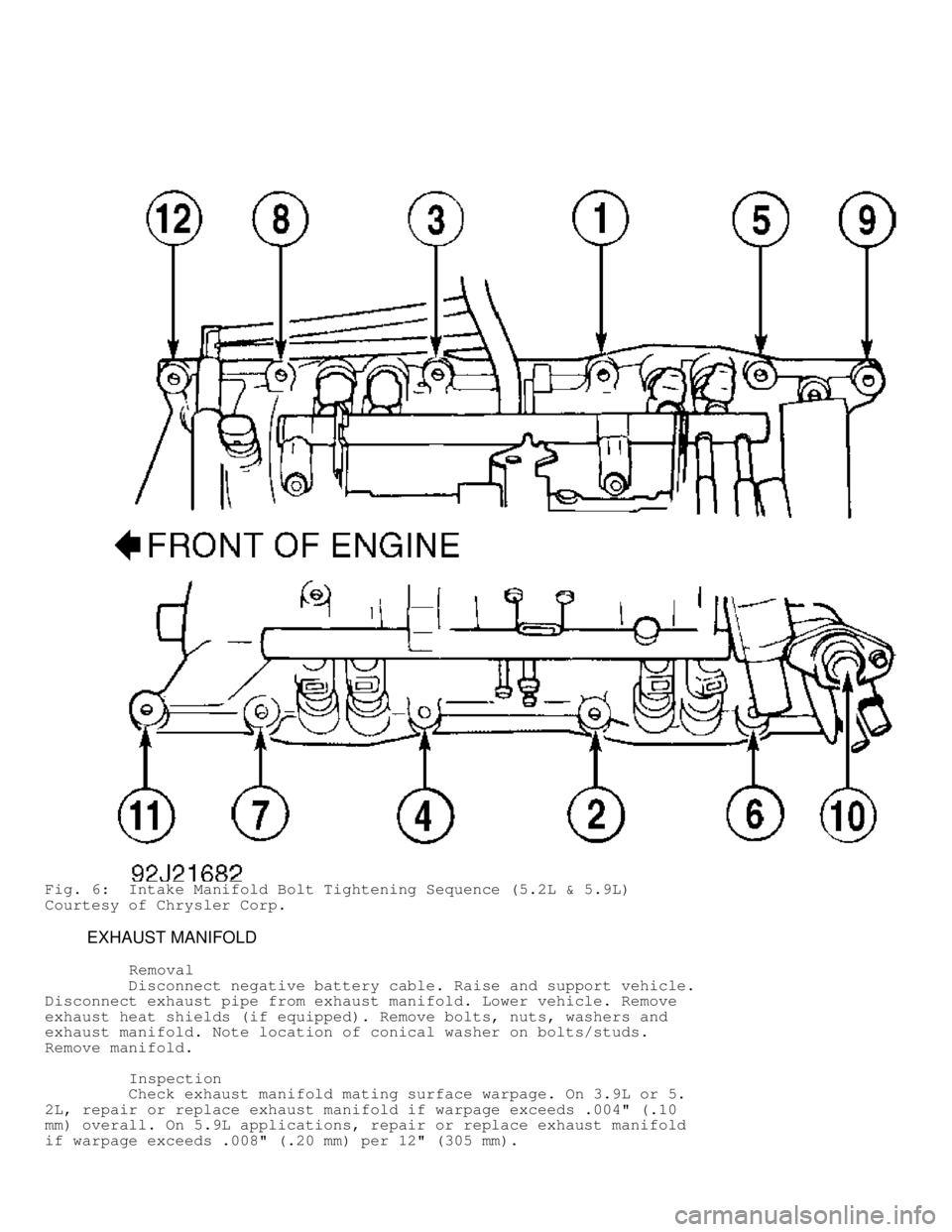

Fig. 6: Intake Manifold Bolt Tightening Sequence (5.2L & 5.9L)
Courtesy of Chrysler Corp.
EXHAUST MANIFOLD
Removal
Disconnect negative battery cable. Raise and support vehicle.
Disconnect exhaust pipe from exhaust manifold. Lower vehicle. Remove
exhaust heat shields (if equipped). Remove bolts, nuts, washers and
exhaust manifold. Note location of conical washer on bolts/studs.
Remove manifold.
Inspection
Check exhaust manifold mating surface warpage. On 3.9L or 5.
2L, repair or replace exhaust manifold if warpage exceeds .004" (.10
mm) overall. On 5.9L applications, repair or replace exhaust manifold
if warpage exceeds .008" (.20 mm) per 12" (305 mm).

CAUTION: Install NEW studs in cylinder head if studs came out when
removing exhaust manifold. Apply sealant to coarse threads of
studs before installing in head.
Installation
To install, reverse removal procedure. Ensure conical washers
are installed in original locations. Tighten bolts/nuts to
specification, starting at center and working outward. See TORQUE
SPECIFICATIONS table.
CYLINDER HEAD
Removal
1) On Van, remove engine cover and heat shields. On all
models, disconnect battery, and drain coolant. Remove generator
bracket support rod and generator. Remove intake and exhaust manifold.
See INTAKE MANIFOLD and EXHAUST MANIFOLD.
2) Remove rocker arms and push rods. See ROCKER ARMS. Remove
cylinder head bolts, cylinder head and gasket.
Inspection
Check cylinder head warpage. Repair or replace cylinder head
if warpage exceeds specification. See CYLINDER HEAD table under ENGINE
SPECIFICATIONS.
Installation
To install, reverse removal procedure. Tighten cylinder head
bolts, to specification and in sequence, using 3 steps. See Fig. 7.
See TORQUE SPECIFICATIONS table.
Fig. 7: Cylinder Head Bolt Tightening Sequence
Courtesy of Chrysler Corp.
FRONT COVER OIL SEAL
