bolster. Remove CTM from bracket on inboard side of instrument panel
steering column opening. Disconnect harness connectors. To install,
reverse removal procedure.
INTERMITTENT WIPER RELAY
Removal & Installation
Intermittent wiper relay is located in Power Distribution
Center (PDC) in engine compartment. Remove cover and remove relay. To
install, reverse removal procedures
WIPER ARMS
Removal & Installation
Open hood. Lift wiper and slide latch to hold wiper off of
windshield. With a rocking motion, remove wiper arm. To install,
ensure wiper motor is in park position. Slide wiper arm on shaft.
Align wiper arms. See WIPER BLADES under ADJUSTMENTS.
WIPER MOTOR
NOTE: Wiper linkage and motor module is replaced as a unit.
Removal & Installation
1) Disconnect negative battery cable. Remove wiper arms. See
WIPER ARMS. Remove weatherstrip along front edge of cowl. Release
plastic anchor screws. Lift cowl grille from vehicle. Remove washer
hose from "Y" fitting. Set grille aside.
2) Remove wiper linkage mounting bolts. Turn linkage over and
disconnect harness connector from wiper motor. Remove wiper linkage
and motor module. To install, reverse removal procedure. Align wiper
arms. See WIPER BLADES under ADJUSTMENTS.
WIPER/WASHER SWITCH
NOTE: Wiper/washer switch is part of multifunction steering column
switch. If wiper/washer switch fails, entire multifunction
switch must be replaced.
Removal & Installation
1) Disconnect negative battery cable. Remove tilt lever (if
equipped). Remove steering column upper and lower covers to access
switch connector. Remove switch connector. Remove multifunction switch
tamperproof screws.
2) Gently pull switch away from column and loosen connector
screw (screw remains in connector). Remove switch. To install, reverse\
removal procedure. Tighten screws and nuts to specification. See
TORQUE SPECIFICATIONS. Ensure switch is functioning properly.
WASHER RESERVOIR
Removal & Installation
Disconnect negative battery cable. Drain cooling system.
Disconnect upper radiator hose from radiator. Disconnect harness
connectors from washer pump and washer fluid level sensor. Remove
washer supply hose from washer pump and drain washer fluid. While
pulling reservoir away from fan shroud, lift reservoir upward to
disengage mounting tabs from fan shroud. Remove washer reservoir. To
install, reverse removal procedure.
WASHER MOTOR
Removal & Installation

Disconnect negative battery cable. Remove hose from washer
pump. Drain fluid from reservoir. Disconnect harness connectors from
washer pump. Pry pump away from reservoir, being careful not to
puncture reservoir. Remove and discard grommet. To install, reverse
removal procedure. Use a NEW rubber grommet.
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS








\









\









\









\









\









\









\







Application INCH Lbs. (N.m)\
Central Timer Module Screws ............................... 15 (1.6)\
Multifunction Switch Mounting Screws ........................ 17 (2)\
Wiper Motor Mounting Screws ................................. 72 (8)\
Wiper/Washer Switch Screws .................................. 17 (2)\









\









\









\









\









\









\









\







WIRING DIAGRAMS

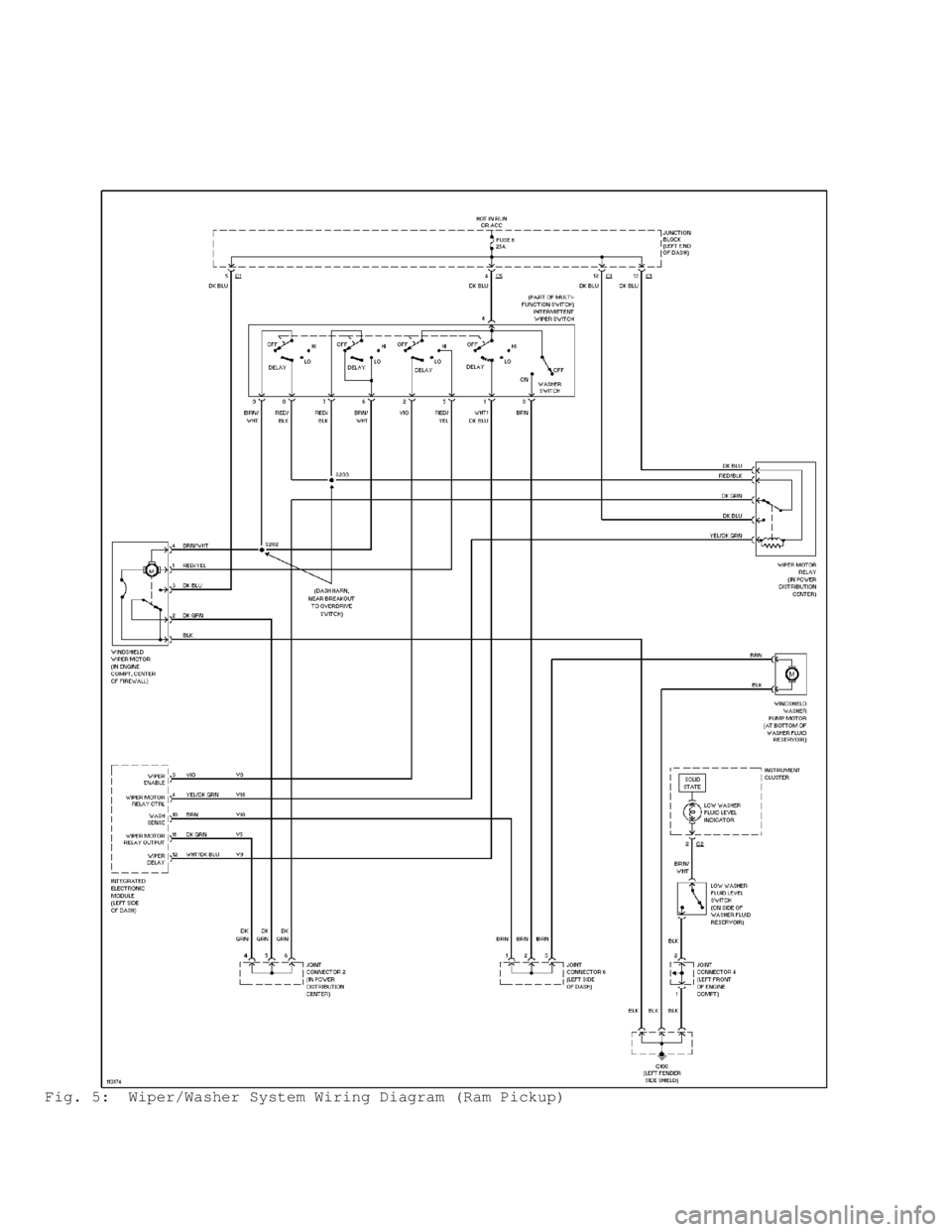

Fig. 5: Wiper/Washer System Wiring Diagram (Ram Pickup)

L - W IR IN G D IA G RAM S

1999 D odge P ic ku p R 1500
1999 ENGINE PERFORMANCE
Wiring Diagrams
CHRY
All Models
WIRING DIAGRAMS
AVENGER & SEBRING COUPE

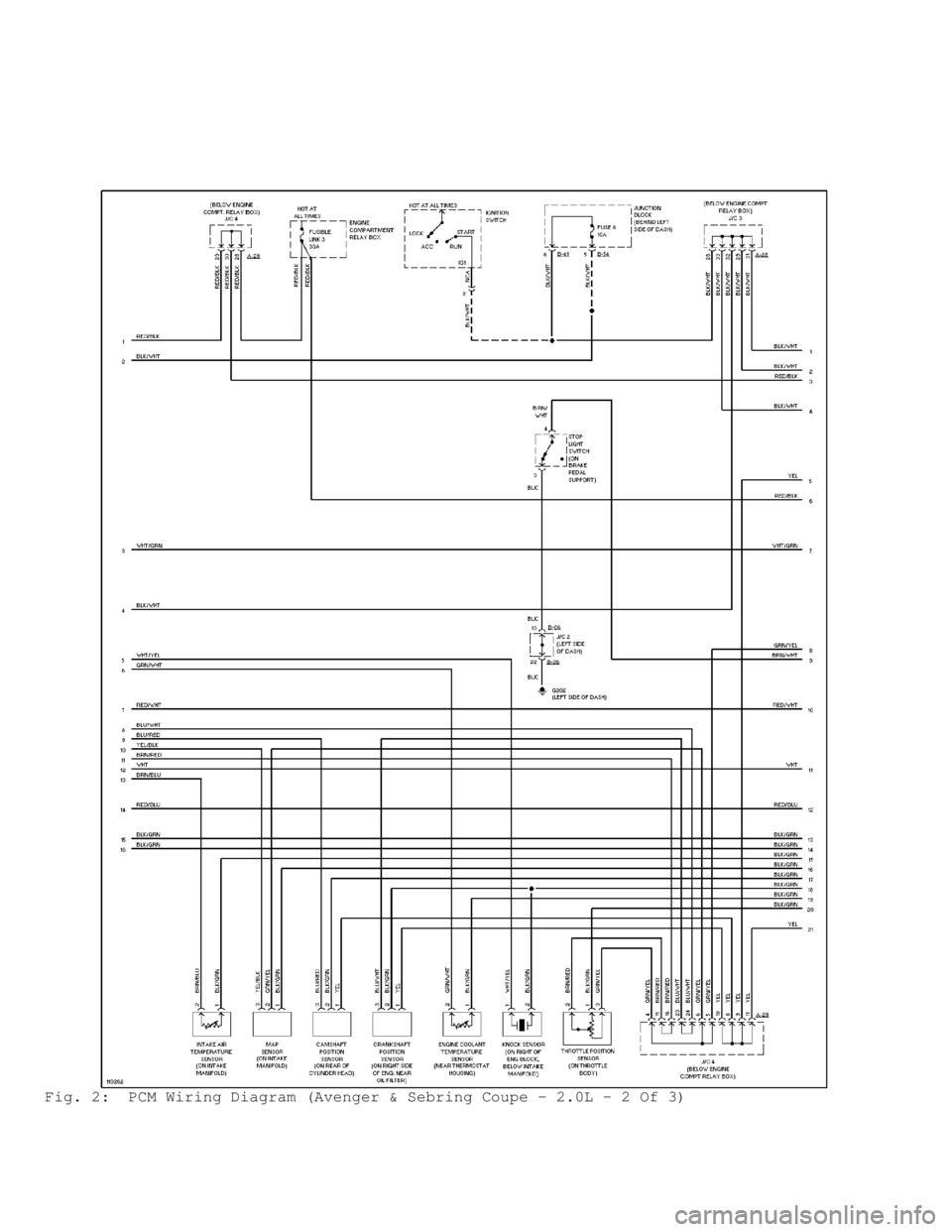

Fig. 1: PCM Wiring Diagram (Avenger & Sebring Coupe - 2.0L - 1 Of 3)

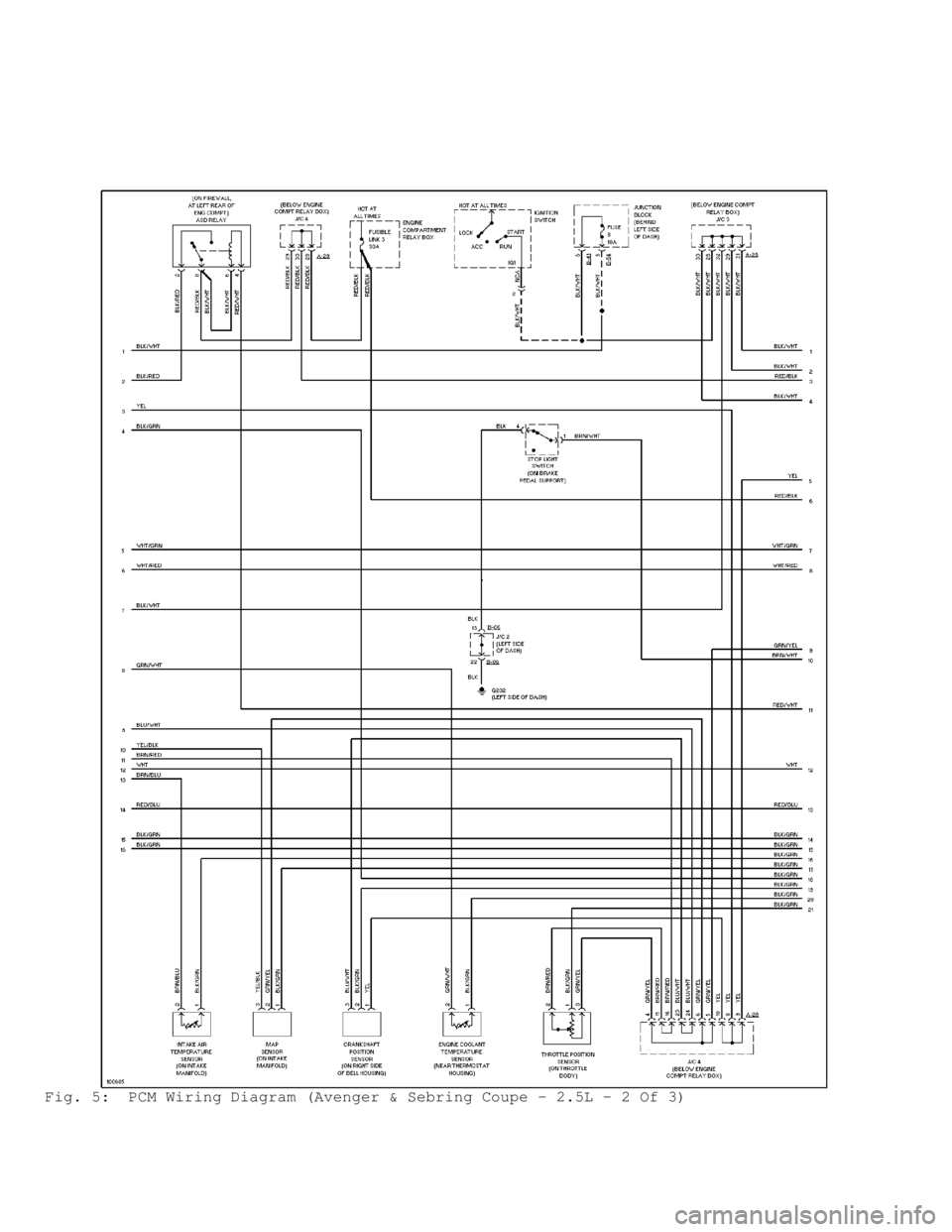

Fig. 2: PCM Wiring Diagram (Avenger & Sebring Coupe - 2.0L - 2 Of 3)

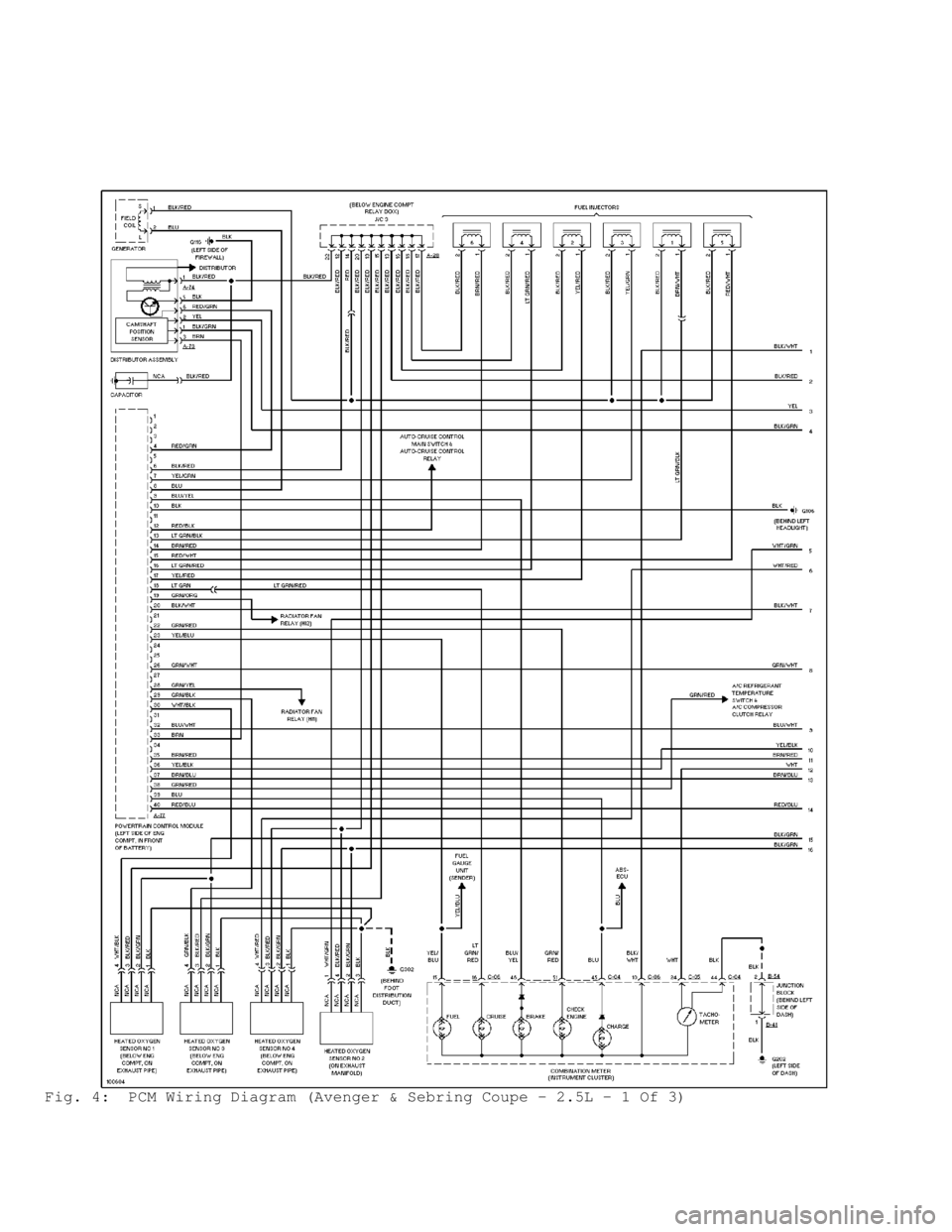

Fig. 3: PCM Wiring Diagram (Avenger & Sebring Coupe - 2.0L - 3 Of 3)

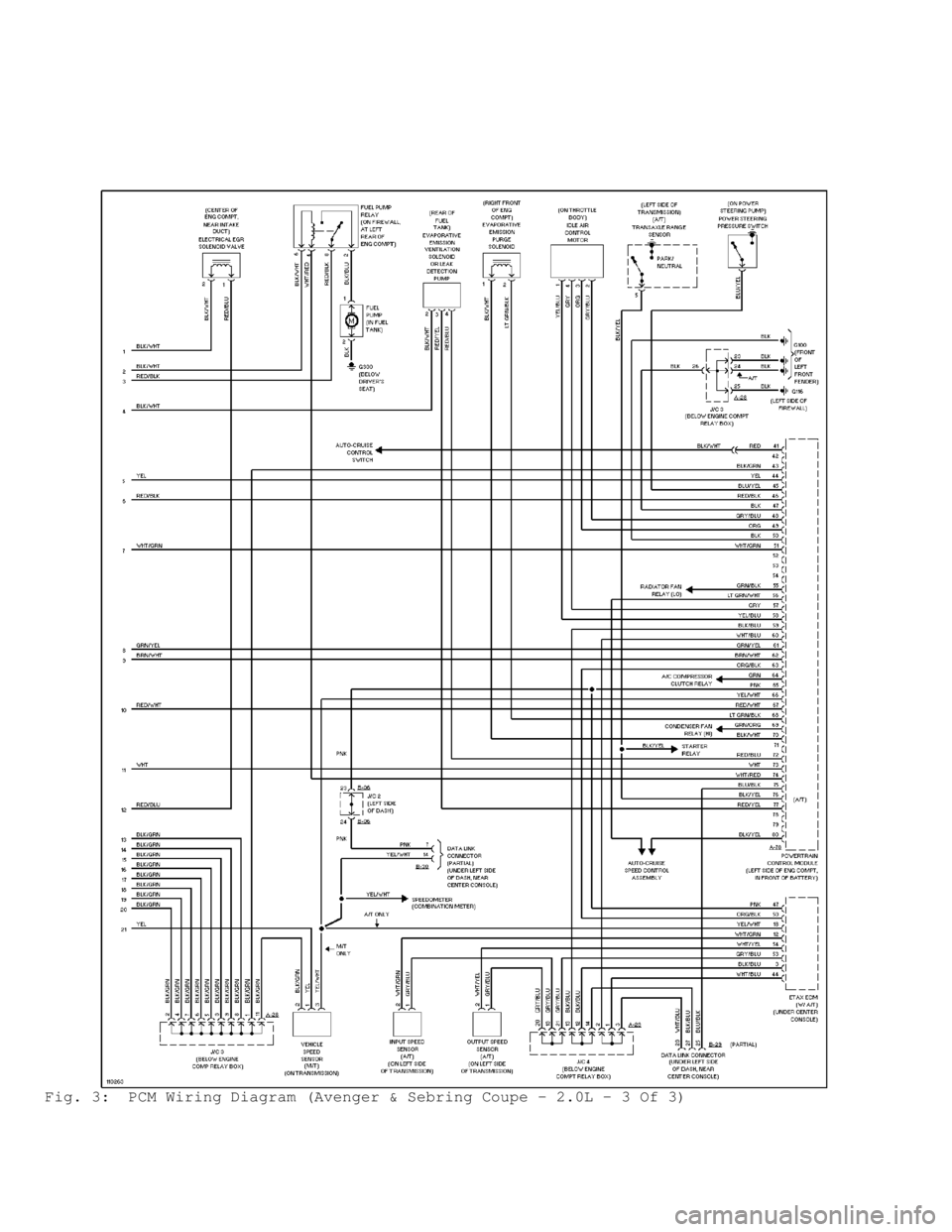

Fig. 4: PCM Wiring Diagram (Avenger & Sebring Coupe - 2.5L - 1 Of 3)

Fig. 5: PCM Wiring Diagram (Avenger & Sebring Coupe - 2.5L - 2 Of 3)
