1999 DODGE RAM Service Repair Manual

Fig. 1: Identifying Automatic Day/Night Mirror
Courtesy of Chrysler Corp.
POWER MIRROR MOTOR
Caravan, Town & Country, & Voyager
Disconnect harness connector from mirror and headlight
switch. Using 2 jumper wires, connect one jumper to a 12-volt source
and the other jumper wire to a good ground. Connect other end of
jumper wires to specified switch terminals as specified. See POWER
MIRROR MOTOR TEST (CARAVAN, TOWN & COUNTRY, & VOYAGER) table. If

mirror operation is not as specified, check for open or short circuit
between switch and power mirror. Repair as necessary. If wiring
harness is okay, replace mirror assembly as necessary. See Fig. 2.
POWER MIRROR MOTOR TEST (CARAVAN, TOWN & COUNTRY, & VOYAGER)









\









\









\









\









\









\









\







Apply 12 Volts Ground Mirror Operation Mirror Operation
To Pin Pin (Right) (Left\
)
Switch Connector ( 1)
12 ............. 6 ............. N/A ...................... Up
7 .............. 6 ............. N/A .................... Left
6 .............. 12 ............ N/A .................... Down
6 .............. 7 ............. N/A ................... Right
13 ............. 1 ............. Up ...................... N/A
8 .............. 1 ............ Left ..................... N/A
1 .............. 13 ........... Down ..................... N/A
1 .............. 8 ............ Right .................... N/A
5 .............. 11 ............ ( 2) ..................... ( 2)
( 1) - Use illustration for connector pin identification. See Fig. 2.
( 2) - Used for switch illumination. No mirror movement will be
observed.









\









\









\









\









\









\









\







Fig. 2: Identifying Power Mirror Switch Connector Pins (Caravan,
Town & Country, & Voyager)
Courtesy of Chrysler Corp.
Dakota, Durango, Ram Pickup, Ram Van & Ram Wagon

Disconnect harness connector from mirror and headlight
switch. Using 2 jumper wires, connect one jumper to a 12-volt source
and the other to a good ground. If tests do not agree with POWER
MIRROR MOTOR TEST (DAKOTA, DURANGO, RAM PICKUP, RAM VAN & RAM WAGON)
table, check for open or shorted circuit, or replace mirror assembly
as necessary. See Fig. 3.
POWER MIRROR MOTOR TEST (DAKOTA, DURANGO, RAM PICKUP, RAM VAN &
RAM WAGON)









\









\









\









\









\









\









\







Apply 12 Volts Ground Mirror
To Pin Pin Operation
Switch Connector ( 1)
3 ................................. 1 ....................... Up
2 ................................. 1 ..................... Left
1 ................................. 3 ..................... Down
1 ................................. 2 .................... Right
( 1) - See Fig. 3 for connector pin identification.









\









\









\









\









\









\









\







Fig. 3: Identifying Power Mirror Connector Pins (Dakota, Durango,
Ram Pickup, Ram Van & Ram Wagon)
Courtesy of Chrysler Corp.
POWER MIRROR SWITCH

Caravan, Town & Country, & Voyager
Remove switch and disconnect wiring connector. See POWER
MIRROR SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check
continuity between power mirror switch terminals with switch in
appropriate position. See POWER MIRROR SWITCH CONTINUITY TEST
(CARAVAN, TOWN & COUNTRY, & VOYAGER) table. See Fig. 2. If results
differ from table, replace switch.
POWER MIRROR SWITCH CONTINUITY TEST (CARAVAN, TOWN & COUNTRY, &
VOYAGER)








\









\









\









\









\









\









\







Mirror Selector Mirror Angle  Continuity Between Pins


Position










\






\b


\









\








\b

\









\









\









\






"L" (Left)  Up  9 & 12; 6 & 11; 9 & 13











\









\

\b







\









\









\









 Down  9 & 6; 12 & 11; 13 & 11











\









\

\b







\









\









\









 Left  9 & 7; 6 & 11; 9 & 8











\









\

\b







\









\









\









 Right  9 & 6; 7 & 11; 8 & 11










\






\b


\









\








\b

\









\









\









\






"R" (Right)  Up  9 & 13; 1 & 11; 9 & 12











\









\

\b







\









\









\









 Down  9 & 1; 13 & 11; 12 & 11











\









\

\b







\









\









\









 Left  9 & 8; 1 & 11; 9 & 7











\









\

\b







\









\









\









 Right  9 & 1; 8 & 11; 7 & 11










\






\b


\









\








\b

\









\









\









\






Illumination  N/A  5 & 11











\









\









\









\









\









\









\





\f

Dakota, Durango, Ram Pickup, Ram Van & Ram Wagon
Remove switch and disconnect wiring connector. See POWER
MIRROR SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check
continuity between power mirror switch terminals with switch in
appropriate position. See POWER MIRROR SWITCH CONTINUITY TEST (DAKOTA,
DURANGO, RAM PICKUP, RAM VAN & RAM WAGON) table. See Fig. 4. If
results differ from table, replace switch.
POWER MIRROR SWITCH CONTINUITY TEST (DAKOTA, DURANGO, RAM PICKUP,
RAM VAN & RAM WAGON)








\









\









\









\









\









\









\







Mirror Selector Mirror Angle  Continuity Between Pins


Position










\






\b


\









\








\b

\









\









\









\






"L" (Left)  Up  1 & 7; 3 & 8; 4 & 7











\









\

\b







\









\









\









 Down  1 & 8; 3 & 7; 4 & 8











\









\

\b







\









\









\









 Left  2 & 7; 3 & 8; 5 & 7











\









\

\b







\









\









\









 Right  2 & 8; 3 & 7; 5 & 8










\






\b


\









\








\b

\









\









\









\






"R" (Right)  Up  1 & 7; 4 & 7; 6 & 8











\









\

\b







\









\









\









 Down  1 & 8; 4 & 8; 6 & 7











\









\

\b







\









\









\









 Left  2 & 7; 5 & 7; 6 & 8











\









\

\b







\









\









\

  Right  2 & 8; 5 & 8; 6 & 7











\









\









\









\









\









\









\





\f
Fig. 4: Identifying Power Mirror Motor Switch Connector Pins
(Dakota, Durango, Ram Pickup, Ram Van & Ram Wagon)
Courtesy of Chrysler Corp.

POWER MIRROR DEFOGGER
NOTE: On Caravan, Town & Country and Voyager, heated mirror is
controlled by rear window defogger switch. Heated mirror is
on whenever rear window defogger is on.
Caravan, Town & Country, & Voyager
1) Mirror should be warm to touch with rear window defogger
activated. If mirror is not warm to touch, check fuse No. 12 (10-amp)
in junction block. Repair short circuit and replace fuse as necessary.
Check for battery voltage at mirror harness connector Light
Blue/Yellow wire with rear window defogger switch on. If battery
voltage does not exist, repair wiring as necessary. See WIRING
DIAGRAMS. If battery voltage exists, go to next step.

2) Apply voltage to Light Blue/Yellow wire at heated mirror
and ground Black wire at heated mirror. Mirror should become warm to
touch. If mirror is not warm to touch, remove mirror and test wires
for continuity. If no continuity exists, repair wires. If wires are
okay, replace mirror. To test defogger switch, see appropriate wiring
diagram in REAR WINDOW DEFOGGERS article.
NOTE: On Ram Pickup, heated mirror is controlled by mirror defogger
switch.
Ram Pickup
1) Turn ignition on. While watching instrument panel
voltmeter, turn heated mirror switch on. Voltmeter needle should
deflect. With heated mirror on, mirror should be warm to touch after
3-4 minutes. If system operates as described, system is okay at this
time.
2) If system does not operate as described, go to next step.
Illuminated indicator light means only that voltage exists at heated
mirror relay.
3) Ensure ignition is on. Check fuses in Power Distribution
Center (PDC) and junction block. Ensure fuses are fully seated and
connections are secure. If mirrors are still inoperative, problem is
in heated mirror control, mirror heating grid and/or heated mirror
harness or connectors. If turning switch on causes a large deflection
in instrument panel voltmeter, check for a short circuit in system.
Repair as necessary.
REMOVAL & INSTALLATION
CAUTION: When battery is disconnected, vehicle computer and memory
systems may lose memory data. Driveability problems may exist
until computer systems have completed a relearn cycle. See
COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION
before disconnecting battery.
HEATED MIRROR SWITCH
Removal & Installation (Ram Pickup)
Heated mirror switch is part of HVAC control unit. See
appropriate AUTOMATIC A/C-HEATER SYSTEMS article in appropriate AIR
CONDITIONING & HEATING SERVICE & REPAIR section.
POWER MIRROR SWITCH
Removal & Installation (Caravan, Town & Country, & Voyager)
1) Remove cover from over steering column. Remove screws
holding instrument cluster bezel to dash (above cluster lens). Remove
screws holding instrument cluster bezel to dash from each side of
steering column. Disconnect clip holding instrument cluster bezel to
dash from above right vent louver.
2) Separate instrument cluster bezel from dash. Disconnect
wires from back of bezel. Disengage lock tabs above and below mirror
switch. Pull mirror switch from headlight switch bezel. To install,
reverse removal procedure.
Removal & Installation (Dakota & Durango)
1) Pull power mirror switch control knob rearward to remove
it from switch body. Remove nut securing switch to door trim panel.
Pull door latch handle to open position and remove screw securing trim
panel to door. Remove manual window crank handle, if equipped. Release
locking tab on power window/lock switch, if equipped. Remove power
window/lock switch and unplug connector.

2) Remove remaining screws from door trim panel. Using a trim
stick, pry perimeter of trim panel away from door sufficiently to
unplug power mirror switch connector. Remove power mirror switch. To
install, reverse removal procedure.
Removal & Installation (Ram Pickup)
1) Remove door pull cup from door trim panel. Reach through
door pull cup opening to release locking tab on power window/lock
switch. Remove power window/lock switch and unplug connector.
2) Using a trim stick, pry perimeter of trim panel away from
door. Remove door trim panel. Unplug power mirror switch connector.
Remove power mirror switch. To install, reverse removal procedure.
Removal & Installation (Ram Van & Ram Wagon)
Disconnect battery. Remove knee blocker and lower instrument
panel cover. Remove mirror control knob by pulling straight out.
Remove inside hood release handle screws and lower handle. Reach under
instrument panel and disconnect switch connector. Remove 2 switch
mounting plate screws and pull switch from panel. Remove switch-to-
mounting plate nut and remove switch. To install, reverse removal
procedure.
POWER MIRROR ASSEMBLY
Removal & Installation (Caravan, Town & Country, & Voyager)
Remove screw and power mirror front cover. Remove 3 mirror
attaching screws and pull mirror away from door. Disconnect mirror
electrical connectors. To install, reverse removal procedure.
Removal & Installation (Dakota & Durango)
1) Unscrew door lock knob. Remove power window/lock switch
assembly by inserting a screwdriver in notch at forward end of switch
housing to release locking tabs. Pull switch assembly forward and out
from door panel. Remove trim plug from top of trim panel. Remove screw
under trim plug.
2) Remove 2 screws from bottom of door trim panel. Remove arm
rest screw. Using a trim stick, pry trim panel away from door. Roll
door watershield away from lower rear corner of door to expose panel
access. Reach inside door and disconnect mirror wiring connector.
3) Remove 3 mirror nuts and pull mirror loose from door. Feed
wiring harness out through hole in outer door panel. To install,
reverse removal procedure.
Removal & Installation (Ram Pickup, Ram Van & Ram Wagon)
1) Raise window to full up position. Remove remote door latch
control handle. Remove power window/lock switch by inserting thin-
blade screwdriver into switch housing forward notch and depressing
locking tab. Pull switch bezel out and forward to remove from door
panel.
2) Remove 2 screws from bottom (front and rear) of trim
panel. Using trim stick, pry trim panel away from door. Roll door
watershield away from lower rear corner of door to expose panel
access. Reach inside door and disconnect mirror wiring connector.
NOTE: Spray silicone on mounting bracket cover grommet to prevent
grommet from coming off when cover is moved up on mirror
stem.
3) Remove mirror mounting bracket cover and slide up on
mirror stem. Remove mirror mounting bracket nuts. Pull mirror loose
from door and feed wiring harness out through hole in outer door
panel. To install, reverse removal procedure.

WIRING DIAGRAMS

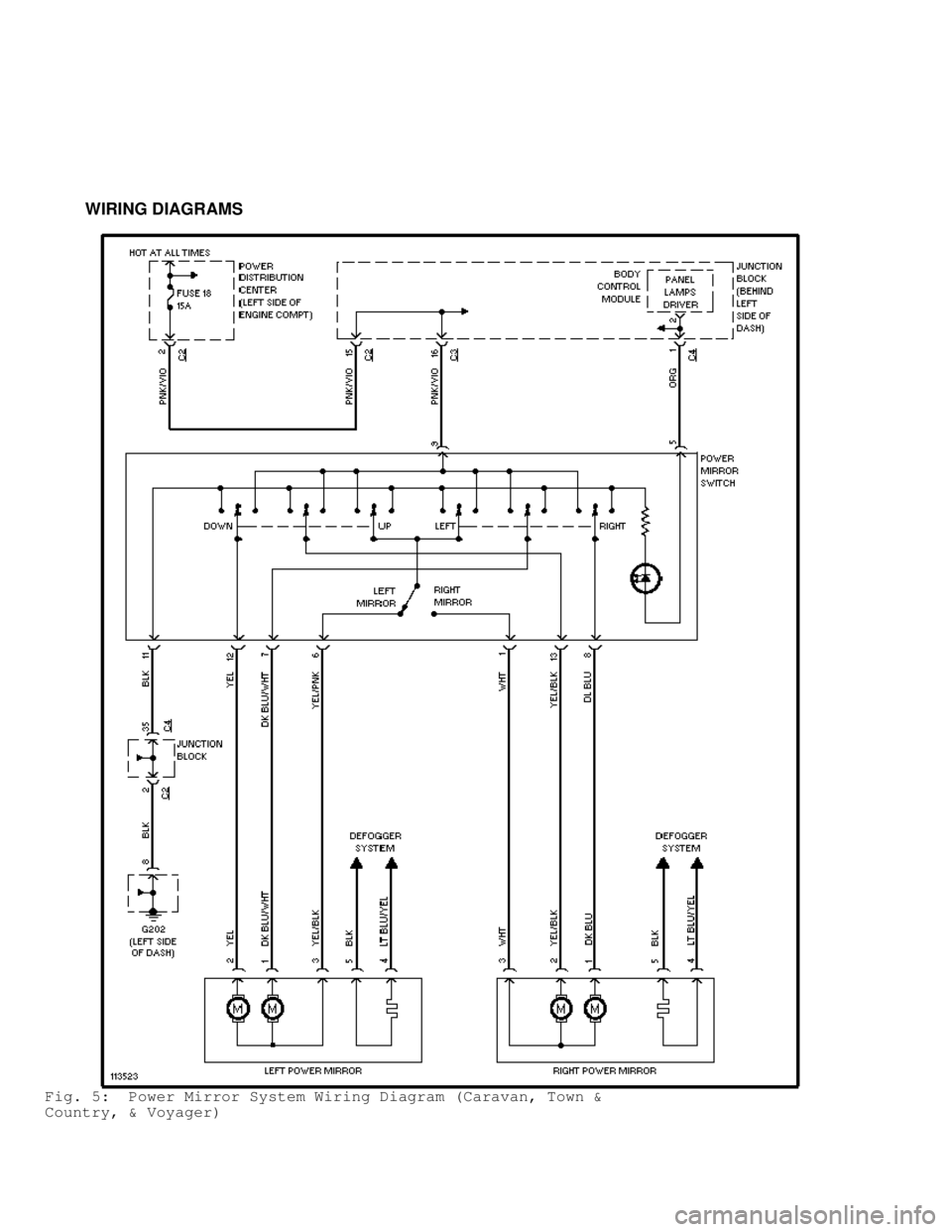

Fig. 5: Power Mirror System Wiring Diagram (Caravan, Town &
Country, & Voyager)
