1999 DODGE RAM Service Repair Manual

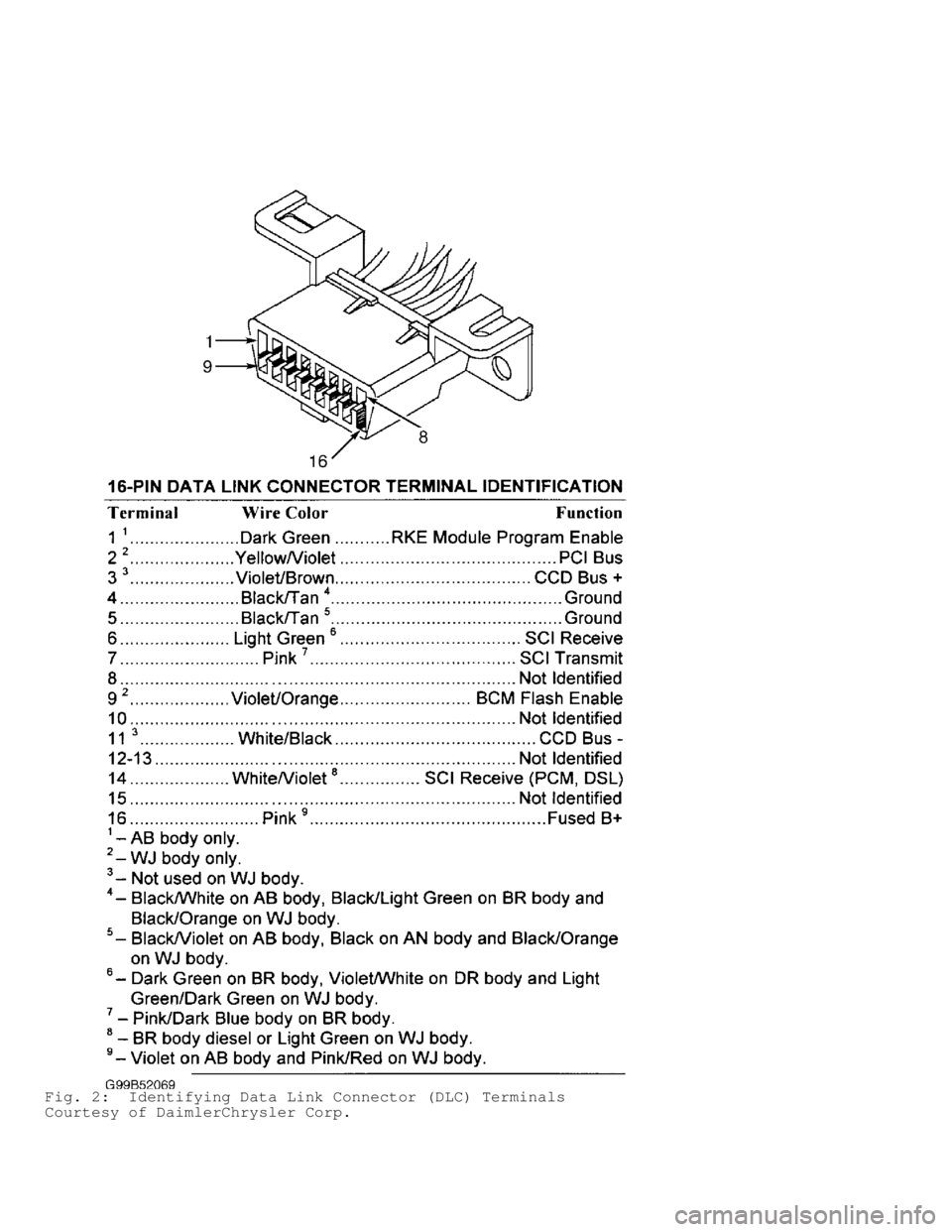

Fig. 2: Identifying Data Link Connector (DLC) Terminals
Courtesy of DaimlerChrysler Corp.

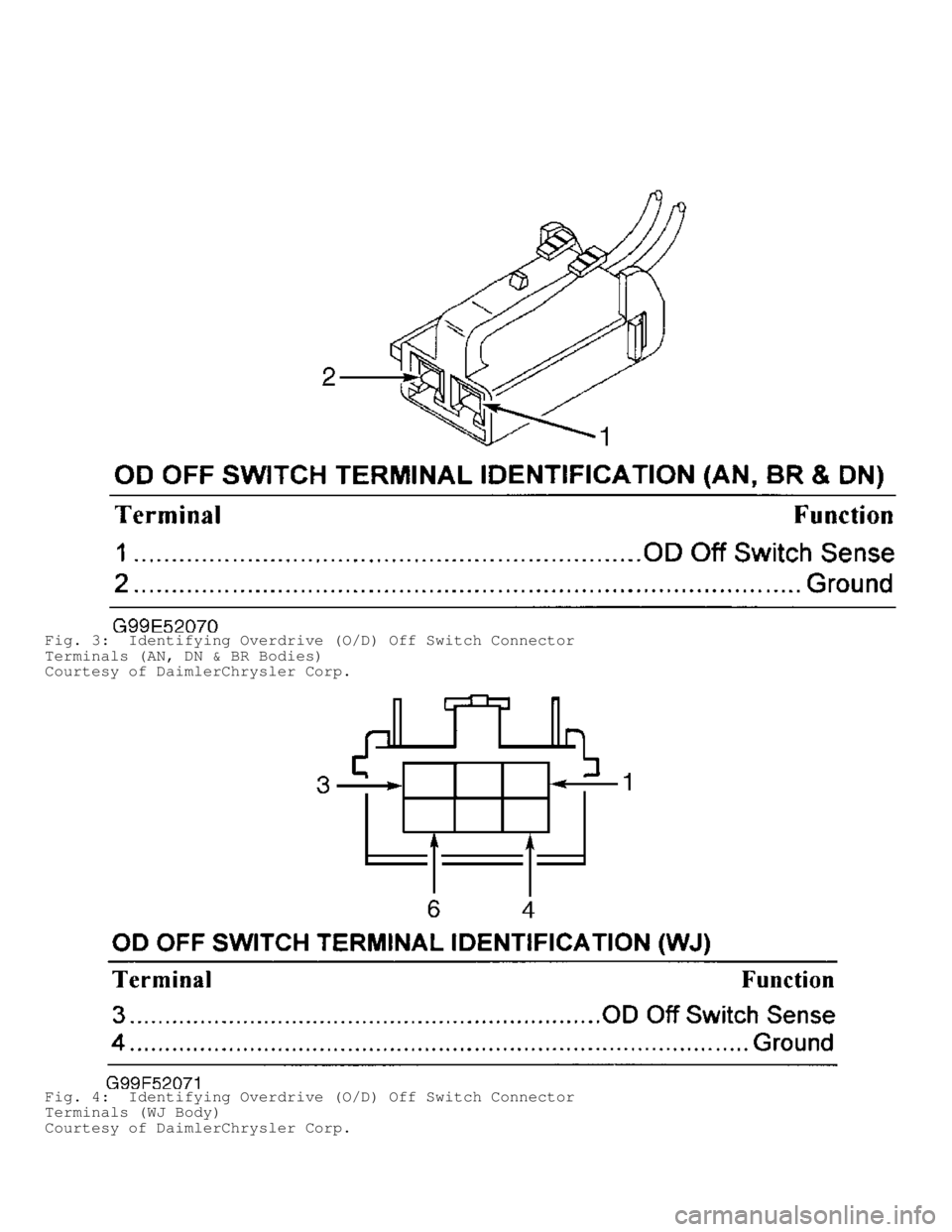

Fig. 3: Identifying Overdrive (O/D) Off Switch Connector
Terminals (AN, DN & BR Bodies)
Courtesy of DaimlerChrysler Corp.
Fig. 4: Identifying Overdrive (O/D) Off Switch Connector
Terminals (WJ Body)
Courtesy of DaimlerChrysler Corp.

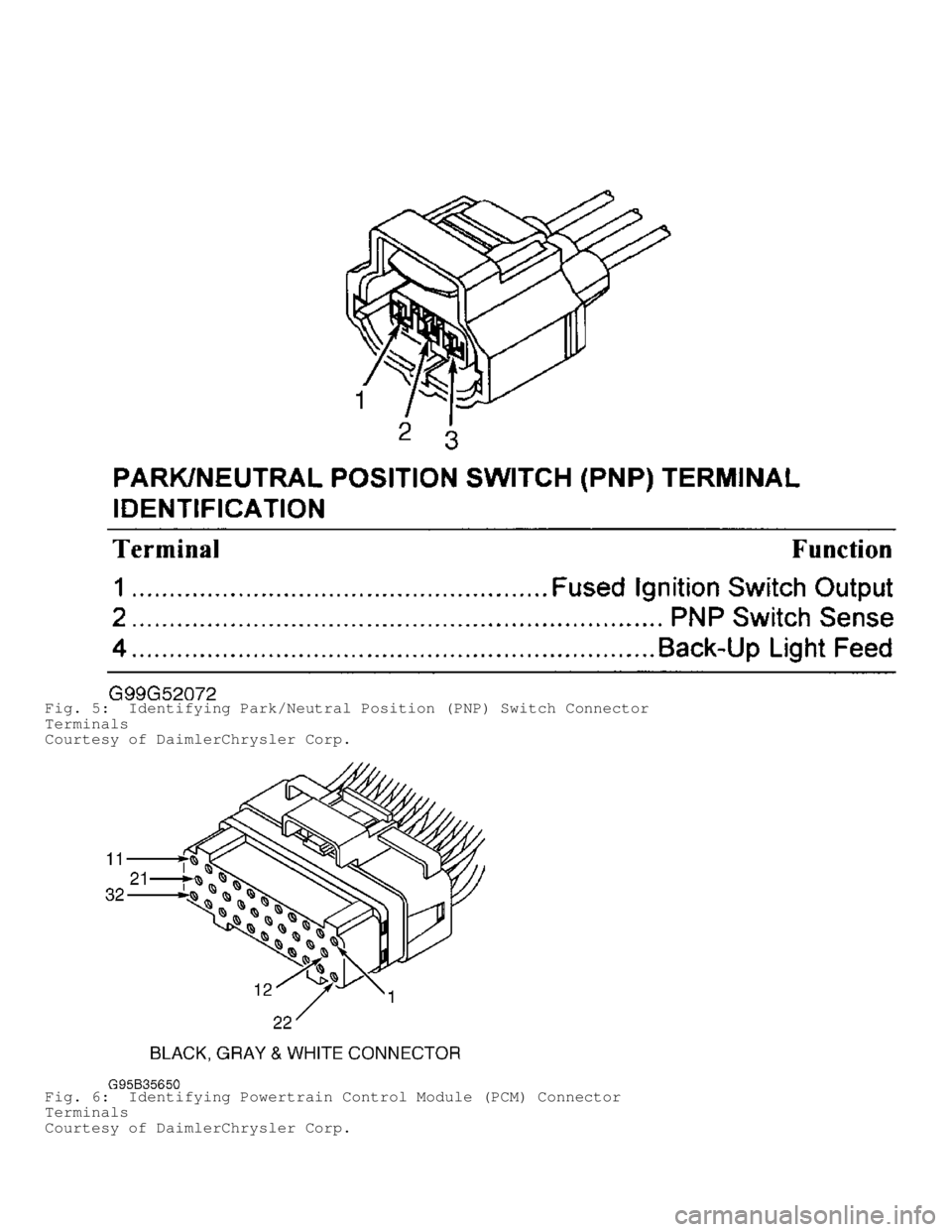

Fig. 5: Identifying Park/Neutral Position (PNP) Switch Connector
Terminals
Courtesy of DaimlerChrysler Corp.
Fig. 6: Identifying Powertrain Control Module (PCM) Connector
Terminals
Courtesy of DaimlerChrysler Corp.

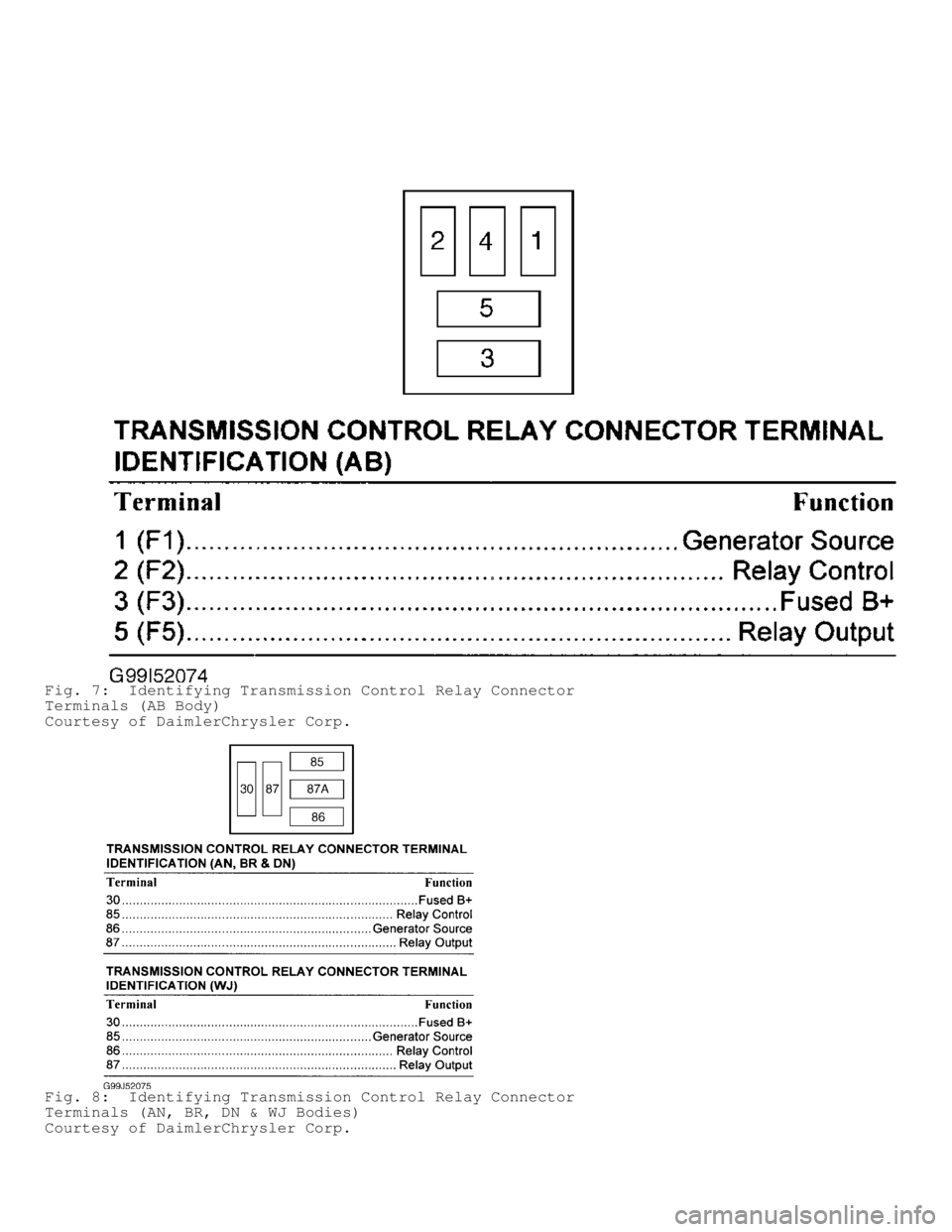

Fig. 7: Identifying Transmission Control Relay Connector
Terminals (AB Body)
Courtesy of DaimlerChrysler Corp.
Fig. 8: Identifying Transmission Control Relay Connector
Terminals (AN, BR, DN & WJ Bodies)
Courtesy of DaimlerChrysler Corp.

Fig. 9: Identifying Transmission Governor Pressure Sensor
Connector Terminals
Courtesy of DaimlerChrysler Corp.
Fig. 10: Identifying Transmission Output Shaft Speed Sensor
Connector Terminals (AB, BR & WJ Bodies)

Courtesy of DaimlerChrysler Corp.
Fig. 11: Identifying Transmission Output Shaft Speed Sensor
Connector Terminals (AN & DN Bodies)
Courtesy of DaimlerChrysler Corp.
Fig. 12: Identifying Transmission Solenoid Connector Terminals
Courtesy of DaimlerChrysler Corp.
DIAGNOSTIC TESTS

* PLEASE READ THIS FIRST *
NOTE: For engine-related DTCs, see appropriate SELF-DIAGNOSTICS
article in ENGINE PERFORMANCE. Engine performance DTCs must
be repaired first, as engine performance and related
component signals will affect transmission operation and
diagnosis.
All references to Using scan tool, perform TCC SYSTEM TEST
are for scan tool driven testing of TCC system. Follow manufactures
scan tool instructions.
All connector references in the following testing apply to
harness connectors unless otherwise specified. For circuit, wire color
and connector terminal identification, see CONNECTOR IDENTIFICATION
and WIRING DIAGRAMS. After all repairs are complete or any component
is replaced, perform verification test as follows:
* DTC P0751 perform appropriate verification VER-2A.
* All DTCs except P0751 perform appropriate verification
VER-5A.
DTC P0711: TRANS TEMP SENSOR, NO TEMP RISE AFTER START
NOTE: To test transmission temperature sensor, engine and
transmission temperature must be less than 85F (29C).
1) Using scan tool, read DTCs. If DTCs P0712, P0713 or P1899
are present, repair these DTCs before proceeding. If neither of these
DTCs are present, go to next step.
2) Using scan tool, read and record Engine Coolant
Temperature (ECT) sensor temperature, and transmission temperature
sensor temperature. If transmission temperature is within 9
F (-13C)
of ECT temperature, go to step 5). If transmission temperature is not
within 9
F (-13C) of ECT temperature, go to next step.
3) Start engine and let it idle in gear, with brake on.
Monitor transmission temperature sensor. If transmission temperature
does not increase steadily 15
F (-9C) over a 10 minute period, go to
step 5). If transmission temperature increases steadily 15F (-9C)
over a 10 minute period, go to next step.
4) Inspect all related wiring and connectors. Repair as
necessary. If wiring and connectors are okay, see INACTIVE DTC
CONDITION under SELF-DIAGNOSTIC SYSTEM. Testing is complete.
5) Disconnect transmission solenoid harness connector.
Inspect connector and terminals for damage. Repair as necessary. If
connector and terminals are okay, replace transmission governor
pressure/temperature sensor.
DTC P0712: TRANS TEMP SENSOR VOLTAGE TOO LOW
Circuit Description
Circuit is monitored continuously while key is on, and engine
running. Code sets if transmission temperature sensor voltage is less
than 1.55 volts for 2.2 seconds.
Possible Causes
* Transmission temperature sensor wiring harness defective.
* Transmission pressure/temperature sensor defective.
* Transmission temperature signal circuit short to ground.
* Transmission temperature signal circuit short to sensor
ground circuit.
* PCM defective.

Diagnostic Procedures
1) On AN and DN bodies, go to next step. On all except AN and
DN bodies, record freeze frame data. Use scan tool to read DTCs. If
DTC SPECIFIC GOOD TRIPS counter is not displayed or displayed count is
not "0", go to step 11). If DTC SPECIFIC GOOD TRIPS counter is
displayed and displayed count is "0", go to next step.
2) Turn ignition off. Disconnect PCM harness connectors.
Inspect connectors and terminals for damage. Repair as necessary. If
connectors and terminals are okay, measure resistance between
transmission temperature signal circuit at White PCM harness connector
C2 and ground circuit at Black PCM harness connector C1. If resistance
is less than 550 ohms, go to step 8). If resistance is 550 ohms or
more, go to next step.
3) If resistance is 550-2300 ohms, go to next step. If
resistance is greater than 2300 ohms, go to DTC P0713: TRANS TEMP
SENSOR VOLTAGE TOO HIGH.
4) Measure resistance of transmission temperature signal
circuit between ground and White PCM harness connector C2. If
resistance is 5 ohms or less, go to step 8). If resistance is greater
than 5 ohms, go to next step.
5) Reconnect all harness connectors. Using scan tool, read
TRANS TEMP voltage. If voltage is less than 1.5 volts, replace PCM. If
voltage is 1.5 volts or greater, go to step 7). On all other bodies,
go to next step.
6) Conditions required to set DTC P0712 are not present at
this time. DTC P0712 sets when transmission temperature sensor voltage
at PCM is less than 1.55 volts for 2.2 seconds. Possible causes are:
shorted transmission temperature sensor wiring, faulty connections,
faulty transmission temperature sensor or faulty PCM. Go to next step.
7) Inspect all related wiring and connectors. Repair as
necessary. If wiring and connectors are okay, see INACTIVE DTC
CONDITION under SELF-DIAGNOSTIC SYSTEM. Testing is complete.
8) Disconnect transmission solenoid harness connector.
Inspect connector and terminals for damage. Repair as necessary. If
connector and terminals are okay, measure resistance between
transmission temperature signal circuit at White PCM harness connector
C2 and sensor ground circuit at Black PCM harness connector C1. If
resistance is less than 5 ohms, repair transmission temperature signal
circuit for short to ground circuit. If resistance is 5 ohms or
greater, go to next step.
9) Measure resistance between ground and transmission
temperature signal circuit at White PCM harness connector C2. If
resistance is less than 5 ohms, repair transmission temperature signal
circuit for short to ground. If resistance is 5 ohms or greater, go to
next step.
10) Reconnect transmission solenoid harness connector. Remove
transmission oil pan. Disconnect transmission pressure/temperature
sensor harness connector. Measure resistance between transmission
temperature signal circuit at White PCM harness connector C2 and
sensor ground circuit at Black PCM harness connector C1. If resistance
is less than 5 ohms, repair or replace transmission solenoid and
harness assembly. If resistance is 5 ohms or greater, go to next step.
11) Measure resistance between ground and transmission
temperature signal circuit at White PCM harness connector C2. If
resistance is less than 5 ohms, repair or replace transmission
solenoid and harness assembly. If resistance is 5 ohms or greater,
replace transmission pressure/temperature sensor.
DTC P0713: TRANS TEMP SENSOR VOLTAGE TOO HIGH
Circuit Description
Circuit is monitored continuously while key is on, and engine
