DIFFERENTIAL
03UOJ2-10
03UOJ2-10
03UOJ2-10
03UOJ2-
03UOJ2-
Disassembly Note
Side bearing inner race (side opposite ring gear)
Caution
l Hold the gear case with one hand so that it does
not fall.
1. Remove the bearing inner race with the SST.
Side bearing inner race (ring gear side)
Caution
l Use pads in the vise to prevent damaging the
differential assembly.
1. Remove the bearing inner race with the SST.
Assembly Note
Side bearing inner race (Side opposite rlng gear)
1. install the speedometer drive gear.
2. Install the new side bearing inner race with the
SST.
Side bearing inner race (ring gear side)
1. Install the new bearing inner race with the SST.
Backlash of Side Gear and Pinion Gear
Measure the backlash by the following procedure.
1. Install the left and right driveshafts in the differential as-
sembly.
2. Support the driveshafts on V-blocks as shown in the figure.
3. Measure the backlash of both pinion gears.
Backlash: O-O.1 mm (O-0.004 in)
4. If not as specified, replace the differential assembly.
--I
107
52-45

J2 SHIFT MECHANISM
SHIFT MECHANISM
OVERHAUL

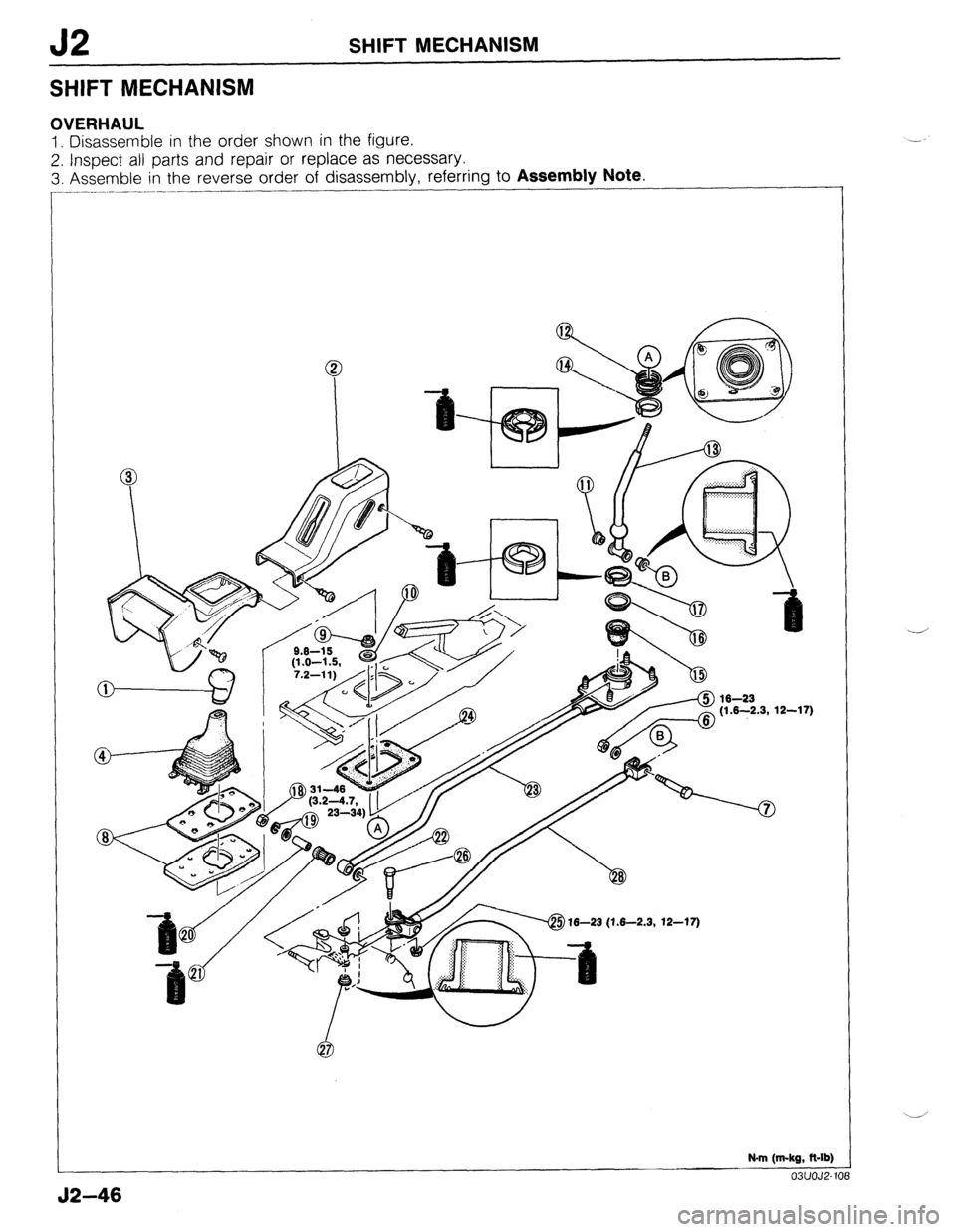

1. Disassemble in the order shown in the figure.
2. Inspect all parts and repair or replace as necessary.
3. Assemble in the reverse order of disassembly, referring to
Assembly Note.
- --
(1.6-2.3, 12-17)
16-23 (1.8-2.3, 12-V)
N-m (m-kg, ft-lb)
03UOJ2-11
52-46

SHIFT MECHANISM
1. Change lever knob
2. Rear console
3. Front console
4. Boot
5. Nut
6. Washer
7. Bolt
8. Cover
9. Nut
10. Washer
11. Bushing
12. Spring
Inspect for damage and weaked
Assembly note . . . . . . . . . . . . . . . . . . . . . . . . . . page J2-47
13. Change lever
14. Ball seat (Upper)
15. Boot
Inspect for wear or damage 16. Holder
17. Ball seat (lower)
18. Nut
19. Washer
20. Pipe
21. Bushing
Inspect for wear or damage
22. Washer
23. Extension bar
Assembly note . . . . . . . . . . . . . . . . . . . . . . . . . . page J2-47
24. Insulator
Inspect for damage and cracks
25. Nut
26. Bolt
27. Bushing
Inspect for wear and damage
28. Change control rod
Inspect for bending
03UOJ2-109
CHAGE CONT
03UOJ2-111
Assembly Note
Extension bar
1. Connect the extension bar to the transaxle, and then mount
it to the floor.
Tightening torque:
16-23 N+m (1.6-2.3 m-kg, 12-17 ft-lb)
Spring
1. Verify that the hooked part of the spring is properly seated
in the bracket groove.
J2-47

M’
FRONT AND REAR AXLES
INDEX .....................................................
OUTLINE .................................................
SPECIFICATIONS ....................................
TROUBLESHOOTING GUIDE.. .................... ;I ;
FRONT AXLE ......................................... M- 3
REAR AXLE ........................................... M- 3

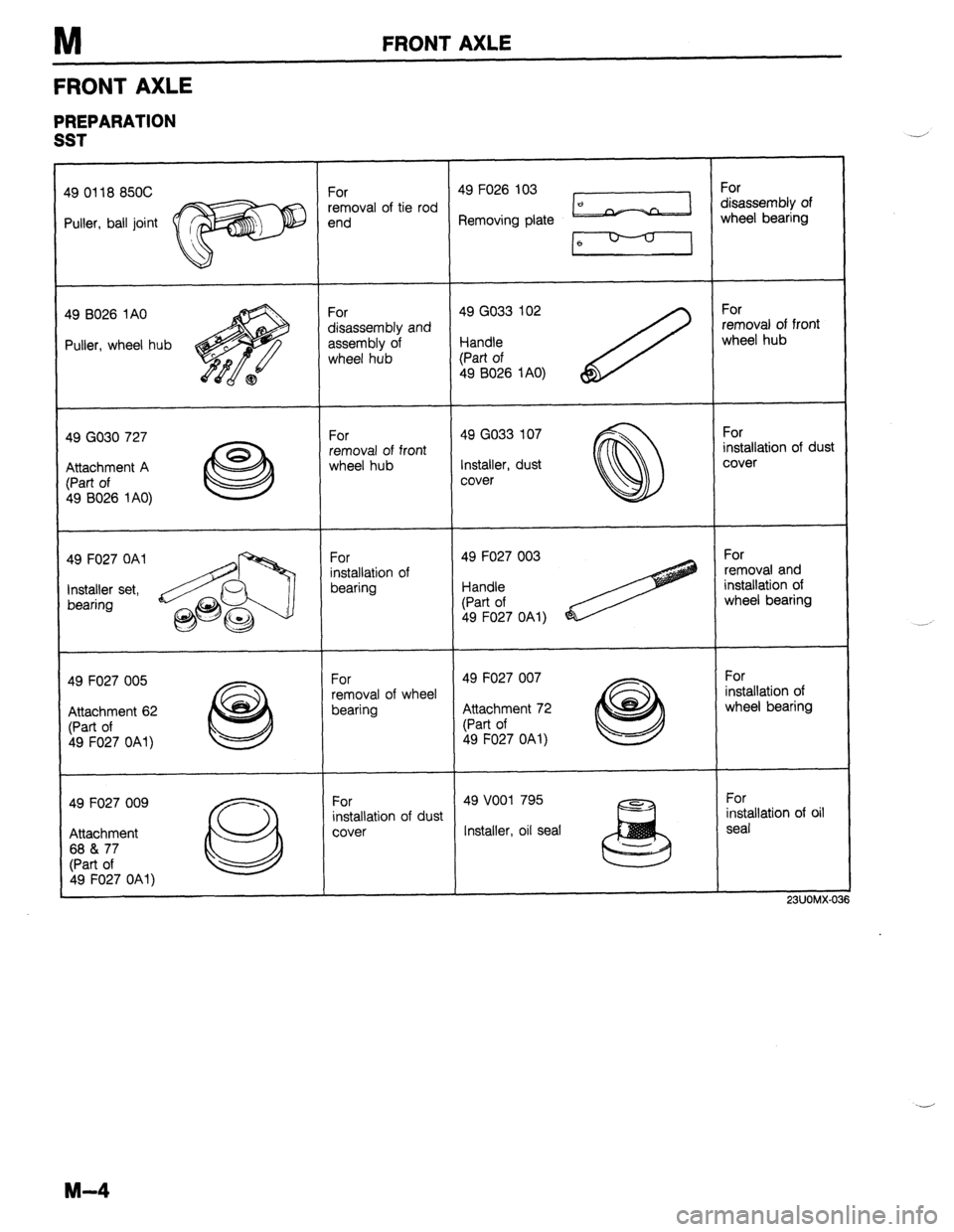

FRONT AXLE ........................................... M- 4
PREPARATION .......................................
WHEEL HUB, STEERING KNUCKLE.. ........ ii- d
-
REAR AXLE ............................................. M-10
PREPARATION ....................................... M-10
DRUM BRAKE TYPE ............................... M-l 1
DISC BRAKE TYPE ................................. M-14
DRIVE SHAFT .......................................... M-17
PREPARATION ....................................... M-17
JOINT SHAFT (BP DOHC). ....................... M-18
DRIVE SHAFT (TRIPOD JOINT). ................ M-21
23UOMX-001

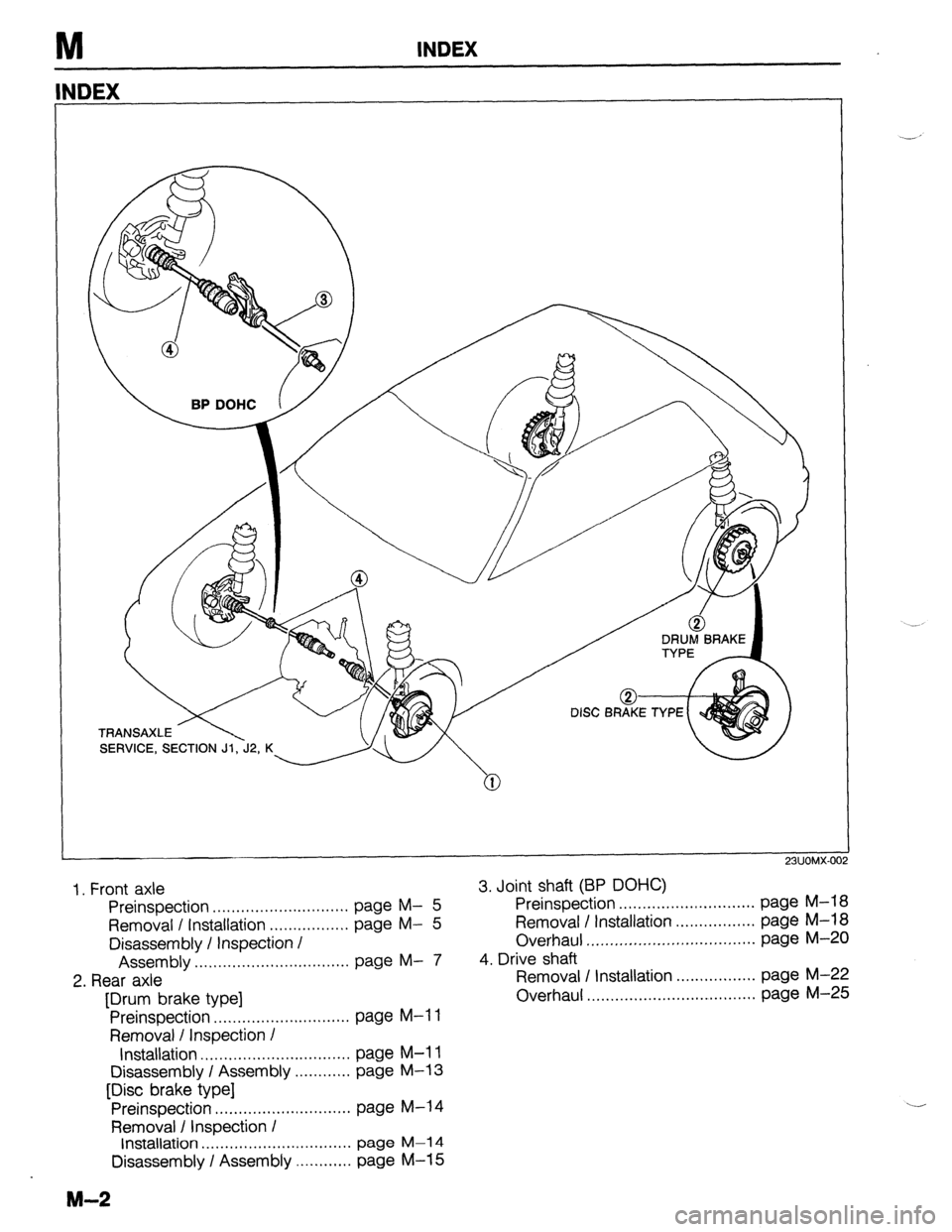

INDEX
