1992 MAZDA PROTEGE Workshop Manual

N
STEERING SYSTEM
INDEX ......................................................
MANUAL STEERING ............................... ;I g
ENGINE SPEED SENSING POWER
STEERING (ESPS) ................................. N- 3
OUTLINE ..................................................
SPECIFICATIONS .................................... ;I ::
MANUAL STEERING ..................................
PREPARATION ....................................... ;I ;
TROUBLESHOOTING GUIDE.. .................. N- 5
BOOT ................................................... N- 6
STEERING WHEEL AND COLUMN.. .......... N- 6
STEERING GEAR AND LINKAGE .............. N-13
ENGINE SPEED SENSING POWER
STEERING .............................................. N-23
PREPARATION ....................................... N-23
TROUBLESHOOTING GUIDE.. .................. N-25
AIR BLEEDING ....................................... N-26
STEERING WHEEL AND COLUMN.. .......... N-26
POWER STEERING FLUID.. ...................... N-27
STEERING GEAR AND LINKAGE .............. N-30
POWER STEERING OIL PUMP.. ................ N-37
DRIVE BELT ........................................... N-41
23UONX-001

INDEX
MANUAL STEERING
STEERING WHEEL PLAY
NON-TILT
23UONX-00.
1. Boot 3. Steering gear and linkage
Removal / Installation page N- 6 Removal / Installation..
................ page N-l 3 ..................
2. Steering wheel and column Disassembly ............................... page N-15
Inspection (On-vehicle)
............... page N- 8 Inspection ................................... page N-17
Removal I Installation.. ................
page N- 9 Assembly .................................... page N-19
Disassembly / Assembly.. ........... page
N-l 0
Inspection ...................................
page N-l 1
_’
N-2

INDEX
ENGINE SPEED SENSING POWER STEERING (ESPS)
FLUID
ATF M STEERING WHEEL PLAY
O-30mm (O-l .18 in)
SPECIFICATION
-IIt or Dexron@lI
I T nFFl FCTIC-IN
--. --w. .-.. NEW: 8.0-9.0mm (0.31-0.35 in)
USED: 9.0-lO.Omm (0.35-0.39 in)
LIMIT: 11.5mm (0.45 in)
23UONX-00
1. Boot
4. Drive belt
Removal / installation
.................. page N- 6 Inspection ................................... page N-41
2. Steering gear and linkage Adjustment .................................
page N-42
Removal / Installation.. ................ page N-30 Replacement .............................. page N-42
Disassembly / Inspection.. ..........
page N-31 5. Power steering fluid
Assembly..
.................................. page N-34 Air bleeding ................................ page N-26
3. Power steering oil pump Inspection.. .................................
page N-27
Removal I Installation
.................. page N-37 6. Steering wheel and column
Disassembly / Inspection I Inspection (On-vehicle).
.............. page N-26
Assembly ..................................
page N-38 Removal / Installation..
................ page N- 9
Disassembly / Assembly ............. page
N-l 0
Inspection ................................... page N-l 1
N-3

OUTLINE, MANUAL STEERING
OUTLINE
SPECIFICATIONS
Item
Steering wheel
Steering shaft and joint
Steering gear Outer diameter mm (in)
Lock-to-lock turns
Shaft
Joint
Power assist
Gear
Gear ratio
Rack stroke mm (in)
Power steering fluid
Fluid capacity liter (US qt, Imp qt) Manual steering Power steering 370 (14.6)
4.3 3.0
Collapsible
2cross joint
-
Engine speed sensing
Rack-and-pinion
a0 (infinite)
140 (5.51)
-
ATF Dexron@lI or M-III
-
0.8 (0.85, 0.70)
23UONX-00
MANUAL STEERING
PREPARATION
SST
49 0118 850C
Puller, ball joint For 49 1243 785
removal of tie rod
end Installer, dust
boot
49 0180 5108
Attachment,
steering worm
bearing preload
measuring For
measurement of
pinion preload 49 F032 308
Installer For
installation of dust
boot
For
installation of
oil seal
93GONX-OC
N-94

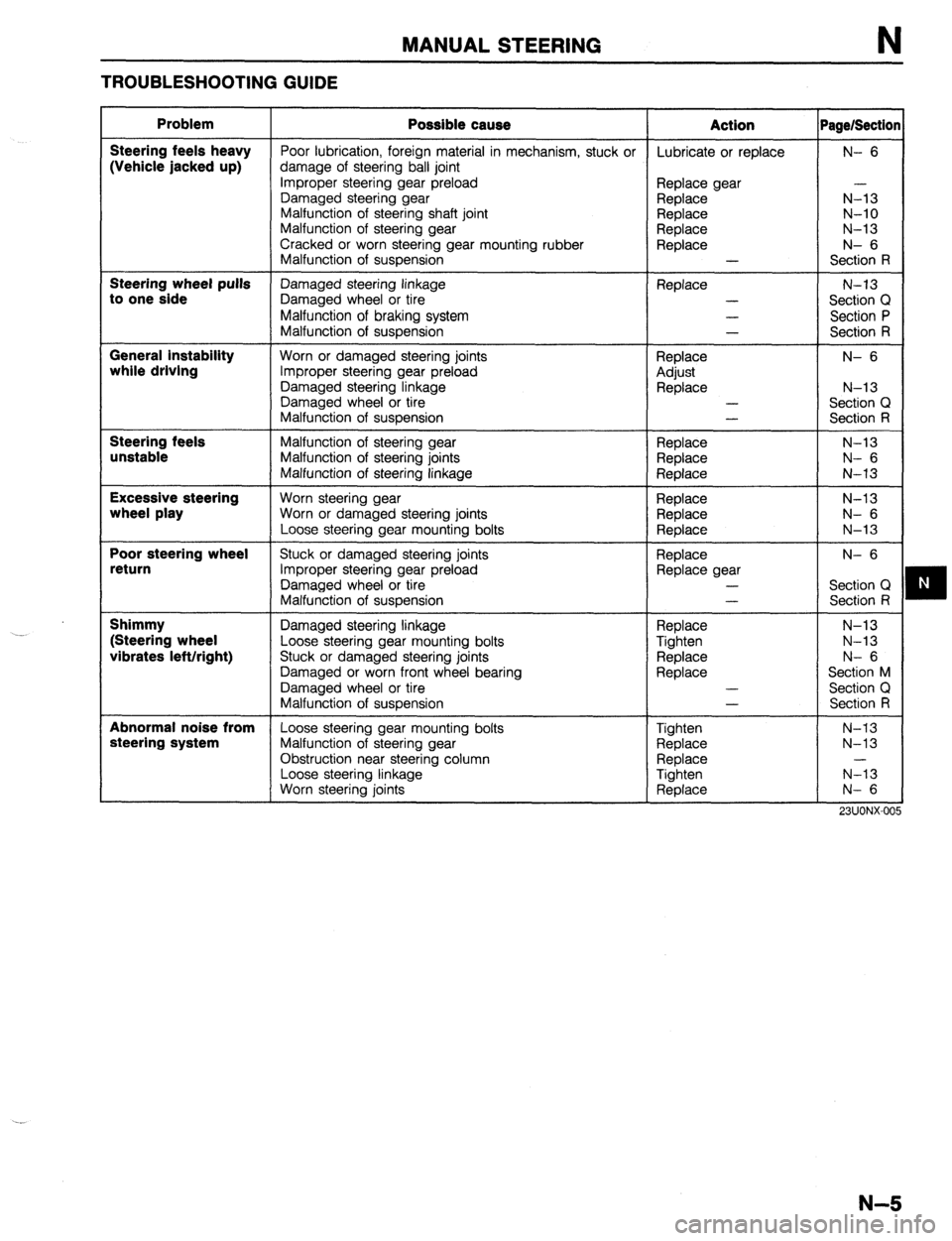

MANUAL STEERING N
TROUBLESHOOTING GUIDE
Problem
Possible cause Action PagelSectio
Steering feels heavy
Poor lubrication, foreign material in mechanism, stuck or Lubricate or replace N- 6
(Vehicle jacked up) damage of steering ball joint
Improper steering gear preload
Replace gear -
Damaged steering gear
Replace N-13
Malfunction of steering shaft joint
Replace N-10
Malfunction of steering gear Replace N-13
Cracked or worn steering gear mounting rubber Replace N- 6
Malfunction of suspension -
Section R Steering wheel pulls
Damaged steering linkage
Replace N-13 to one side Damaged wheel or tire -
Section Q
Malfunction of braking system -
Section P
Malfunction of suspension -
Section R General instability
Worn or damaged steering joints Replace N- 6 while drlvlng Improper steering gear preload Adjust
Damaged steering linkage
Replace N-13
Damaged wheel or tire -
Section Q
Malfunction of suspension -
Section R Steering feels
Malfunction of steering gear
Replace N-13 unstable Malfunction of steering joints
Replace N- 6
Malfunction of steering linkage
Replace N-13
Excessive steering
Worn steering gear
Replace N-13 wheel play Worn or damaged steering joints
Replace N- 6 Loose steering gear mounting bolts
Replace N-13 Poor steering wheel
Stuck or damaged steering joints
Replace N- 6
return Improper steering gear preload
Replace gear
Damaged wheel or tire -
Section Q
Malfunction of suspension -
Section R Shimmy
Damaged steering linkage Replace N-13 (Steering wheel Loose steering gear mounting bolts Tighten N-13 vibrates left/right) Stuck or damaged steering joints Replace N- 6
Damaged or worn front wheel bearing Replace Section M
Damaged wheel or tire -
Section Q
Malfunction of suspension -
Section R Abnormal noise from
Loose steering gear mounting bolts
Tighten N-13 steering system Malfunction of steering gear Replace N-13
Obstruction near steering column Replace -
Loose steering linkage Tighten N-13
Worn steering joints Replace N- 6
23UONX-OC
N-5

MANUAL STEERING
BOOT
Removal / Installation
1. Remove in the order shown in the figure, referring to Removal Note.
2. Install in the reverse order of removal, referrino to Installation Note.
N.m (m-kg, ft-lb) 7 (4.3-d&31-42)
23UONX-006
1. Cotter pin, nut
5. Tie rod end boot
2. Tie rod end/Steering knuckle
Removal Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . page N- 7
Removal Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Below Installation Note . . . . . . . . . . . . . . . . . . . . . . . . . . page N- 7
3. Locknut
6. Boot clip
Removal Note . . . . . . . . . . . . . . . . . . . . . page N- 7 7. Boot wire
4. Tie rod end
23UONX-00
8. Rack boot
Removal note
Tie rod end/Steering knuckle
1. Pull out the cotter pin, and loosen the nuts until the nut con-
tacts with the hole stud face.
Caution
l Leave the nuts temporarily tight not to damage the
screw thread.
2. Remove the tie rod from the knuckle arm with the SST.

MANUAL STEERING N
23UONX-050
23UONX.00 9
Locknut
1. Mark the tie rod end, the locknut, and the tie rod.
Tie rod end boot
1. Secure the tie rod end in a vise.
2. Place a chisel against the dust boot and hold it at the angle
shown.
3. Remove the boot.
Caution
l Do not scar the part where the tie rod attaches to
the dust boot.
Installation note
Tie rod end boot
1. Wipe the grease on the ball joint.
2. Put a small amount of rubber grease into the new dust boot.
q 3. Install the dust boot onto the tie rod end with the SST and
a press.
4. Wipe away any grease expelled from the dust boot.
N-7

N MANUAL STEERING
03UONX-01:
03UONX-01
23UONX-010
STEERING WHEEL AND COLUMN
On-vehicle inspection
Steering wheel play
With the wheels in the straight-ahead position, gently turn the
steering wheel to the left and right to determine if play is with-
in specification.
Play: O-30mm (O-l. 18 in)
Note
l if play exceeds specification, either the steering
joints are worn or the backlash of the steering gear
is excessive.
Looseness of steering wheel and column
Move the steering wheel in directions @ , @ , and @ to check
for column bearing wear, steering shaft joint play, steering
wheel looseness. and column looseness.
Steering wheel effort
1. With the vehicle on a hard level surface, move the steering
wheel to put the wheels in the straight-ahead position.
2. Attach a pull scale to the outer of the steering wheel, and
then starting with the wheels in the straight-ahead position,
check the steering effort required to turn the steering wheel
to the left and to the right.
3. If the measured effort exceeds specification, check the fol-
lowing: rotation-starting torque of the pinion, rotation torque
of each ball joint, and seizure of each joint.
Steering wheel effort: 108 N (11 kg, 24.2 lb) or less
Note
l Measure after turning the steering wheel to the left
and right 5 times or more.
