1992 MAZDA PROTEGE Workshop Manual

CLUTCH UNIT, RELEASE BEARING, CLUTCH COVER, CLUTCH DISC H
L
13UOHX-01;
03UOHX-03 8
23UOHX-018
5
03UOHX-032
03UOHX-03
Clutch disc
1. Clean the clutch disc splines and main drive gear splines;
then apply organic molybdenum sulfide grease.
2. Hold the clutch disc in position with the
SST.
Clutch cover
1. Install the SST or equivalent.
2. Align the dowel holes with the flywheel dowels.
3. Tighten the bolts evenly and gradually in the pattern shown.
Tightening torque:
18-26 Nom (1.8-2.7 m-kg, 13-20 ft-lb)
RELEASE BEARING
INSPECTION
Note
l The clutch release bearing Is a sealed bearlng and
must not be washed in solvent.
1. Turn the bearing while applying force in the axial direction.
If the bearing sticks or has excessive resistance, replace it.
CLUTCH COVER
INSPECTION
Note
l Minor scoring or burning should be removed with
emery paper.
1. Inspect the contact surface of the clutch disc for scoring,
cracks, and burning. Repair or replace as necessary.
2. Inspect the contact surface of the clutch release bearing
for wear and cracks.
If there is wear or cracks, replace the clutch cover.
CLUTCH DISC
INSPECTION
Note
l Use sandpaper if the trouble is minor.
1. Inspect the lining surface for burning and oil contamination.
Replace the clutch disc if it is badly burned or oil soaked.
2. Inspect for loose facing rivets and rubbers.
Replace the clutch disc if either is loose.
H-17

CLUTCH DISC, PILOT BEARING, FLYWHEEL
9
13UOHX-020
03UOHX-03
03UOHX-0:
3. Measure the thickness of the lining at a rivet head on both
sides with vernier calipers.
Replace the clutch disc if its thickness is less than minimum.
Thickness: 0.3mm (0.012 in) min.
4. Measure the clutch disc runout with a dial indicator.
Replace the clutch disc if runout is excessive.
Runout: 0.7mm (0.027 in) max.
PILOT BEARING
INSPECTION
1. Turn the bearing while applying force in the axial direction.
If the bearing sticks or has excessive resistance, replace it.
---
FLYWHEEL
INSPECTION
Note
l Minor scoring or burning should be removed with
emery paper.
1. Inspect the contact surface of the clutch disc for scoring,
cracks, and burning; repair or replace as necessary.
2. Inspect the ring gear teeth for wear and damage. If neces-
sary, replace the ring gear.
3. Measure the flywheel runout with a dial indicator. Replace
the flywheel if runout is excessive.
Runout: 0.2mm (0.008 in) max.

Jl
MANUAL TRANSAXLE
(F5M-R)
INDEX ..................................................... Jl- 2
OUTLINE ................................................ Jl- 3
SPECIFICATIONS ................................... Jl- 3
STRUCTURAL VIEW ............................... Jl- 4
POWER FLOW ...................................... Jl- 5
TROUBLESHOOTING GUIDE.. ................... Jl- 6
TRANSAXLE OIL ..................................... Jl- 7
INSPECTION ......................................... Jl- 7
REPLACEMENT ..................................... Jl- 7
TRANSAXLE ........................................... Jl- 6
PREPARATION ...................................... Jl- 6
REMOVAL ............................................ 51-10
DISASSEMBLY ...................................... Jl-14
INSPECTION ......................................... 51-27
ASSEMBLY ........................................... Jl-30
INSTALLATION ...................................... Jl-46
DIFFERENTIAL ........................................ Jl-52
PREPARATION ...................................... 51-52
DISASSEMBLY I INSPECTION / ASSEMBLY Jl-53
SHIFT MECHANISM ................................. Jl-56
OVERHAUL .......................................... Jl-56
OWOJl-001

Jl INDEX
INDEX
BACK-UP LdHT SWITCH
SERVICE, SECTION T VISCOSITY: SAE 75W-90
CAPACITY : 2.68 liters (2.83 US qt, 2.36 Imp qt)
03UOJl-00
1, Transaxle 2. Differential
Removal.. ..................................
page Jl-IO Disassembly I Inspection I
Disassembly ................................ .............................. page Jl-14 Assembly page Jl-53
Inspection ..................................
page J 1-27 3. Shift mechanism
Assembly .................................. page J l-30 Overhaul ...................................
page Jl-56
Installation ................................. page Jl -48 4. Transaxle oil
Inspection. .................................
page Jl- 7
Replacement ............................. page Jl- 7

OUTLINE Jl
OUTLINE
SPECIFICATIONS
c EnginelTransaxle
B6 SOHC BP SOHC
Item FSM-R
I
Transaxle control
I Floor shift
Synchromesh system Forward: Synchromesh
Reverse: Selective sliding
1 1st
I 3.416
2nd 1.842
I
Gear ratio
4th
Final aear ratio 5th
Reverse I
0.918
0.731
3.214
4.105 3.619
Grade
I API service GL-4
Oil Viscosity
I SAE 75W-90
Capacity liters (US qt, Imp qt) 2.68 (2.83, 2.36)
13UOJl-00
Jl-3

Jl OUTLINE
1. Primary 1 st gear 6. Primary reverse gear
2. Primary 2nd gear 7. Secondary 1st gear
3. Primary 3rd gear 8. Secondary 2nd gear
4. Primary 4th gear 9. Secondary 3rd gear
5. Primary 5th gear 10. Secondary 4th gear 11. Secondary 5th gear
12. Secondary reverse gear
13. Reverse idler gear
14. Differential
51-4

OUTLINE Jl

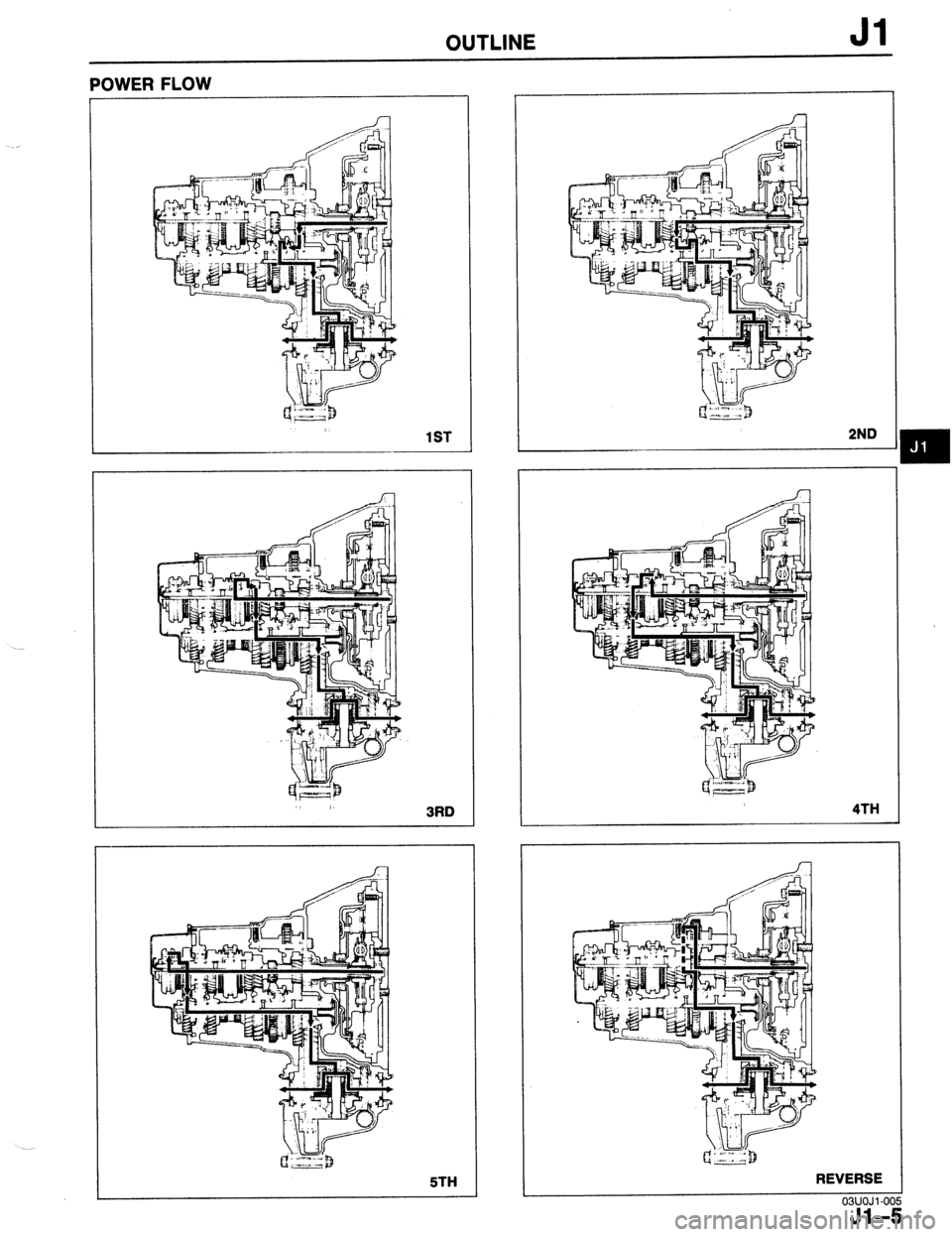

POWER FLOW
1ST
3RD
5TH
A
2ND
4TH
REVERSE
03lJOJl-00
Jl-!

Jl TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE
Problem
Shift lever won’t shift
smoothly or is hard
to shift
Too much play in
shift lever
I------
Difficult to shift
Won’t stay in gear
Abnormal noise
I
Possible cause
Seized shift lever ball
Seized change control rod joint
Bent change control rod
Worn change control rod bushing
Weak shift lever ball spring
Worn shift lever ball bushing
Bent change rod
No grease in transaxle control
Insufficient oil
Deterioration of oil quality
Wear or play of shift fork or shift rod
Worn synchronizer ring
Worn synchronizer cone of gear
Bad contact of synchronizer ring and cone of gear
Excessive longitudinal play of gears
Worn bearing
Worn synchronizer key spring
Excessive primary shaft gear bearing preload
improperly adjusted change guide plate
Bent change control rod
Worn change control rod bushing
Weak shift lever ball spring
improperly installed extension bar
Worn shift fork
Worn clutch hub
Worn clutch hub sleeve
Worn gear sliding part of both shaft gears
Worn gear sliding part of each gear
Worn steel sliding groove of control end
Weak spring pressing against steel ball
Excessive thrust clearance
Worn bearing
Improperly installed engine mount
Insufficient oil
Deterioration of oil quality
Worn bearing
Worn sliding surfaces of gears or shafts
Excessive gear backlash
Damaged gear teeth
Foreign material in gears
Damaged differential gear or excessive backlash Remedy Replace
Replace
Replace
Replace
Replace
Replace
Replace
Lubricate with grease
Add oil
Replace with oil of
specified quality
Replace
Replace
Replace
Replace
Replace
Replace
Replace
Adjust
Adjust
Replace
Replace
Replace
Tighten
Replace
Replace
Replace
Replace
Replace
Replace
Replace
Replace
Replace
Tighten
Add oil
Replace
Adjust or replace
Replace
Replace
Replace with oil of
specified quality
Replace
Adjust or replace Page Jl-56
Jl-56
Jl-56
Jl-56
Jl-56
Jl-56
Jl-56
Jl-56
Jl- 7
Jl- 7
Jl-14
Jl-22, 24
Jl-22, 24
Jl-22, 24
Jl-22, 24
Jl-22, 24
Jl-22, 24
Jl-36
Jl-17
Jl-56
Jl-56
Jl-56
Jl-56
Jl-14
Jl-22, 24
Jl-22, 24
Jl-22, 24
Jl-22, 24
Jl-14
Jl-14
Jl-22, 24
Jl-22, 24
Jl-48
Jl- 7
Jl- 7
Jl-22, 24
Jl-22, 24
Jl-22, 24
Jl-22, 24
Jl-22, 24
Jl-53
03UOJl-OC --
-../
