1992 MAZDA PROTEGE Workshop Manual

SEAT S
SEAT ASSEMBLY
Disassembly / Assembly
1. Disassemble in the order shown in the figure, referring to Disassembly Note.
2. Assemble in the reverse order of disassembly.
FRONT
34~59 (3.5-5.7, 25-41)’
\\a u 35-78 (3.9-8.0. 28-581 w ,‘t
N-m Im-ka. &lb) . -. .
23UOSX-031
1. Headrest (Except GT models)
7. Seat back
2. Front seat belt buckle 8. Head restraint pole guide (Except GT models)
(With passive shoulder belt)
9. Walk-in slide wire (Hatchback)
3. Lift lever (With lifter) 10. Seat slide
6 5: Knuckle knob 11. Return spring (Hatchback)
Knuckle cover 12. Seat cushion
6, Reclining Knuckle
Disassembly Note . . . . . . . . . . . . . . . . . . . . . page S-l 15
s-113

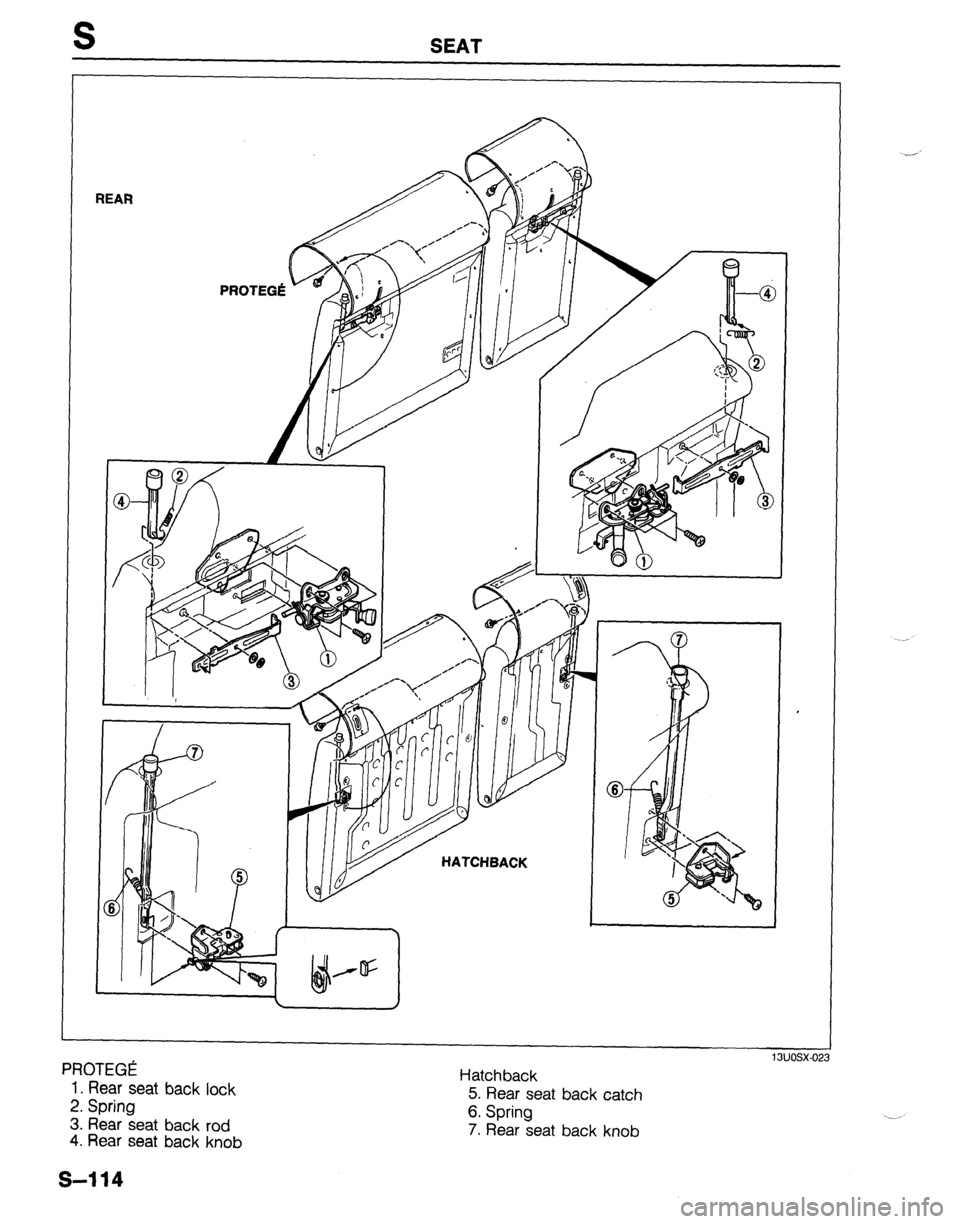

S SEAT
I
REAR
F ‘ROTEGI!!
1. Rear seat back lock
2. Spring
3. Rear seat back rod 4.
Rear seat back knob Hatchback
5. Rear seat back catch
6. Spring
7. Rear seat back knob
13uosx-02:
s-114

SEAT S
03uosx-201
SMUOSX-I 7
Disassembly Note
Reclining knuckle
1. Remove the hog rings on the rear of the seat back.
2. Lift the seat back trim until the reclining knuckle installation
bolts are accessible.
3. Remove the reclining knuckle installation bolts and remove
the reclining knuckle.
s-115

S UNDERBODY DIMENSIONS
UNDERBODY DIMENSIONS
PROJECTED DIMENSIONS (PROTEGh
~rnoowu~
‘_,
S-116

UNDERBODY DIMENSIONS
PROJECTED DIMENSIONS (HATCHBACK)
. ----- -__
I
c
98(
L
"‘c,,:, -
I IN R T.
amvnwuc7
03UOSX-21
s-11;

E F G H I J
-
A: CROSSMEMBER REFERENCE HOLE $12 (0.47) G: FRONT FRAME B REFERENCE HOLE 914 (0.55)
B: CROSSMEMBER REFERENCE HOLE 412 (0.47) H: FRONT FRAME B REFERENCE HOLE 412 (0.47)
C: FRONT FRAME REFERENCE HOLE $16 (0.63) I: TRAILING LINK BRACKET REFERENCE HOLE 410 (0.39)
2 E: CROSSMEMBER MOUNTING BOLT J: REAR SUSPENSION MOUNTING NUT
is F: CROSSMEMBER MOUNTING NUT L: REAR SIDE FRAME REFERENCE HOLE 16x22 (0.63x0.87)
2 mm (in)
& ,

UNDERBODY DIMENSIONS S
STRAIGHT-LINE DIMENSIONS (HATCHBACK)

-c
