1992 MAZDA PROTEGE Workshop Manual

REAR SPOILER S

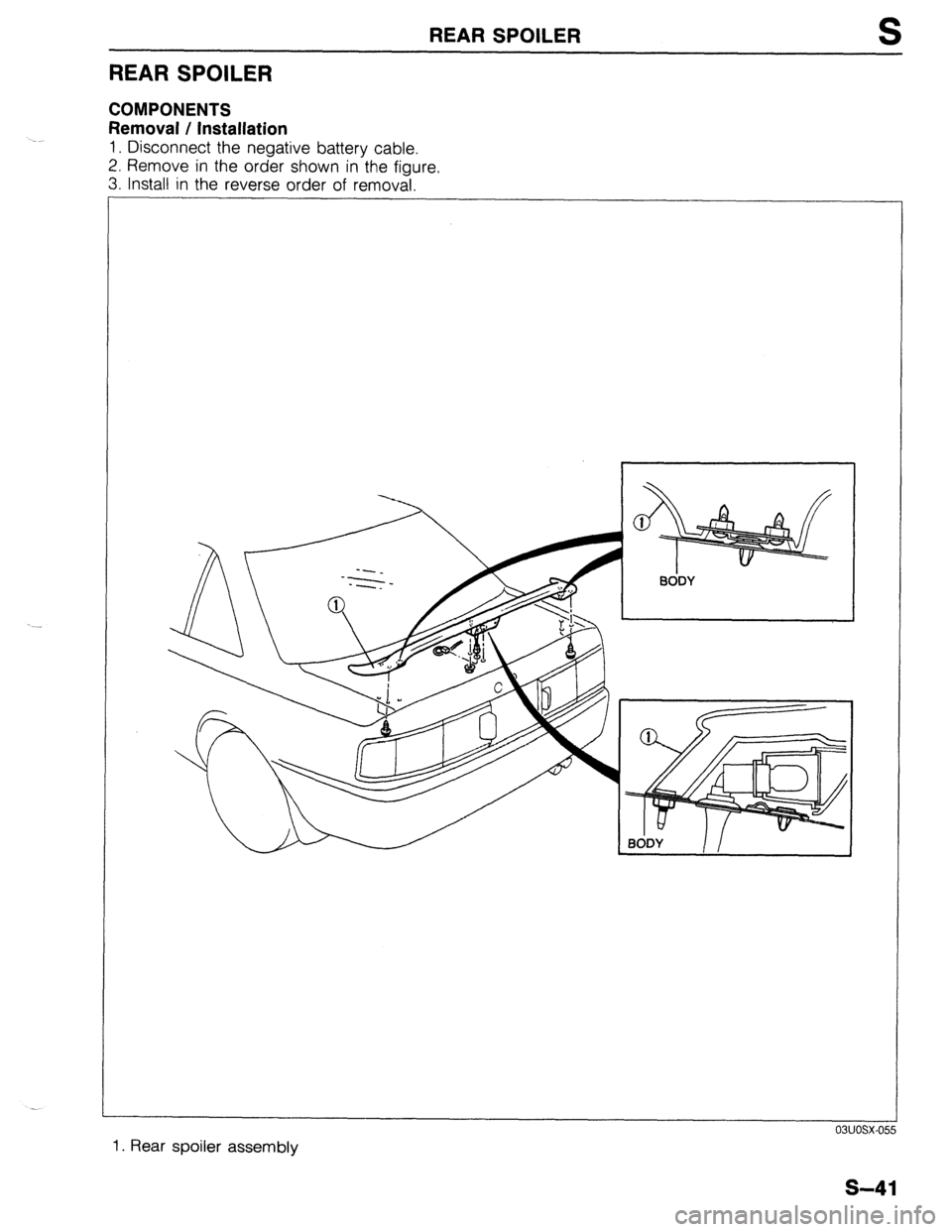

REAR SPOILER
COMPONENTS
Removal / Installation
1. Disconnect the negative battery cable.
2. Remove in the order shown in the figure.
3. Install in the reverse order of removal.
1. Rear spoiler assembly
03uosx-055
s-41

S MOLDING, PROTECTOR, GARNISH
MOLDING, PROTECTOR, GARNISH

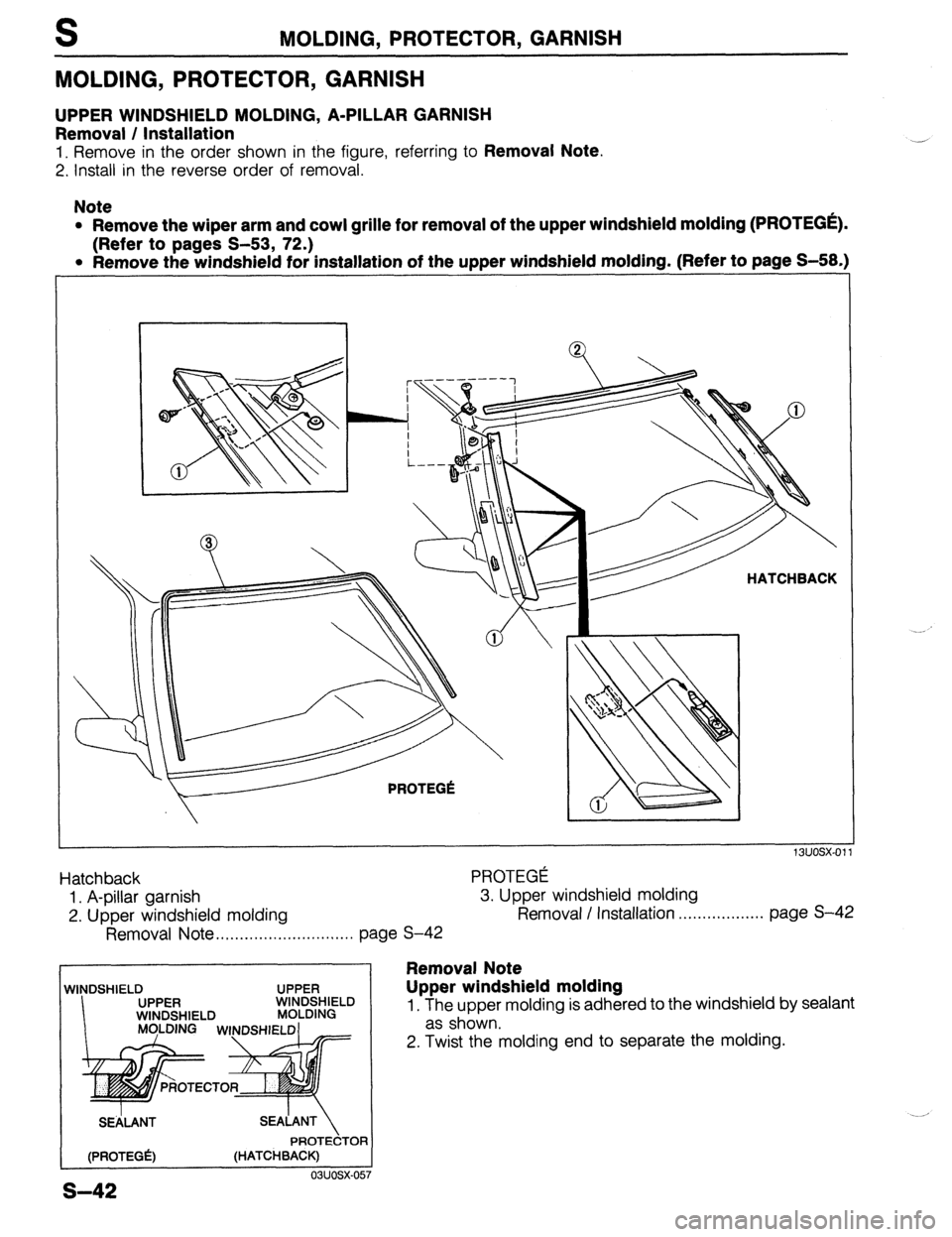

UPPER WINDSHIELD MOLDING, A-PILLAR GARNISH
Removal / Installation
1. Remove in the order shown in the figure, referring to Removal Note.
2. Install in the reverse order of removal.
Note
l Remove the wiper arm and cowl grille for removal of the upper windshield molding (PROTEGE).
(Refer to pages S-53, 72.) -
l Remove the windshield for installation of the upper windshield moldlnq. (Refer to page S-58.:
HATCHBACK
1
suosx-01
Hatchback PROTEGE
1. A-pillar garnish 3. Upper windshield molding
2. Upper windshield molding Removal / Installation . . . . . . . . . . . . . . . . . . page S-42
Removal Note.. ,..... . . . . . . . . . . . . . . . . . . . . .
page S-42
I I
Removal Note
WINDSHIELD
UPPER
WINDSHIELD UPPER
b’/fFSS~LD Upper windshield molding
1. The upper molding is adhered to the windshield by sealant
as shown.
2. Twist the molding end to separate the molding.
SEhANT
(PROTEGk)
S-42
SEALANT

PROTECTOR
(HATCHBACK)
03uosx-057

MOLDING, PROTECTOR, GARNISH S
REAR WINDOW MOLDING (PROTEGE)
Removal / Installation
1. Remove in the order shown in the figure.
2. Install in the reverse order of removal.
I A
I B 1 I
1. R.H. rear window molding
(with upper and lower joints)
2. L.H. rear window molding
(with upper and lower joints) 3. Upper rear window molding
s-43

S MOLDING, PROTECTOR, GARNISH
REAR WINDOW MOLDING (HATCHBACK)
Removal
Remove in the order show in the figure.
I
^^, .^^.. __-
1. Rear hatch lower trim
Removal . . . . . . . . . . . . . . . . . . . . . . . . ,.. . . . . . . . . . . , 4. L.H. rear window molding
page S-98
2. Lower rear window molding installation nuts
3. R.H. rear window molding
(with upper and lower joints)
s-44
(with upper and lower joints)
5. Lower rear window molding
6. Upper rear window molding

MOLDING, PROTECTOR, GARNISH
installation
Install in the order shown in the figure.
____------.-
- _-.-
S
03UOSX-06(
1. Lower rear window molding
2. R.H. rear window molding
(with upper and lower joints)
3. L.H. rear window molding
(with upper and lower joints) 4. Upper rear window molding
5. Lower rear window molding installation nuts
6. Rear hatch lower trim
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
page
S-98
s-45

MOLDING, PROTECTOR, GARNISH

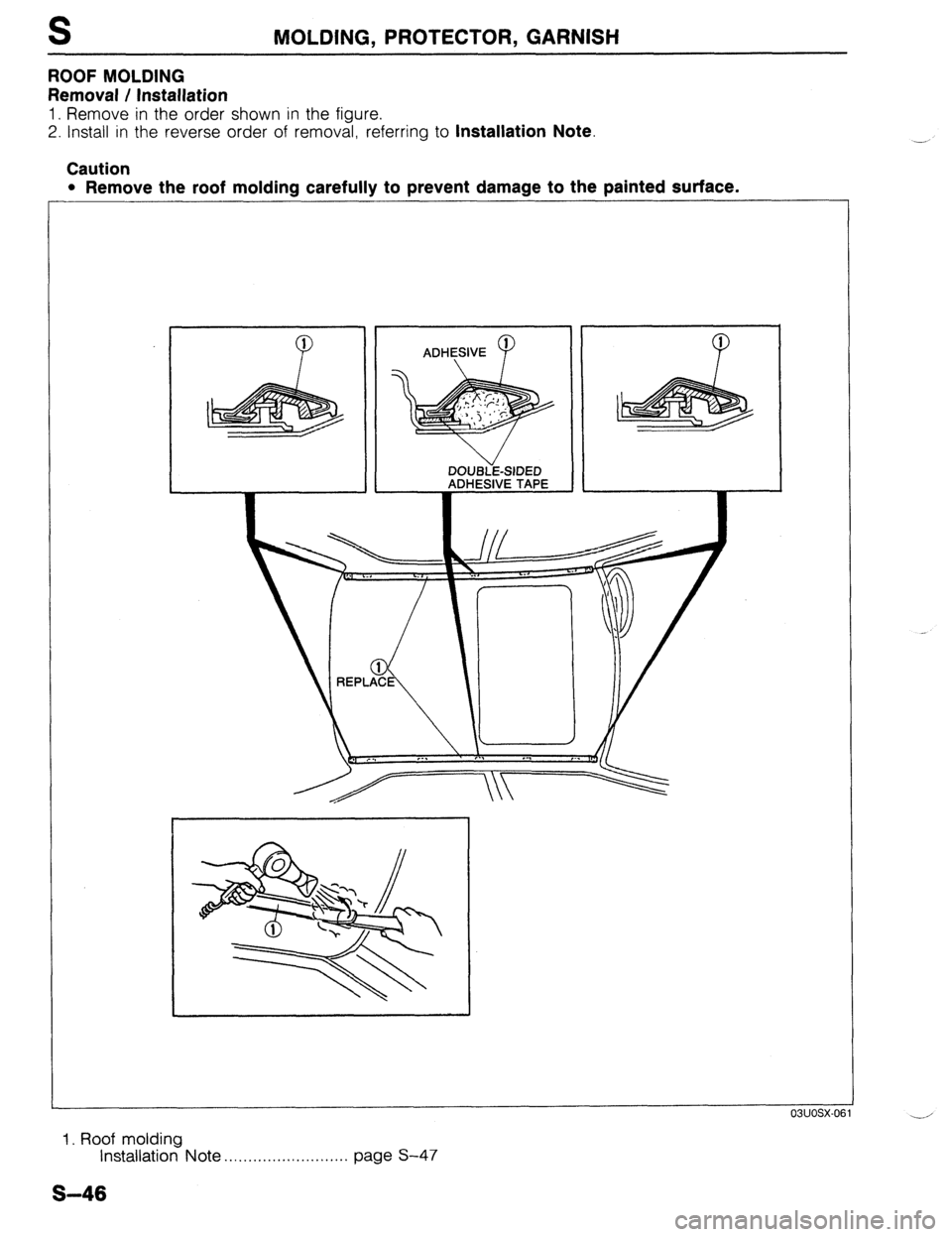

ROOF MOLDING
Removal / Installation
1. Remove in the order shown in the figure.
2. Install in the reverse order of removal, referring to
Installation Note.
Caution
l Remove the roof molding carefully to prevent damage to the painted surface.
03UOSX-OE
1. Roof molding
Installation Note . . . . . . . . . . . . . . . . . . . . . . . . . . page S-47 --,
S-46

MOLDING, PROTECTOR, GARNISH S
ADHESIVE
-------
03UOSX-06
--.-
03UOSX-OE
ADHESIVE
Installation Note
Roof molding
1. Remove the adhesive remaining on the body.
Note
l Remove as much adhesive as possible without
damaging the painted surface.
l If the adhesive is difficult to remove, soften it with
a hot air blower.
2. Remove any grease or dirt from the molding and molding
adhesion surface of the body.
3. Apply primer to the molding as shown.
4. Apply the adhesive (polyurethane) to the molding as shown.
Caution
l Do not apply too much adhesive because it will ooze
out when installed.
5. Peel away the molding adhesive tape protector.
6. Install the’front molding clip to the body stud.
7. Align the molding on the body and attach it securely.
8. Install the rear molding clip to the body stud.
I
03UOSX-065
S-47

S MOLDING, PROTECTOR, GARNISH

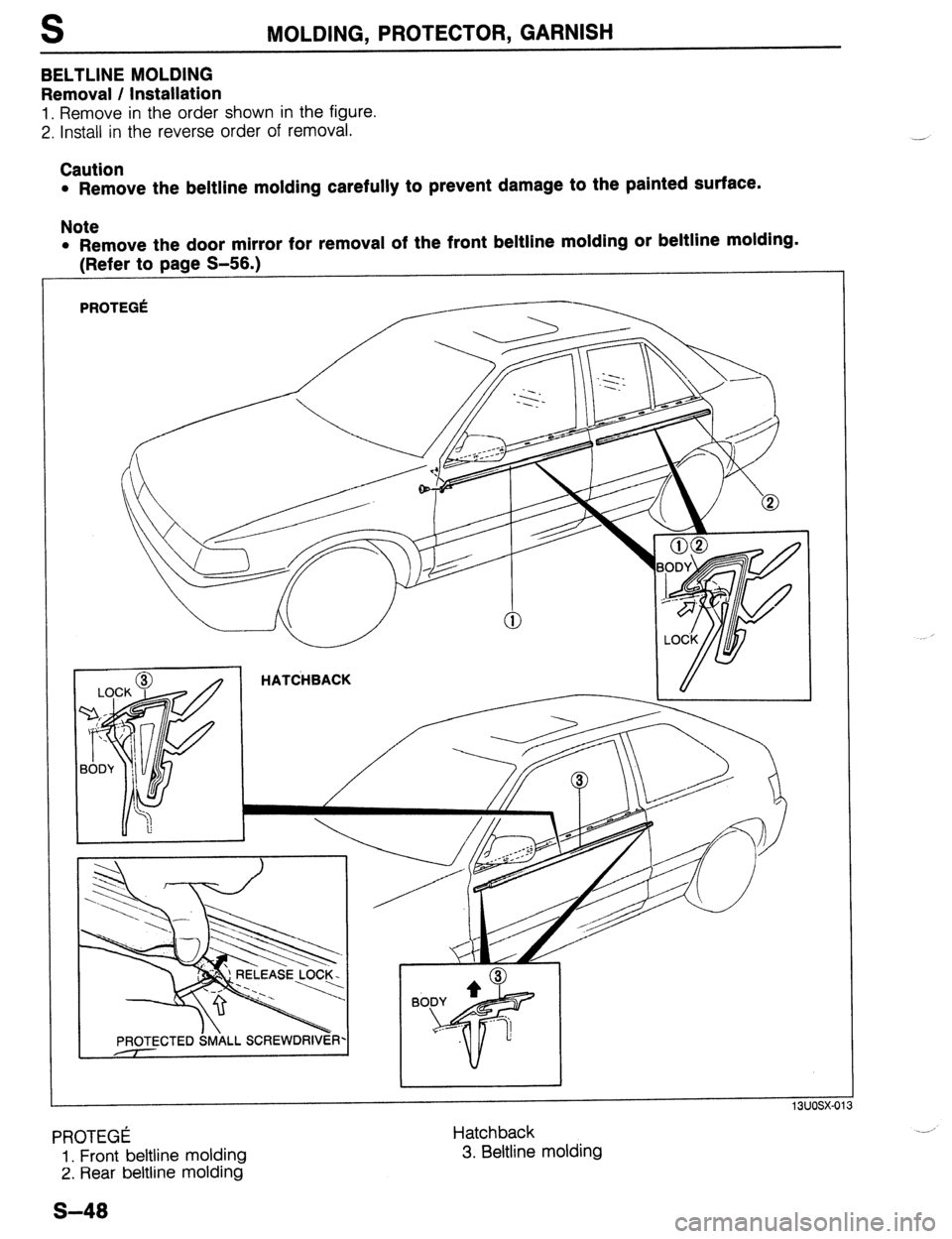

BELTLINE MOLDING
Removal / Installation
1. Remove in the order shown in the figure.
2. Install in the reverse order of removal.
Caution
l Remove the beltline molding carefully to prevent damage to the painted surface.
Note
l Remove the door mirror for removal of the front beltline molding or beltline molding. IRnfnr tn twanp S-!ifL \, ,“.“. .w r-a- - --‘,
PROTEGk
PROTEGE
1. Front beltline molding
2. Rear beltline molding Hatchback
3. Beltline molding
.-’
S-40
