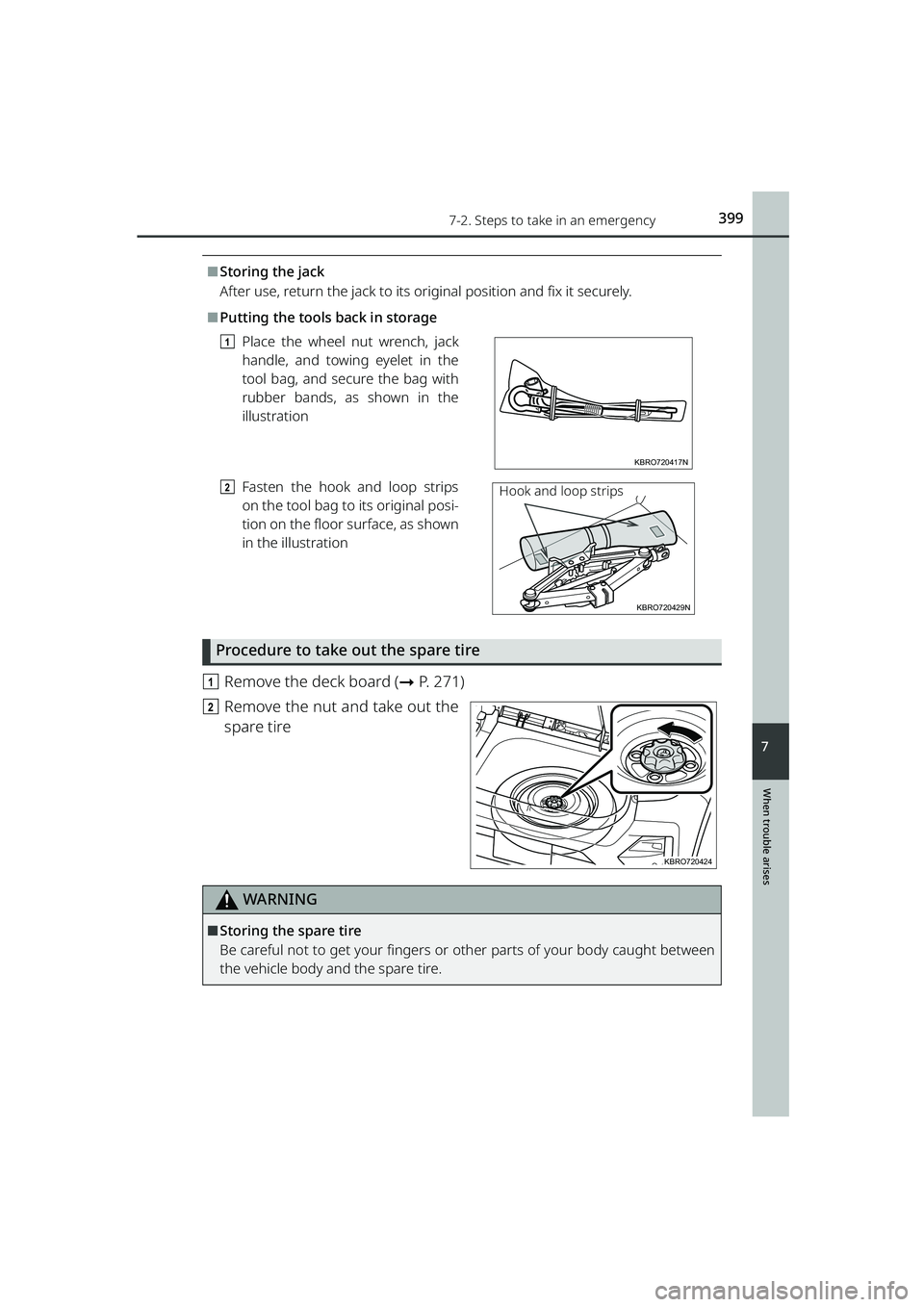

⬛Storing the jack
After use, return the jack to its or iginal position and fix it securely.
⬛Putting the tools back in storage
aPlace the wheel nut wrench, jack
handle, and towing eyelet in the
tool bag, and secure the bag with
rubber bands, as shown in the
illustration
b Fasten the hook and loop strips
on the tool bag to its original posi-
tion on the floor surface, as shown
in the illustration
Procedure to take out the spare tire
aRemove the deck board ( ➞P. 271)
b Remove the nut and take out the
spare tire
WARNING
⬛Storing the spare tire
Be careful not to get your fingers or other parts of your body caught between
the vehicle body and the spare tire.
KBRO720417N
KBRO720429N
Hook and loop strips
KBRO720424
RAIZE_OM_General_BZ358E.book 399 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4007-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E

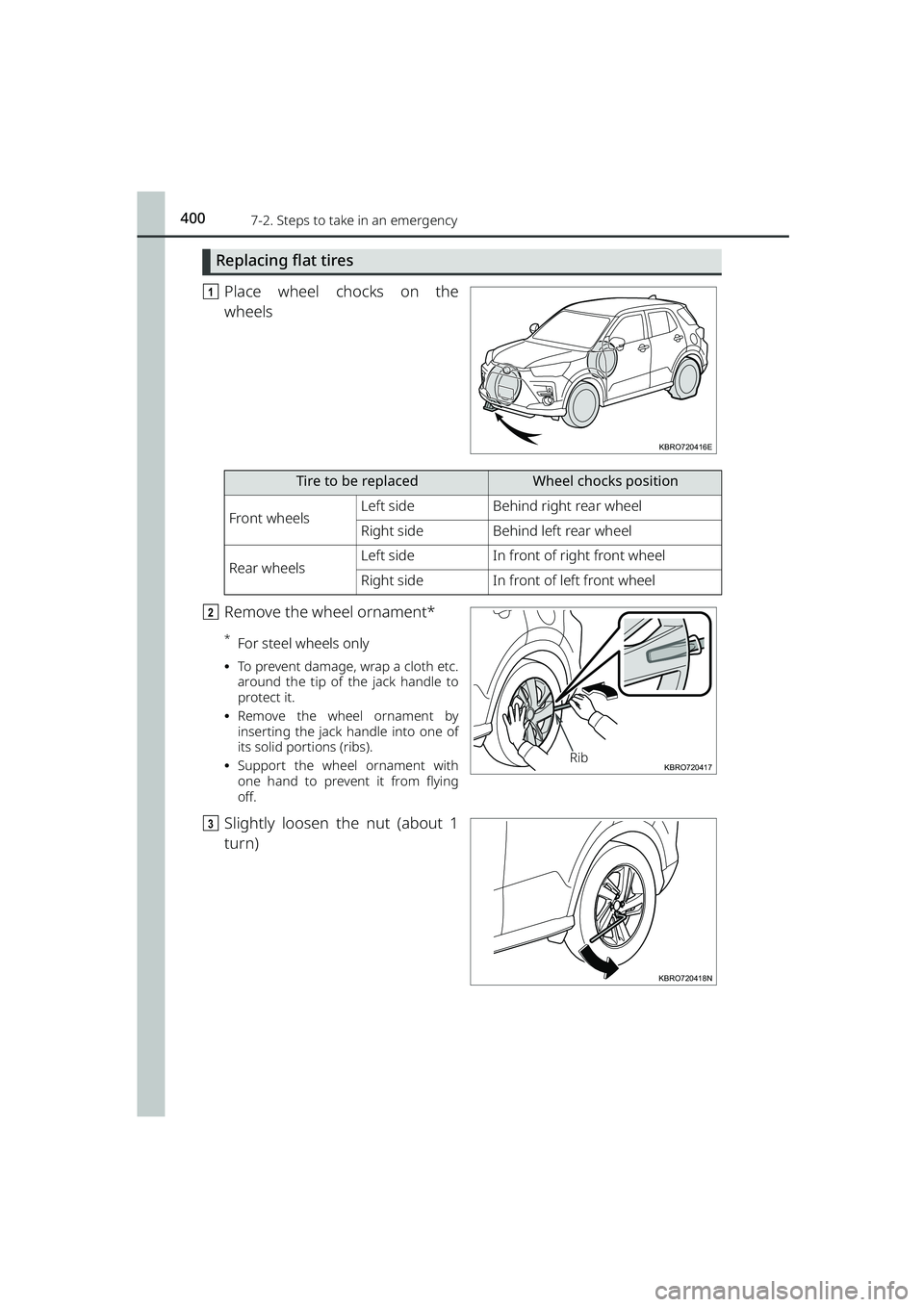

Replacing flat tires
aPlace wheel chocks on the
wheels
b Remove the wheel ornament*
*For steel wheels only
⦁To prevent damage, wrap a cloth etc.
around the tip of the jack handle to
protect it.
⦁ Remove the wheel ornament by
inserting the jack handle into one of
its solid portions (ribs).
⦁ Support the wheel ornament with
one hand to prevent it from flying
off.
c Slightly loosen the nut (about 1
turn)
KBRO720416E
Tire to be replacedWheel chocks position
Front wheelsLeft sideBehind right rear wheel
Right sideBehind left rear wheel
Rear wheelsLeft sideIn front of right front wheel
Right sideIn front of left front wheel
KBRO720417Rib
KBRO720418N
RAIZE_OM_General_BZ358E.book 400 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4017-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7

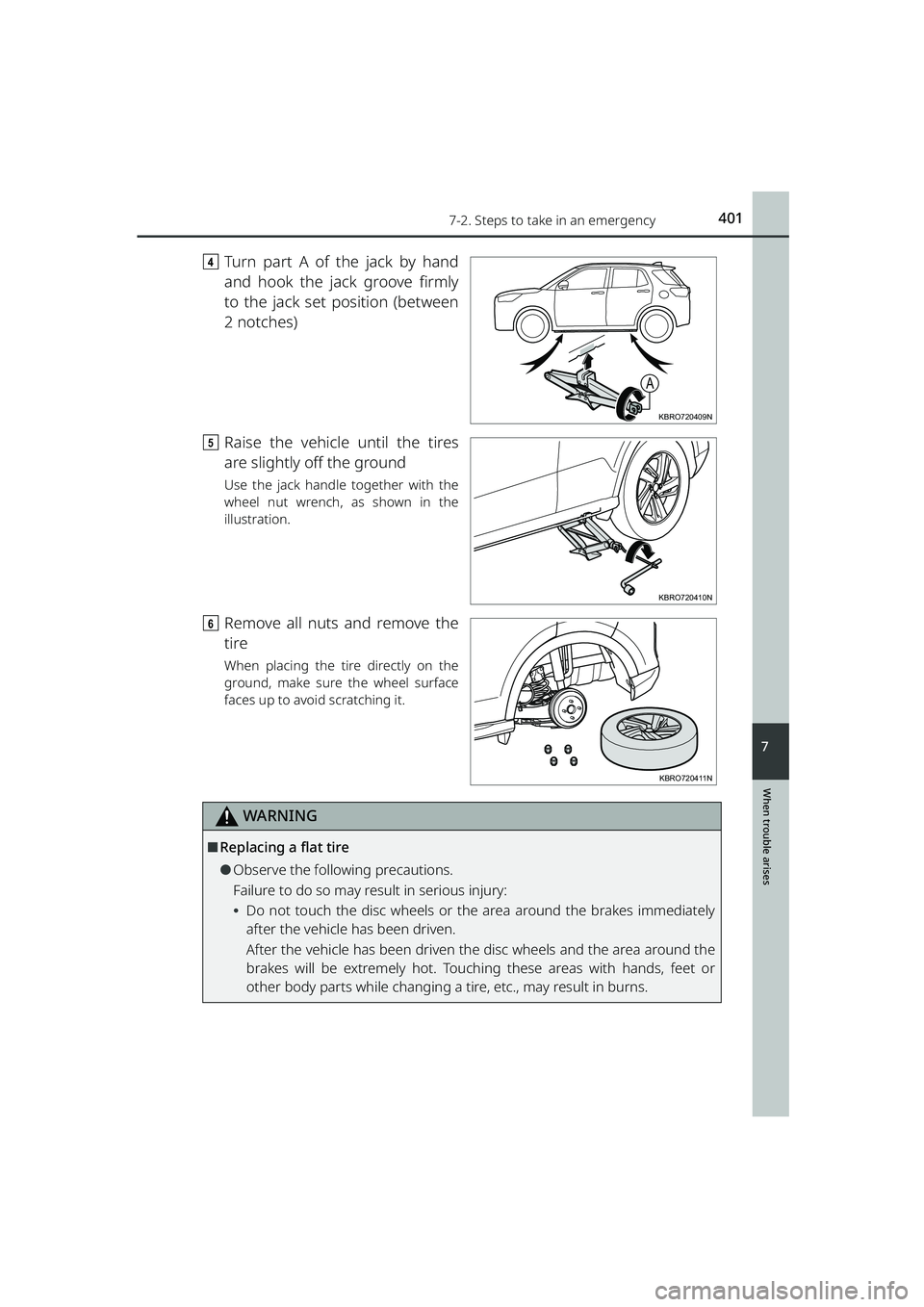

dTurn part A of the jack by hand
and hook the jack groove firmly
to the jack set position (between
2 notches)
e Raise the vehicle until the tires
are slightly off the ground
Use the jack handle together with the
wheel nut wrench, as shown in the
illustration.
fRemove all nuts and remove the
tire
When placing the tire directly on the
ground, make sure the wheel surface
faces up to avoid scratching it.
WARNING
⬛Replacing a flat tire
⚫Observe the following precautions.
Failure to do so may result in serious injury:
⦁Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the
brakes will be extremely hot. Touching these areas with hands, feet or
other body parts while changing a tire, etc., may result in burns.
A
KBRO720409N
KBRO720410N
KBRO720411N
RAIZE_OM_General_BZ358E.book 401 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4027-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
WARNING
⚫Failure to follow these precautions could cause the wheel nuts to loosen and
the tire to fall off, resultin g in death or serious injury.
⦁ Have the wheel nuts tightened with a torque wrench to 103 N·m (10.5
kgf·m, 76 ft·lbf) as soon as possible after changing wheels.
⦁ When installing a tire, only use whe el nuts that have been specifically
designed for that wheel.
⦁ If there are any cracks or deformations in the bolt screws, nut threads or
bolt holes of the wheel, have the vehi cle inspected by your Toyota dealer.
⦁ When installing the wheel nuts, be su re to install them with the tapered
ends facing inward. ( ➞P. 337)
Installing the spare tire
a Remove any dirt or foreign mat-
ter from the wheel contact sur-
face
If the wheel contact surface is dirty, the
wheel nuts may loosen while the vehi-
cle is in motion, causing the tire to
come off.

bInstall the spare tire and loosely tighten each wheel nut by hand to the
extent that the tire does not rattle
Tighten the wheel nuts until the tapered portion comes into loose contact with the
wheel seat
▶Vehicles with steel wheels▶Vehicles with aluminum wheels

KBRO720419
KBRO720425N
Tapered portion
Seat portion
KBRO720426N
Tapered portion
Seat portion
Emergency.fm 402 ページ ２０２２年６月１７日　金曜日　午前９時４分

4037-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7
cLower the vehicle body
d Tighten the nuts firmly 2 or 3
times in the order shown in the
illustration
Tightening torque: 103 N·m (10.5
kgf·m, 76 ft·lbf)
eAttach the wheel ornament*
*For steel wheels only
Align the tire valve (air inlet) with the
notch on the wheel ornament, and
press the periphery portions of the
wheel ornament to attach it.
fStore the flat tire
KBRO720427N
3
1
4
2
KBRO720428N
KBRO720423NNotch
Periphery portions
Valve
RAIZE_OM_General_BZ358E.book 403 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4047-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E

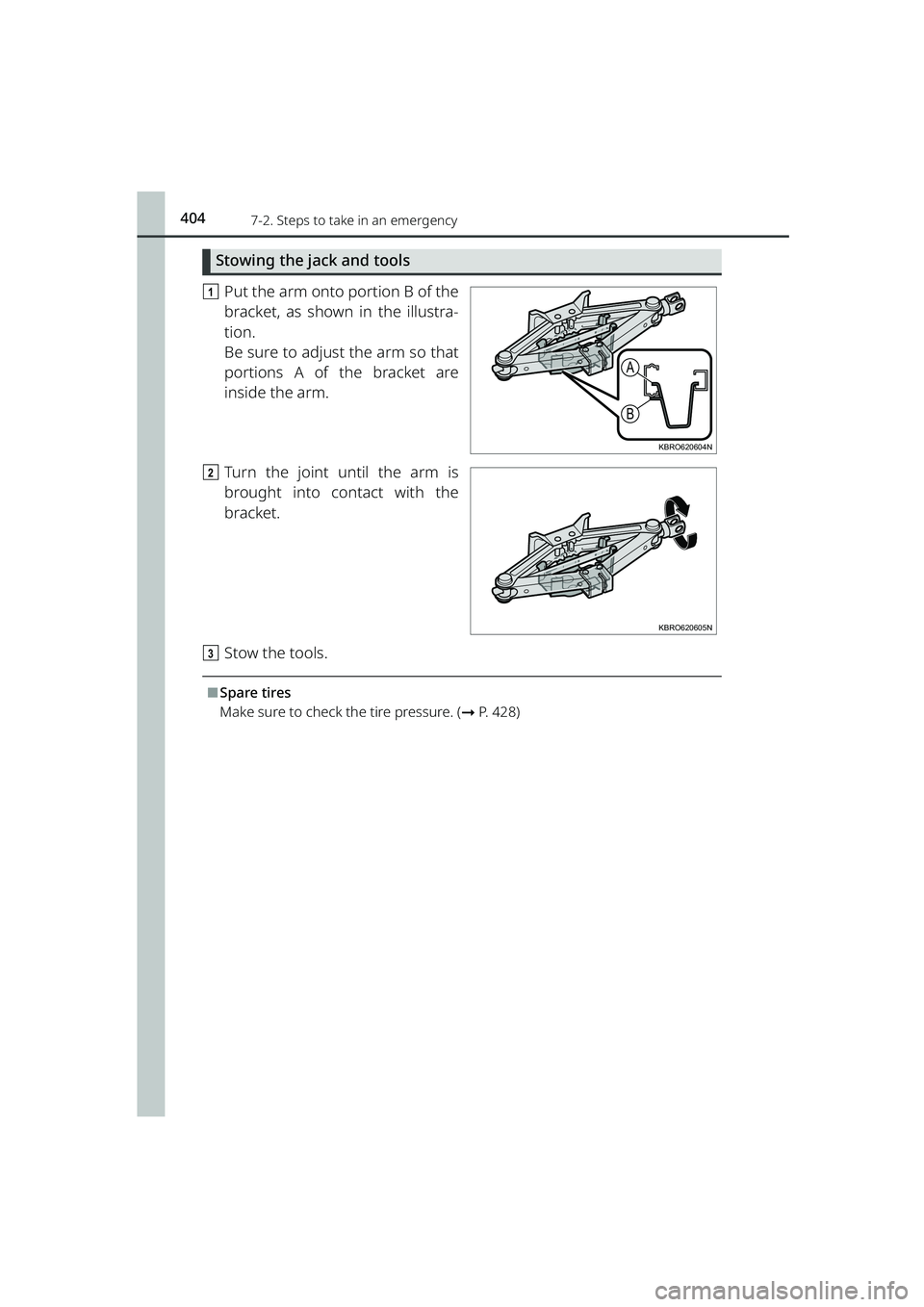

Stowing the jack and tools
aPut the arm onto portion B of the
bracket, as shown in the illustra-
tion.
Be sure to adjust the arm so that
portions A of the bracket are
inside the arm.
b Turn the joint until the arm is
brought into contact with the
bracket.
c Stow the tools.
⬛Spare tires
Make sure to check the tire pressure. ( ➞P. 428)
A
B
KBRO620604N
KBRO620605N
RAIZE_OM_General_BZ358E.book 404 ページ ２０２２年５月１７日　火曜日　午後１時５９分
