852-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Instrument cluster
2
d Shift position display✽
Indicates the selected shift position. ( ➞P. 189)
e Speedometer
Indicates the speed of the vehicle.
fDisplay change button
Switches the display of the multi-information display. (➞P. 87)
g Clock adjustment switches ( ➞P. 88)
▶Vehicles with TFT color multi-information display
a TFT color multi-information display
Displays and sets a variety of information about the vehicle. ( ➞P. 98)
b Speedometer
Indicates the speed of the vehicle.
cFuel gauge
Indicates the amount of remaining fuel.
⬛Meter/display operating conditions
When the engine switch is “ON”
⬛Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal display, and there is no problem continuing to
use the display.
1
3
2
KBRO210202E
RAIZE_OM_General_BZ358E.book 85 ページ ２０２２年５月１７日　火曜日　午後１時５９分

882-1. Instrument cluster
RAIZE_OM_General_BZ358E
Clock display
The time can be adjusted by pressing the clock adjustment switches.
Time cannot be adjusted when automatic correction is turned ON on the user cus-
tomization screen. (➞P. 9 2 )
a Adjust “hours” (H)
b Adjust “minutes” (M)
c Set “minutes” to 00*
Press and hold the clock adjustment
switches ( a) and ( b) at the same time.
*(Example) For 1:00 to 1:29, 1:00 is set
For 1:30 to 1:59, 2:00 is set
▶Vehicles without tachometer
▶Vehicles with tachometer
12
3KBRO210503E
12
3KBRO210305
RAIZE_OM_General_BZ358E.book 88 ページ ２０２２年５月１７日　火曜日　午後１時５９分

962-1. Instrument cluster
RAIZE_OM_General_BZ358E
⬛About instrument panel illumination (day illumination and night illumination)
⚫There are 2 types of instrument panel illumination: day illumination and
night illumination, and the illumination changes at the following times.
⦁ Day illumination: when the front po sition lights are turned off
⦁ Night illumination: when the fron t position lights are turned on
⚫Instrument panel lights become dimmer when it switches to night illumina-
tion. However, illumination does not become dimmer when the level for
night illumination is set to the brightest.
⬛When battery terminals are connected/disconnected
Clock data is reset when battery terminals are connected or disconnected.
⬛About automatic correction of time
Automatic correction of time cannot be set if you connect a device other than 9
inch display audio pairab le with smart phones.
⬛About user customization screen
Operations performed on the user
customization screen will result in dis-
playing “FAIL” if changing the settings
is not allowed.
KBTA210346
RAIZE_OM_General_BZ358E.book 96 ページ ２０２２年５月１７日　火曜日　午後１時５９分

972-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
WARNING
⬛Caution while driving
For safety reasons, do not operate the display change button or the clock
adjustment switch while driving. Doing so is dangerous and may lead to an
accident such as incorrect op eration of the steering wheel.
Stop the vehicle to operate it. While drivin g, keep the time that you look at the
display to the minimum necessary.
⬛When changing settings
As the engine needs to be running duri ng setting up the display, ensure that
the vehicle is parked in a place with adeq uate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may col-
lect and enter the vehicle. This may cau se death or a serious health hazard.
NOTICE
⬛Screen display at low temperatures
When the display screen temperature is extremely low, the display changes
may be delayed. Allow the interior of th e vehicle to warm up before using it.
⬛When changing display settings
Make sure that the engine is running, as otherwise the battery may discharge.
⬛About cruising distance
Even if the value indicated for cruising distance seems sufficient, try to fill the
fuel tank when the fuel gauge nears “E”, or the low fuel level warning light
turns on.
RAIZE_OM_General_BZ358E.book 97 ページ ２０２２年５月１７日　火曜日　午後１時５９分

982-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
TFT color multi-information display✽
Display contents
TFT color multi-information display sh ows various information on vehicle
and running, or allows you to change the settings.
a Eco driving assist illumination
Color of the illumination changes to green in 3 levels based on drivability regarding
eco-friendliness.
⦁ When power mode is selected, the illumination changes to yellow. ( ➞P. 190)
b Display contents
A variety of information can be di splayed by switching menu icons.
Cautions or advice is displayed according to the driving conditions by pop-up notifi-
cation.
c Menu icons
Switching icons will di splay various contents.
dClock display
Date is indicated while analog clock ( ➞P. 101) is displayed.
e Shift position display✽
Indicates the selected shift position. ( ➞P. 189)
f Tachometer display
The engine speed in revolutions per minute is displayed.
gTrip information ( ➞P. 100)
3
6
1
897
24
5KBRO210401E
RAIZE_OM_General_BZ358E.book 98 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1012-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2

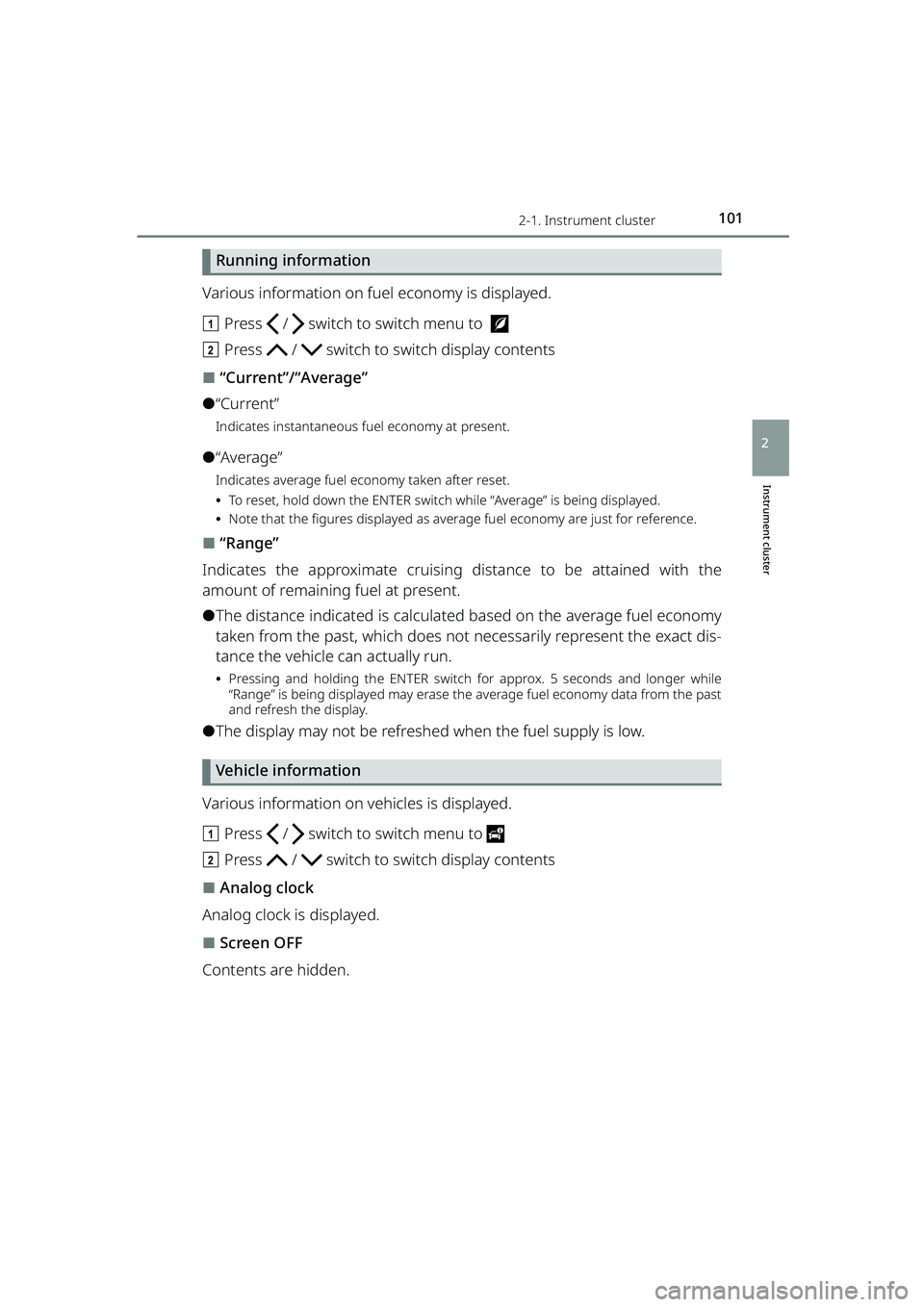

Running information
Various information on fuel economy is displayed.
aPress / switch to switch menu to
b Press / switch to switch display contents
⬛“Current”/“Average”
⚫“Current”
Indicates instantaneous fuel economy at present.
⚫“Average”
Indicates average fuel economy taken after reset.
⦁To reset, hold down the ENTER switch while “Average” is being displayed.
⦁ Note that the figures displayed as average fuel economy are just for reference.
⬛“Range”
Indicates the approximate cruising distance to be attained with the
amount of remaining fuel at present.
⚫The distance indicated is calculated based on the average fuel economy
taken from the past, which does not necessarily represent the exact dis-
tance the vehicle can actually run.
⦁ Pressing and holding the ENTER switch for approx. 5 seconds and longer while
“Range” is being displayed may erase the average fuel economy data from the past
and refresh the display.
⚫The display may not be refreshed when the fuel supply is low.
Vehicle information
Various information on vehicles is displayed.
a Press / switch to switch menu to
b Press / switch to switch display contents
⬛Analog clock
Analog clock is displayed.
⬛Screen OFF
Contents are hidden.
RAIZE_OM_General_BZ358E.book 101 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1052-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2

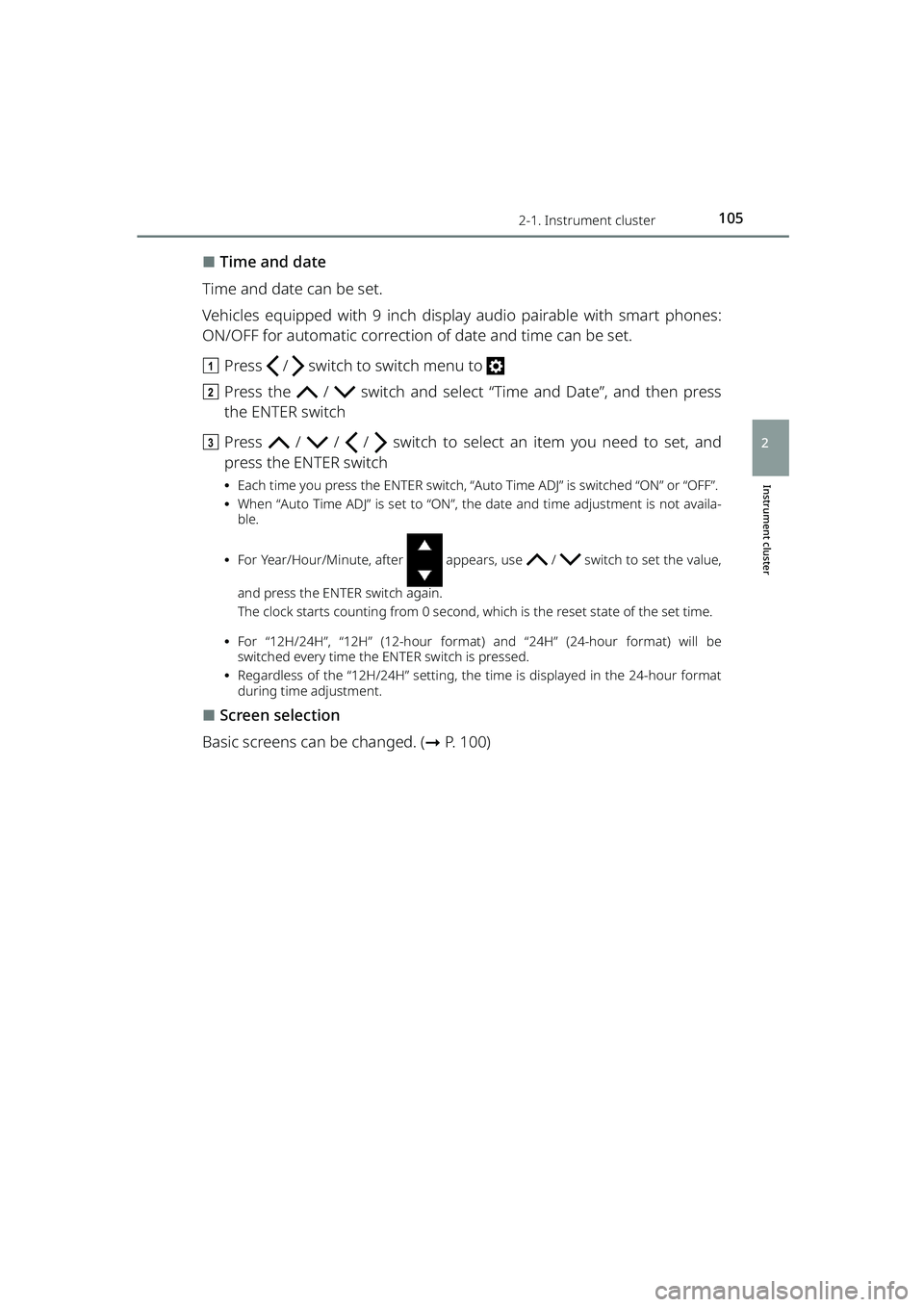

⬛Time and date
Time and date can be set.
Vehicles equipped with 9 inch display audio pairable with smart phones:
ON/OFF for automatic correction of date and time can be set.
a Press / switch to switch menu to
b Press the / switch and select “Time and Date”, and then press
the ENTER switch
c Press / / / switch to select an item you need to set, and
press the ENTER switch
⦁ Each time you press the ENTER switch, “Auto Time ADJ” is switched “ON” or “OFF”.
⦁ When “Auto Time ADJ” is set to “ON”, the date and time adjustment is not availa-
ble.
⦁ For Year/Hour/Minute, after appears, use / switch to set the value,
and press the ENTER switch again.
The clock starts counting from 0 second, which is the reset state of the set time.
⦁ For “12H/24H”, “12H” (12-hour format) and “24H” (24-hour format) will be
switched every time the ENTER switch is pressed.
⦁ Regardless of the “12H/24H” setting, the time is displayed in the 24-hour format
during time adjustment.
⬛Screen selection
Basic screens can be changed. ( ➞P. 100)
RAIZE_OM_General_BZ358E.book 105 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1152-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
⬛“Settings” operation
⚫The operation will be temporarily suspended if any of the following condi-
tions occur during the “Settings” operation.
⦁When warning messages are displayed
⦁ When the vehicle starts driving
⚫If the settings cannot be changed even after performing the operation, the
“Settings Failed” message will appear.
⬛When battery terminals are connected/disconnected
Clock data is reset when battery terminals are connected or disconnected.
⬛Liquid crystal display
➞ P. 8 5
⬛About notification screen
⚫Notification screen is displayed once a day.
⚫Birthday, and Anniversary day set to Fe bruary 29 are displayed on March 1,
except the leap year.
WARNING
⬛Caution while driving
For safety reasons, do not use the oper ation button while driving. Doing so is
dangerous and may lead to an accident such as incorrect operation of the
steering wheel.
Stop the vehicle to operate it. While drivin g, keep the time that you look at the
display to the minimum necessary.
⬛When changing settings
➞ P. 9 7
NOTICE
⬛Screen display at low temperatures
➞P. 9 7
⬛When changing display settings
➞P. 9 7
⬛About cruising distance
➞P. 9 7
