4 Driving
4-1. Driving the vehicle
Driving the vehicle ..................... 166
Precautions when loading luggage ..................................... 177
Trailer towing.............................. 179
4-2. Driving procedures
Engine (ignition) switch (vehicles without key-free
system) ...................................... 180
Engine (ignition) switch (vehicles with key-free
system) ...................................... 184
Continuously variable transmission ............................ 189
Driving the manual transmission vehicle........................................ 194
Turn signal lever ........................ 196
Parking brake ............................. 197
4-3. Operating the lights and windshield wipers
Headlight switch ........................ 198
Fog light switch .......................... 201
Windshield wipers and washer
(front) ......................................... 203
Windshield wipers and washer (rear) .......................................... 205
4-4. Refueling
Opening the fuel tank cap ....... 207
4-5. Using the driving support systems
BSM (Blind Spot Monitor) ........ 211
Front corner sensors/
Reverse sensors ...................... 221
Rear-view camera ...................... 228
Driving assist systems .............. 232
4-6. Driving tips
Winter driving tips ..................... 238
Eco-friendly driving tips............ 241
5 Interior features
5-1. Using the air conditioning system and defogger
Manual air conditioning system
(Type A)...................................... 244
Manual air conditioning system (Type B)...................................... 248
Automatic air conditioning system ....................................... 254
5-2. Using the audio system
Steering switches ...................... 262
5-3. Using the interior light
Interior lights list........................ 263
5-4. Storage features
List of storage features ............ 266
Luggage compartment features ..................................... 271
5-5. Using the other interior features
Other interior features ............. 276
RAIZE_OM_General_BZ358E.book 3 ページ ２０２２年５月１７日　火曜日　午後１時５９分

16Pictorial index
RAIZE_OM_General_BZ358E✽
: If equipped
Switches (Left-hand drive vehicles)
Locations of the switches vary acco rding to the vehicle grade level, etc.
aRear fog light switch✽................................................................................. P. 201
b VSC/TRC OFF switch ..................................................................................... P. 233
c Front corner sensor/Reverse sensor switch
✽........................................... P. 221
d Tire pressure warning reset switch
✽......................................................... P. 329
e Outside rear view mirror switch
✽.............................................................. P. 157
f Power window switch.................................................................................. P. 160
g Window lock switch ..................................................................................... P. 160
657
43
12
KBRO040301E
RAIZE_OM_General_BZ358E.book 16 ページ ２０２２年５月１７日　火曜日　午後１時５９分

22Pictorial index
RAIZE_OM_General_BZ358E✽
: If equipped
Switches (Right-hand drive vehicles)
Locations of the switches vary acco rding to the vehicle grade level, etc.
aRear fog light switch✽................................................................................. P. 201
b VSC/TRC OFF switch ..................................................................................... P. 233
c Front corner sensor/Reverse sensor switch
✽........................................... P. 221
d Outside rear view mirror switch
✽.............................................................. P. 157
e Power window switch.................................................................................. P. 160
f Window lock switch ..................................................................................... P. 160
654
2
1
3
KBRO040601E
RAIZE_OM_General_BZ358E.book 22 ページ ２０２２年５月１７日　火曜日　午後１時５９分

381-1. For safe use
RAIZE_OM_General_BZ358E✽
: If equipped

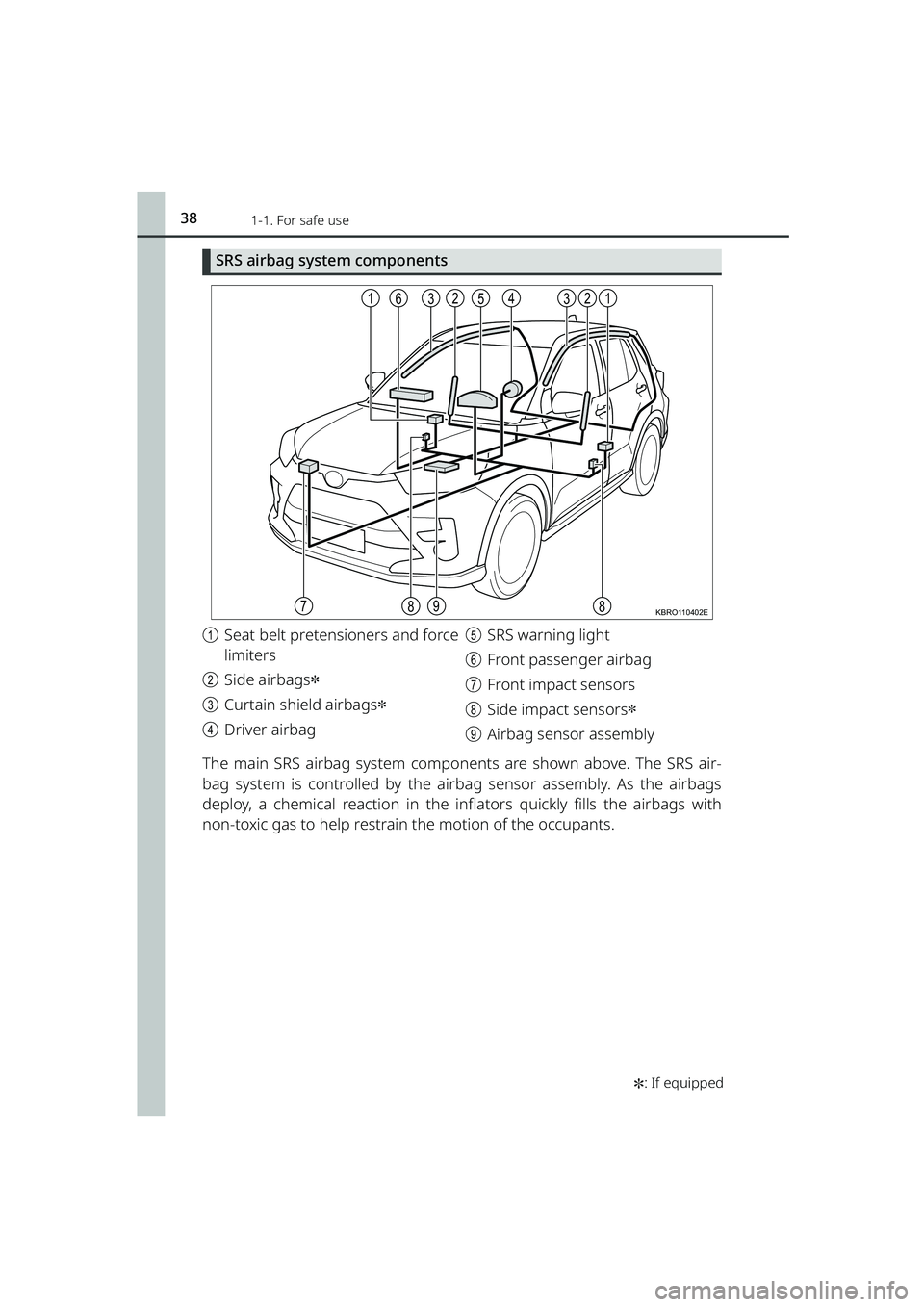

SRS airbag system components
a Seat belt pretensioners and force
limiters
b Side airbags
✽
cCurtain shield airbags✽
dDriver airbag e
SRS warning light
f Front passenger airbag
g Front impact sensors
h Side impact sensors
✽
iAirbag sensor assembly
The main SRS airbag system components are shown above. The SRS air-
bag system is controlled by the airb ag sensor assembly. As the airbags
deploy, a chemical reaction in the inflators quickly fills the airbags with
non-toxic gas to help restrain the motion of the occupants.
112323456
7889KBRO110402E
RAIZE_OM_General_BZ358E.book 38 ページ ２０２２年５月１７日　火曜日　午後１時５９分

802-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
*1
Electric power steering system warning light
(red/yellow)380
*1Master warning light✽380
*2Front corner sensor/Reverse sensor indicator✽380
*1, 3Slip indicator380
*1BSM OFF indicator ✽(flashing)380
*1RCTA OFF indicator ✽(flashing)381
*1Brake Override System warning light✽381
Open door warning light✽381
Low fuel level warning light381
Driver’s/front passenger’s seat belt reminder
warning light381
*4Rear seat belt reminder warning light381
*1Speed warning light✽381
*1Tire pressure warning light✽382
*1Oil deteriorate warning light✽382
Parking brake non release warning light382
Warning lightsReference
RAIZE_OM_General_BZ358E.book 80 ページ ２０２２年５月１７日　火曜日　午後１時５９分

812-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Instrument cluster
2
*1These lights turn on when the engine swit ch is turned to “ON”, to indicate that
a system check is being performed. Th ey will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the light s do not turn off. Have the vehicle
inspected at your Toyota dealer.
*2The indicator also lights up when the fr ont corner sensors or reverse sensors
get activated.
*3If the light is flashing, it indicates that the system is operating, and if the light
comes on, it may indicate a system failure.
*4The indicator lights up on the upper part of the inside rear view mirror.
Indicators
Indicators inform the driver of the st atus of the vehicle’s various systems.
IndicatorsReference
Turn signal indicator196
Headlight high beam indicator198
Front fog light indicator✽201
Rear fog light indicator✽201
*1Low coolant indicator (blue)―
Security indicator72, 73
Tail light indicator198
*2Slip indicator (flashing)233
*2VSC OFF indicator233
*2TRC OFF indicator233
RAIZE_OM_General_BZ358E.book 81 ページ ２０２２年５月１７日　火曜日　午後１時５９分

862-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Multi-information display✽
Display contents
The multi-information display shows a va riety of outside temperature- and
driving-related information.
⚫Trip information ( ➞P. 8 9 )
The displayed items are as follows.
⦁Odometer
⦁ Tr ip m eter A/B
⦁ Instrument panel illumination adjust-
ment
⚫Driving information ( ➞P. 90)
The displayed items are as follows.
⦁Instantaneous fuel economy
⦁ Average fuel economy
⦁ Cruising distance
⦁ Outside temperature
⚫Fuel gauge
Indicates the amount of remaining fuel.
⚫Shift position display✽ (➞ P. 189)
⚫Clock display ( ➞P. 88)
⚫Front corner sensor/Reverse sen-
sor indicator
✽ (➞ P. 221)
▶Vehicles without tachometer
▶Vehicles with tachometer
KBRO210501E
KBRO210301E
RAIZE_OM_General_BZ358E.book 86 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1022-1. Instrument cluster
RAIZE_OM_General_BZ358E
Warning messages
turns yellow only when a warning message with further confirmation is
available.
Press / switch to switch menu to .
When a malfunction is found, messages regarding the issue and the
measure to be taken are displayed.
When more than 2 messages are disp layed, press / switch to tog-
gle the messages.
When no message is stored, “No Messages” will be displayed.
Steering wheel position monitor
When the shift lever is set to R, the orientation of front wheel tires dis-
played.
At the same time, the operating condition of front corner sensor/reverse sensor
(➞ P. 221) is also displayed.
