2023 TOYOTA RAIZE ignition

3
RAIZE_OM_General_BZ358E
1
2
3
4
5
6
7
8
4 Driving
4-1. Driving the vehicle
Driving the vehicle ..................... 166
Precautions when loading luggage ..................................... 177
Trailer towing.............................. 179
4-2. Driving procedures
Engine (ignition) switch (vehicles without key-free
system) ...................................... 180
Engine (ignition) switch (vehicles with key-free
system) ...................................... 184
Continuously variable transmission ............................ 189
Driving the manual transmission vehicle........................................ 194
Turn signal lever ........................ 196
Parking brake ............................. 197
4-3. Operating the lights and windshield wipers
Headlight switch ........................ 198
Fog light switch .......................... 201
Windshield wipers and washer
(front) ......................................... 203
Windshield wipers and washer (rear) .......................................... 205
4-4. Refueling
Opening the fuel tank cap ....... 207
4-5. Using the driving support systems
BSM (Blind Spot Monitor) ........ 211
Front corner sensors/
Reverse sensors ...................... 221
Rear-view camera ...................... 228
Driving assist systems .............. 232
4-6. Driving tips
Winter driving tips ..................... 238
Eco-friendly driving tips............ 241
5 Interior features
5-1. Using the air conditioning system and defogger
Manual air conditioning system
(Type A)...................................... 244
Manual air conditioning system (Type B)...................................... 248
Automatic air conditioning system ....................................... 254
5-2. Using the audio system
Steering switches ...................... 262
5-3. Using the interior light
Interior lights list........................ 263
5-4. Storage features
List of storage features ............ 266
Luggage compartment features ..................................... 271
5-5. Using the other interior features
Other interior features ............. 276
RAIZE_OM_General_BZ358E.book 3 ページ ２０２２年５月１７日　火曜日　午後１時５９分

711-3. Emergency assistance
RAIZE_OM_General_BZ358E
WARNING
For safety and security
1
⬛When the Emergency Call system is replaced with a new one
The Emergency Call system should be registered. Contact your Toyota dealer.
⬛For your safety
⚫Please drive safely.
The function of this system is to assist you in making the Emergency Call in
case of accidents such as traffic accidents or sudden medical emergencies,
and it does not protect the driver or passengers in any way. Please drive
safely and fasten your seatbelts at all times for your safety.
⚫In case of an emergency, make lives the top priority.
⚫If you smell anything burning or other unusual smells, leave the vehicle and
evacuate to a safe area immediately.
⚫Since the system detects shocks, th e automatic reporting may not always
occur synchronized with the operation of the airbag system. (If the vehicle is
struck from behind, etc.)
⚫For safety, do not make the Emergency Call while driving.
Making calls during driving may cause mishandling of the steering wheel,
which may lead to unexpected accidents.
Stop the vehicle and confirm the safety of your surroundings before making
the Emergency Call.
⚫When changing fuses, please use the sp ecified fuses. Using other fuses may
cause ignition or smoke in the circuit and lead to a fire.
⚫Using the system while there is smoke or an unusual smell may cause a fire.
Stop using the system immediately and consult your Toyota dealer.
NOTICE
⬛To prevent damage
Do not pour any liquids onto the “SOS” bu tton panel, etc. and do not impact it.
⬛If the “SOS” button panel, speaker or microphone malfunctions during an
Emergency Call or manual maintenance check
It may not be possible to make Emergency Calls, confirm the system status, or
communicate with the eCall control center operator. If any of the above equip-
ment is damaged, please consult your Toyota dealer.
RAIZE_OM_General_BZ358E.book 71 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1092-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Instrument cluster
2
⬛Settings of BSM/RCTA✽
The follow settings can be selected as needed.
⚫ON/OFF of BSM ( ➞P. 211)
⚫ON/OFF of RCTA ( ➞P. 2 1 1 )
⚫Luminance of outside rear view mirror indicators ( ➞P. 211)
(List of customizable features: ➞ P. 430)
a Press / switch to switch menu to
b Press and hold the / switch or press it several times to switch the
“Settings” screen, select “Vehicle Settings” and press the ENTER switch
c Press the / switch to select “BSM/RCTA” and press the ENTER
switch
d Press / switch to select setting s for each function and press the
ENTER switch
⦁ Each time you press the ENTER switch, the display switches to the screen to be
displayed.
⬛Settings of door locking
The follow settings can be selected as needed.
⚫ON/OFF of speed linked door locking ( ➞P. 136)
Setting this ON will turn OFF the setting for door locking linked with shifting✽.
⚫ON/OFF of door locking linked with shifting ✽(➞ P. 136)
When this set to ON, the setting for speed linked door locking turns OFF.
⚫ON/OFF of door unlocking linked with shifting ✽(➞ P. 136)
When this is set to ON, the setting for door unlocking at the time of the ignition OFF
(when the engine switch is “OFF”) turns OFF.
⚫ON/OFF of door unlocking at the time of the ignition OFF (when the
engine switch is “OFF”) ( ➞P. 136)
Setting this ON will turn OFF the setting for door unlocking linked with shifting✽.
⚫Buzzer volume for answering back (s ignal for key-free system activation)
( ➞ P. 1 2 1 )
⚫ON/OFF of emergency flashers for answering back (signal for key-free
system activation) ( ➞P. 121)
(List of customizable features: ➞ P. 430)
RAIZE_OM_General_BZ358E.book 109 ページ ２０２２年５月１７日　火曜日　午後１時５９分

165
4
RAIZE_OM_General_BZ358E
Driving
4-1. Driving the vehicle
Driving the vehicle .....................166
Precautions when loading luggage .....................................177
Trailer towing ..............................179
4-2. Driving procedures
Engine (ignition) switch (vehicles without key-free
system) ......................................180
Engine (ignition) switch (vehicles with key-free
system) ......................................184
Continuously variable transmission .............................189
Driving the manual transmission vehicle ........................................194
Turn signal lever.........................196
Parking brake..............................197
4-3. Operating the lights and windshield wipers
Headlight switch ........................ 198
Fog light switch .......................... 201
Windshield wipers and washer
(front)......................................... 203
Windshield wipers and washer (rear) .......................................... 205
4-4. Refueling
Opening the fuel tank cap....... 207
4-5. Using the driving support systems
BSM (Blind Spot Monitor) ........ 211
Front corner sensors/
Reverse sensors ...................... 221
Rear-view camera ...................... 228
Driving assist systems .............. 232
4-6. Driving tips
Winter driving tips ..................... 238
Eco-friendly driving tips ........... 241
RAIZE_OM_General_BZ358E.book 165 ページ ２０２２年５月１７日　火曜日　午後１時５９分

180
RAIZE_OM_General_BZ358E
4-2. Driving procedures
Engine (ignition) switch
(vehicles without key-free system)
Procedure to start the engine
▶Continuously variable transmission vehicles
a Adjust the position of the seat to give the correct driving posture
(➞ P. 30), and check the position of each pedal
b Check that the parking brake is applied
c Check that the shift lever is set in P
d Firmly depress the brake pedal
e Turn the engine switch to “START”
The starter rotates for up to 30 seconds until the engine starts.
▶Manual transmission vehicles
a Adjust the position of the seat to give the correct driving posture
(➞ P. 30), and check the position of each pedal
b Check that the parking brake is applied
c Check that the shift lever is set in N
d Firmly depress the clutch pedal and the brake pedal
e Turn the engine switch to “START”
The starter rotates for up to 30 seconds until the engine starts.
RAIZE_OM_General_BZ358E.book 180 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1844-2. Driving procedures
RAIZE_OM_General_BZ358E
Engine (ignition) switch
(vehicles with key-free system)
You can start the engine or change the engine switch mode by per-
forming the following operations when you have the electronic key
with you.Procedure to start the engine
a Adjust the position of the seat to give the correct driving posture
(➞ P. 30), and check the position of each pedal
b Check that the parking brake is applied
c Continuously variable transmission ve hicles: Check that the shift lever
is set in P
Manual transmission vehicles: Check that the shift lever is set in N
d Continuously variable transmis-
sion vehicles: Firmly depress the
brake pedal
Manual transmission vehicles:
Firmly depress the clutch pedal
and the brake pedal
The indicator of the engine switch
lights up in green.
Without the light being lit in green, the
engine will not start.
eFirmly and briefly push the
engine switch
If you push it firmly and briefly, you do
not need to press and hold.
The starter rotates for up to 30 sec-
onds until the engine starts.
Continuously variable transmission vehi-
cles: Keep stepping on the brake pedal
until the engine has started running.
Manual transmission vehicles: Keep
stepping on the clutch pedal and brake
pedal until the engine has started run-
ning.
The engine can start in any mode
(➞ P. 185) of the engine switch.
KBRO420201E
KBRO420202E
RAIZE_OM_General_BZ358E.book 184 ページ ２０２２年５月１７日　火曜日　午後１時５９分

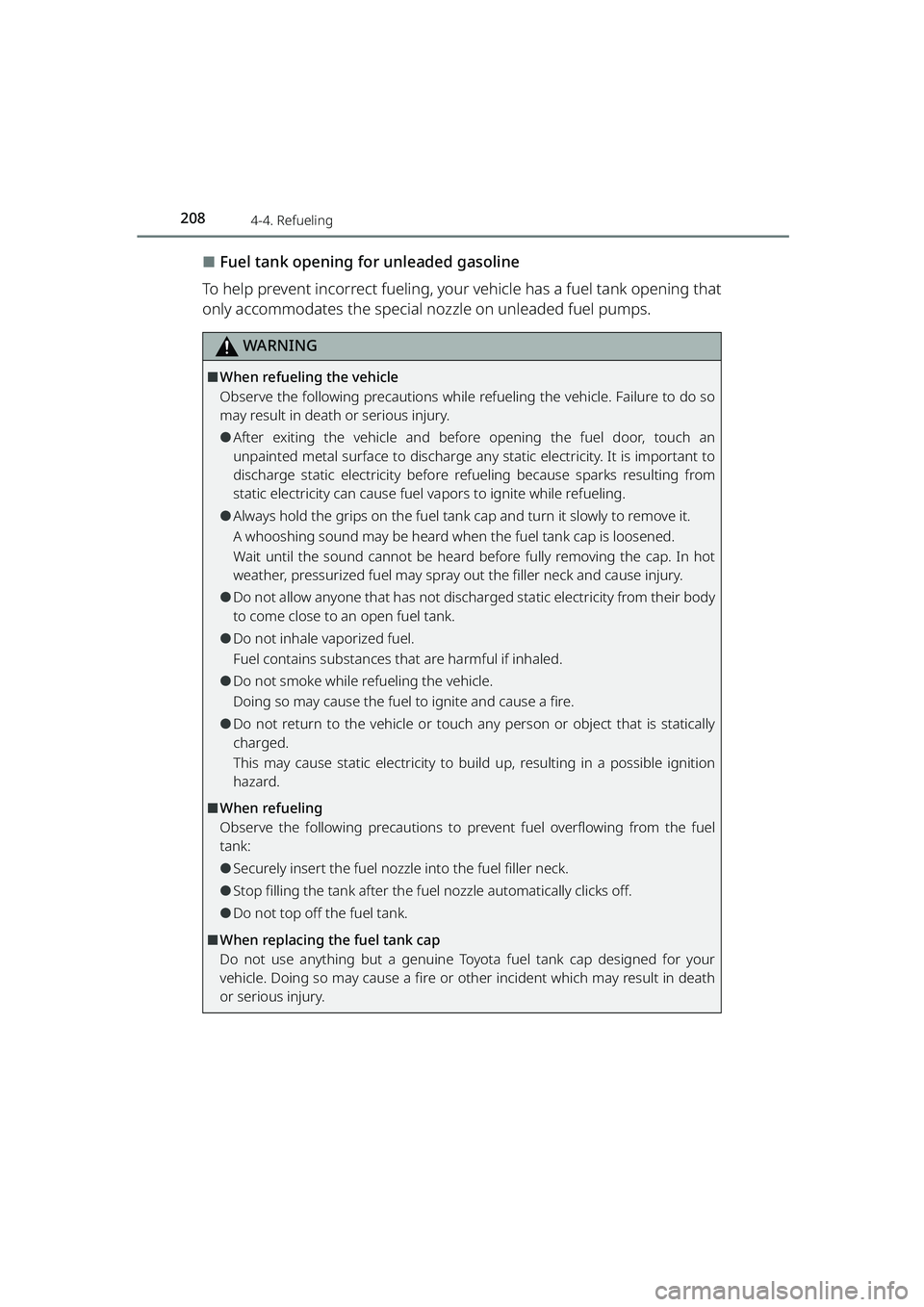

2084-4. Refueling
RAIZE_OM_General_BZ358E
⬛Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
WARNING
⬛When refueling the vehicle
Observe the following precautions while re fueling the vehicle. Failure to do so
may result in death or serious injury.
⚫After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before re fueling because sparks resulting from
static electricity can cause fuel va pors to ignite while refueling.
⚫Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray ou t the filler neck and cause injury.
⚫Do not allow anyone that has not dischar ged static electricity from their body
to come close to an open fuel tank.
⚫Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
⚫Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
⚫Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
⬛When refueling
Observe the following prec autions to prevent fuel overflowing from the fuel
tank:
⚫Securely insert the fuel nozzle into the fuel filler neck.
⚫Stop filling the tank after the fu el nozzle automatically clicks off.
⚫Do not top off the fuel tank.
⬛When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in death
or serious injury.
RAIZE_OM_General_BZ358E.book 208 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2956-2. Maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
Maintenance schedule (except for Mexico)
Maintenance operations : I = Inspect, correct or replace as necessaryR = Replace, change or lubricate
SERVICE
INTERVAL:ODOMETER READING
MONTHS(Odometer reading or months,
whichever
comes first.) x1000
km 1 1020304050607080
x1000 miles 1 6 12 18 24 30 36 42 48
BASIC ENGINE COMPONENTS
1Valve clearance
(1KR-VET engine)I96
2Drive beltsIIII24
3Engine oil
(WA-VE engine)RRRRRRRR6
4Engine oil
(1KR-VET engine)Replace when the maintenance reminder
appears.*
1―
5Engine oil filter
(WA-VE engine)RRRRRRRR6
6Engine oil filter
(1KR-VET engine)Replace when the maintenance reminder
appears.*
1―
7Cooling and heater
system*
2II24
8Engine coolantFirst replace at 160000 km (100000 miles),
then replace every 80000 km (48000 miles)―
9Exhaust pipes and
mountingsIIII12
IGNITION SYSTEM
10Spark plugsReplace at every 100000 km (60000 miles)―
11BatteryIIIIIIIII12
RAIZE_OM_General_BZ358E.book 295 ページ ２０２２年５月１７日　火曜日　午後１時５９分
