2023 TOYOTA RAIZE Owners Manual

1273-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3
⚫If water splashes on the door handle during a car wash or heavy rain, the
doors may get locked and unlocked re peatedly while the electronic key is
located within the operating range. If that happens, perform the procedures
listed below. (Without opening or closing the doors, the unlocked doors will
be automatically locked appr oximately after 30 seconds)
⦁ Place the key approx. 3 m (9.8 ft.) or more away from the vehicle (beware
of theft)
⦁ Disabling the key-free system activation by setting the key to the battery-
saving mode ( ➞P. 125)
⚫When a part of your clothes touches the lock/unlock switch on the front
door, it could lock or unlock the do or while the electronic key is located
within the operating range.
⚫If you lock the vehicle using the wir eless remote control when the electronic
key is placed inside or near the vehicle, unlocking by the key-free system may
not work. (The system can be restored by unlocking the vehicle using the
wireless remote control)
⚫Operate the door handle switch properly and ensure that the door has been
locked or unlocked. If you operate th e switch too fast, the door may not be
locked or unlocked.
⚫If the door handle switch is covered wi th ice, snow, or mud, the switch may
not work. If the switch is not working, remove the ice, snow, or mud from the
surface, and operate the switch again.
⚫When you operate the door handle swit ch, your nails may touch the door. Be
careful not to damage the door or break your nails.
⚫When you operate the lock/unlock switch on the front door with gloves on,
the locking or unlocking gets delayed, or the door may not even get locked
or unlocked.
⚫Depending on the surrounding conditions, the doors may not get locked or
unlocked by operating the lock/unlock switch on the front door. In that case,
use the wireless function or the emergency key to lock and unlock the door.
( ➞ P. 133, 406)
⚫The power-saving function will be activ ated in the situations listed below in
order to prevent battery depletion of the electronic key and the battery dis-
charge of the vehicle. If that happens, it takes longer to lock and unlock the
vehicle using the key-free system.
⦁ The electronic key was left for approx. 2 minutes or longer within the
approx. 3 m (9.8 ft.) range from the vehicle
⦁ The key-free system was not used for approximately 5 days or longer
RAIZE_OM_General_BZ358E.book 127 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1283-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
⬛Important points when locking the doors
During an automatic car wash, the vehicl e’s internal buzzer may sound if water
splashes on the door handle while the electronic key is left inside the vehicle.
⬛Important points when unlocking the doors
⚫When you pull the door handle while operating the door handle switch, the
door may not get unlocked. In that case, restore the door handle to the orig-
inal position and operate the switch again (except for the back door). When
you verify that the door has been unlocked, pull the door handle.
⚫When another electronic key is placed within the operating range, it may
take longer to unlock the door from the time when you operate the switch
on the door handle.
⬛Leaving the vehicle unused for a long period
⚫To prevent theft, keep the electronic key away from the vehicle for approx. 3
m (9.8 ft.).
⚫You can also disable the key-free system beforehand.
Contact your Toyota dealer for further information.
⬛Starting the system normally
Make sure to carry the electronic ke y with you when you start the system.
When you start the system from outside the vehicle, be careful not to keep the
electronic key too close to the vehicle.
Depending on the electronic key’s position or how you hold it when starting
the system, the key may not be detected correctly, preventing the system from
starting normally. (It could cause the al arm to go off unexpectedly or the door
lock prevention func tion may not work. : ➞P. 139)
⬛When the key-free system does not work properly
⚫Locking and unlocking doors: ➞ P. 4 0 6
⚫Starting the engine: ➞P. 4 0 6
⬛Low battery
⚫The standard battery life is between 1 and 2 years.
⚫The battery still depletes without usin g the wireless remote control. Since
the electronic key is constantly receiving radio waves, the battery depletes
even when it is not in use. If you encounter any of the following situations,
the key may be running out of battery. Replace it with a new battery.
⦁ The key-free system or wireless remote control will not start
⦁ The operating range has become narrower
⦁ The LED of the electronic key will not light
RAIZE_OM_General_BZ358E.book 128 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1293-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3
⚫When the remaining battery becomes lo w, a warning buzzer will sound from
inside the vehicle when the engine is stopped. ( ➞P. 394)
⚫To prevent significant battery drainage, do not store the electronic key within
1 m (3.3 ft.) from the following electr onic devices that are known to emit a
magnetic field.
⦁ TV
⦁ Audio system
⦁ Personal computers
⦁ AC adapters
⦁ Mobile phones, cordless phones, and chargers
⦁ Desk lamps
⦁ Medical electronic devices such as lo w-frequency electric therapy equip-
ment
⦁ Liquid crystal display
⦁ Motors
⦁ Induction cookers
⚫Do not leave electronic keys inside or near the vehicle. Since the electronic
key and the vehicle are constantly communicating with one another, it
speeds up the battery draining. When they enter in the constant communi-
cation state, the indicator of the electro nic key starts blinking. Keep the elec-
tronic key away from the vehic le until the indicator turns off.
⚫If you do not plan on using the electr onic key for a long time, set the key to
the battery-saving mode to mini mize battery consumption. (➞P. 125)
⬛Running out of the battery
➞P. 3 4 4
⬛Functions configurable by Toyota dealers
Toyota dealers can deactivate the key-free system.
(List of customizable features: ➞ P. 430)
⬛When the key-free system was deactivated by a Toyota dealer
⚫Locking and unlocking doors: The doors can be locked and unlocked using
the wireless function or the emergency key. ( ➞P. 133, 406)
⚫Starting the engine and swit ching the engine switch mode: ➞ P. 4 0 6
⚫Stopping the engine: ➞P. 1 8 5
RAIZE_OM_General_BZ358E.book 129 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1303-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E

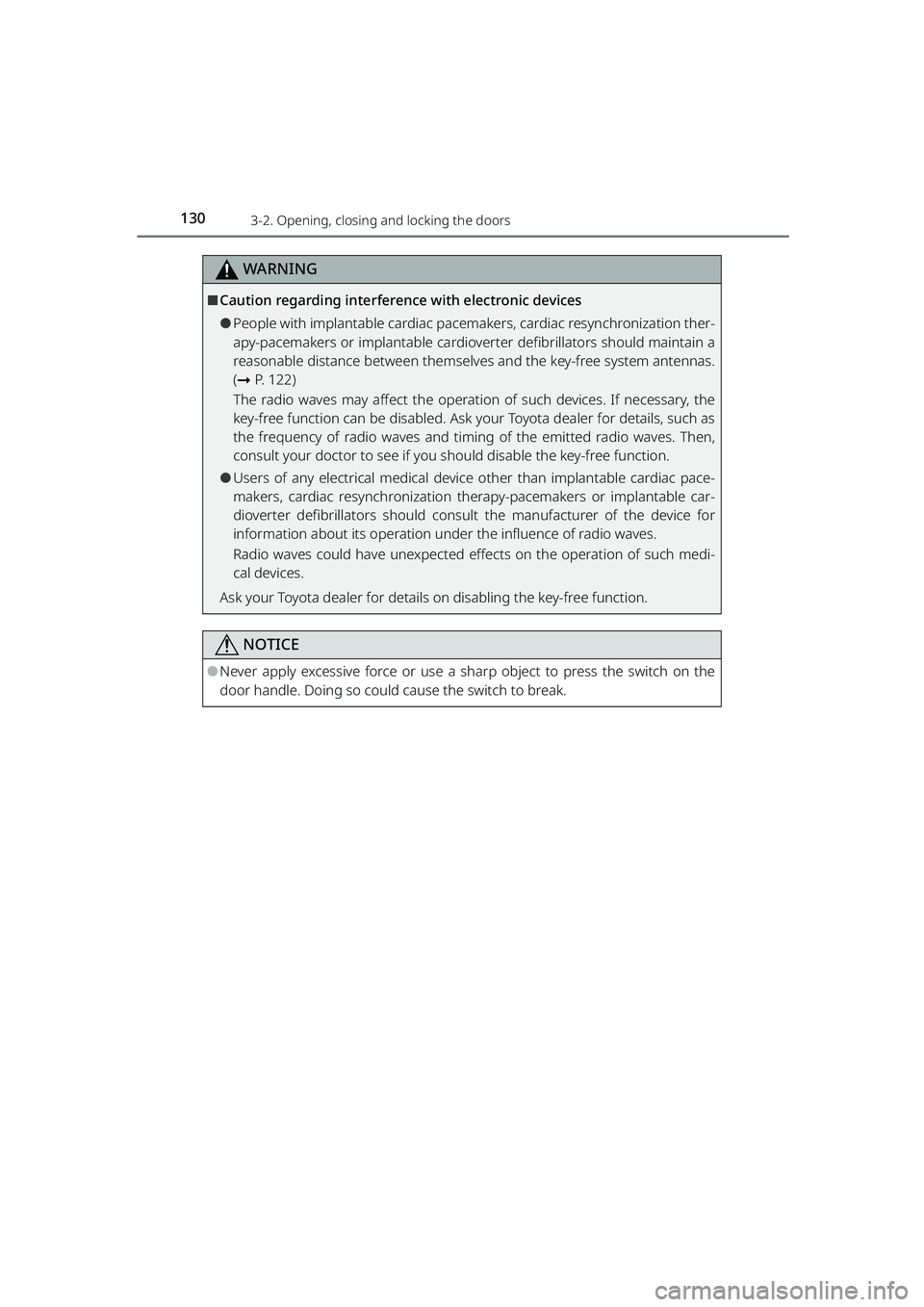

WARNING
⬛Caution regarding interference with electronic devices
⚫People with implantable cardiac pacema kers, cardiac resynchronization ther-
apy-pacemakers or implantable cardiovert er defibrillators should maintain a
reasonable distance between themselves and the key-free system antennas.
( ➞ P. 122)
The radio waves may affect the operation of such devices. If necessary, the
key-free function can be disabled. Ask your Toyota dealer for details, such as
the frequency of radio waves and timi ng of the emitted radio waves. Then,
consult your doctor to see if you should disable the key-free function.
⚫Users of any electrical medical device other than implantable cardiac pace-
makers, cardiac resynchronization ther apy-pacemakers or implantable car-
dioverter defibrillators should consult the manufacturer of the device for
information about its operation un der the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medi-
cal devices.
Ask your Toyota dealer for details on disabling the key-free function.
NOTICE
⚫Never apply excessive force or use a sh arp object to press the switch on the
door handle. Doing so could cause the switch to break.
RAIZE_OM_General_BZ358E.book 130 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1313-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E ✽
: If equipped
Operation of each component
3
Wireless remote control
Function overview
You can lock and unlock the doors.
▶Vehicles without key-free system
➞ P. 1 3 3
▶Vehicles with key-free system
➞ P. 1 3 3
⬛Signaling of the operation
The buzzer and the blinking emergency flashers will notify you of the opera-
tion. (1 time for locking and 2 times for unlocking)
⬛Customizations
The signaling of the operation can be changed.
(List of customizable features: ➞ P. 430)
(The settings can be changed from the setup screen of the multi-information
display
✽: ➞ P. 9 1 )
(The settings can be changed from the setup screen of the TFT color multi-
information display
✽: ➞ P. 104)
⬛Security features for unlocking operation
➞ P. 1 3 9
⬛Situations where the function may not work properly
▶Vehicles without key-free system
In the following cases, the wireless remote control may not work as intended.
⚫When the wireless key’s battery is low
⚫When you are in an area with strong radio waves or noise present, such as
near TV towers, power plants, gas stat ions, broadcast stations, large display,
airports, and so on
⚫When you have a wireless communication device such as a radio, mobile
phone, and cordless telephone with you
⚫If the wireless remote control touches or is covered by a metal object
⚫When a wireless key (that emits radio waves) is in use near by
⚫When a metal-containing film is pasted on the rear window
▶Vehicles with key-free system
➞ P. 1 2 5
RAIZE_OM_General_BZ358E.book 131 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1323-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
⬛When the wireless remote control does not work normally
▶Vehicles without key-free system
Locking and unlocking the doors ➞P. 1 3 4
▶Vehicles with key-free system
Locking and unlocking the doors ➞P. 4 0 6
⬛Low battery
▶Vehicles without key-free system
⚫The standard battery life is between 1 and 2 years.
⚫The battery still depletes without using the wireless remote control.
If you encounter any of the following situations, the key may be running out
of battery. Replace it with a new battery.
⦁ The wireless remote control does not work
⦁ The operating range has become narrower
▶Vehicles with key-free system
➞ P. 1 2 8
⬛Running out of the battery
➞P. 3 4 4
RAIZE_OM_General_BZ358E.book 132 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1333-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E ✽
: If equipped
Operation of each component
3

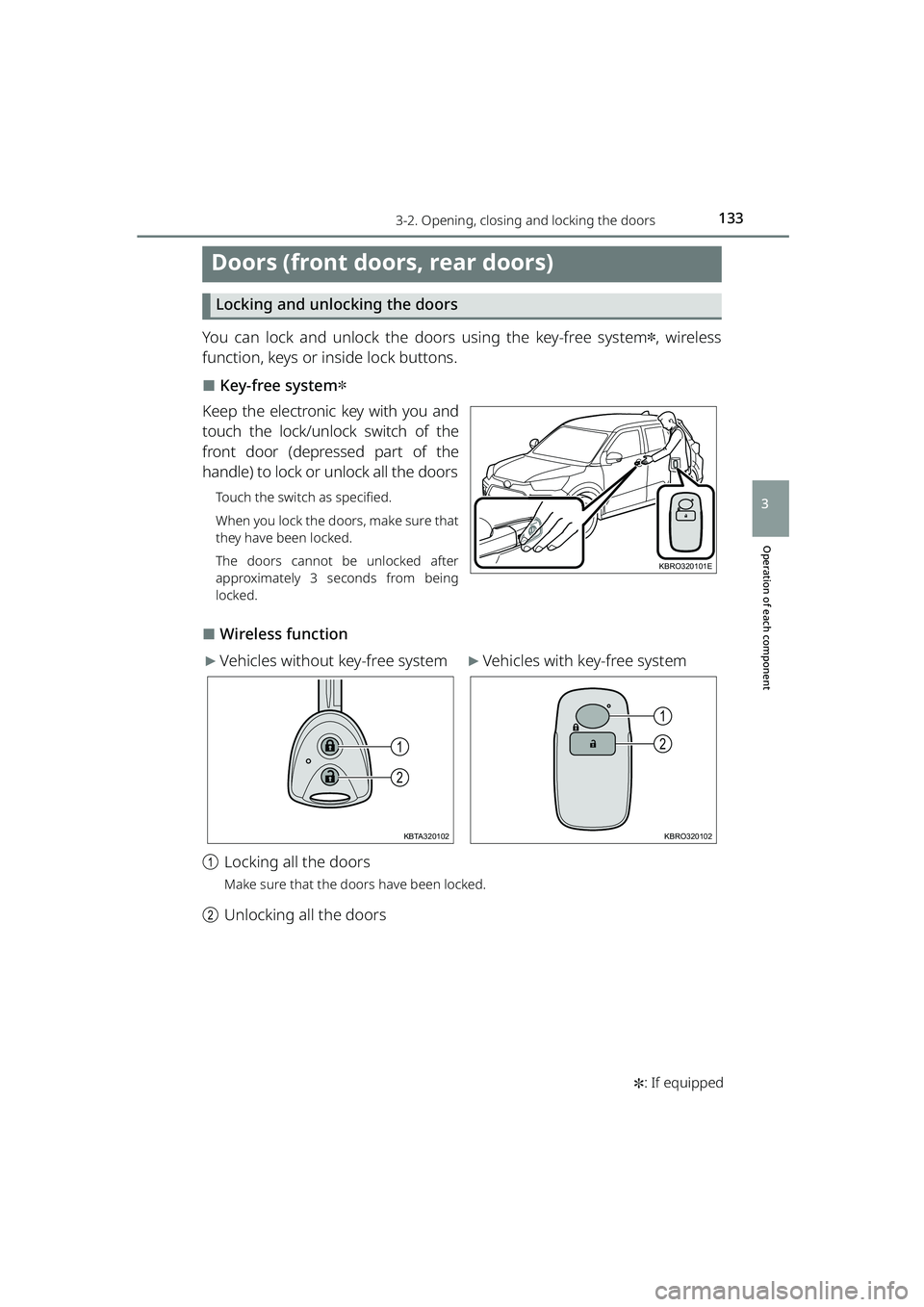

Doors (front doors, rear doors)
Locking and unloc king the doors
You can lock and unlock the doors using the key-free system✽, wireless
function, keys or inside lock buttons.
⬛Key-free system✽
Keep the electronic key with you and
touch the lock/unlock switch of the
front door (depressed part of the
handle) to lock or unlock all the doors
Touch the switch as specified.
When you lock the doors, make sure that
they have been locked.
The doors cannot be unlocked after
approximately 3 seconds from being
locked.
⬛Wireless function
▶Vehicles without key-free system▶Vehicles with key-free system
a Locking all the doors
Make sure that the doors have been locked.
bUnlocking all the doors
KBRO320101E
1
2
KBTA320102
1
2
KBRO320102
RAIZE_OM_General_BZ358E.book 133 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1343-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E

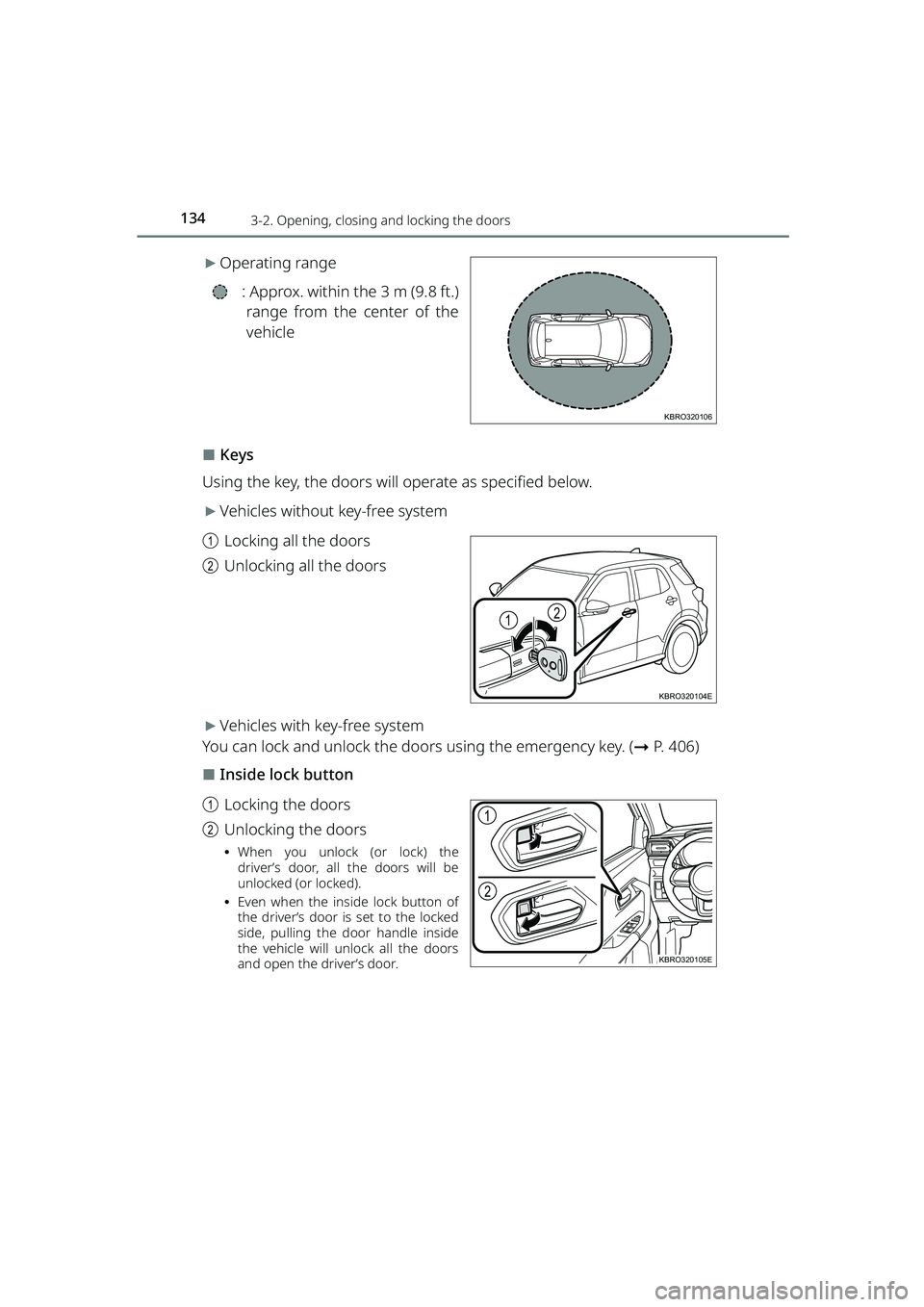

▶Operating range
: Approx. within the 3 m (9.8 ft.)range from the center of the
vehicle
⬛Keys
Using the key, the doors will operate as specified below.
▶Vehicles without key-free system
a Locking all the doors
b Unlocking all the doors
▶Vehicles with key-free system
You can lock and unlock the doors using the emergency key. ( ➞P. 406)
⬛Inside lock button
a Locking the doors
b Unlocking the doors
⦁When you unlock (or lock) the
driver’s door, all the doors will be
unlocked (or locked).
⦁ Even when the inside lock button of
the driver’s door is set to the locked
side, pulling the door handle inside
the vehicle will unlock all the doors
and open the driver’s door.
KBRO320106
12
KBRO320104E
1
2
KBRO320105E
RAIZE_OM_General_BZ358E.book 134 ページ ２０２２年５月１７日　火曜日　午後１時５９分
