Page 345 of 516

3436-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

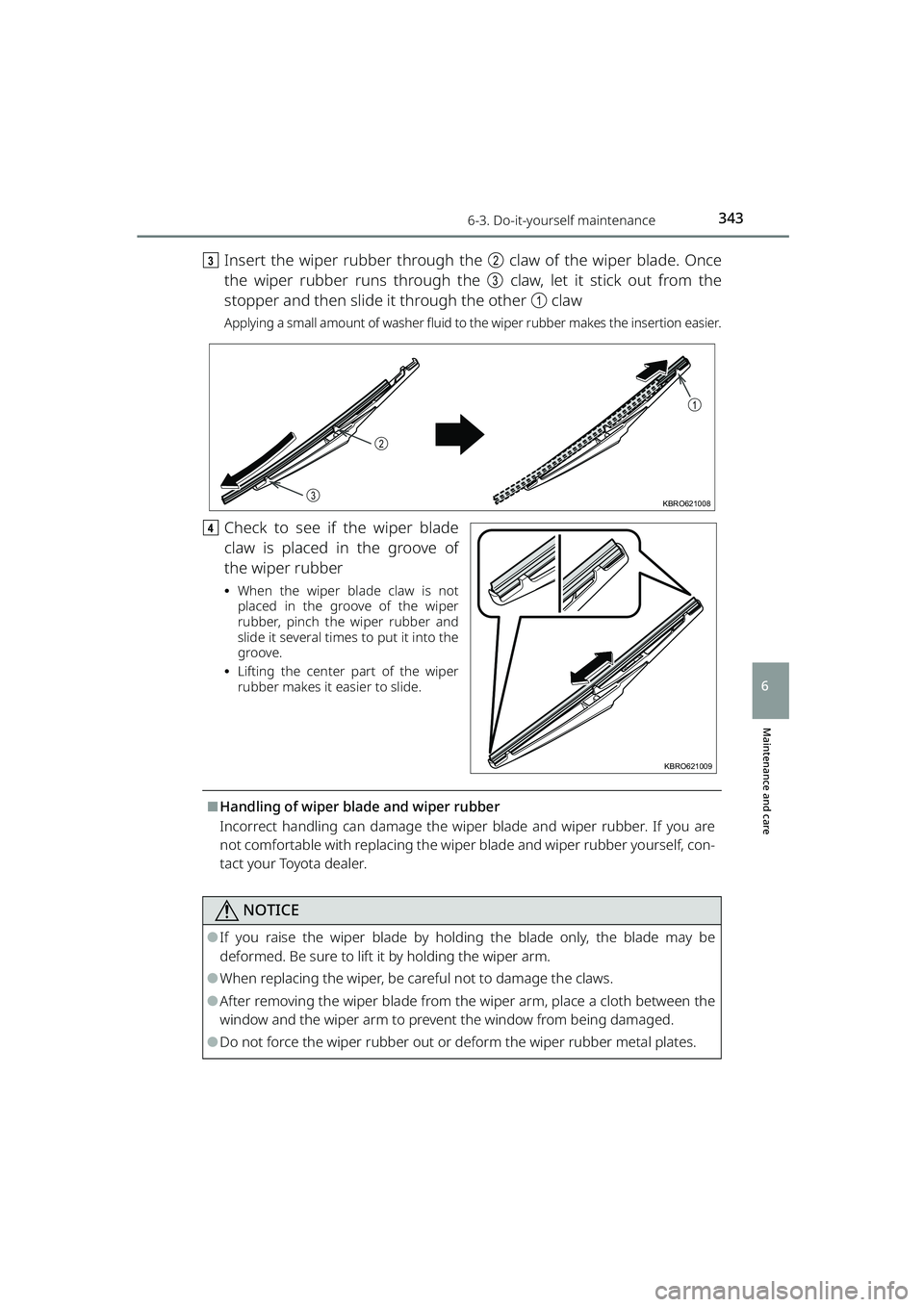

cInsert the wiper rubber through the b claw of the wiper blade. Once
the wiper rubber runs through the c claw, let it stick out from the
stopper and then slide it through the other a claw
Applying a small amount of washer fluid to the wiper rubber makes the insertion easier.
dCheck to see if the wiper blade
claw is placed in the groove of
the wiper rubber
⦁When the wiper blade claw is not
placed in the groove of the wiper
rubber, pinch the wiper rubber and
slide it several times to put it into the
groove.
⦁ Lifting the center part of the wiper
rubber makes it easier to slide.
⬛Handling of wiper blade and wiper rubber
Incorrect handling can damage the wiper blade and wiper rubber. If you are
not comfortable with replacing the wipe r blade and wiper rubber yourself, con-
tact your Toyota dealer.
NOTICE
⚫If you raise the wiper blade by hold ing the blade only, the blade may be
deformed. Be sure to lift it by holding the wiper arm.
⚫When replacing the wiper, be careful not to damage the claws.
⚫After removing the wiper blade from th e wiper arm, place a cloth between the
window and the wiper arm to prevent the window from being damaged.
⚫Do not force the wiper rubber out or deform the wiper rubber metal plates.
KBRO621008
a
c
b
KBRO621009
RAIZE_OM_General_BZ358E.book 343 ページ 2022年5月17日 火曜日 午後1時59分
Page 346 of 516
3446-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E

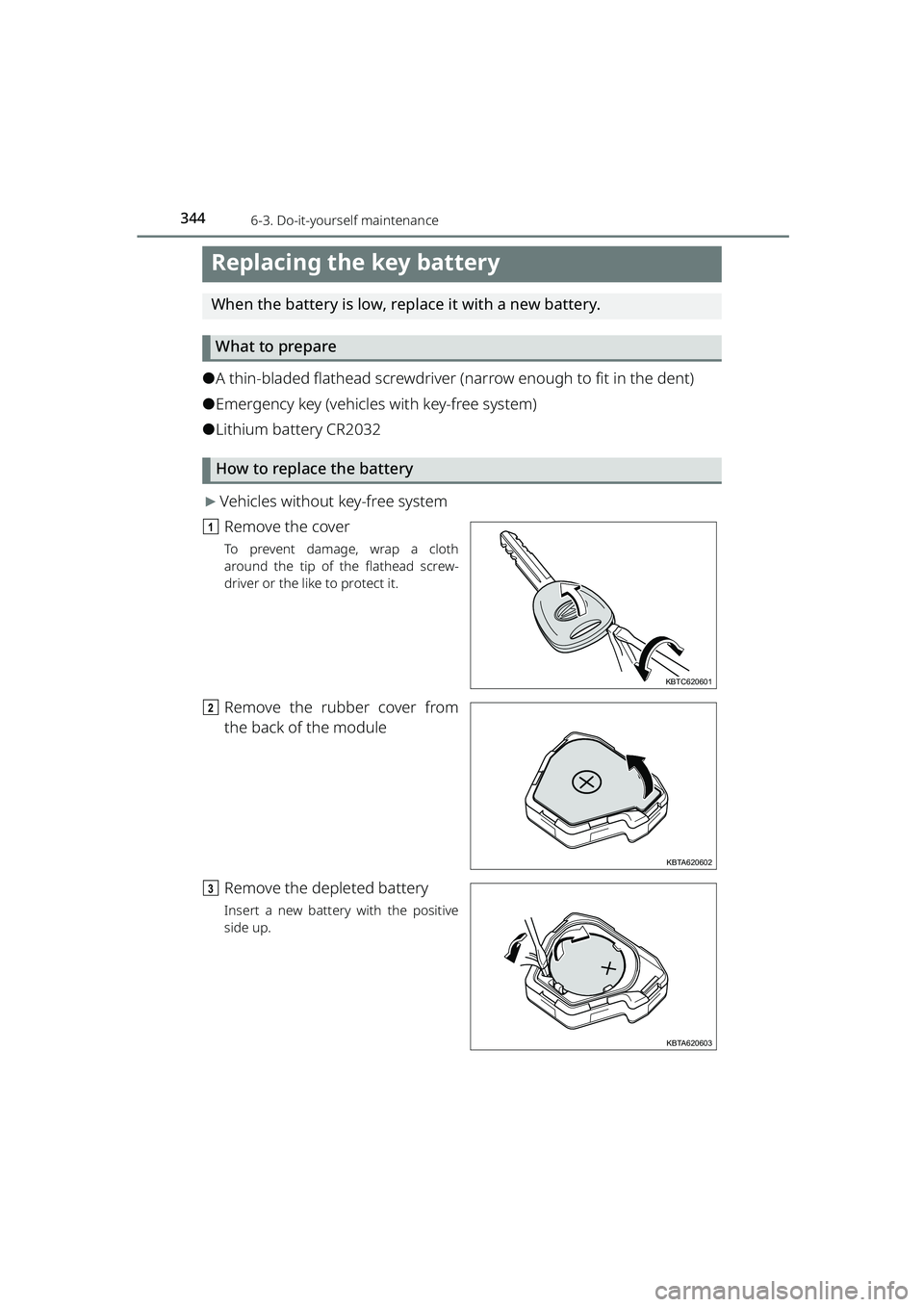

Replacing the key battery
When the battery is low, replace it with a new battery.What to prepare
⚫A thin-bladed flathead screwdriver (narrow enough to fit in the dent)
⚫Emergency key (vehicles with key-free system)
⚫Lithium battery CR2032
How to replace the battery
▶Vehicles without key-free system
a Remove the cover
To prevent damage, wrap a cloth
around the tip of the flathead screw-
driver or the like to protect it.
bRemove the rubber cover from
the back of the module
c Remove the depleted battery
Insert a new battery with the positive
side up.
KBTC620601
KBTA620602
KBTA620603
RAIZE_OM_General_BZ358E.book 344 ページ 2022年5月17日 火曜日 午後1時59分
Page 347 of 516

3456-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

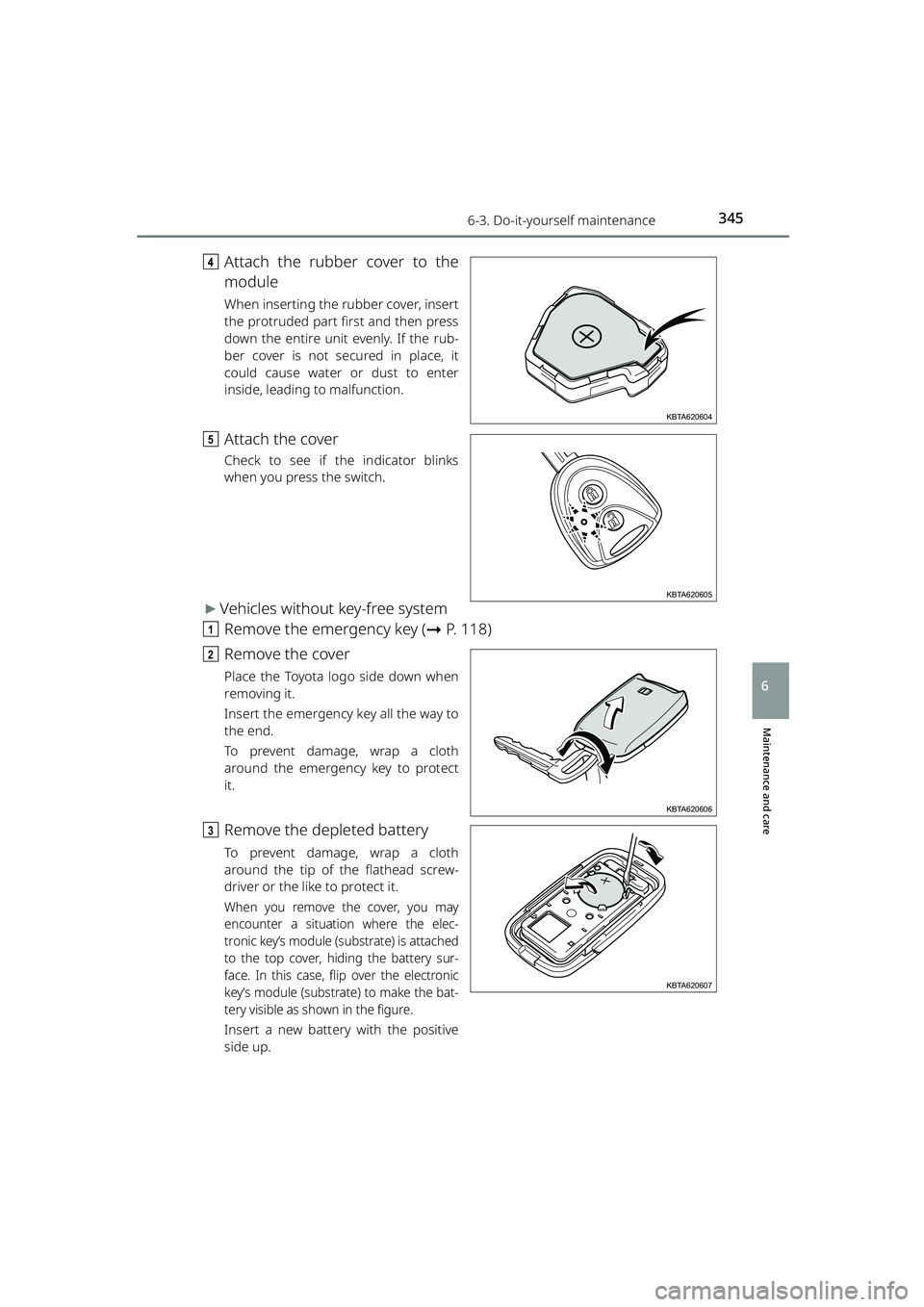

dAttach the rubber cover to the
module
When inserting the rubber cover, insert
the protruded part first and then press
down the entire unit evenly. If the rub-
ber cover is not secured in place, it
could cause water or dust to enter
inside, leading to malfunction.
eAttach the cover
Check to see if the indicator blinks
when you press the switch.
▶Vehicles without key-free system
a Remove the emergency key ( ➞P. 118)
b Remove the cover
Place the Toyota logo side down when
removing it.
Insert the emergency key all the way to
the end.
To prevent damage, wrap a cloth
around the emergency key to protect
it.
cRemove the depleted battery
To prevent damage, wrap a cloth
around the tip of the flathead screw-
driver or the like to protect it.
When you remove the cover, you may
encounter a situation where the elec-
tronic key’s module (s ubstrate) is attached
to the top cover, hiding the battery sur-
face. In this case, flip over the electronic
key’s module (substrate) to make the bat-
tery visible as shown in the figure.
Insert a new battery with the positive
side up.
KBTA620604
KBTA620605
KBTA620606
KBTA620607
RAIZE_OM_General_BZ358E.book 345 ページ 2022年5月17日 火曜日 午後1時59分
Page 348 of 516

3466-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E✽
: If equipped
d Attach the cover
Check to see if the indicator blinks
when you press the switch
⬛Replacing the battery
Incorrect handling could damage the key. If you are not comfortable with
replacing the battery yourself, contact your Toyota dealer.
⬛When the components of the electronic key✽ get separated
See the figure below and assemble them.
When you assemble, keep the pr otruded part to face down.
⬛Use a CR2032 lithium battery
⚫Batteries can be purchased at your Toyo ta dealer, local electrical appliance
shops or camera stores.
⚫Replace only with the same or equivalent type recommended by the manufacturer.
⚫Dispose of used batteries according to local laws.
⬛When the battery of the electronic key✽ is low
You will experience the following:
⚫The key-free system or wireless remote control will not start
⚫The activation range becomes short
⚫The indicators do not flash
KBRO620604
KBRO620605
Protruded part
Maintenance.fm 346 ページ 2022年6月17日 金曜日 午前9時6分
Page 349 of 516

3476-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E✽
: If equipped
Maintenance and care
6
WARNING
⬛Battery precautions
Observe the following precautions.
Failure to do so may result in death or serious injury.
⚫Do not swallow the battery. Doing so may cause chemical burns.
⚫A coin battery or button battery is used in the wireless remote control✽ or
the electronic key
✽. If a battery is swallowed, it may cause severe chemical
burns in as little as 2 hours and may result in death or serious injury.
⚫Keep away new and removed batteries from children.
⚫If the cover cannot be firmly closed, st op using the wireless remote control✽
or the electronic key✽ and stow the key in the place where children cannot
reach, and then contact your Toyota dealer.
⚫If you accidentally swallow a battery or put a battery into a part of your body,
get emergency medical attention immediately.
⬛To prevent battery explosion or leakage of flammable liquid or gas
⚫Replace the battery with a new battery of the same type. If a wrong type of
battery is used, it may explode.
⚫Do not expose batteries to extremely low pressure due to high altitude or
extremely high temperatures.
⚫Do not burn, break or cut a battery.
NOTICE
⬛Important points when replacing the batteries
Before you replace the battery, make sure to discharge static electricity from
your body and clothing. Static electricity could damage the key. To discharge
static electricity, prepare items that can remove static electricity in advance or
touch metal parts with your hands.
⬛To make it function properly after the replacement
Observe the following precautions.
⚫Never replace the batte ry with wet hands
Doing so could cause rusting.
⚫Do not touch or move the parts except the battery
⚫Do not bend the electrodes
RAIZE_OM_General_BZ358E.book 347 ページ 2022年5月17日 火曜日 午後1時59分
Page 350 of 516
3486-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Checking and replacing fuses
If a light or the electrical system does not operate, a fuse may have
blown. Check the fuse.
a Turn the engine switch to “OFF”
b Open the fuse box
▶Engine compartment
While pressing down the claw, lift
the cover
▶Instrument panel
For right-hand drive vehicles,
remove the glove box in the leg-
room of the passenger's seat
a Push the left side inward and
disengage the upper claw
b Push the right side inward
and disengage the upper claw
c Disengage the lower claws
For left-hand drive vehicles, dis-
engage the claws at 8 locations
and remove the lower cover in
the legroom of the driver's seat
KBRO620702N
1
3
2
KBRO620703N
KBRO620704E
RAIZE_OM_General_BZ358E.book 348 ページ 2022年5月17日 火曜日 午後1時59分
Page 351 of 516
3496-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
If the fuse box has a cover,
remove the cover
c Remove the fuse removal tool
▶Engine compartment
Remove the fuse removal tool
from the inner side of the cover
▶Instrument panel
Remove the fuse removal tool
from the fuse box
d Remove the fuse by pinching it
with the fuse removal tool
KBRO620705E
KBRO620706E
KBTA620704
KBTA620706
RAIZE_OM_General_BZ358E.book 349 ページ 2022年5月17日 火曜日 午後1時59分
Page 352 of 516

3506-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
eCheck if the fuse is blown.
aNormal fuse
b Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
▶Type A▶Type B
f To install, reverse the removal procedure
⬛After a fuse is replaced
⚫If the lights do not turn on even afte r the fuse has been replaced, replace the
bulb. ( ➞P. 352)
⚫If the replaced fuse blows again, or if the electrical system does not work,
have the vehicle inspected by your Toyota dealer.
⬛If there is an overload in a circuit
The fuses are designed to blow, protec ting the wiring harness from damage.
⬛When replacing light bulbs
We recommend that you use genuine Toyota products designated for this
vehicle. Because certain bulbs are connect ed to circuits designed to prevent
overload, products other than the Toyo ta genuine parts designated for this
vehicle may be unusable.
KBTE731003KBTE731004
RAIZE_OM_General_BZ358E.book 350 ページ 2022年5月17日 火曜日 午後1時59分
