2023 TOYOTA RAIZE Owners Manual

1433-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3
Closing the back door

Hold the back door inner handle to
lower the back door
Make sure to close it from the outside by
pushing it down.

⬛Luggage compartment light (door-linked) The luggage compartment light
(door-linked) will light up when the
back door or any door other than the
back door is opened.
When the engine switch is “ACC” or
“OFF”, the light will automatically turn
off approximately after 10 minutes.

⬛Unlocking the back door
If the back door cannot be opened by unlocking with the back door opener
switch, check to see if the b ack door is slightly open.
⬛Open door warning buzzer
➞P. 381, 390
⬛Customizations
You can customize the operations performed by the back door switch.
(List of customizable features: ➞ P. 430)
KBRO320203N
KBRO530105N
Parts.fm 143 ページ ２０２２年６月１７日　金曜日　午前９時２分

1443-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
✽: If equipped

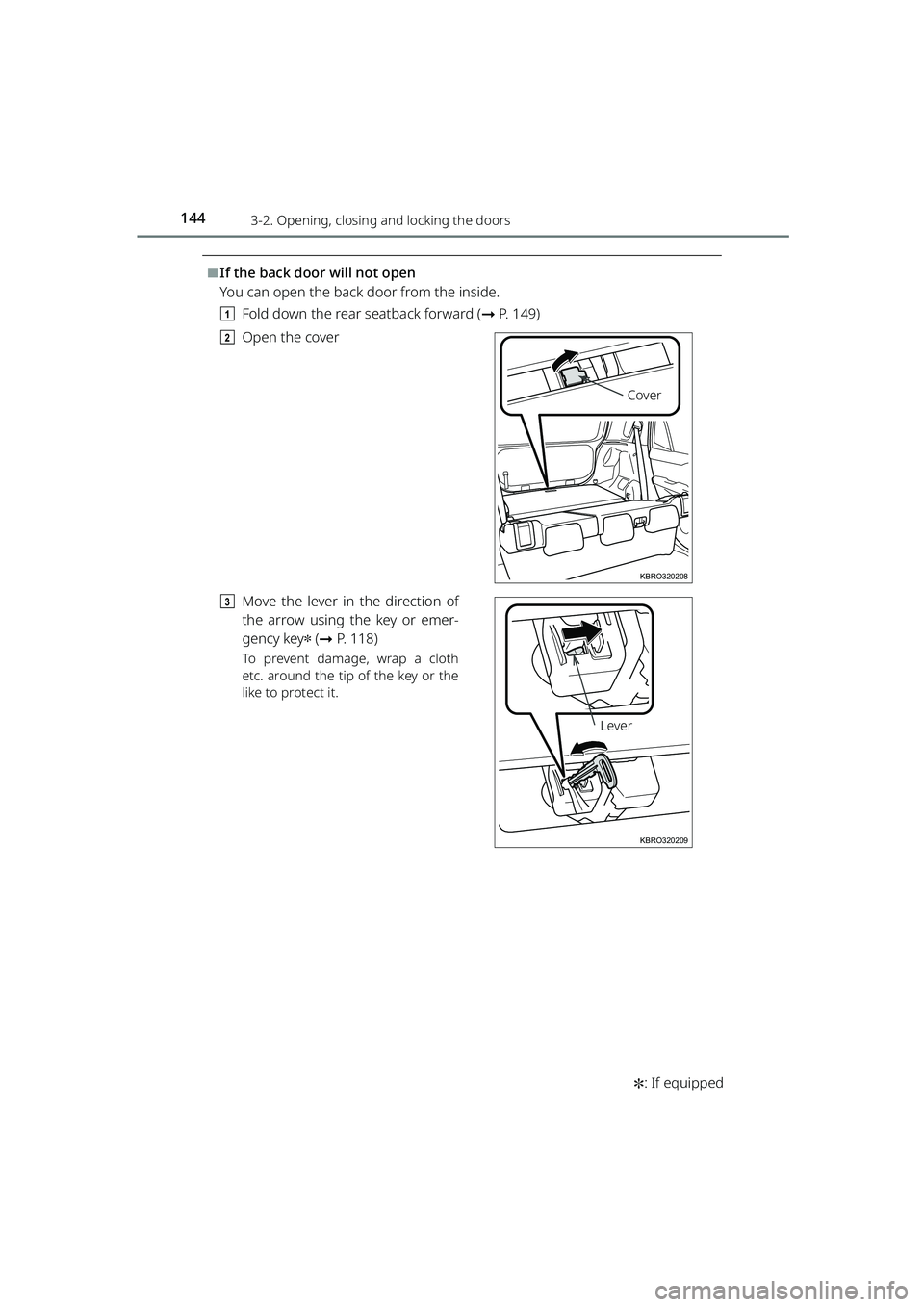

⬛If the back door will not open
You can open the back door from the inside.
a Fold down the rear seatback forward ( ➞P. 149)
b Open the cover
c Move the lever in the direction of
the arrow using the key or emer-
gency key
✽ (➞ P. 118)
To prevent damage, wrap a cloth
etc. around the tip of the key or the
like to protect it.
KBRO320208
Cover
KBRO320209
Lever
RAIZE_OM_General_BZ358E.book 144 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1453-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3

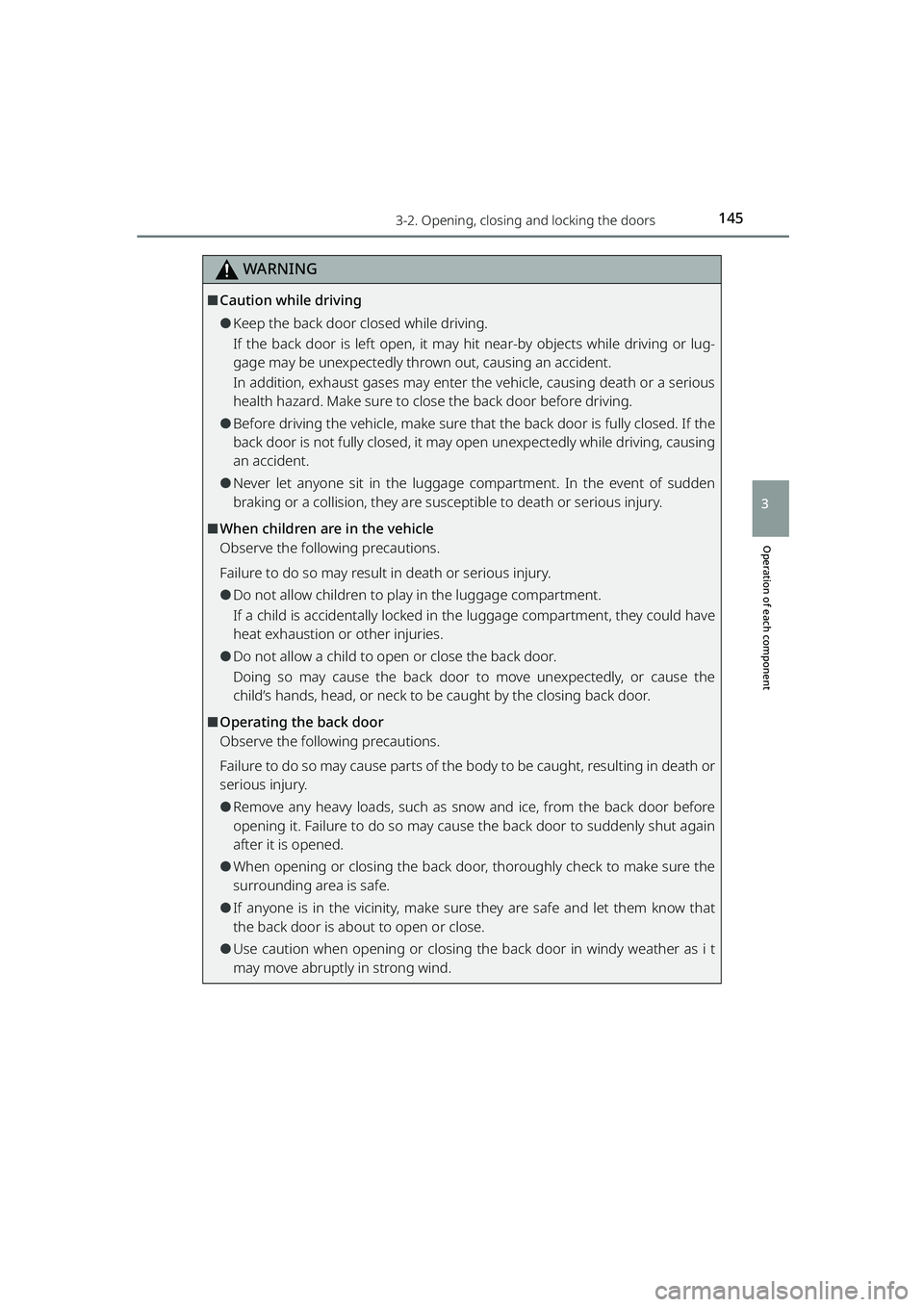

WARNING
⬛Caution while driving
⚫Keep the back door closed while driving.
If the back door is left open, it ma y hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter th e vehicle, causing death or a serious
health hazard. Make sure to close the back door before driving.
⚫Before driving the vehicle, make sure that the back door is fully closed. If the
back door is not fully closed, it ma y open unexpectedly while driving, causing
an accident.
⚫Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
⬛When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
⚫Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could have
heat exhaustion or other injuries.
⚫Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
⬛Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death or
serious injury.
⚫Remove any heavy loads, such as snow and ice, from the back door before
opening it. Failure to do so may cause the back door to suddenly shut again
after it is opened.
⚫When opening or closing the back door, thoroughly check to make sure the
surrounding area is safe.
⚫If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
⚫Use caution when opening or closing the back door in windy weather as i t
may move abruptly in strong wind.
RAIZE_OM_General_BZ358E.book 145 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1463-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
WARNING
⚫The back door may suddenly shut if
it is not opened fully. It is more diffi-
cult to open or close the back door
on an incline than on a level sur-
face, so beware of the back door
unexpectedly opening or closing by
itself. Make sure that the back door
is fully open and secure before
using the luggage compartment.
⚫When closing the back door, take
extra care to prevent your fingers,
etc., from being caught.
⚫When closing the back door, make
sure to press it lightly on its outer
surface. If the edge of the door is
held when fully closing the back
door, it may result in hands or arms
being caught.
⚫Do not pull on the back door damper stay to close the back door, and do not
hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
⚫If a bicycle carrier or similar heavy object is attached to the back door, it may
suddenly shut again after being open ed, causing someone’s hands, head or
neck to be caught and injured. When in stalling an accessory part to the back
door, using a genuine Toyo ta part is recommended.
KBRO320204
KBRO320205
RAIZE_OM_General_BZ358E.book 146 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1473-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3

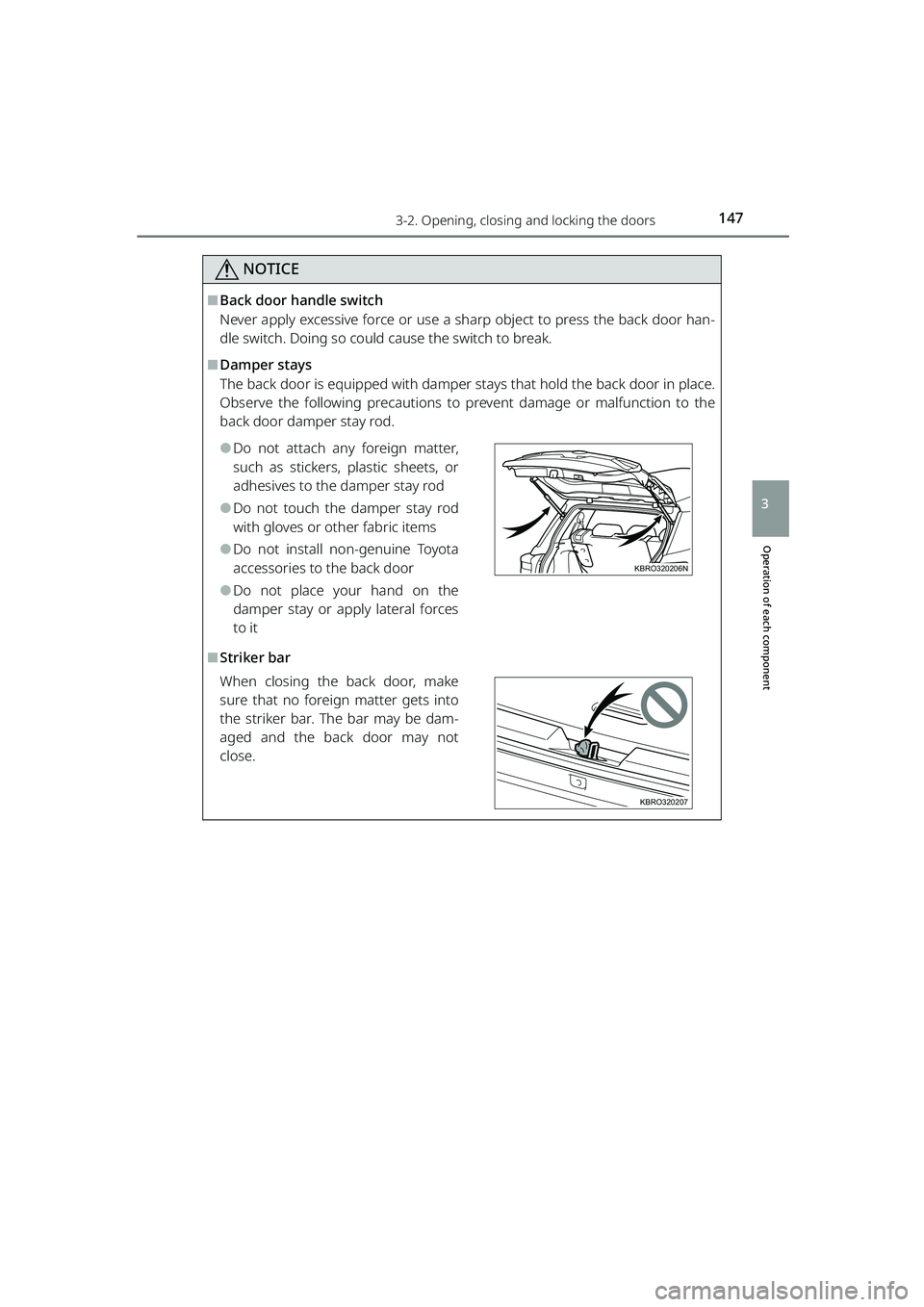

NOTICE
⬛Back door handle switch
Never apply excessive force or use a sharp object to press the back door han-
dle switch. Doing so could cause the switch to break.
⬛Damper stays
The back door is equipped with damper st ays that hold the back door in place.
Observe the following precautions to pr event damage or malfunction to the
back door damper stay rod.
⚫Do not attach any foreign matter,
such as stickers, plastic sheets, or
adhesives to the damper stay rod
⚫Do not touch the damper stay rod
with gloves or other fabric items
⚫Do not install non-genuine Toyota
accessories to the back door
⚫Do not place your hand on the
damper stay or apply lateral forces
to it
⬛Striker bar
When closing the back door, make
sure that no foreign matter gets into
the striker bar. The bar may be dam-
aged and the back door may not
close.
KBRO320206N
KBRO320207
RAIZE_OM_General_BZ358E.book 147 ページ ２０２２年５月１７日　火曜日　午後１時５９分

148
RAIZE_OM_General_BZ358E✽
: If equipped
3-3. Adjusting the seats
Front seats
Adjustment procedure
a Front/rear position adjustment
b Reclining adjustment
c Overall seat height adjustment
(driver’s seat only)
✽
WARNING
⬛When adjusting the seat
⚫Take care when adjusting the seat posi tion to ensure that other passengers
are not injured by the moving seat.
⚫Do not put your hands under the seat or near the moving parts to avoid serious injury.
Fingers or hands may become ja mmed in the seat mechanism.
⚫Provide sufficient legroom and be careful not to get your feet caught.
⬛Reclining adjustment
⚫Be sure support the seatback with your hands when operating the seatback.
The seatback may fall back suddenly.
⚫Do not apply excessive force to the seatback. If a strong force is applied to
the seatback, it may suddenly fall back and cause injury.
⚫Do not recline the seatback more than necessary.
If the seat is too reclined, the seat belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the shoulder
belt, increasing the risk of death or serious injury in the event of an accident.
⚫After adjusting the seat, make sure th at the seat is locked in position.
1
2
3
KBRO330101E
RAIZE_OM_General_BZ358E.book 148 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1493-3. Adjusting the seats
RAIZE_OM_General_BZ358E
Operation of each component
3

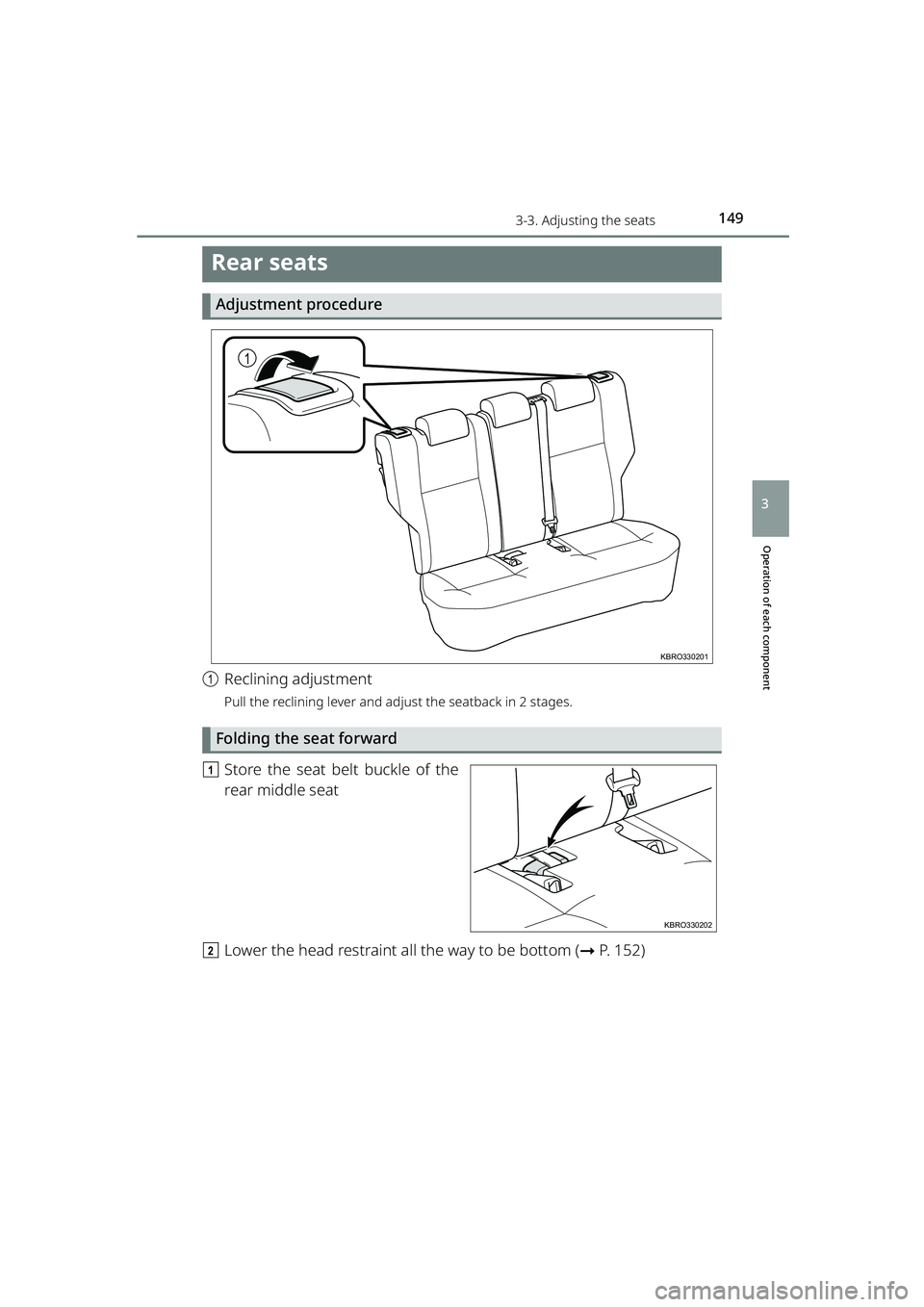

Rear seats
Adjustment procedure
aReclining adjustment
Pull the reclining lever and adjust the seatback in 2 stages.
Folding the seat forward
aStore the seat belt buckle of the
rear middle seat
b Lower the head restraint all the way to be bottom ( ➞P. 152)
1
KBRO330201
KBRO330202
RAIZE_OM_General_BZ358E.book 149 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1503-3. Adjusting the seats
RAIZE_OM_General_BZ358E
cWhile pulling the reclining lever,
bend the seatback forward
Pull the lever until the lock is fully
released.
dTo return the seatback to its original position, perform the steps in the
reverse order
WARNING
Observe the following precautions.
Failure to do so may cause death or serious injury.
⬛Seat adjustments
⚫Be careful not to hit the passengers or luggage with the seat.
⚫Be sure support the seatback with your hands when operating the seatback.
The seatback may fall back suddenly.
⚫Do not apply excessive force to the seatback. If a strong force is applied to
the seatback, it may suddenly fall back and cause injury.
⚫When someone sits in the rear middle se at, make sure to adjust the seatback
angle of the rear seats on both sides.
Failure to maintain the correct posture co uld result in serious injury or death
in the event of an accident.
⚫After adjusting the seat, make sure that the seat is secured in place.
⬛When folding the seatback forward
⚫Do not operate the rear seats while driving
⚫Make sure that the parking brake is ap plied on a flat area and set the shift
lever to P (for continuously variable transmission vehicles) or N (manual
transmission vehicles)
⚫When adjusting the seat, be careful not to get your hands or feet caught in
the movable parts or coupling parts
⚫Do not allow anyone sit on a folded seat back or ride in the luggage compart-
ment while driving
⚫Be careful not to let a child enter the luggage compartment
KBRO330203
